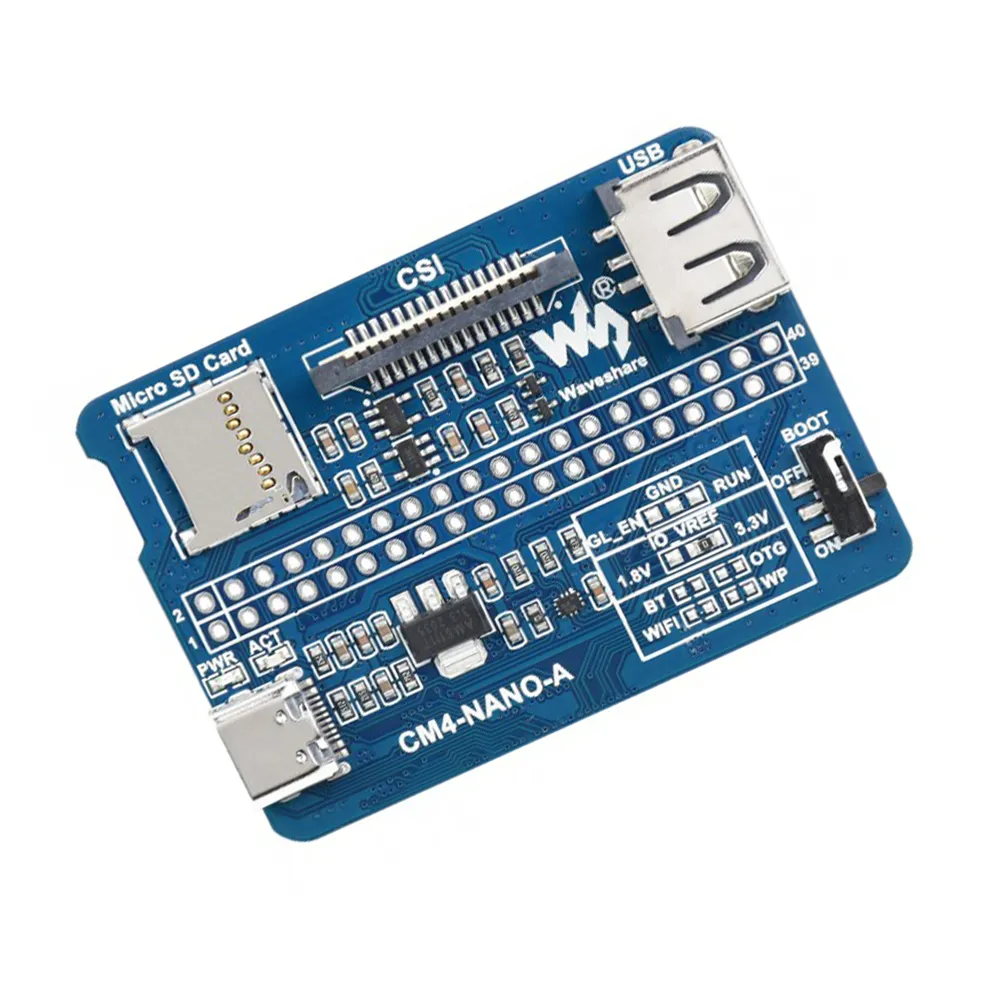

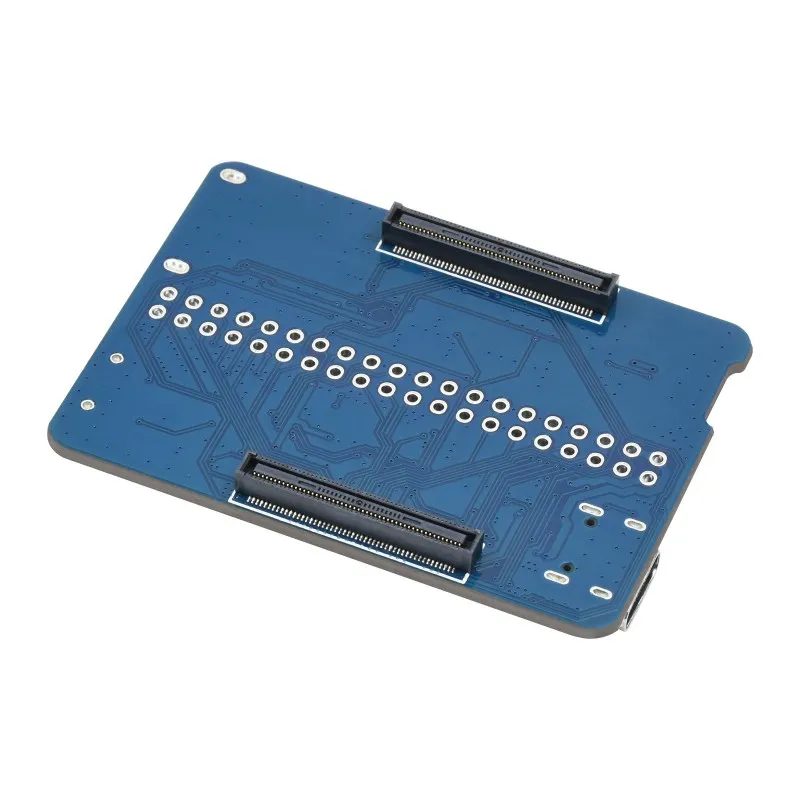

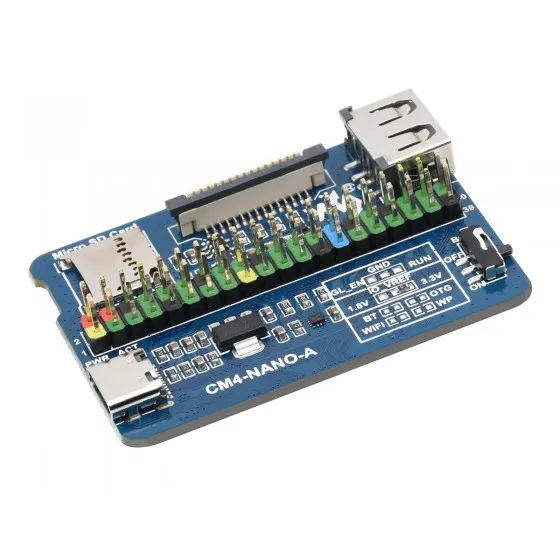

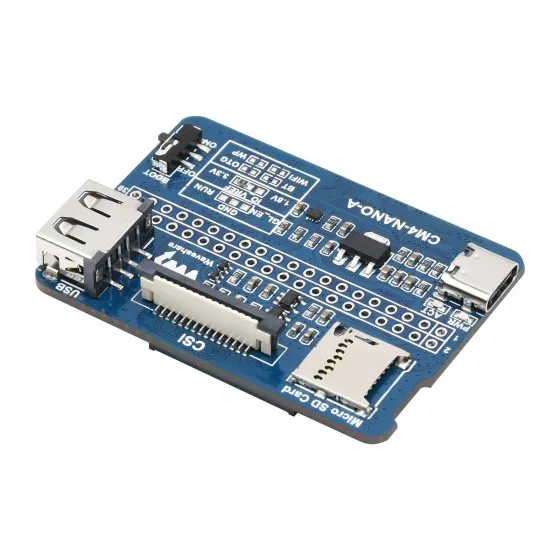

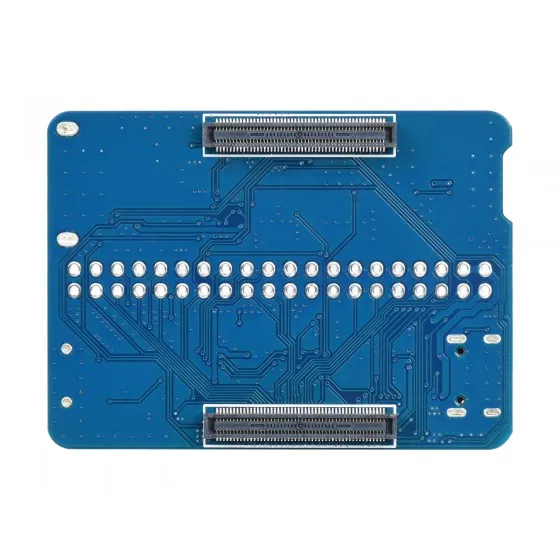

Waveshare Nano Base Board (A) for Raspberry Pi CM4
This Waveshare Nano Base Board (A) provides essential connectivity for the Raspberry Pi Compute Module 4, offering a compact carrier solution for integrating the CM4 into custom projects. It includes a 40-pin GPIO, USB 2.0, CSI camera port, and a Micro SD slot, making it ideal for CM4 Lite variants.
Features
- Compact form factor, same size as the Raspberry Pi Compute Module 4.
- Provides essential I/O including a 40-pin GPIO header, USB 2.0 port, and MIPI CSI-2 camera interface.
- Integrated Micro SD card socket supports Compute Module 4 Lite (without eMMC) variants.
- Designed for both CM4 development and integration into compact embedded systems.
Out of stock
The Waveshare Nano Base Board (A) serves as a vital carrier board for the Raspberry Pi Compute Module 4 (CM4), transforming the stripped-down, port-less CM4 into a usable development and embedded system. While the CM4 shares the processing power of a Raspberry Pi 4, it lacks integrated peripherals, necessitating a carrier board like this for functionality.
This base board is engineered to match the compact dimensions of the CM4, making it suitable for space-constrained applications. It facilitates CM4 integration by providing core interfaces such as a 40-pin GPIO, a USB 2.0 Type-A port, and a MIPI CSI-2 camera connector. Additionally, it features a Micro SD card socket, specifically supporting CM4 Lite versions that do not include onboard eMMC storage, ensuring broad compatibility for various project requirements.
Additional Information
| Weight | 0.011 kg |
|---|---|
| Dimensions | 5.5 × 4 cm |
