Waveshare LTR390-UV Digital Ultraviolet Sensor Module - I2C Interface, 3.3V/5V

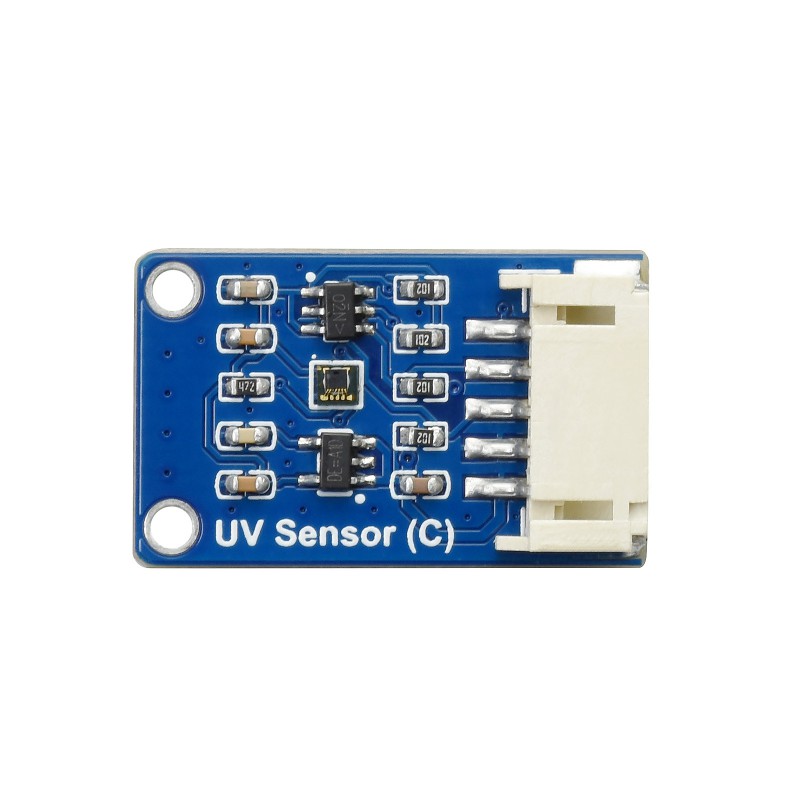

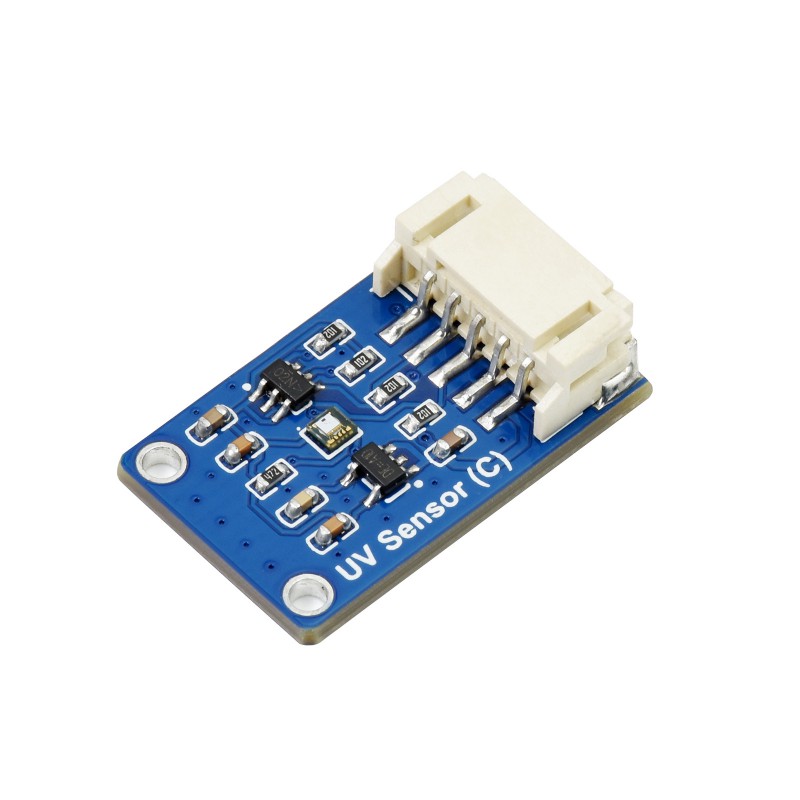

The Waveshare LTR390-UV Digital Ultraviolet Sensor Module is a compact I2C expansion board featuring the LTR390-UV-01 sensor for precise measurement of UV index and ambient visible light intensity. It is directly compatible with 3.3V/5V logic systems including Arduino, Raspberry Pi, ESP32, and STM32 platforms.
Features
- Measures UV Index (UVI) and ambient light intensity (ALS) with high sensitivity.
- Integrated 16-bit ADC provides direct digital I2C output, minimizing noise interference.
- On-board level shifter ensures compatibility with both 3.3V and 5V microcontroller systems.
- Features programmable interrupt output with configurable upper/lower thresholds.
- Compact 27mm x 20mm PCB with 2.0mm mounting holes for easy integration.
Out of stock
The module is built around the LTR390-UV-01 sensor, a digital UV and ambient light sensor (ALS) with a spectral response from 280nm to 430nm. It converts light intensity directly into digital data via its internal ADC, communicating through a fixed I2C address (0x53). This design eliminates the need for external signal conditioning and provides stable, noise-resistant readings.
Engineered for reliable operation, the board includes a level conversion circuit, making it plug-and-play ready for a wide range of development boards and industrial controllers. Its small form factor and standard mounting holes allow for straightforward installation in portable devices, environmental monitoring stations, or embedded systems requiring UV exposure data.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 3 × 2.5 × 0.1 cm |
