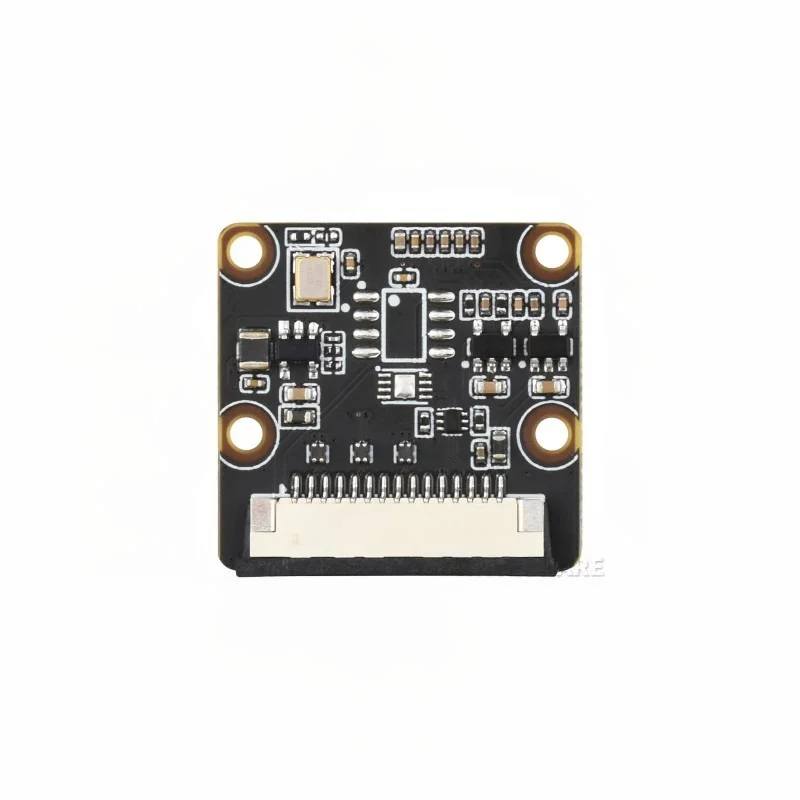

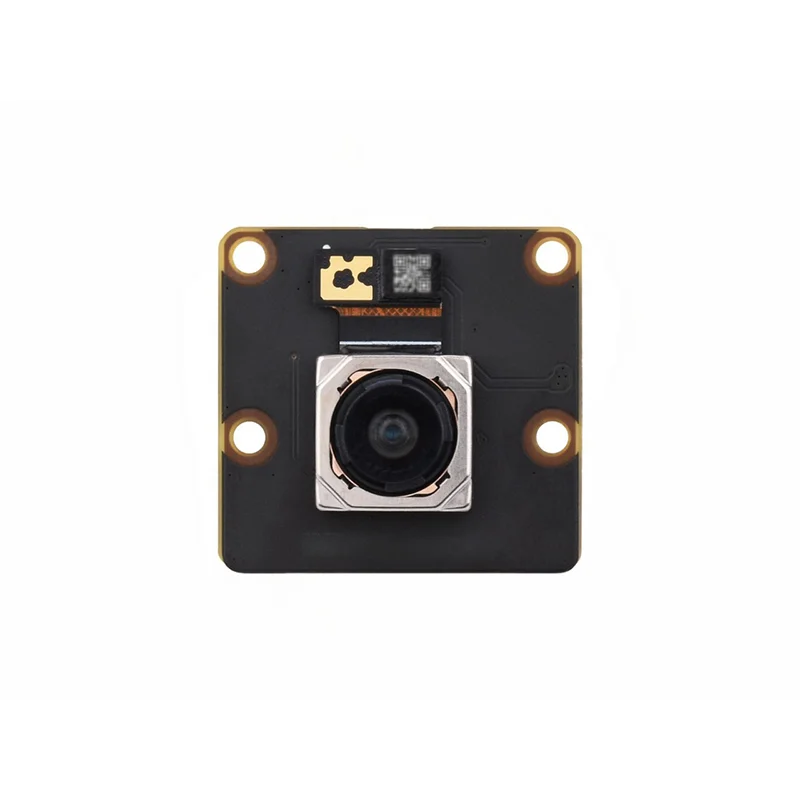

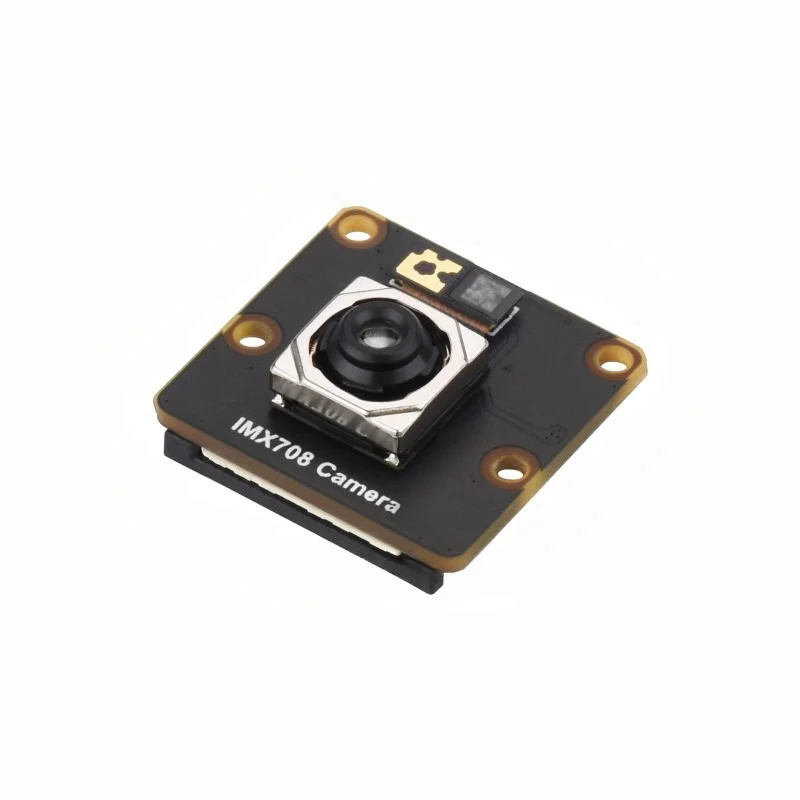

Waveshare IMX708 12MP Camera Module with 120° FOV & HDR

Yes, the Waveshare IMX708 module is compatible with Raspberry Pi 5, but you will need an additional adapter cable (not included) to connect the standard 15-pin FFC cable to the Pi 5's revised camera connector. For Raspberry Pi 3, 4, and Zero models, the included cable connects directly to the MIPI CSI-2 port. Ensure your operating system (like Raspberry Pi OS) has the appropriate camera drivers enabled via raspi-config.

The auto-focus is controlled via the I2C interface. You can use libraries like libcamera or Python scripts on the Raspberry Pi to send focus commands. The process involves initializing the sensor over I2C and sending specific register values to adjust the lens position. Detailed register maps and control sequences are typically provided in the sensor's datasheet, which should be consulted for precise implementation in your application code.

No, this specific version of the Waveshare IMX708 module does not support dedicated night vision. It lacks an infrared (IR) cut filter, which optimizes it for daylight color accuracy but reduces its performance in very low-light or IR-illuminated scenarios. For low-light imaging, consider modules specifically designed with IR sensitivity or supplementary lighting. Its HDR feature, however, helps balance exposure in challenging daytime lighting conditions.

The module operates at a standard 3.3V supply voltage, which is provided directly by the Raspberry Pi through the MIPI CSI-2 connector. The maximum operating current is approximately 200 mA. Ensure your Raspberry Pi's power supply can deliver sufficient current, especially when the camera is active alongside other peripherals. No external power circuitry is required for basic operation when connected to a supported Raspberry Pi board.
