Waveshare IMX219-160 8MP IR-CUT Camera, 162° FOV
The Waveshare IMX219-160 is an 8MP IR-CUT camera module with a 162° wide field of view, designed for embedded vision applications on NVIDIA Jetson Nano, Jetson Xavier NX, and Raspberry Pi Compute Module platforms. It features an IR-CUT filter for switching between day and night vision modes via a 3.3V GPIO signal.
Features
- 8MP IMX219 Sensor: Delivers high-resolution 3280 x 2464 imagery for detailed computer vision and AI inference tasks.
- IR-CUT Day/Night Filter: Integrated infrared filter switch enables clear daytime color imaging and enhanced low-light night vision.
- Wide 162° Field of View: Captures expansive scenes, ideal for surveillance, robotics, and environmental monitoring applications.

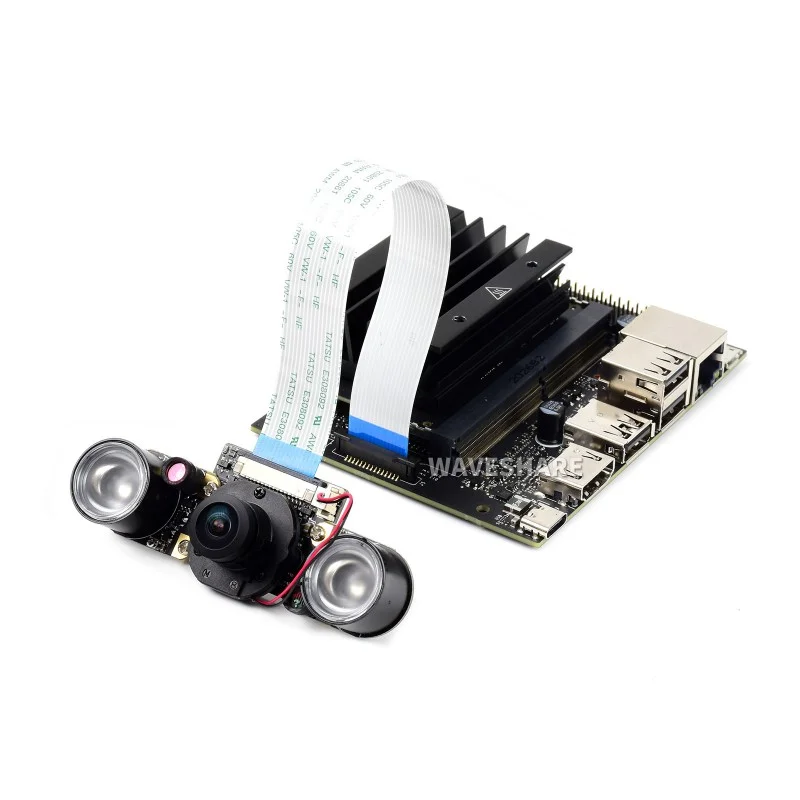

- Jetson & Compute Module Compatible: Directly interfaces with NVIDIA Jetson Nano/Xavier NX and Raspberry Pi CM3/CM3+/CM4 via standard FFC cable.
- 3.3V GPIO Control: Simple digital control for toggling IR-CUT filter mode between day (GND) and night (3.3V) vision.
Out of stock

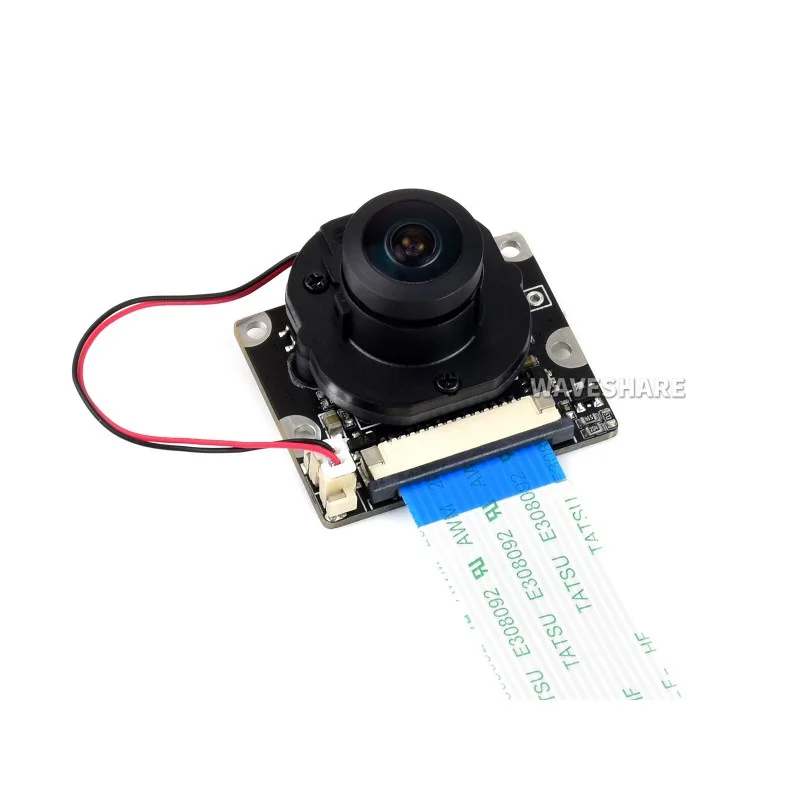

The Waveshare IMX219-160 camera module integrates a Sony IMX219 8-megapixel sensor into a compact form factor tailored for embedded AI and machine vision systems. Its 1/4-inch sensor and wide 162.4° diagonal field of view provide ample scene coverage for applications ranging from facial recognition to autonomous navigation.

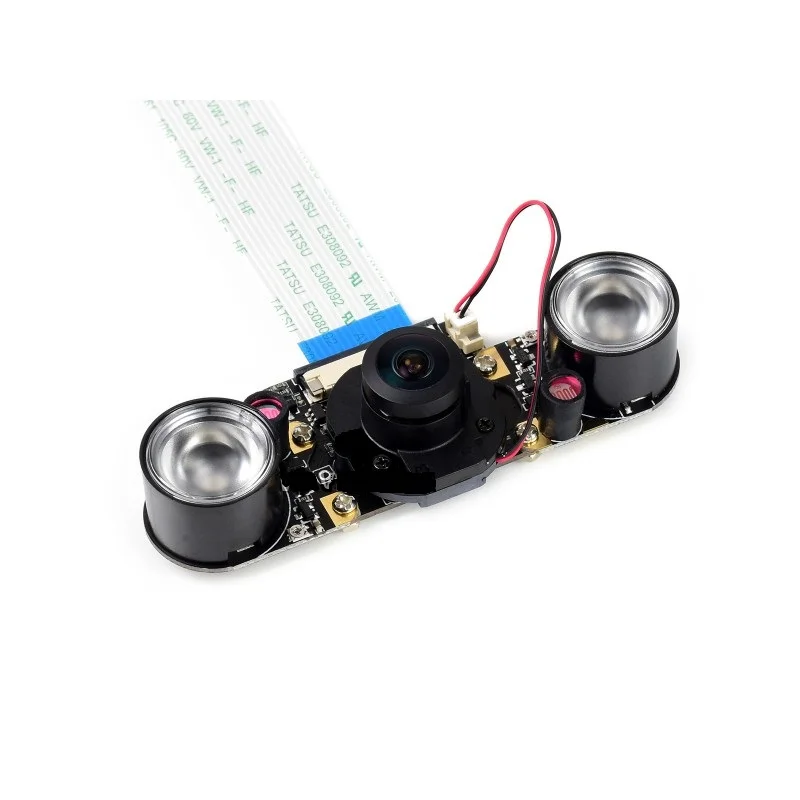

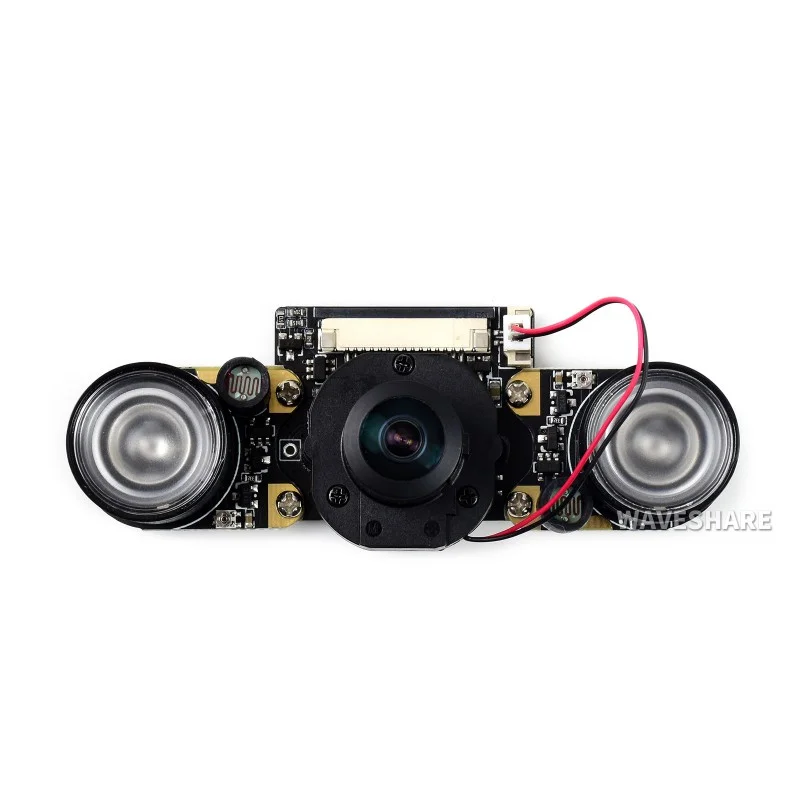

Key to its operation is the integrated IR-CUT filter, which mechanically switches between an infrared-blocking filter for accurate daytime color reproduction and an infrared-pass filter for night vision when paired with the included infrared LED board. This switching is controlled via a single GPIO pin, accepting a 3.3V high signal for night mode and a GND low signal for day mode, allowing for automated adaptation to lighting conditions. The module is supplied with a flexible flat cable (FFC) for connection to host processor boards.
Additional Information
| Weight | 0.037 kg |
|---|---|
| Dimensions | 8 × 11 × 3 cm |
