Waveshare ESP32-S3 1.54-Inch e-Paper AIoT Development Board, Black / White without Touch Control
Waveshare ESP32-S3 1.54-Inch e-Paper AIoT Development Board, Black / White without Touch Control - Image 2
Waveshare ESP32-S3 1.54-Inch e-Paper AIoT Development Board, Black / White without Touch Control - Image 3
Waveshare ESP32-S3 1.54-Inch e-Paper AIoT Development Board, Black / White without Touch Control - Image 4
Waveshare ESP32-S3 1.54-Inch e-Paper AIoT Development Board, Black / White without Touch Control - Image 5

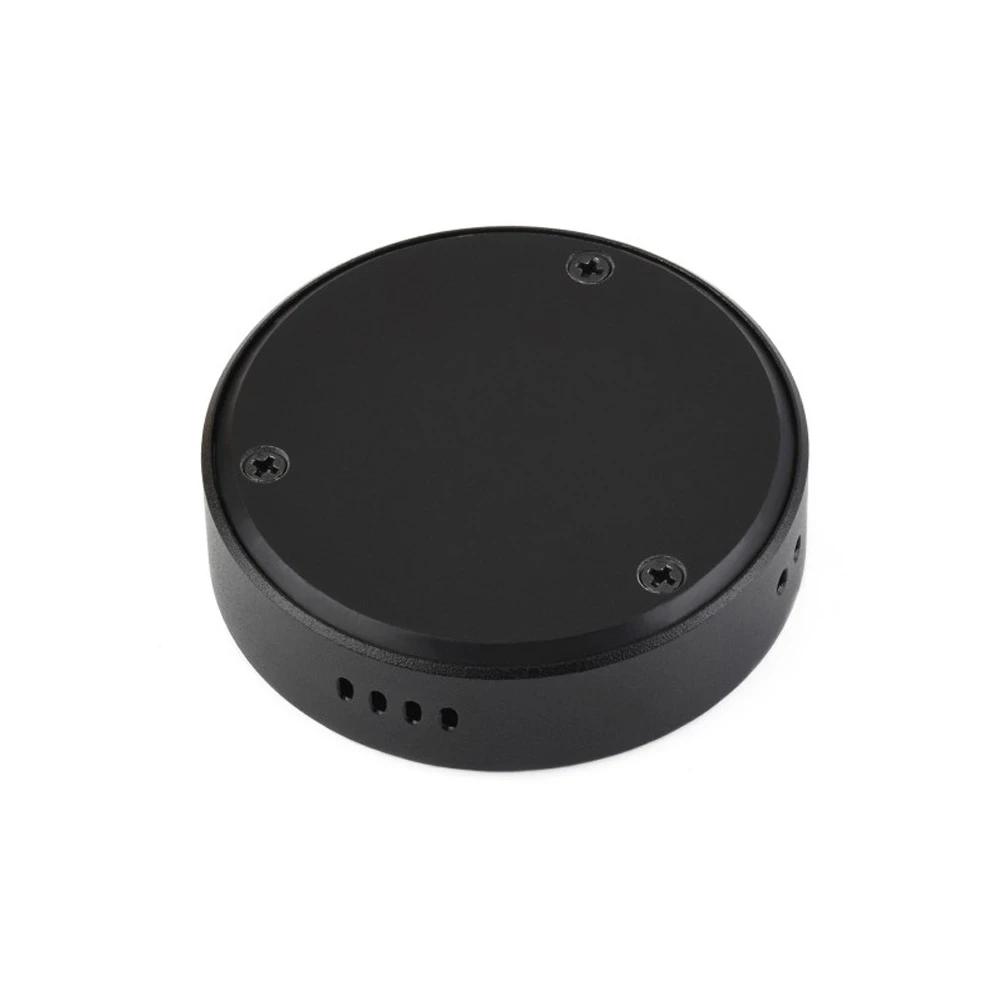

Waveshare ESP32-S3 1.54-Inch e-Paper AIoT Development Board, Black / White without Touch Control - Image 6
Waveshare ESP32-S3 1.54-Inch e-Paper AIoT Development Board, Black / White without Touch Control - Image 7
SKU: IOWC-0922
📋 GST Invoice Available

Waveshare ESP32-S3 1.54-Inch e-Paper AIoT Development Board, Black / White without Touch Control

₹3,619.00 (Inclusive of all taxes)
Out of Stock

This Waveshare AIoT development board integrates an ESP32-S3 dual-core processor with a 1.54-inch e-Paper display, enabling ultra-low-power IoT dashboards, smart labels, and portable devices. It features 2.4GHz Wi-Fi, Bluetooth, and a Type-C interface for programming with Arduino IDE or ESP-IDF, powered via a 3.7V Li-ion battery connector.

Features

  • ESP32-S3 Dual-Core Power: Features the Xtensa LX7 processor clockable up to 240MHz, providing ample compute for embedded AI tasks and wireless connectivity.
  • Ultra-Low-Power e-Paper Display: 1.54-inch black/white screen with 200×200 resolution consumes power only during refresh, ideal for battery-operated smart devices.
  • Integrated Wireless & Power: Supports 2.4GHz Wi-Fi and Bluetooth for IoT communication, with a dedicated MX1.25 connector for 3.7V lithium battery operation.
  • Developer-Friendly Design: Includes a USB Type-C port for easy programming and debugging, compatible with Arduino, ESP-IDF, and MicroPython frameworks.

Out of stock

Description

The Waveshare ESP32-S3 e-Paper AIoT Development Board is a specialized platform for creating power-efficient, visually interactive IoT endpoints. Its core is the Espressif ESP32-S3, a dual-core microcontroller with integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) radios, enabling robust wireless communication for sensor data transmission or over-the-air updates.

The board’s standout feature is its 1.54-inch e-Paper display, which provides a sharp, persistent image without continuous power draw, making it perfect for applications like smart shelf labels, environmental monitors, or wearable status indicators. The inclusion of a Type-C USB interface simplifies firmware development and serial debugging, while the pre-fitted MX1.25 battery connector allows for seamless integration of a 3.7V Li-ion cell, enabling truly portable and long-lasting deployments.

Key Features

  • Dual-core ESP32-S3 processor enables concurrent wireless communication and display management.
  • Ultra-low-power e-Paper technology ensures weeks of battery life for static content display.
  • Integrated 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 (LE) for versatile IoT connectivity.
  • USB Type-C port provides reliable power delivery, programming, and serial console access.
  • Pre-soldered MX1.25 JST connector for direct attachment of 3.7V lithium polymer batteries.
  • Compact form factor (50.2mm diameter) designed for embedded and wearable applications.
  • Full GPIO breakout accessible for adding sensors, actuators, or I2C/SPI peripherals.
  • Compatible with Arduino IDE, ESP-IDF, MicroPython, and other popular IoT frameworks.

Applications

  • Smart Retail & Logistics: Battery-powered electronic shelf labels (ESLs) and inventory tracking tags.
  • Environmental Monitoring: Portable weather stations or air quality displays with persistent data readouts.
  • Wearable & Personal IoT: Health tracker companions, smart badges, or low-power notification devices.
  • Industrial IoT Dashboards: Status indicators for machine monitoring or sensor data visualization in low-power settings.
  • Smart Home Automation: Wireless control panels or information displays for home energy or security systems.

Technical Specifications

Microcontroller/SoCEspressif ESP32-S3 (Xtensa LX7 Dual-core)
CPU FrequencyUp to 240 MHz
Wireless Protocols2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5.0 LE
Display Typee-Paper (Electrophoretic Display)
Display Size & Resolution1.54-inch, 200 x 200 pixels
Display ColorsBlack / White
USB InterfaceType-C
Battery Connector3.7V MX1.25 (JST-PH)
Operating Voltage3.3V (via USB or onboard regulator)
Dimensions50.2 mm (Diameter) x 14.5 mm (Thickness)
Weight47 g (Board only)

Frequently Asked Questions

How do I program the Waveshare ESP32-S3 e-Paper board?

You can program it using the Arduino IDE with the ESP32 board package, Espressif's ESP-IDF framework, or MicroPython. Connect the board via the provided USB Type-C cable, select the correct COM port, and choose 'ESP32S3 Dev Module' as the board target. The e-Paper library and examples are available on the Waveshare wiki for quick display initialization and graphics rendering.

What is the power consumption of the e-Paper display, and how does it affect battery life?

The e-Paper display only draws significant current during a screen refresh (update), consuming virtually zero power while showing a static image. This characteristic enables weeks or months of operation on a single 3.7V Li-ion battery charge, depending on the refresh rate of your application. Deep sleep modes of the ESP32-S3 further extend battery life between wireless transmissions.

Can I connect external sensors to this development board?

Yes, the board breaks out multiple GPIO pins supporting I2C, SPI, UART, and ADC interfaces, allowing you to connect a wide range of sensors like temperature, humidity, or motion detectors. Refer to the pinout diagram on the Waveshare product page to identify the available pins and their functions for your specific peripheral integration needs.

Is a battery included with the board, and what specifications are required?

No, a battery is not included. The board has an MX1.25 (JST-PH) connector for a single-cell 3.7V lithium polymer or lithium-ion battery. A typical capacity of 500mAh to 1000mAh is recommended for portable projects, ensuring a balance between runtime and physical size. Always use a battery with built-in protection circuitry for safety.

Package Includes

  • 1 x Waveshare ESP32-S3 1.54-inch e-Paper AIoT Development Board
  • 1 x Silver Polyester Lanyard

Additional Information

Weight 0.7 kg
Dimensions 10 × 10 × 3 cm
