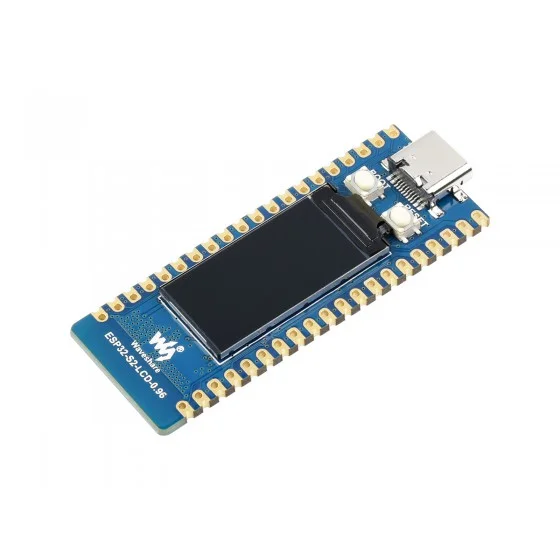

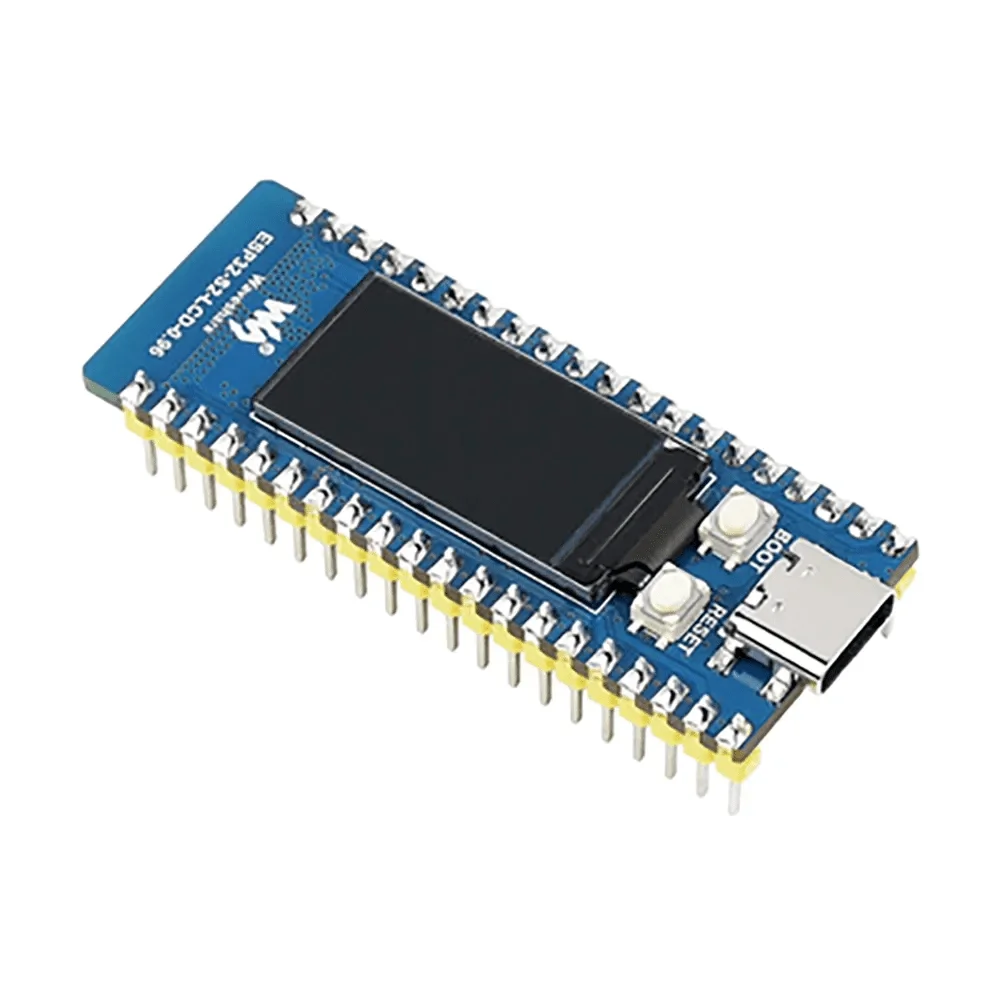

Waveshare ESP32-S2 WiFi Development Board w/ 0.96-Inch IPS LCD
This Waveshare ESP32-S2 development board integrates a 240MHz Xtensa single-core processor, 2.4GHz Wi-Fi, and a 0.96-inch IPS LCD for Arduino IDE, ESP-IDF, and MicroPython projects, powered via a 3.7V LiPo battery or USB for mobile IoT applications.
Features
- Features a 240MHz ESP32-S2 single-core LX7 MCU with 4MB flash, 8MB PSRAM, and hardware crypto acceleration for secure IoT.
- Integrated 0.96-inch IPS LCD (160×80 pixels, 65K colors) for local status display without external screens.
- On-board 3.7V lithium battery charge/discharge circuit (500mA charging, 1.8A boost/buck) for portable, battery-powered designs.
- Supports Raspberry Pi Pico expansion board ecosystem and provides 26 multi-function GPIOs, USB OTG, RMT, and a temperature sensor.

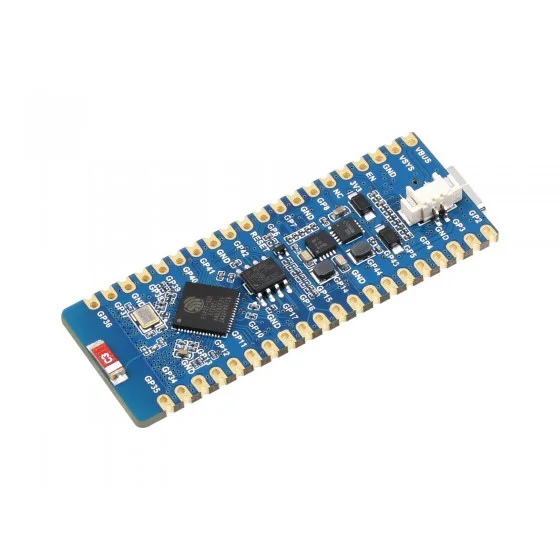

- Compact castellated module design allows direct soldering to carrier boards and features an onboard 2.4GHz ceramic antenna.
Out of stock
The Waveshare ESP32-S2 LCD Development Board is a feature-rich AIoT platform built around Espressif’s ESP32-S2 Wi-Fi SoC. It combines a 240MHz Xtensa single-core processor with integrated 2.4GHz IEEE 802.11 b/g/n Wi-Fi, making it ideal for connected display applications. The board includes a 0.96-inch IPS LCD for local visualization of sensor data or system status, reducing external component count.
Power management is handled by a high-efficiency TPS63000 DC-DC converter, supporting a wide input voltage from 2.7V to 4.2V and enabling direct operation from a single-cell LiPo battery via the onboard charge/discharge header. This, combined with multiple configurable low-power sleep states, makes the board suitable for mobile and wearable IoT products. The castellated edge design facilitates direct integration into end-user carrier boards as a modular system-on-chip.
Additional Information
| Weight | 0.014 kg |
|---|---|
| Dimensions | 5 × 7 × 2 cm |
