Waveshare ESP32-P4 Wi-Fi 6 5-Inch Touch LCD Development Board
Waveshare ESP32-P4 Wi-Fi 6 5-Inch Touch LCD Development Board - Image 2
Waveshare ESP32-P4 Wi-Fi 6 5-Inch Touch LCD Development Board - Image 3
SKU: IOWC-0927
📋 GST Invoice Available

Waveshare ESP32-P4 Wi-Fi 6 5-Inch Touch LCD Development Board

₹5,539.00 (Inclusive of all taxes)
Out of Stock

The Waveshare ESP32-P4 Wi-Fi 6 development board integrates a high-performance ESP32-P4 RISC-V MCU with a 5-inch IPS capacitive touchscreen, offering a powerful platform for multimedia-rich IoT applications. It is programmable via ESP-IDF or Arduino IDE and includes a dedicated ESP32-C6 co-processor for Wi-Fi 6 and BLE 5 connectivity.

Features

  • High-performance ESP32-P4 dual-core RISC-V MCU paired with an ESP32-C6 co-processor for Wi-Fi 6 (802.11ax) and Bluetooth 5 Low Energy connectivity.
  • 5-inch IPS capacitive touch display with 720 x 1280 resolution, driven via MIPI DSI, ideal for interactive HMI and GUI development.
  • Generous 32MB PSRAM and 32MB NOR Flash memory for handling complex graphics, video streams, and large application firmware.
  • Comprehensive multimedia interfaces including MIPI-CSI for camera input (supports OV5647), H.264 encoding acceleration, and onboard audio codec.
  • Versatile expansion via 40-pin GPIO header, USB Type-C OTG 2.0 HS, TF card slot, and support for 3.7V Li-ion battery operation.

Out of stock

Description

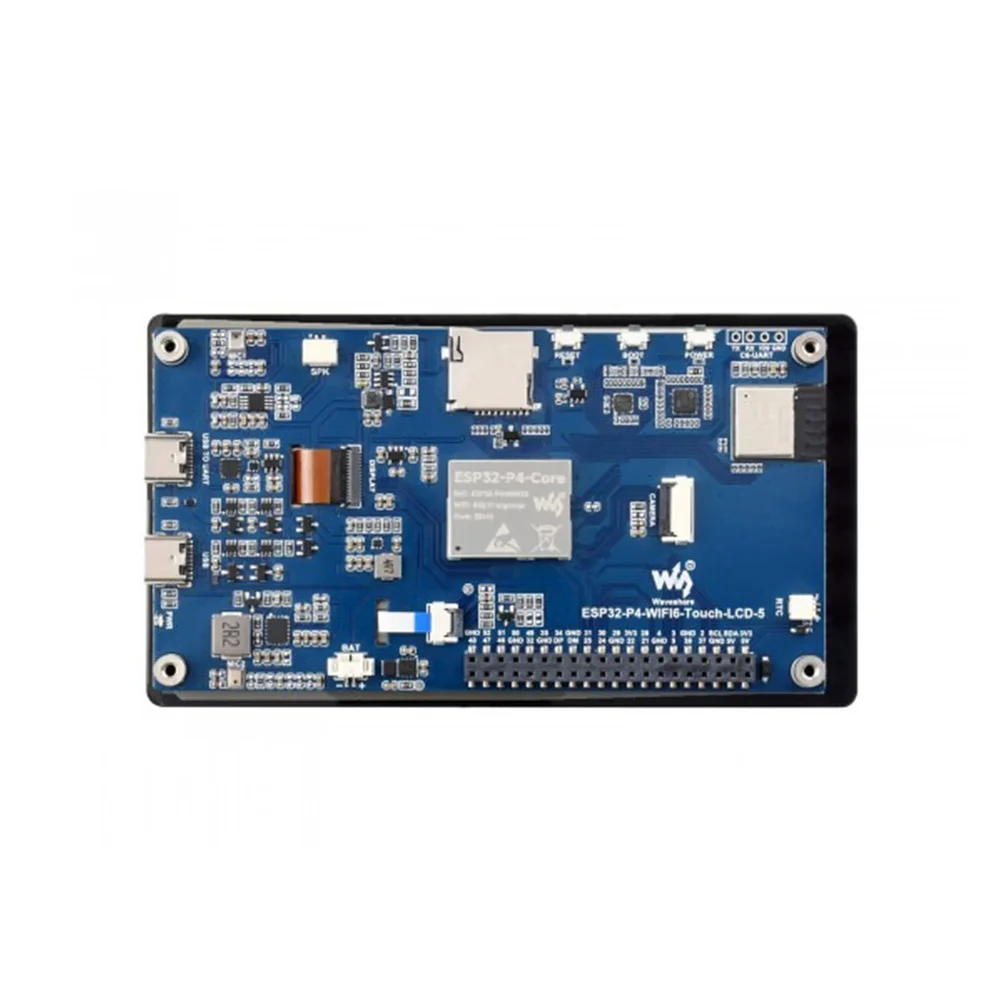

This Waveshare development board is engineered as a comprehensive AIoT platform, centered on the Espressif ESP32-P4 microcontroller. The ESP32-P4 features dual high-performance RISC-V cores alongside a low-power core, delivering substantial processing headroom for embedded vision, audio processing, and complex user interfaces. The integrated ESP32-C6-MINI module offloads all wireless communication, providing efficient Wi-Fi 6 and BLE 5.0 management.

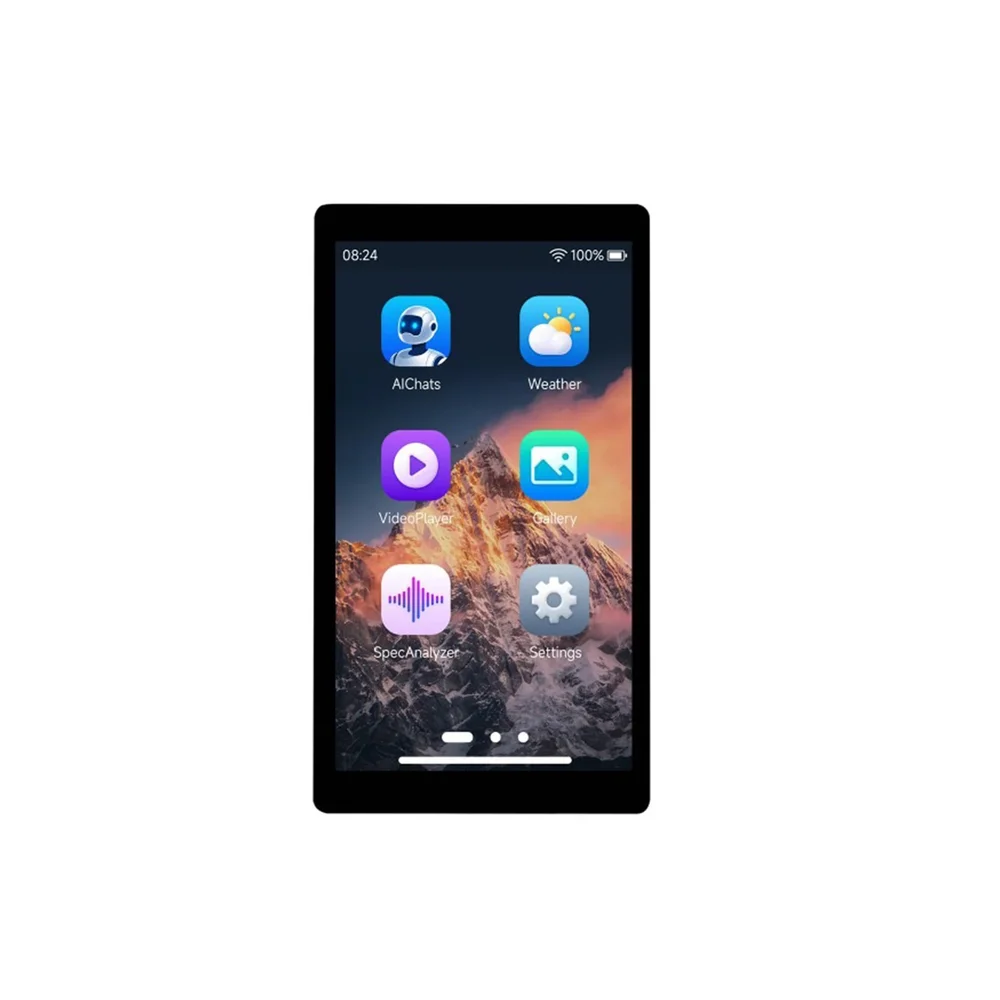

The board’s 5-inch high-resolution IPS touchscreen serves as the primary human-machine interface, supported by dedicated image signal processing and a pixel processing accelerator. Power can be supplied via the USB Type-C port or an onboard 3.7V Li-ion battery header, making it suitable for portable and stationary applications. The extensive I/O set, including MIPI interfaces, SDIO, and a 40-pin header compatible with select Raspberry Pi HATs, offers exceptional flexibility for peripheral integration and system expansion.

Key Features

  • High-performance AIoT core powered by the ESP32-P4 dual-core RISC-V processor and an ESP32-C6 wireless co-processor.

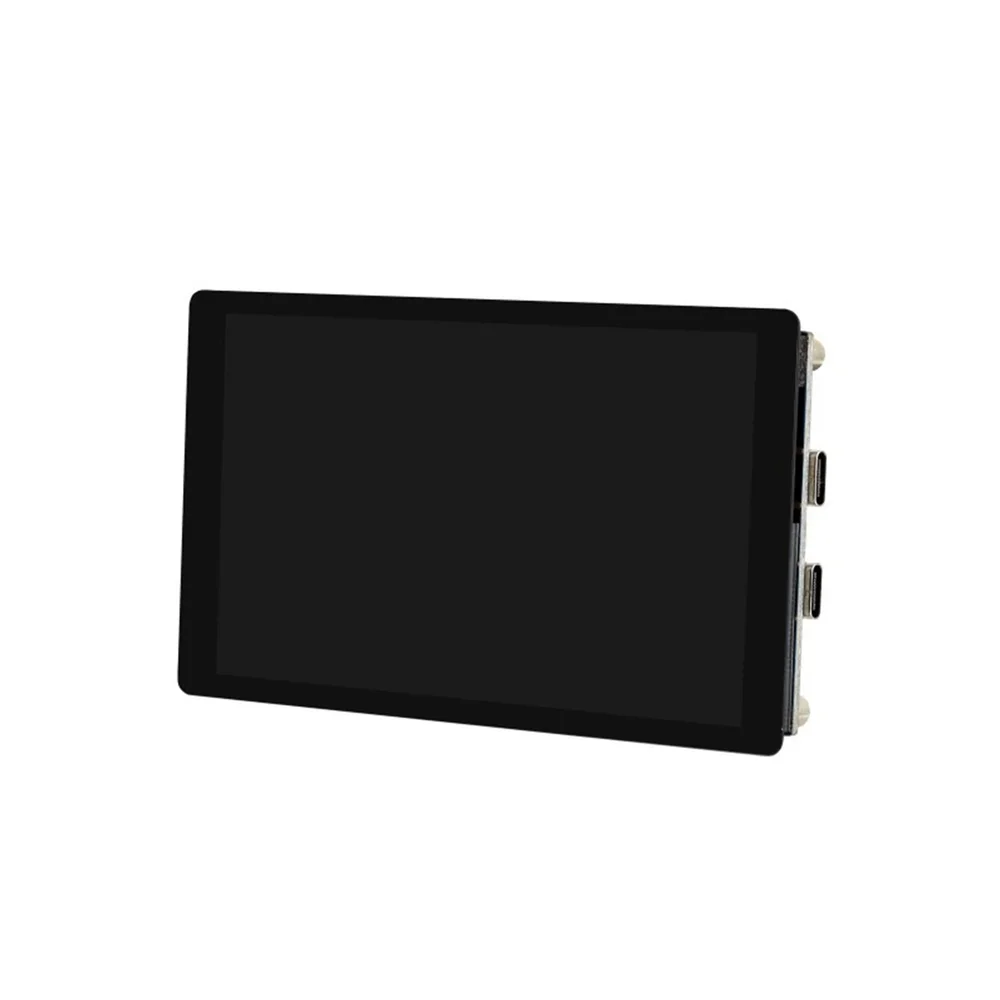

  • Vivid 5-inch IPS capacitive touchscreen with 720x1280 resolution for rich graphical user interfaces and interactive control panels.
  • Advanced multimedia acceleration including a JPEG codec, H.264 encoder, Image Signal Processor (ISP), and Pixel Processing Accelerator (PPA).
  • Robust memory subsystem with 32MB of PSRAM for graphics buffering and 32MB of NOR Flash for application storage.
  • Comprehensive connectivity options: USB Type-C OTG 2.0 High-Speed, MIPI-CSI camera interface, TF card slot (SDIO), and 40-pin GPIO expansion header.
  • Integrated audio subsystem with ES8311 DAC and ES7210 ADC for high-quality audio input and output.
  • Onboard power management supporting 5V USB input and 3.7V Li-ion battery charging/discharging via an MX1.25 header.
  • Enhanced security features including Secure Boot, Flash Encryption, cryptographic accelerators, and a True Random Number Generator (TRNG).

Applications

  • Interactive smart home control panels and advanced IoT hubs with local GUI.
  • Embedded vision systems for product inspection, security, or robotics using the MIPI-CSI interface.
  • Portable multimedia devices, digital photo frames, or information kiosks with high-resolution displays.
  • AIoT edge computing nodes for real-time sensor data visualization and processing.
  • Prototyping platforms for industrial HMIs, medical devices, or automotive infotainment systems.

Technical Specifications

Microcontroller / SoCESP32-P4 (RISC-V dual-core + single-core)
Wireless Co-ProcessorESP32-C6-MINI (Wi-Fi 6, BLE 5)
Display5-inch IPS Capacitive Touch
Display Resolution720 x 1280 pixels
Touch ControllerGT911
Display DriverHX8394
Memory (PSRAM)32MB
Flash Memory32MB NOR Flash
Camera InterfaceMIPI-CSI (supports OV5647)
Wireless ProtocolsWi-Fi 6 (802.11ax), Bluetooth 5 LE
Audio CodecES8311 (DAC) + ES7210 (ADC)
Storage ExpansionTF Card Slot (SDIO)
USB InterfaceUSB Type-C (OTG 2.0 High-Speed)
GPIO Expansion40-pin header
Supply Voltage5V via USB-C / 3.7V Li-ion Battery
Security FeaturesSecure Boot, Flash Encryption, Cryptographic Accelerators, TRNG
Dimensions126.9 x 70.7 mm
Weight0.092 kg

Frequently Asked Questions

What development frameworks are supported for programming this board?

The board is fully supported by the official Espressif IoT Development Framework (ESP-IDF) and the Arduino Core for ESP32. You can develop applications in C/C++ using ESP-IDF's toolchain or leverage the extensive Arduino library ecosystem. For the display and touch functionality, you will need to integrate the appropriate LCD and touch driver libraries provided by Waveshare or the ESP-IDF component registry.

How do I connect an external camera, and what models are compatible?

The board features a MIPI-CSI interface, primarily compatible with the OV5647 image sensor module. To connect a camera, you will need a compatible MIPI-CSI ribbon cable. You must configure the camera in your firmware using the ESP-IDF's camera driver or a third-party library, setting the correct pin definitions, clock speed, and image format (e.g., JPEG, RGB) for your application.

What is the power consumption profile, and how do I use the battery header?

Power consumption varies significantly based on CPU load, display brightness, and wireless activity. The board can be powered via the 5V USB Type-C port. For battery operation, connect a 3.7V Li-ion or Li-Po cell to the onboard MX1.25 2-pin charging header. The integrated charging circuit will manage charging when USB power is present. Implement deep sleep modes in your firmware to maximize battery life for portable applications.

Package Includes

  • 1 x Waveshare ESP32-P4-WIFI6 5-inch 720 × 1280 Development Board (without OV5647 Camera)
  • 1 x GH1.25 2PIN 8Ω 2W Speaker (50mm)

Additional Information

Weight 0.092 kg
Dimensions 8 × 13 × 5 cm
