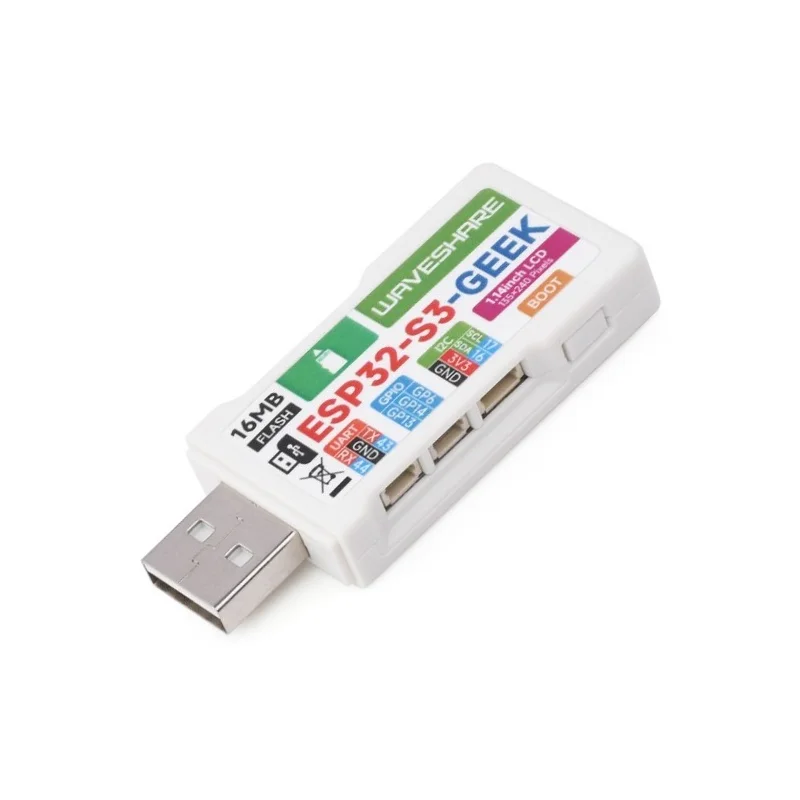

Waveshare ESP32-GEEK Development Board w/ ESP32-S3R2 & 1.14-Inch LCD
The Waveshare ESP32-GEEK is an AIoT development board featuring an ESP32-S3R2 dual-core processor, 1.14-inch IPS LCD, and integrated 2.4GHz Wi-Fi & BLE 5.0 connectivity, ideal for building interactive IoT interfaces with Arduino IDE or ESP-IDF.
Features
- ESP32-S3R2 Dual-Core Processor: Xtensa LX7 cores running at 240 MHz for robust IoT application performance.

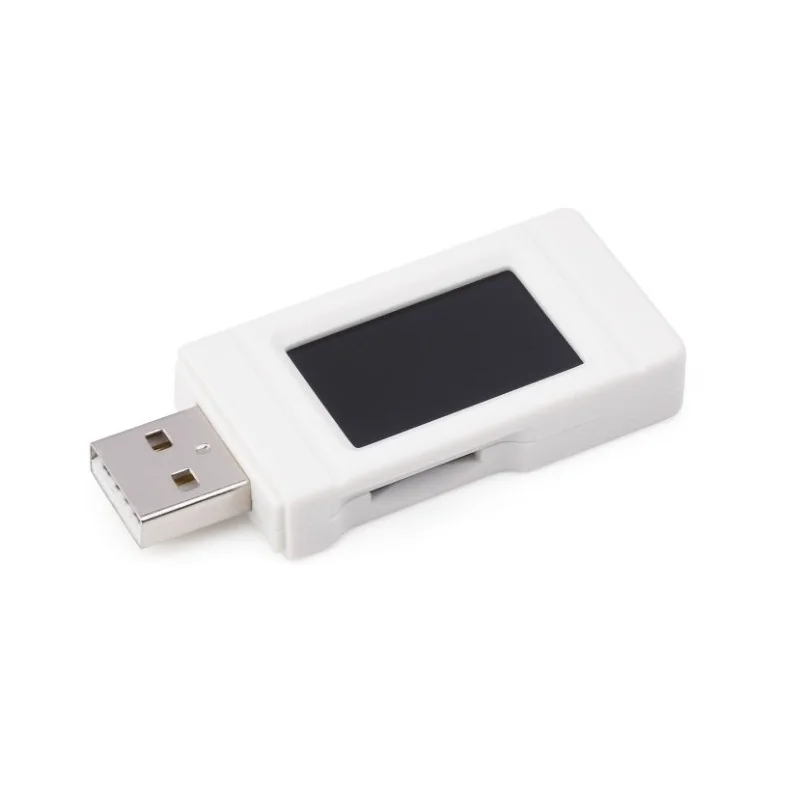

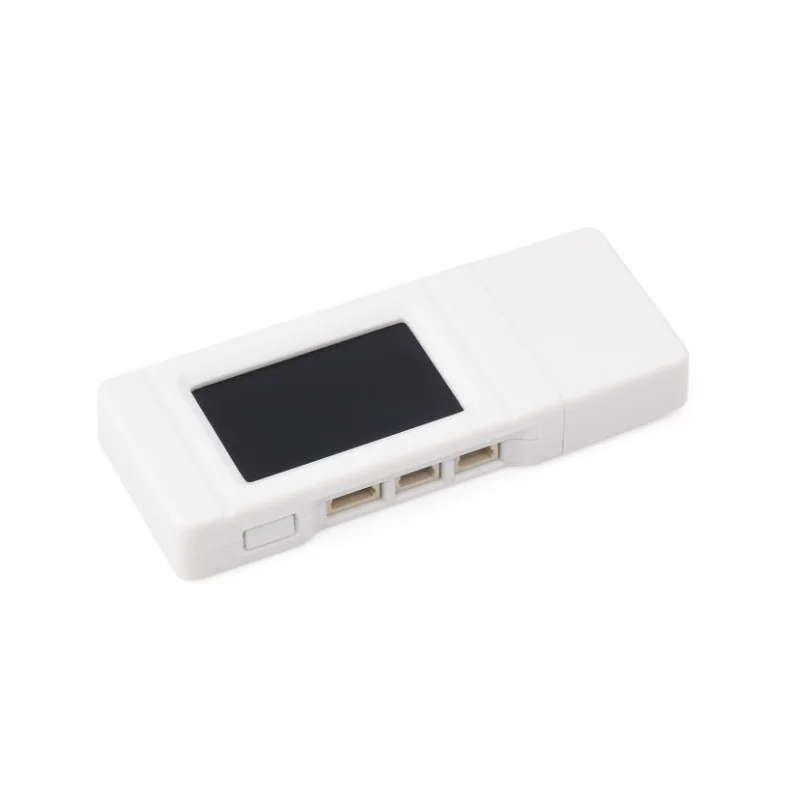

- Integrated 1.14-Inch IPS LCD: 240×135 pixel, 65K color display for local UI and data visualization without external modules.
- Dual Wireless Connectivity: Onboard 2.4GHz Wi-Fi and Bluetooth Low Energy (BLE 5.0) for network and peripheral communication.
- Ample Memory for Projects: Combines 16MB Flash, 512KB SRAM, 384KB ROM, and 2MB on-chip PSRAM for complex applications.

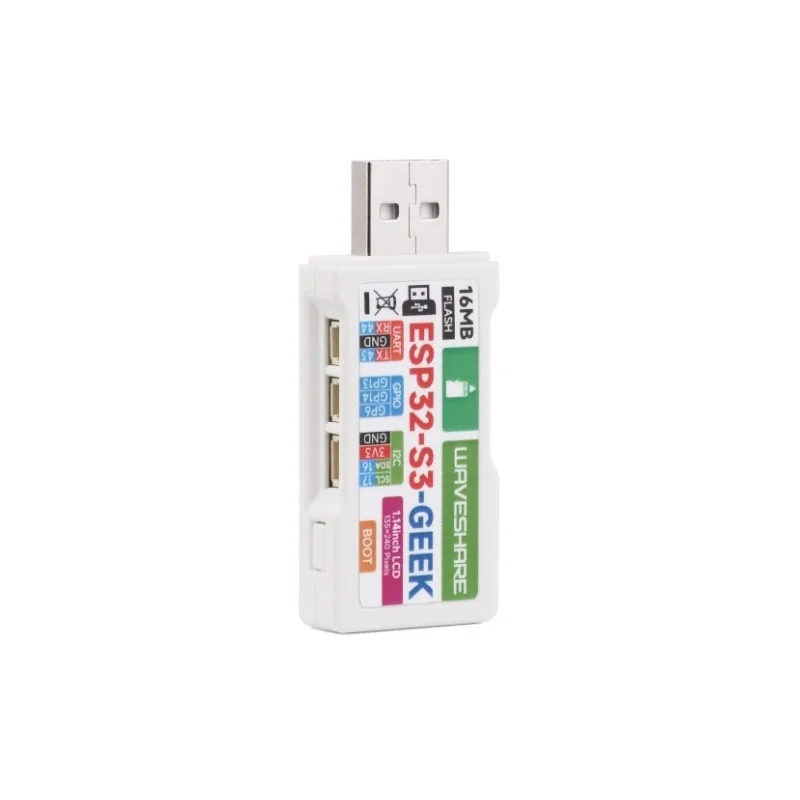

- Convenient I/O Headers: Provides dedicated 3-pin UART, 3-pin GPIO, and 4-pin I2C ports for rapid sensor and actuator integration.
Out of stock
The Waveshare ESP32-GEEK Development Board is a compact, feature-rich platform engineered for embedded developers and makers creating connected, display-based IoT devices. Its core is the Espressif ESP32-S3R2 SoC, which delivers a dual-core Xtensa LX7 processor capable of 240 MHz operation, paired with substantial on-chip memory resources to handle wireless protocols and graphical tasks simultaneously.
The board’s integrated 1.14-inch IPS LCD provides a crisp, color interface for real-time data presentation, status monitoring, or touch-enabled control panels, eliminating the need for external display wiring. Its built-in 2.4GHz Wi-Fi and BLE 5.0 radios enable seamless connectivity to local networks for MQTT data streaming, cloud services integration, or direct communication with smartphones and BLE sensors. The included plastic enclosure and pre-configured I/O headers streamline prototyping and deployment in field-ready enclosures.
Additional Information
| Weight | 0.022 kg |
|---|---|

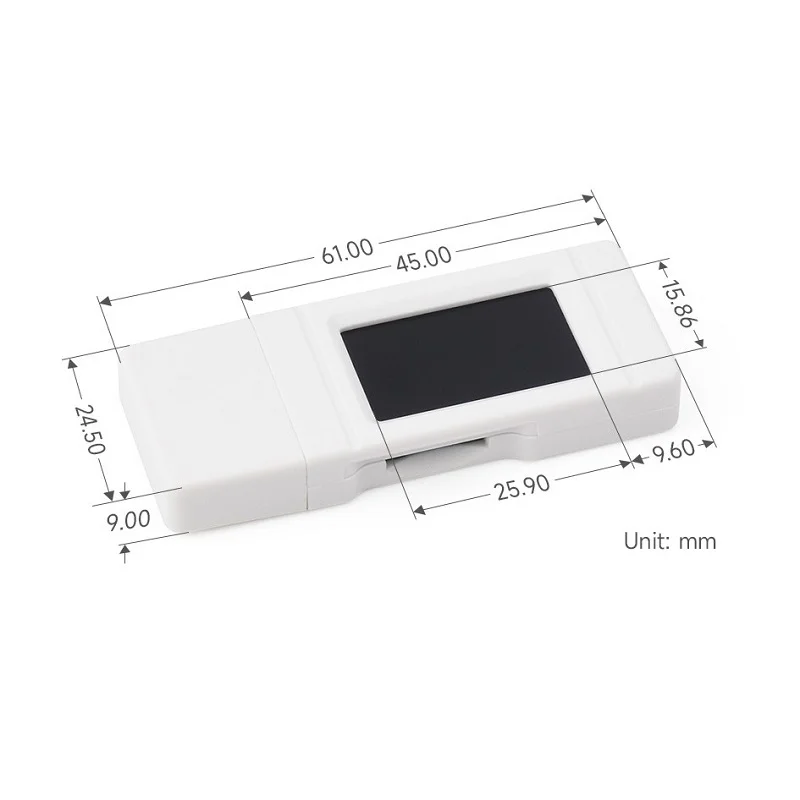

| Dimensions | 6 × 8 × 3 cm |
