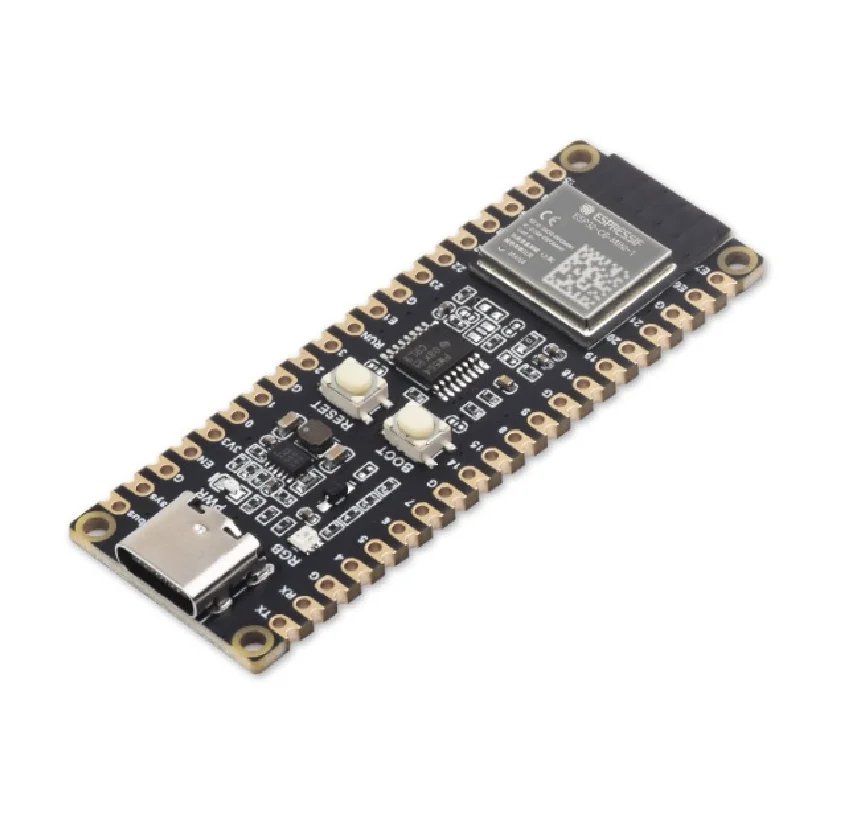

Waveshare ESP32-C6 Development Board, WiFi 6 & BLE, 160MHz RISC-V
The Waveshare ESP32-C6 Development Board is a compact, castellated module featuring the ESP32-C6-MINI-1 chip, integrating 2.4GHz Wi-Fi 6 and Bluetooth LE for dual-mode wireless connectivity. Powered by a 160MHz RISC-V processor, it is programmable via ESP-IDF or Arduino IDE and includes a high-efficiency DC-DC buck-boost converter for stable power delivery.
Features
- ESP32-C6-MINI-1 chip with 160MHz RISC-V 32-bit single-core processor for efficient IoT edge computing.
- Integrated 2.4GHz Wi-Fi 6 and Bluetooth LE 5.0 dual-mode wireless with superior RF performance and range.
- Onboard MP28164 high-efficiency DC-DC buck-boost converter supports load currents up to 2A for stable power.
- Castellated module design allows direct soldering to carrier boards for compact, embedded product integration.
- Rich peripheral set includes 20+ GPIOs, USB OTG, SPI, I2C, UART, ADC, and PWM for flexible sensor and actuator interfacing.
Out of stock

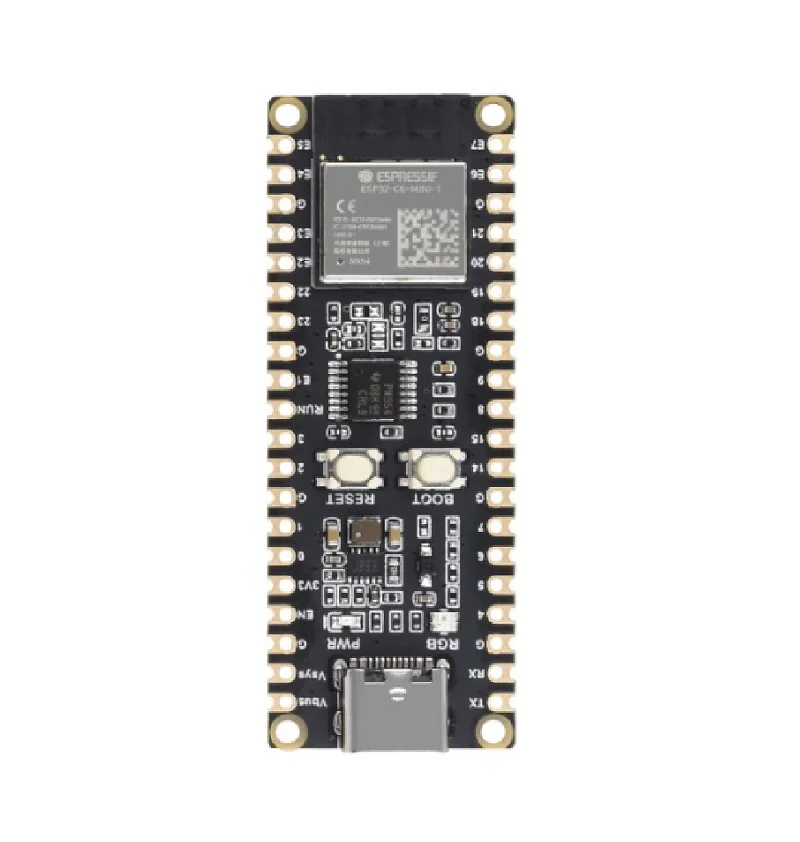

This development board is built around Espressif’s ESP32-C6-MINI-1 system-on-chip, which combines a capable 160MHz RISC-V processor core with advanced 2.4GHz Wi-Fi 6 and Bluetooth Low Energy 5.0 radios. The integrated RF front-end delivers robust wireless performance suitable for high-density IoT networks. Its power architecture is managed by an onboard MP28164 DC-DC buck-boost converter, ensuring efficient operation across a wide input voltage range while supporting peak currents up to 2A for peripherals.

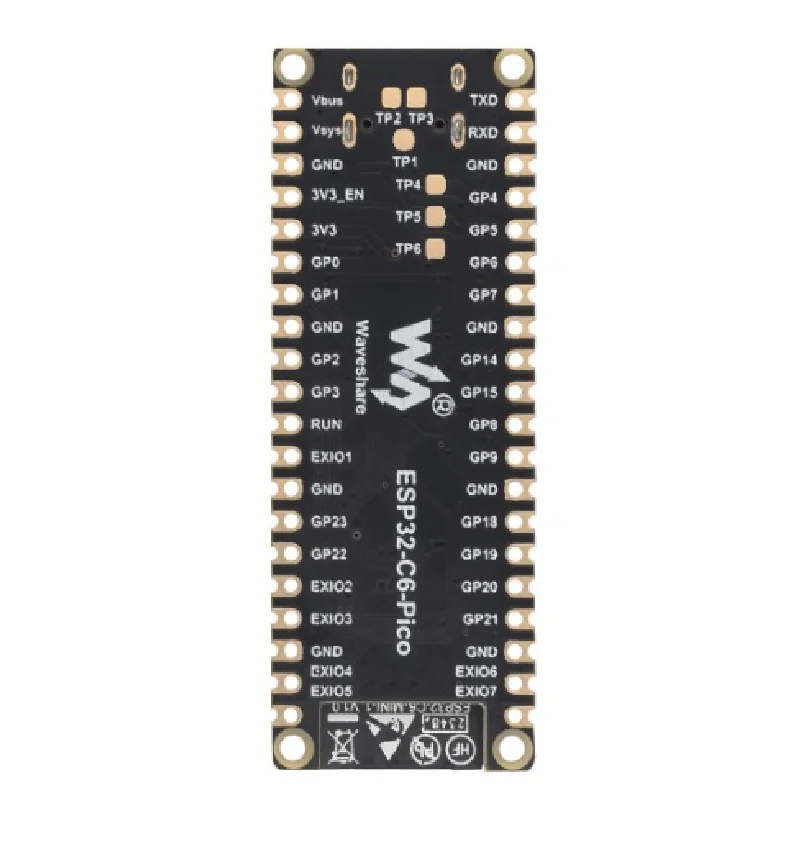

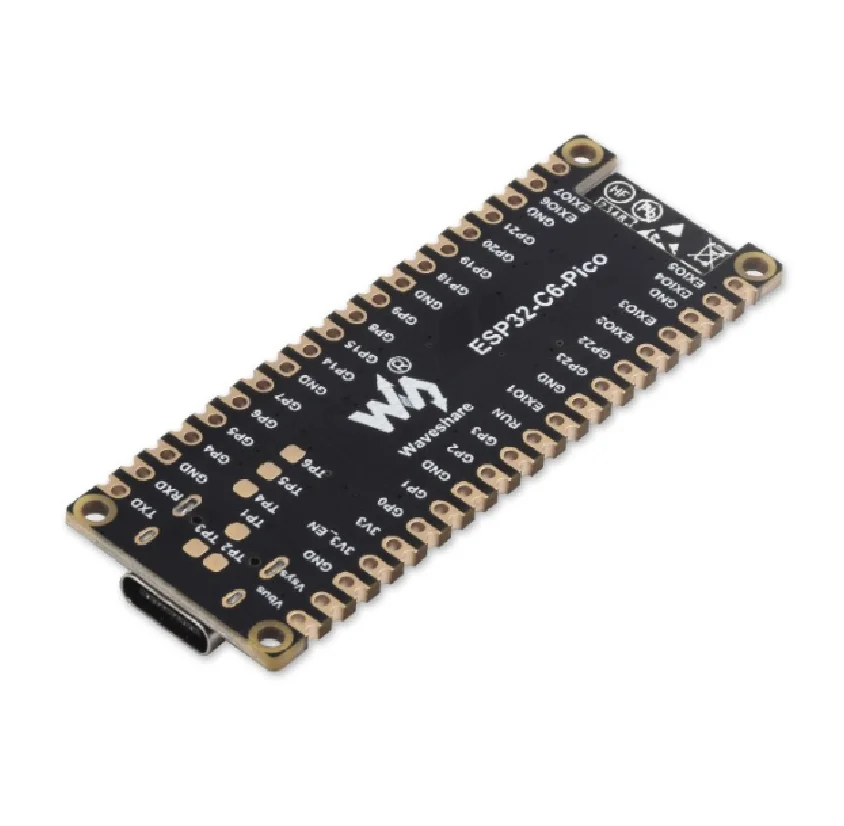

The board’s castellated edge design facilitates direct soldering onto custom PCBs, making it an ideal choice for volume production and space-constrained embedded applications. It provides extensive I/O through 20 multi-function GPIO pins and 7 expanded IO pins, supporting interfaces like full-speed USB OTG, SPI, I2C, UART, ADC, and PWM. The module supports multiple low-power sleep states, allowing developers to finely balance communication distance, data rate, and power consumption for battery-operated deployments.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 7 × 10 × 2 cm |
