Waveshare ESP32-C6 1.9-Inch LCD Touch Display Dev Board
This Waveshare development board integrates an ESP32-C6FH8 RISC-V processor with a 1.9-inch capacitive touch LCD, supporting Wi-Fi 6 and BLE 5. It’s designed for GUI-based IoT applications and is programmable via Arduino IDE or ESP-IDF.
Features
- ESP32-C6FH8 RISC-V MCU (160MHz) with 16MB Flash, 512KB HP SRAM, and 8MB LP SRAM for demanding IoT tasks.

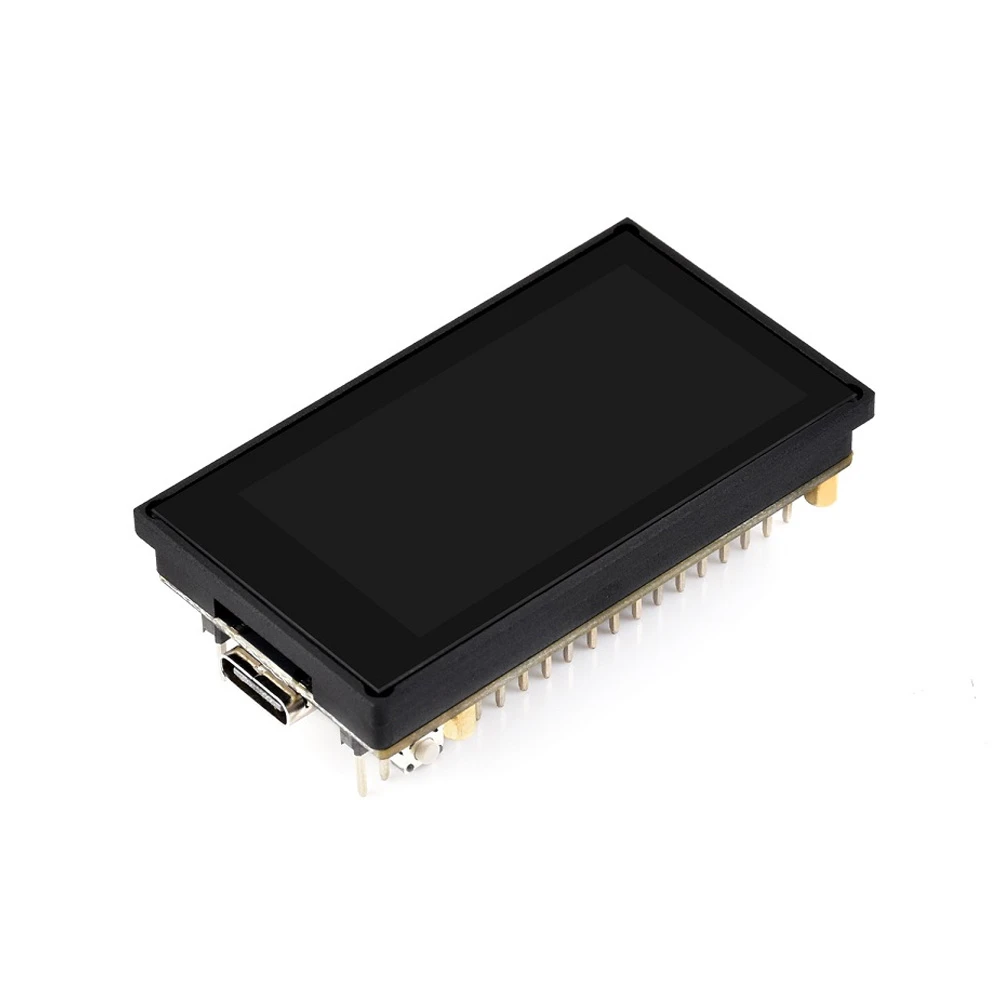

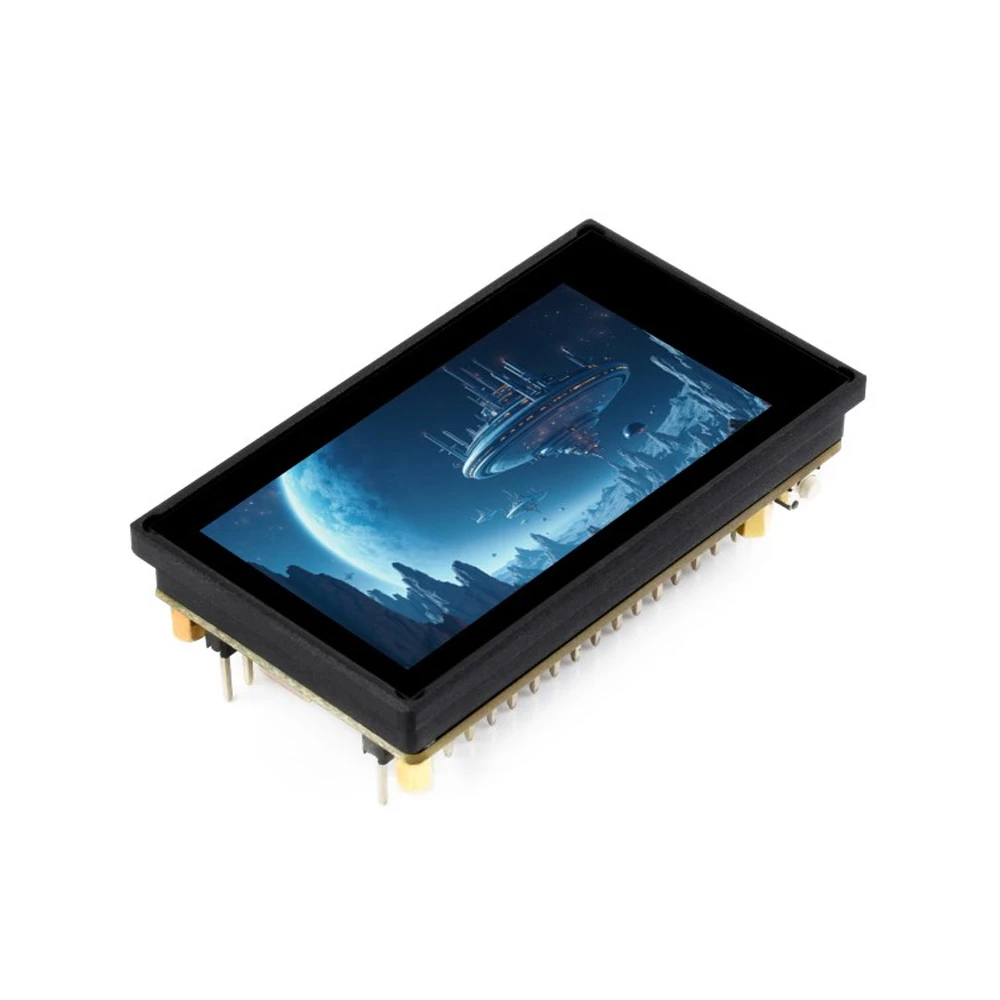

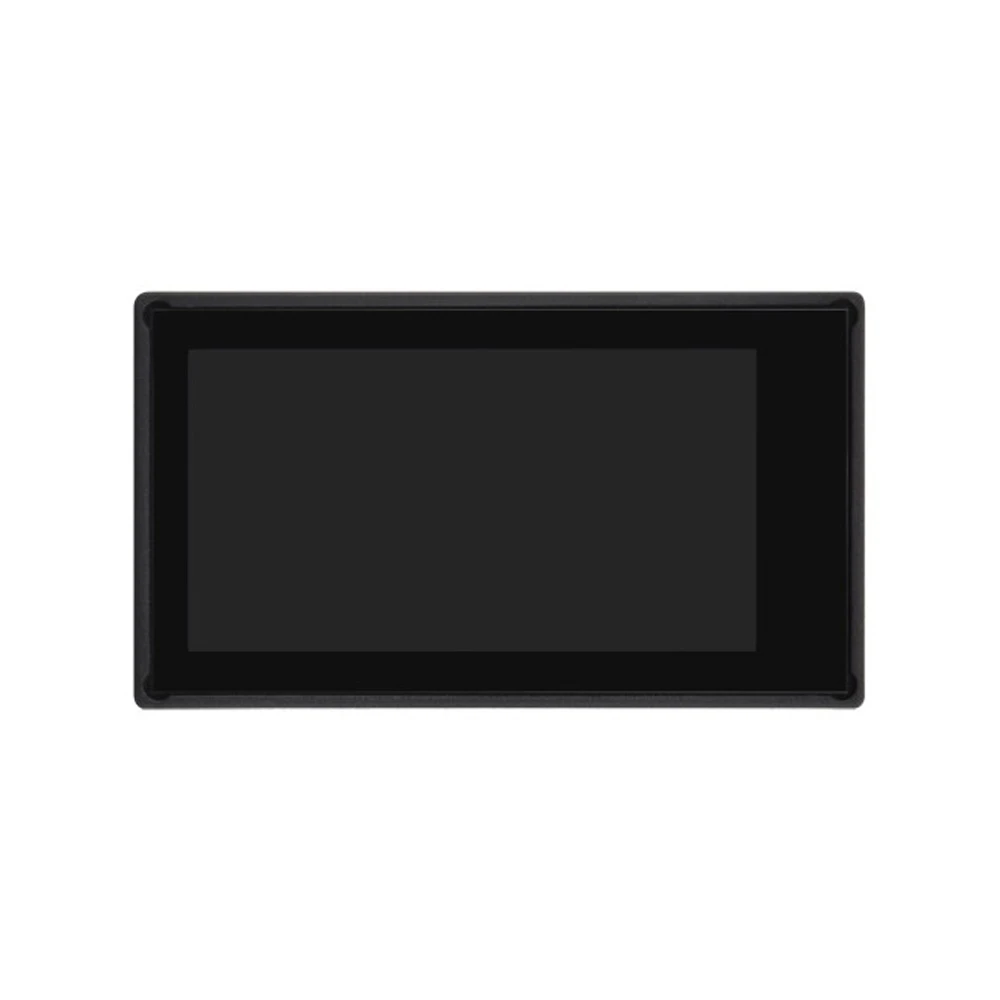

- 1.9-inch SPI LCD with 170×320 resolution, 262K colors, and capacitive touch via CST816 IC for responsive HMI projects.
- Dual-band wireless connectivity with 2.4GHz Wi-Fi 6 (802.11ax) and Bluetooth Low Energy 5 for efficient local networking.

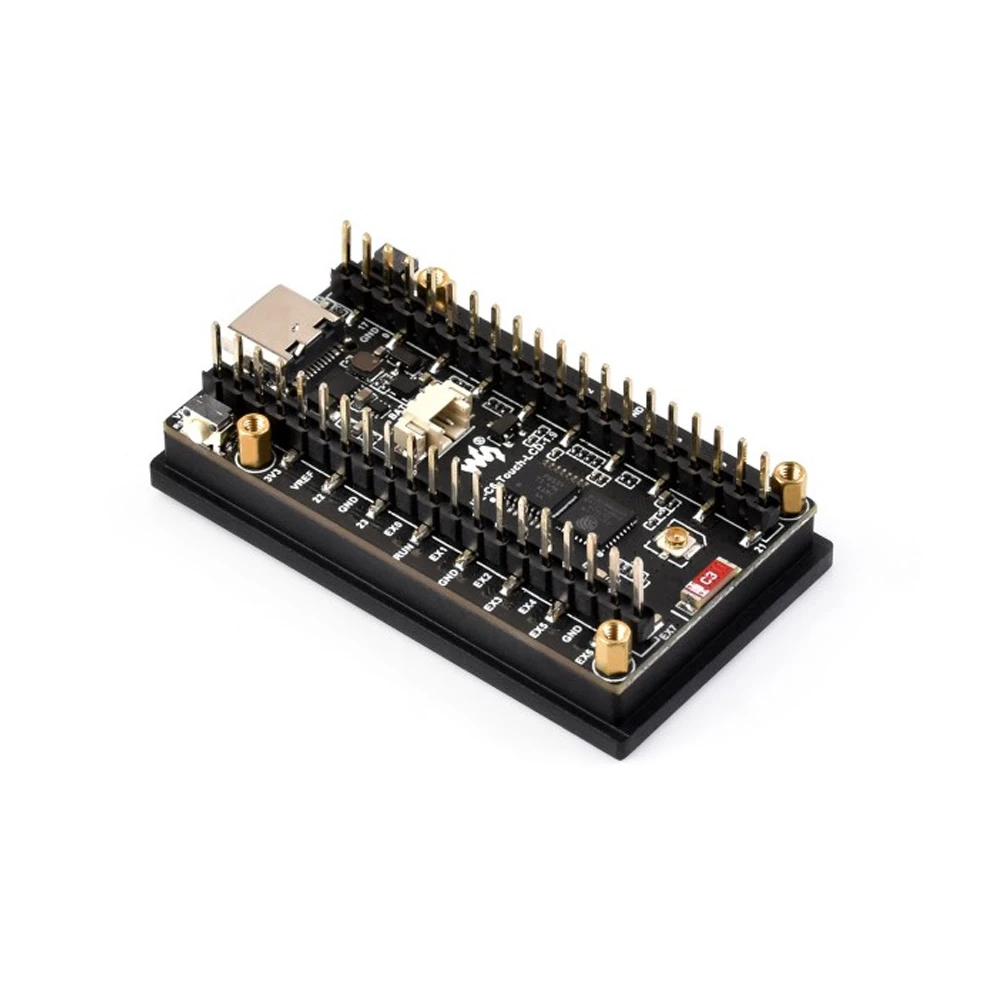

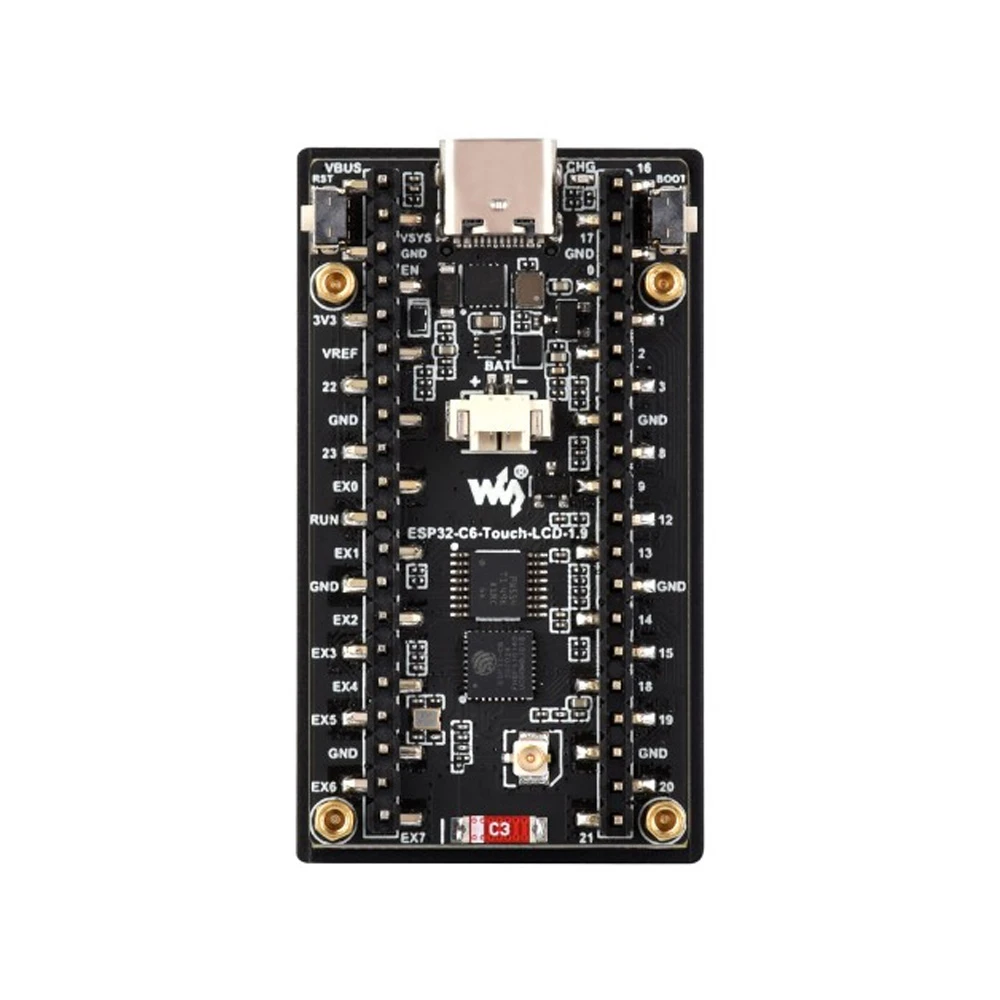

- Integrated QMI8658 6-axis IMU, TF card slot, and Pico-compatible headers for rapid sensor and storage expansion.
- Onboard lithium battery charging via MX1.25 connector and USB Type-C for power, programming, and debugging.
Out of stock
The Waveshare ESP32-C6 development board combines Espressif’s latest Wi-Fi 6/BLE 5 SoC with a high-brightness touchscreen display, creating a compact platform for embedded graphical interfaces. Its ESP32-C6FH8 processor leverages a 32-bit RISC-V core capable of 160MHz operation, paired with substantial low-power RAM for complex LVGL applications while maintaining energy efficiency.
Wireless performance is anchored by 2.4GHz Wi-Fi 6, offering improved throughput and stability for IoT data streaming, alongside BLE 5 for peripheral connectivity. The board’s structural design incorporates an onboard ceramic antenna with provision for an external IPEX connector, ensuring reliable RF performance in enclosed environments. Peripheral integration, including the IMU and expandable GPIO via Pico headers, facilitates rapid prototyping of smart control panels, portable data loggers, and interactive sensor hubs.
Additional Information
| Weight | 0.023 kg |
|---|---|
| Dimensions | 3.14 × 5.5 × 1.6 cm |
