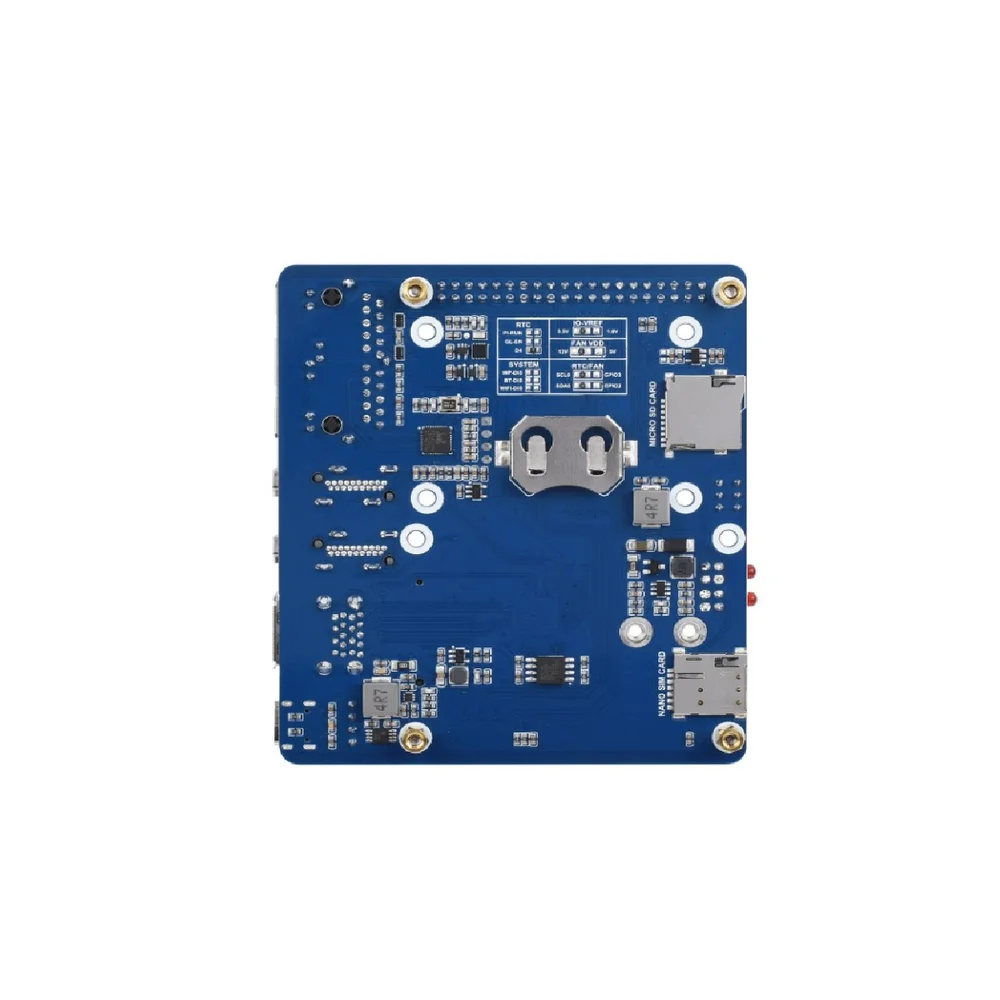

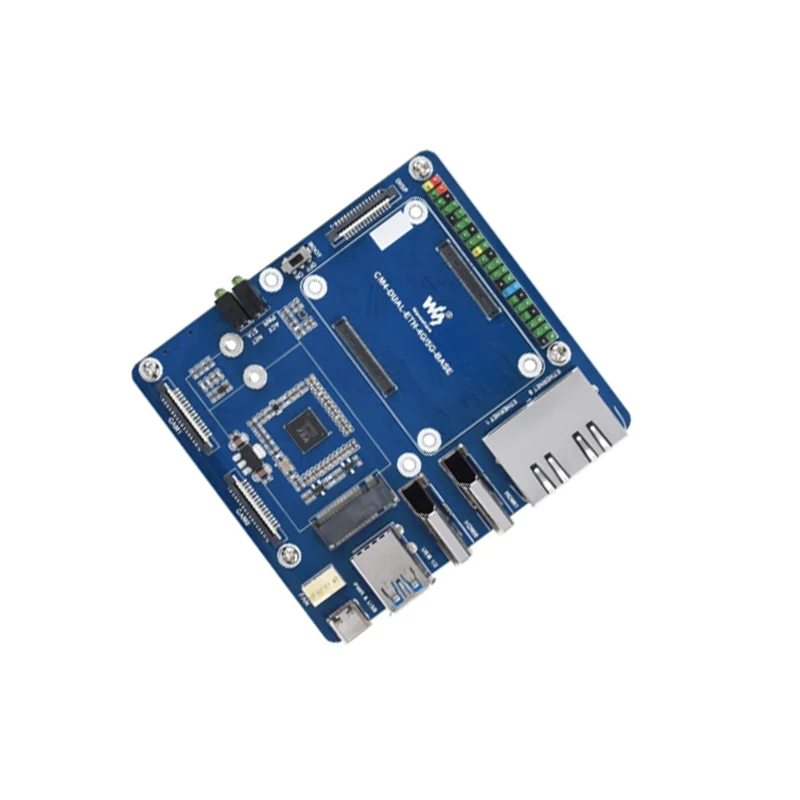

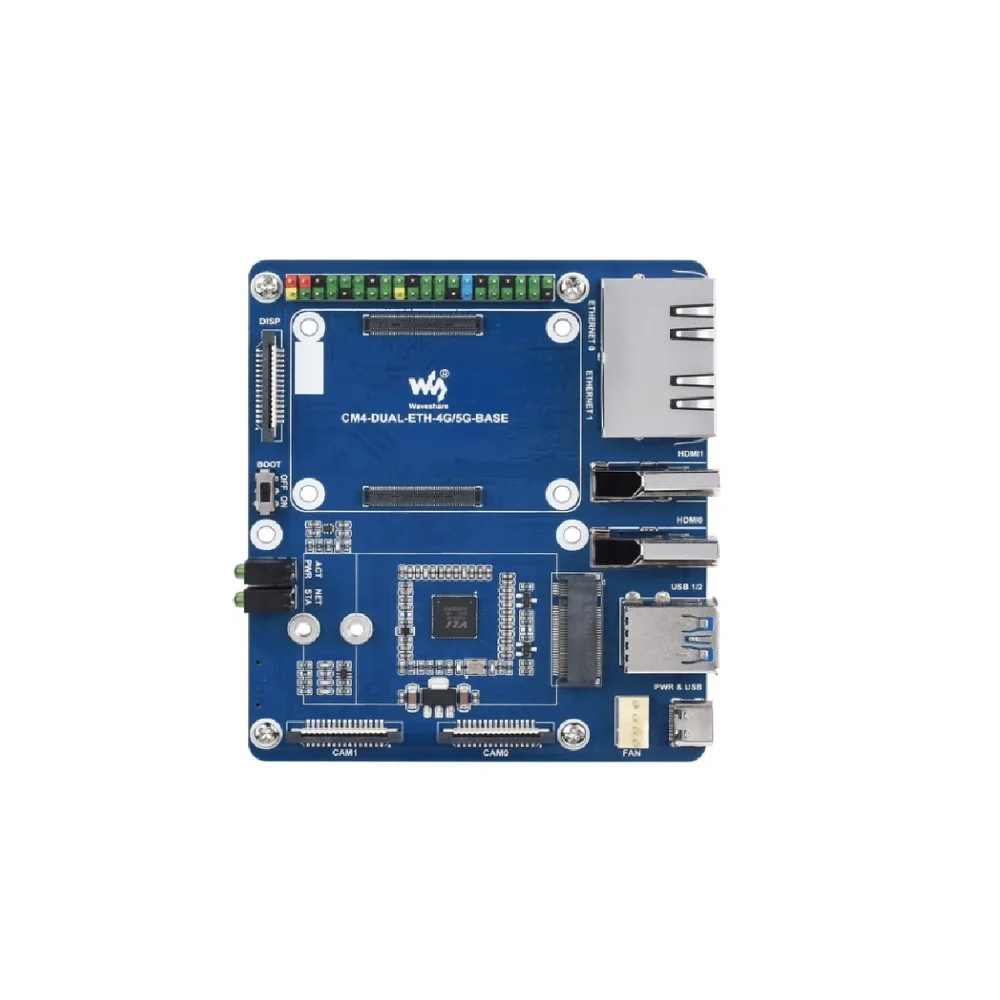

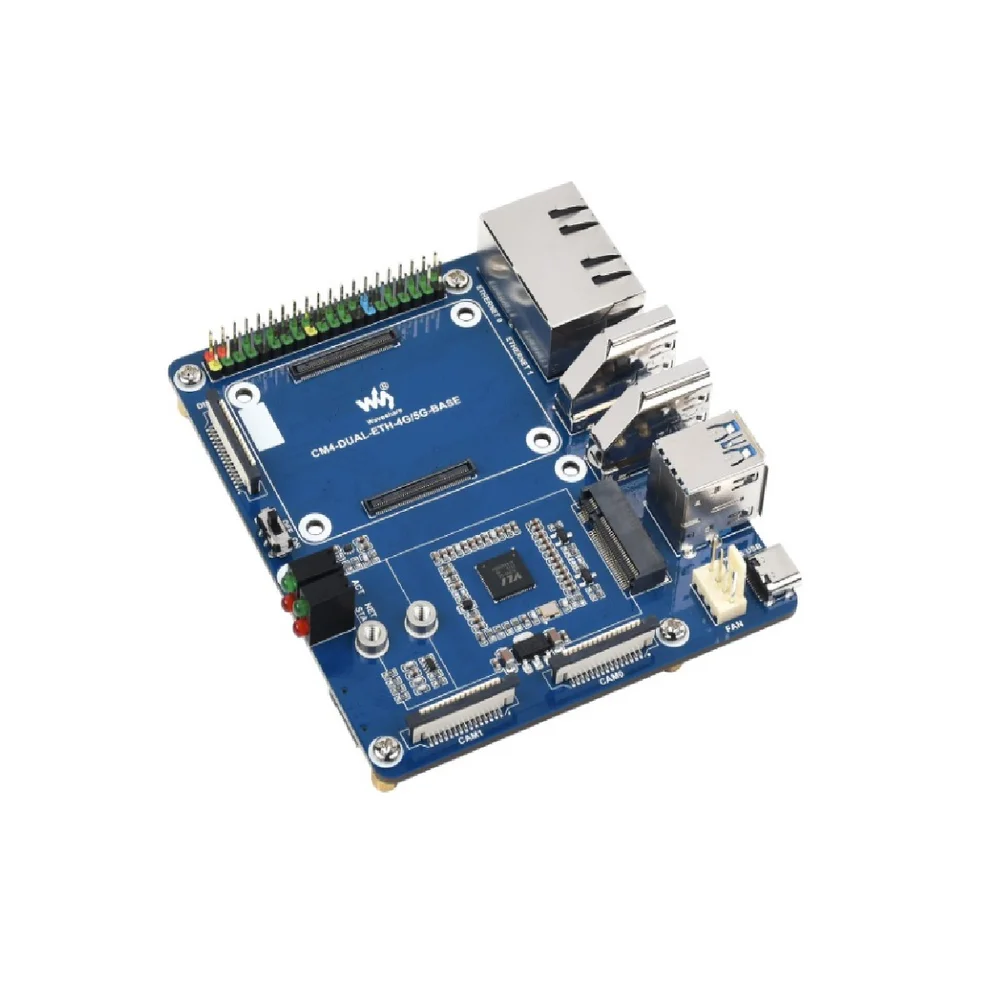

Waveshare Dual Gigabit Ethernet Base Board for Raspberry Pi CM4
This Waveshare baseboard is engineered for the Raspberry Pi Compute Module 4, providing dual Gigabit Ethernet ports, USB 3.2 connectivity, and wide 7-36V DC input for robust industrial networking, IoT gateway, and edge computing applications.
Features
- Dual Gigabit Ethernet Ports: Features both the native CM4 ETH and a USB-extended port via RTL8153 chip for high-bandwidth network redundancy or segmentation.
- Wide Voltage Power Input: Accepts 7-36V DC, making it suitable for industrial environments and PoE-based power delivery systems.
- Comprehensive I/O Expansion: Includes 40-pin GPIO header, 2x HDMI (4K@30fps), 2x MIPI CSI camera ports, and a MIPI DSI display port for full-featured system integration.
- Enhanced System Management: Equipped with RTC with battery backup, configurable fan header (5V/12V selectable), and system function configuration jumpers for Bluetooth/Wi-Fi control.
- USB 3.2 Hub: Integrates a VL805 hub chip to provide three USB 3.2 Gen1 ports for high-speed peripheral connectivity.
Out of stock
The Waveshare Dual Gigabit Ethernet Base Board transforms the Raspberry Pi Compute Module 4 into a powerful, network-centric edge computing platform. It is designed for system integrators and developers building industrial IoT gateways, network appliances, or multi-camera vision systems requiring reliable, high-throughput connectivity.
Its architecture centers on expanding the CM4’s native capabilities, adding a secondary Gigabit Ethernet port via a dedicated RTL8153 controller to enable network bonding, failover, or segregated LAN/WAN configurations. The board’s robust power design, accepting a wide 7-36V DC input, ensures compatibility with standard industrial power supplies and Power-over-Ethernet splitters, facilitating deployment in field installations.
Beyond networking, the board exposes the full suite of CM4 interfaces, including dual MIPI CSI-2 camera inputs for computer vision, a MIPI DSI display output, and multiple USB 3.2 ports via an integrated hub. System management features like a real-time clock (RTC) with interrupt modes, a programmable fan controller (EMC2301), and configuration jumpers for I/O voltage and wireless module control provide the granularity needed for optimized, production-ready deployments.
Additional Information
| Weight | 0.092 kg |
|---|---|
| Dimensions | 9.96 × 8.7 cm |
