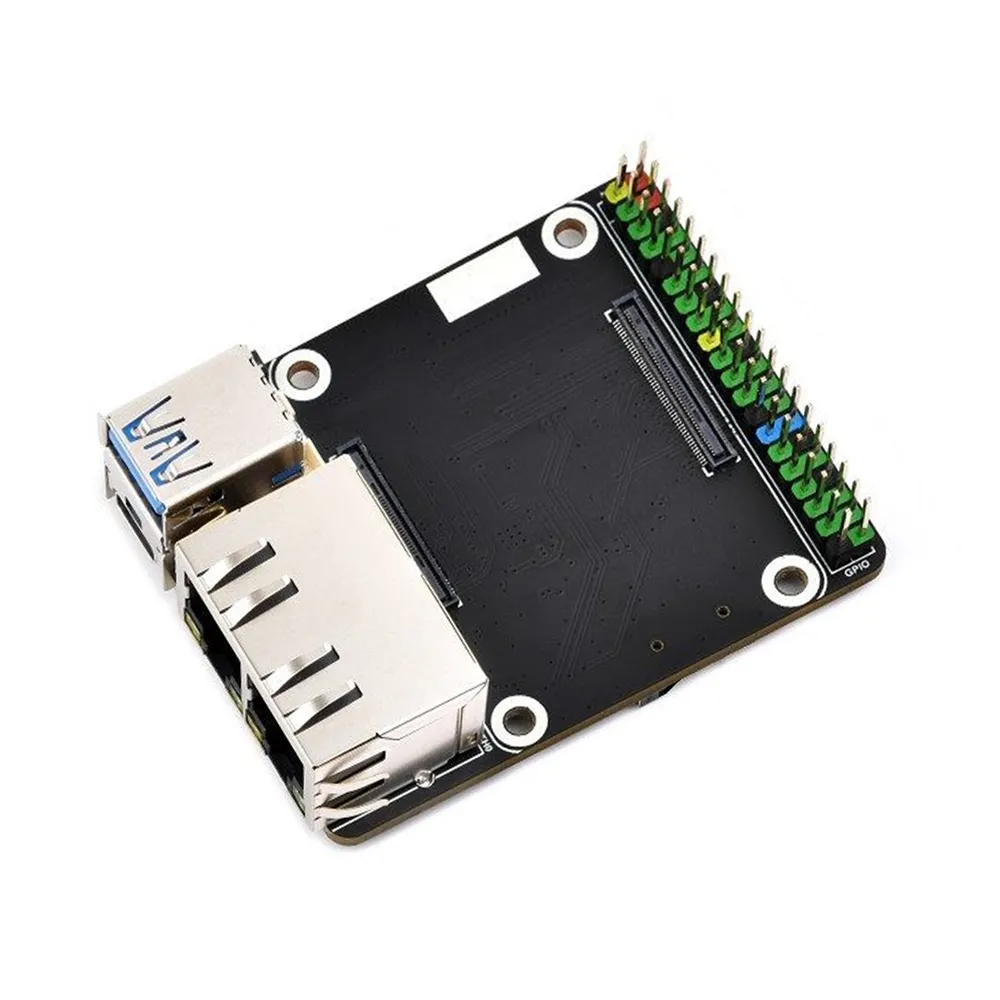

Waveshare CM5 Dual GbE Mini Base Board

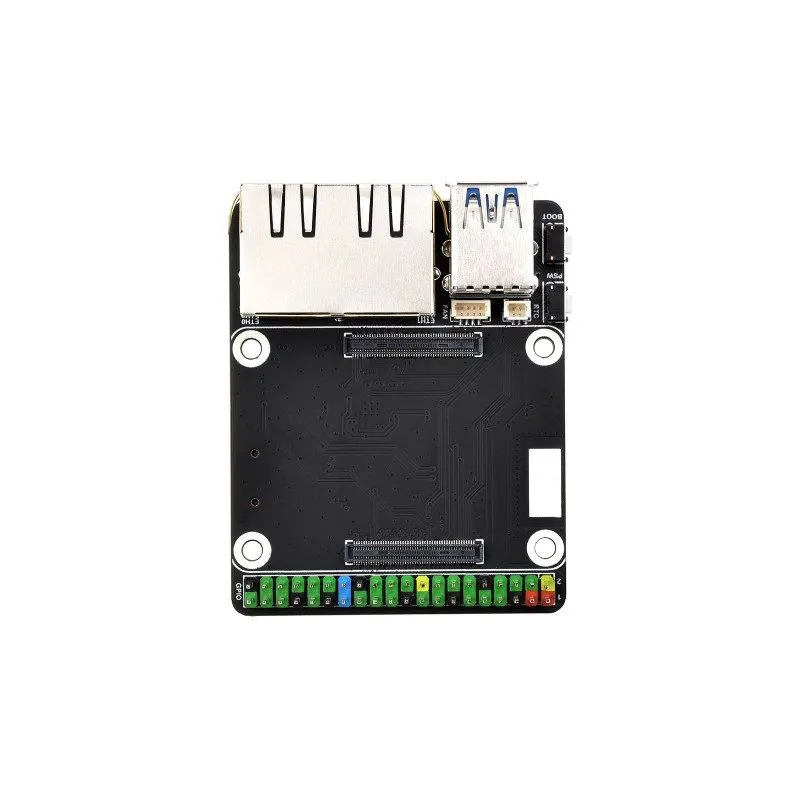

Waveshare CM5 Dual GbE Mini Base Board - Image 2

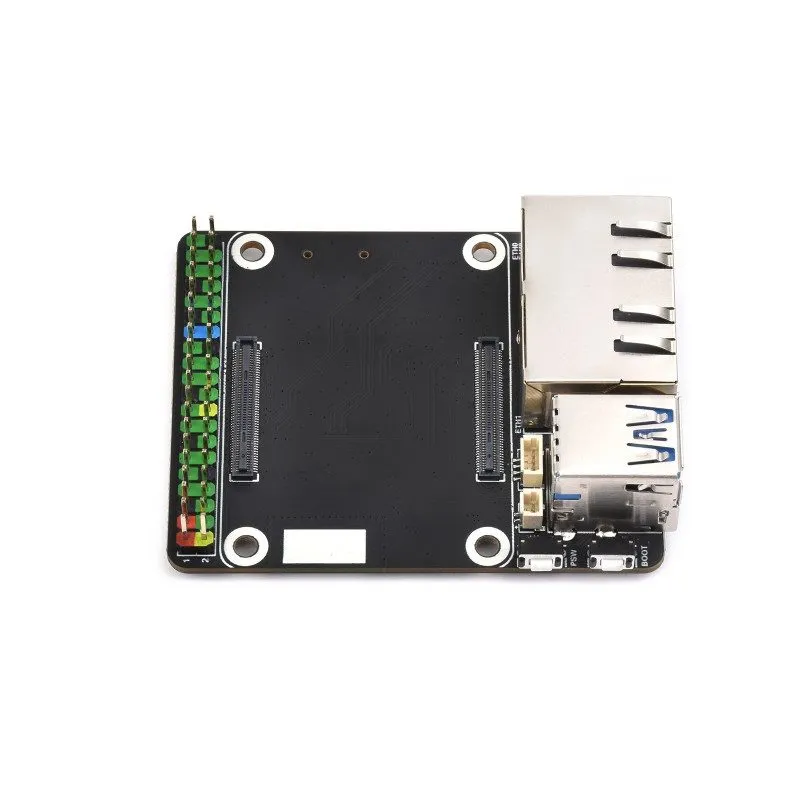

Waveshare CM5 Dual GbE Mini Base Board - Image 3

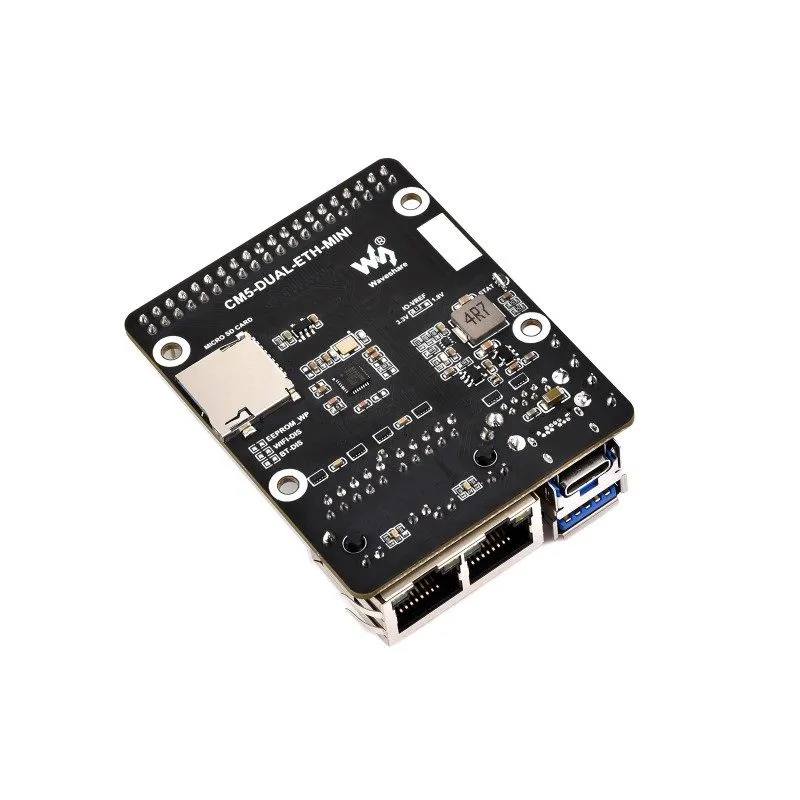

Waveshare CM5 Dual GbE Mini Base Board - Image 4
SKU: SBCD-1285
📋 GST Invoice Available

Waveshare CM5 Dual GbE Mini Base Board

₹2,619.00 (Inclusive of all taxes)
Out of Stock

This compact Waveshare base board is specifically designed for all Raspberry Pi Compute Module 5 (CM5) variants, integrating dual Gigabit Ethernet for network-intensive applications and ensuring stable connectivity with expandable I/O.

Features

  • Designed for all Raspberry Pi Compute Module 5 (CM5) variants
  • Integrates dual Gigabit Ethernet ports for robust networking
  • Compact mini form factor for space-constrained deployments
  • Provides stable connectivity and rich expansion options

Out of stock

Description

This is a compact and powerful carrier board designed specifically for the Raspberry Pi Compute Module 5 (CM5), supporting all its variants (note: CM5 not included). It integrates dual Gigabit Ethernet ports, making it ideal for network-intensive applications such as routers, firewalls, and edge computing. Its mini form factor ensures easy deployment in space-constrained environments, while providing essential interfaces for CM5-based projects. This base board offers a reliable foundation for building high-performance embedded systems and IoT solutions.

Key Features

  • Designed for Raspberry Pi Compute Module 5: Compatible with all CM5 variants (CM5 not included)
  • Dual Gigabit Ethernet Ports: Ideal for networking, routing, and firewall applications
  • Compact Mini-Computer Form Factor: Space-saving design for embedded and industrial use
  • Reliable Connectivity: High-speed, stable Ethernet communication
  • Rich Expansion Options: Supports further I/O and module integration
  • Plug-and-Play Interface: Easy integration with CM5 for rapid development

Applications

  • Embedded routers and network appliances
  • Firewalls and network security systems
  • Edge computing gateways and nodes
  • Industrial automation and control systems
  • High-performance IoT solutions

Technical Specifications

Item TypeBase Board
Model No. / NameMini Dual Gigabit Ethernet
CompatibilityRaspberry Pi Compute Module 5 (CM5)
USBUSB 3.0
Power Input5V
Length55 mm
Width68 mm
Weight34 g

Frequently Asked Questions

What Raspberry Pi Compute Modules are compatible with this base board?

This Waveshare Mini Dual Gigabit Ethernet Base Board is designed for all variants of the Raspberry Pi Compute Module 5 (CM5). It provides a robust carrier solution, allowing developers to integrate their CM5 into network-focused applications seamlessly.

What are the primary networking capabilities of this board?

The board features dual Gigabit Ethernet ports, making it highly suitable for applications requiring dedicated network interfaces such as routers, firewalls, and industrial gateways. This ensures high-speed, stable, and reliable network communication for connected systems.

What are the power requirements for this CM5 base board?

The Waveshare Mini Dual Gigabit Ethernet Base Board operates with a 5V power input. It is crucial to use a stable power supply capable of delivering sufficient current for both the base board and the integrated Compute Module 5 to ensure reliable operation.

What are the physical dimensions of the board?

The board boasts a compact form factor, measuring 68mm in width and 55mm in length. Its mini design allows for easy integration into space-constrained enclosures, making it ideal for various embedded and portable project applications.

Does this package include the Raspberry Pi Compute Module 5?

No, the Raspberry Pi Compute Module 5 (CM5) is NOT included with this base board. This product provides the carrier board only, designed to accept a separately purchased CM5 for full functionality.

Package Includes

  • 1 x CM5-DUAL-ETH-MINI

Additional Information

Weight 0.034 kg
Dimensions 5.5 × 6.8 cm
