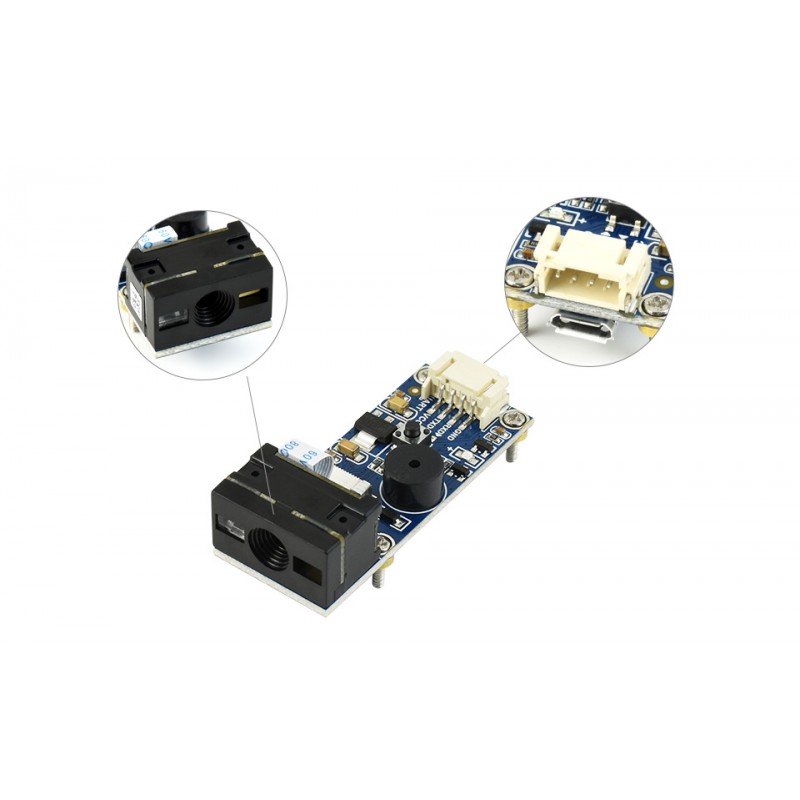

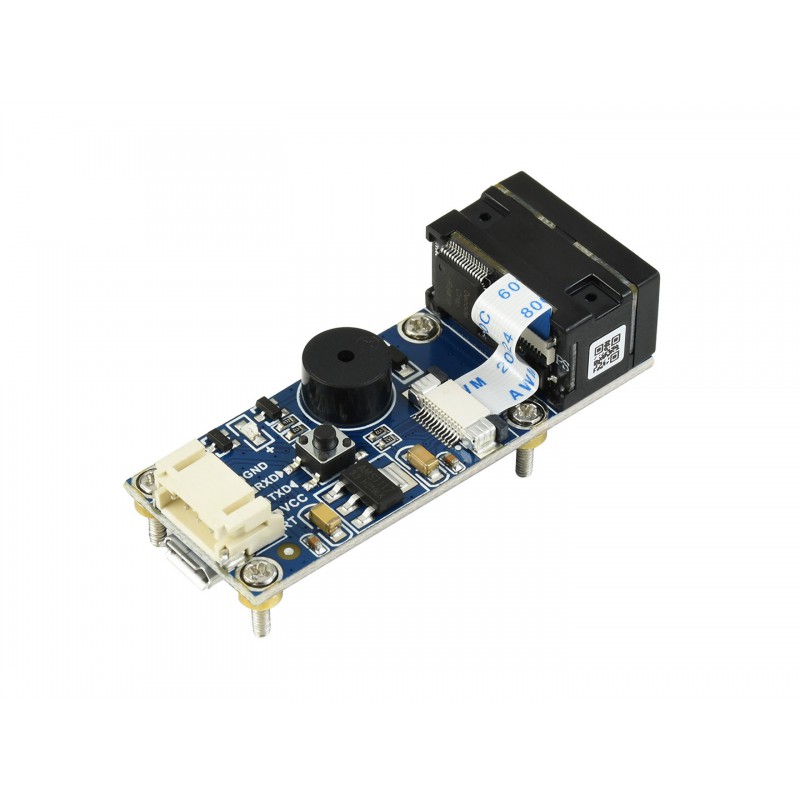

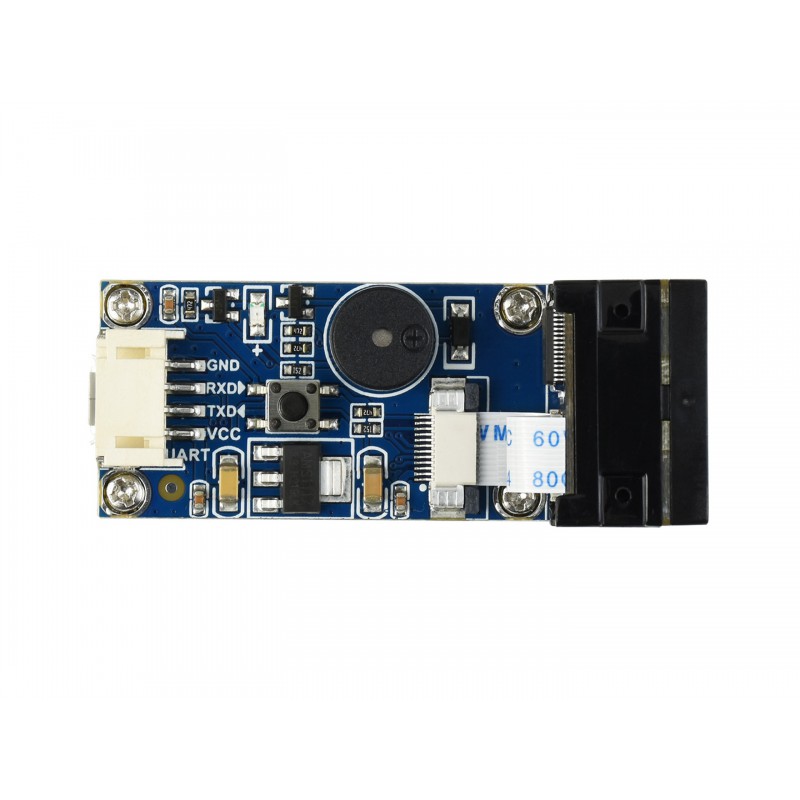

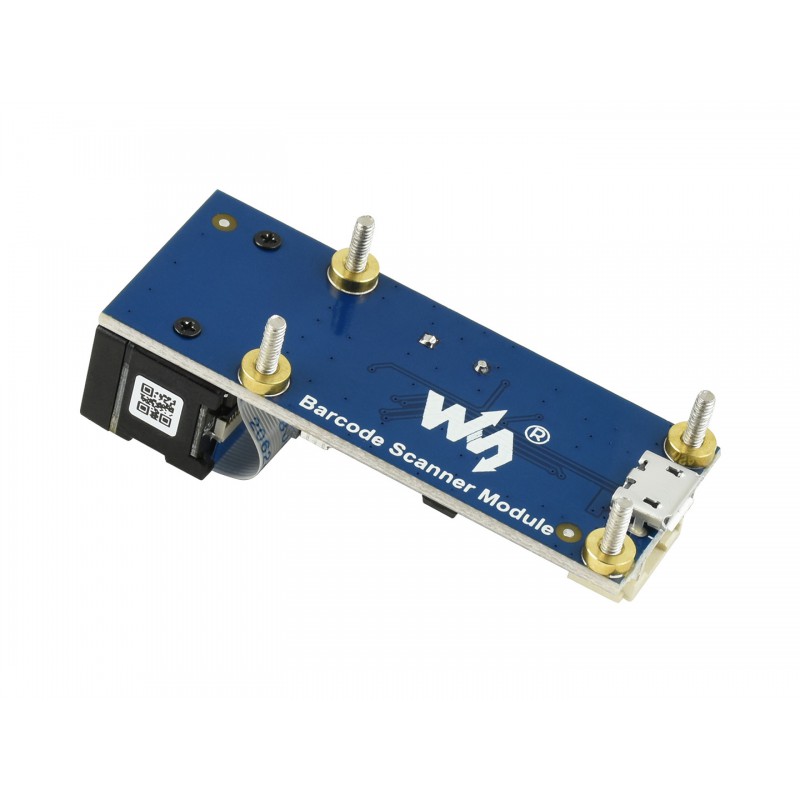

Waveshare Barcode Scanner Module, 1D/2D Codes Reader - USB/UART Interface
The Waveshare Barcode Scanner Module is a compact 2D CMOS imager designed for embedded systems, supporting a wide range of 1D and 2D codes. It interfaces via configurable UART or USB (5V) and is compatible with computers, POS terminals, and microcontrollers like Arduino and Raspberry Pi for automated identification tasks.
Features
- 2D CMOS Imager Engine for reliable 1D/2D code reading
- Dual USB and UART serial interfaces for flexible system integration
- 6-25 cm reading distance with onboard illumination for low-light operation
- Configurable via scanning pre-defined ‘configuration codes’
- Compact form factor suitable for embedded, POS, and kiosk applications
Out of stock
The Waveshare Barcode Scanner Module utilizes a high-performance 2D CMOS image sensor and intelligent decoding algorithms to accurately read common barcodes and QR codes from both printed media and electronic screens. Its robust design supports operation in a 0°C to 60°C temperature range and 5% to 95% non-condensing humidity.
Integration is streamlined through its onboard micro-USB port and UART (TTL-level) serial interface, allowing direct connection to PCs or seamless incorporation into embedded control systems, including those based on 5V logic platforms like Arduino. The module features an integrated LED light source to ensure consistent performance in varying ambient light conditions.
Additional Information
| Weight | 0.081 kg |
|---|---|
| Dimensions | 12 × 6 × 3 cm |
