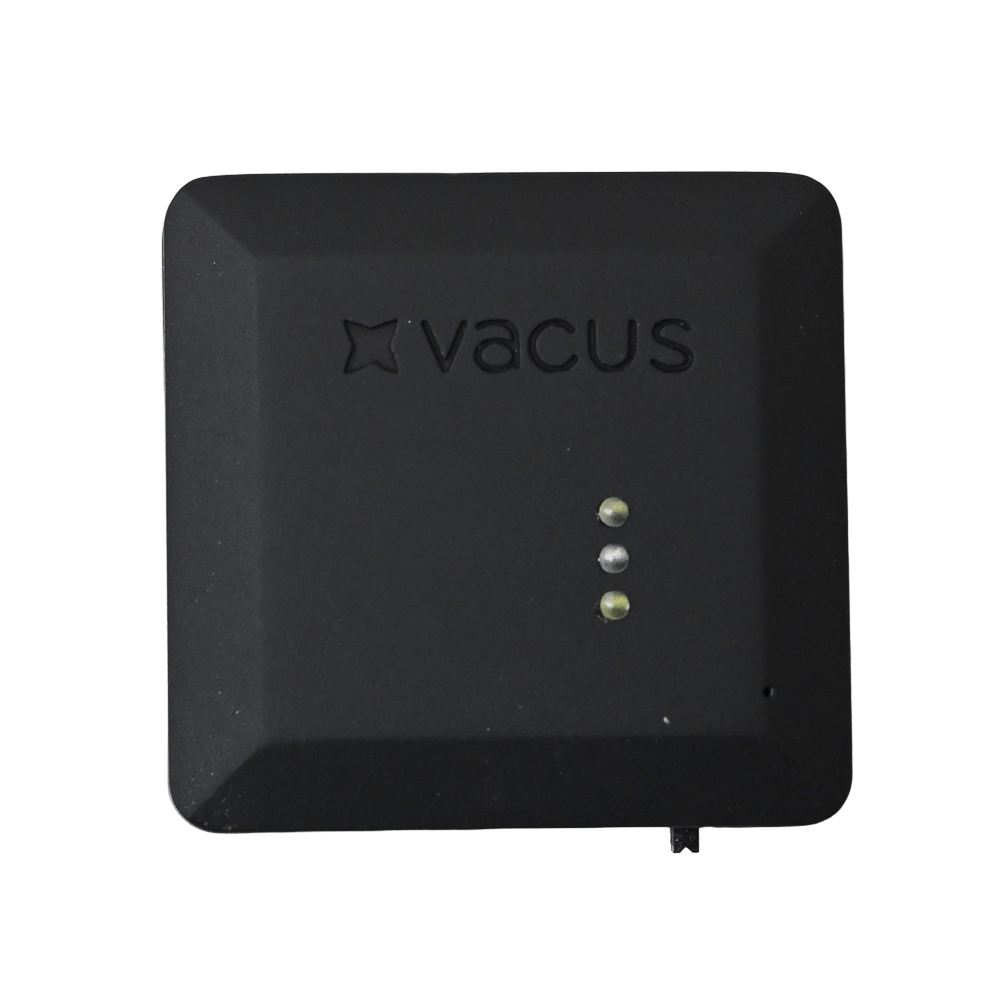

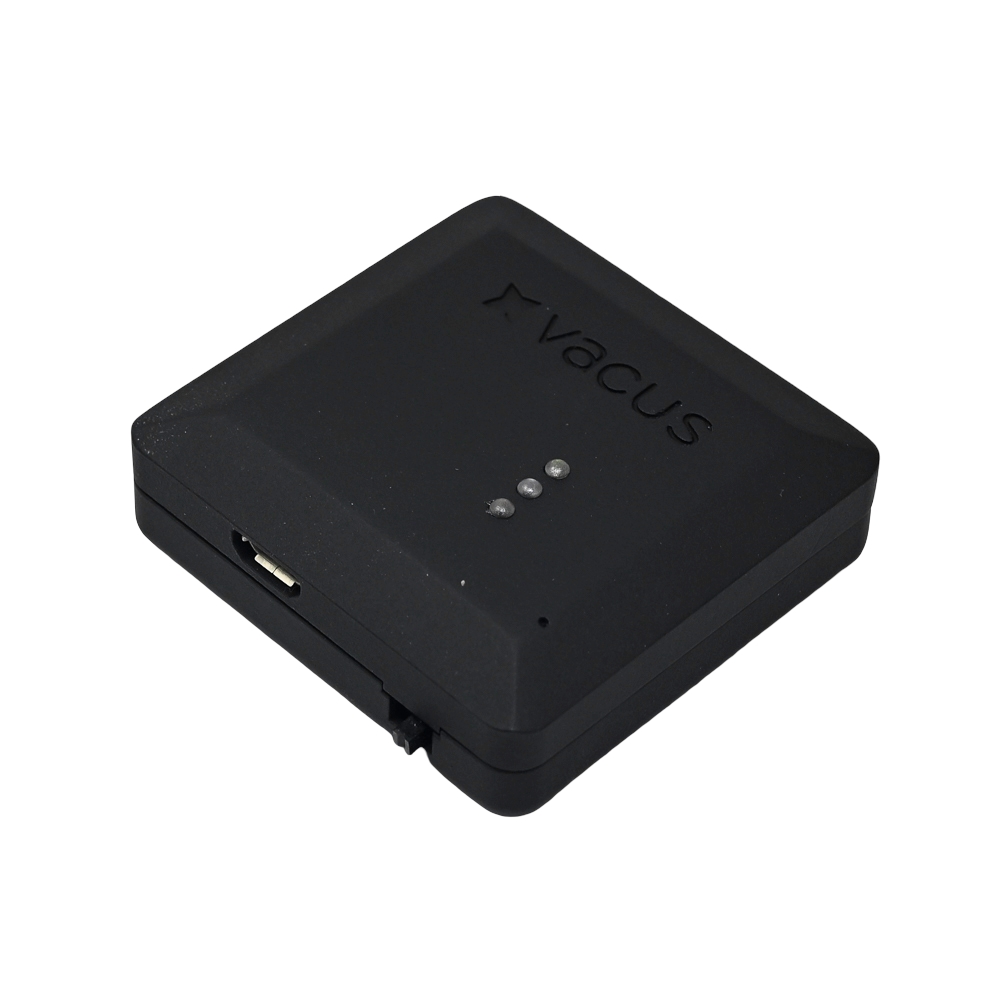

Vacus ESP32-DW3210 UWB Tracking Device
Vacus ESP32-DW3210 UWB Tracking Device - Image 2
SKU: DRFC-1843
📋 GST Invoice Available

Vacus ESP32-DW3210 UWB Tracking Device

₹7,006.00 (Inclusive of all taxes)
Out of Stock

The Vacus ESP32-DW3210 is a compact, rechargeable UWB (Ultra-Wideband) tracking device designed for high-precision, real-time asset and drone positioning in GPS-denied environments. It integrates an ESP32-WROOM-32E controller, DW3210 UWB transceiver, and a 6-axis IMU for scalable industrial and enterprise tracking applications.

Features

  • High-accuracy UWB indoor positioning with DW3210 chipset.
  • Powered by dual-core ESP32-WROOM-32E with Wi-Fi & BLE connectivity.
  • Integrated LSM6DS3TR-C 6-axis IMU for motion and orientation detection.
  • 950mAh rechargeable Li-Po battery with USB charging and OTA firmware support.
  • Compact, low-power industrial design for easy deployment and tool-free installation.

Out of stock

Description

The Vacus ESP32-DW3210 UWB Tracking Device is engineered for precise real-time location tracking in industrial settings where GPS signals are unavailable. Its core architecture combines the processing power of an ESP32-WROOM-32E microcontroller with the advanced ranging capabilities of a DW3210 Ultra-Wideband transceiver, enabling centimeter-level accuracy for asset monitoring and drone swarm coordination.

This unit features a robust 950mAh Li-Po battery, supporting extended operational periods, and includes a 6-axis IMU (LSM6DS3TR-C) for enhanced activity logging and orientation data. The device’s compact form factor and low-power design facilitate scalable deployments, while Micro-USB connectivity allows for straightforward firmware updates and battery charging.

Key Features

  • Precision UWB Positioning: DW3210 chipset enables high-accuracy, real-time indoor tracking with minimal latency.
  • Dual-Core Processing: ESP32-WROOM-32E controller provides robust computational power for complex tracking algorithms and wireless communication stacks.
  • Integrated Motion Sensing: Onboard LSM6DS3TR-C 6-axis IMU (accelerometer and gyroscope) delivers precise orientation and activity data.
  • Extended Battery Life: 950mAh rechargeable Li-Po battery supports long-duration operation, with convenient USB charging.
  • Wireless Firmware Management: Supports Over-the-Air (OTA) updates for seamless deployment and feature upgrades.
  • Industrial-Grade Design: Compact, low-power construction ensures reliability in demanding environments and enables tool-free installation.

Applications

  • Precision indoor asset tracking for warehouse inventory and logistics drones.
  • Drone swarm coordination and formation flying in GPS-denied environments.
  • Industrial safety monitoring and personnel tracking within confined facilities.
  • Integration into custom UAV payloads for research and development projects requiring precise relative positioning.
  • Augmented Reality (AR) and Virtual Reality (VR) system tracking anchors.

Technical Specifications

Item TypeUWB Tracking Device
ControllerESP32-WROOM-32E-N4
ChipsetDW3210 (UWB Chipset)
IMU SensorLSM6DS3TR-C (6-axis)
Battery Capacity950mAh Li-Po
Input Voltage5V (Micro-USB)
Operating Voltage2.7~5.5V
Length50.2 mm
Width50 mm
Weight42 g

Frequently Asked Questions

What is the primary function of the Vacus ESP32-DW3210 device?

The Vacus ESP32-DW3210 is an Ultra-Wideband (UWB) tracking device designed for high-precision, real-time indoor positioning. It provides centimeter-level accuracy for tracking drones, assets, or personnel in environments where GPS signals are unavailable, using the DW3210 chipset for ranging and an onboard IMU for orientation data.

How is the device powered and what is its battery life?

The device is powered by an integrated, rechargeable 950mAh Li-Po battery, which is charged via a standard Micro-USB port (5V input). Battery life depends on usage mode and transmission frequency, but the low-power design of the ESP32 and DW3210 components supports extended operational periods for typical tracking applications.

Can the firmware on this tracking device be updated wirelessly?

Yes, the Vacus ESP32-DW3210 supports Over-the-Air (OTA) firmware updates. This allows you to deploy new features, improve tracking algorithms, and apply security patches remotely without physically connecting to each device, simplifying maintenance in large-scale installations.

What are the physical dimensions and weight of this unit?

The device measures 50.2 mm in length, 50 mm in width, and weighs approximately 42 grams. This compact and lightweight form factor makes it suitable for integration into drone payloads or attachment to assets without adding significant bulk or affecting flight performance.

Package Includes

  • 1 x Vacus ESP32-DW3210 UWB Tracking Device

Additional Information

Weight 0.042 kg
Dimensions 5.02 × 5 cm
