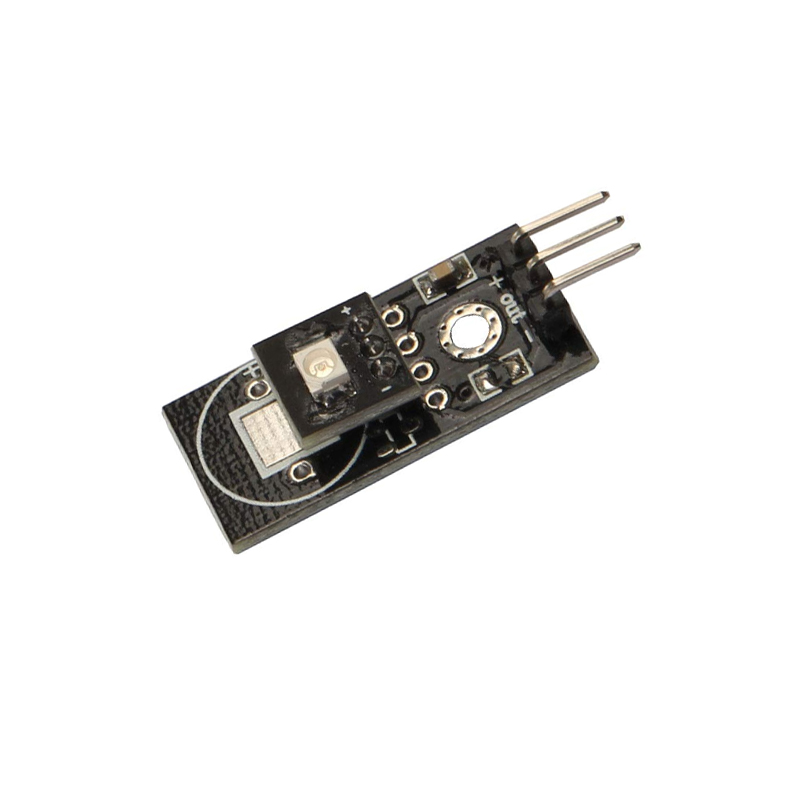

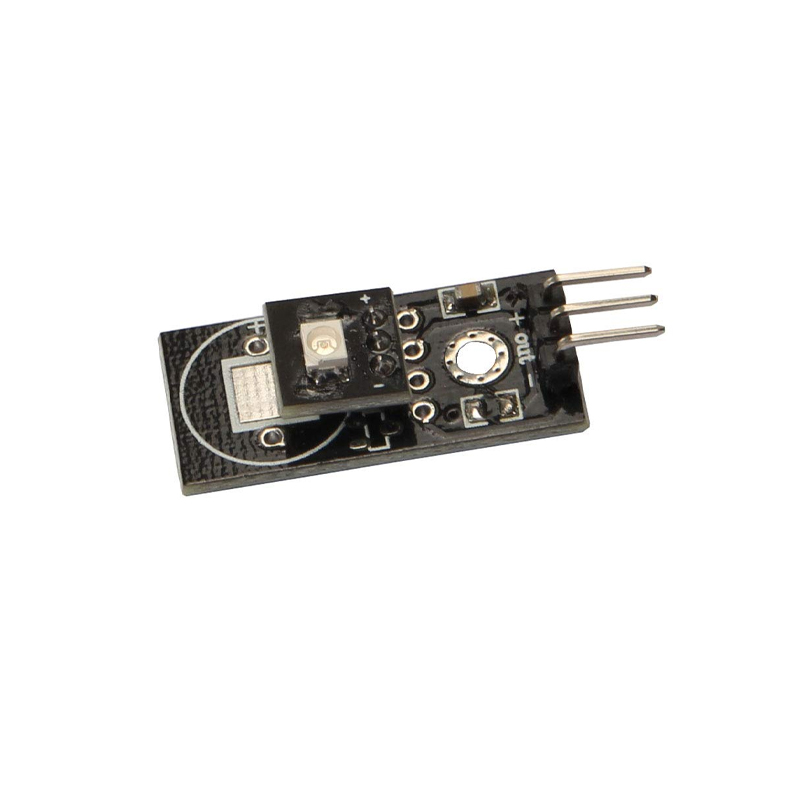

UVM-30A UV Ultraviolet Ray Detection Sensor Module
The UVM-30A is a compact ultraviolet sensor module designed for detecting UV light within the 200–370nm spectrum, providing accurate UV index readings. It features ultra-low power consumption and a wide operating temperature range, making it compatible with Arduino, Raspberry Pi, and other 3.3V/5V microcontroller platforms for environmental monitoring projects.
Features
- Detects UV wavelengths from 200nm to 370nm for precise ultraviolet light measurement.
- High accuracy of ±1 UV INDEX ensures reliable environmental and sunlight exposure monitoring.
- Ultra-low operating current of 0.06mA (typical) for battery-powered and low-power IoT applications.
- Wide operating temperature range from -20℃ to 85℃ for robust indoor and outdoor deployment.
- Compact form factor (35mm x 13mm) and lightweight design for easy integration into portable devices.
Out of stock
The UVM-30A UV sensor module operates on the principle of a photodiode sensitive to ultraviolet radiation, converting incident UV light intensity into a corresponding analog voltage signal. This signal can be directly read by a microcontroller’s ADC pin for UV index calculation. The module includes necessary signal conditioning circuitry for stable output.
Engineered for durability, the sensor performs reliably across a broad temperature span from -20℃ to 85℃, making it suitable for harsh environmental conditions. Its minimal power draw allows for integration into long-term, solar-powered, or battery-operated monitoring stations without significant energy budget impact.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.5 × 1.3 cm |
