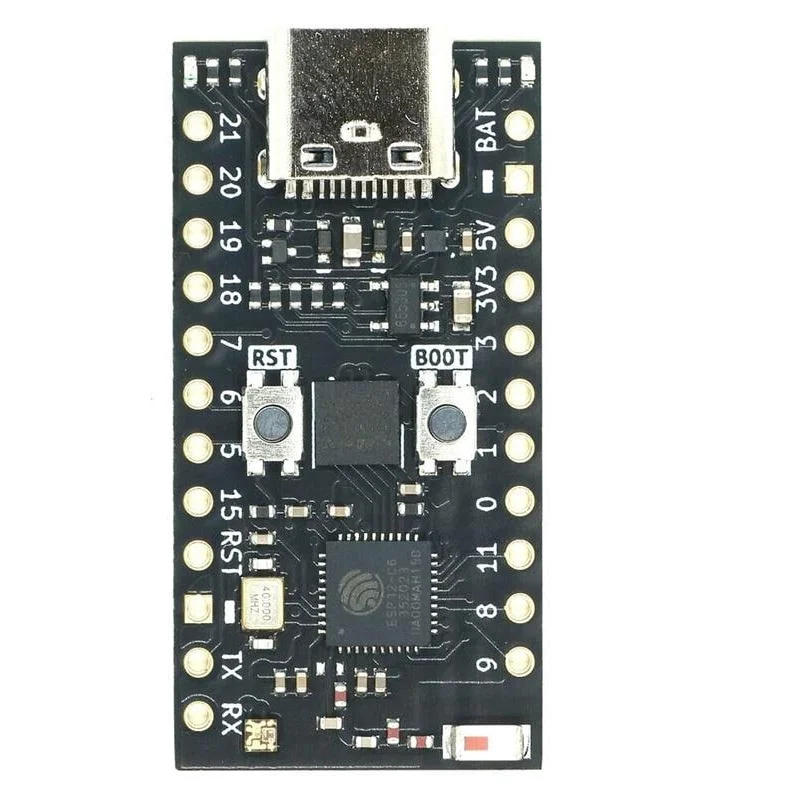

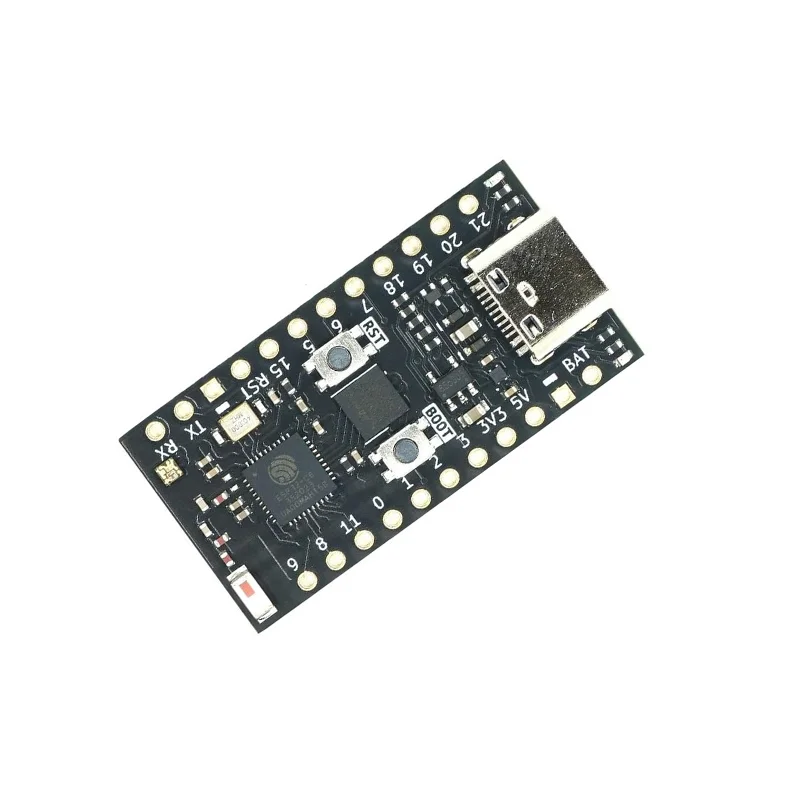

Unexpected Maker TinyC6 ESP32-C6 Dev Board w/ Onboard Antenna

You can program the TinyC6 using Espressif's ESP-IDF framework, the Arduino Core for ESP32, or MicroPython. Connect the board via its USB port to your computer. In the Arduino IDE, add the ESP32 board support URL and select 'Unexpected Maker TinyC6' from the board list. For ESP-IDF, use the `idf.py` toolchain after setting the target to `esp32c6`. The onboard USB-to-serial chip handles the flashing process automatically. (Word count: 50)

The TinyC6 is typically powered via its USB port at 5V. The onboard regulator steps this down to the required core voltages. For battery operation, you can supply regulated 3.3V directly to the appropriate pins, respecting the board's current consumption specifications in active and deep sleep modes. Always check the pinout diagram to identify the correct VIN and 3V3 pins to avoid damaging the sensitive ESP32-C6 radio circuitry. (Word count: 50)

No, the Unexpected Maker TinyC6 is designed with a fixed, integrated PCB antenna and does not feature an external antenna connector like an IPEX or SMA port. The onboard antenna is optimized for the 2.4GHz band and provides adequate range for most indoor and short-range IoT applications. For projects requiring specialized antenna patterns or extended range, consider a different ESP32-C6 module variant that includes an external antenna connector. (Word count: 50)
