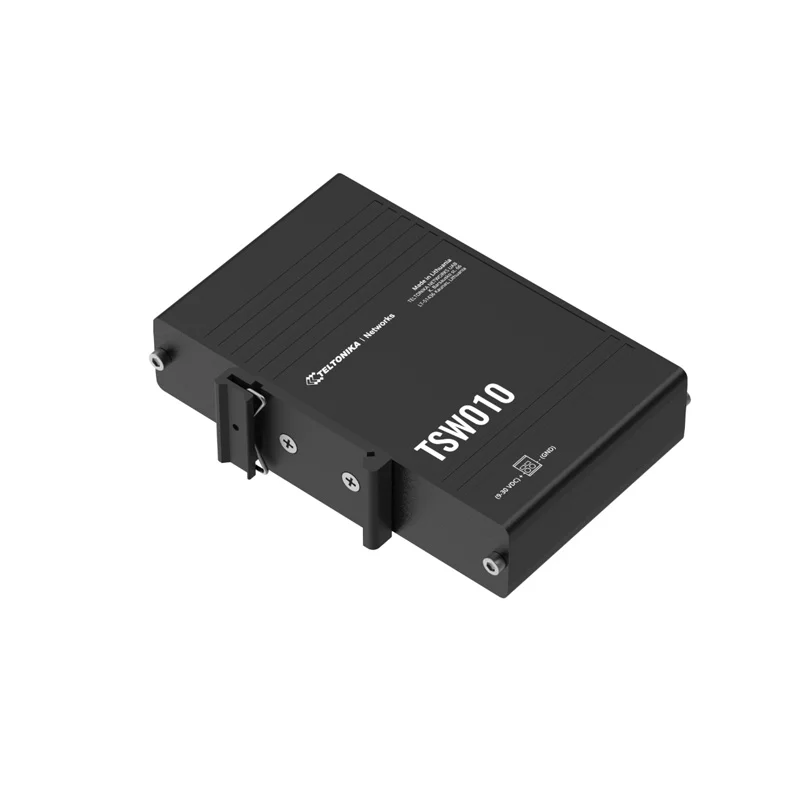

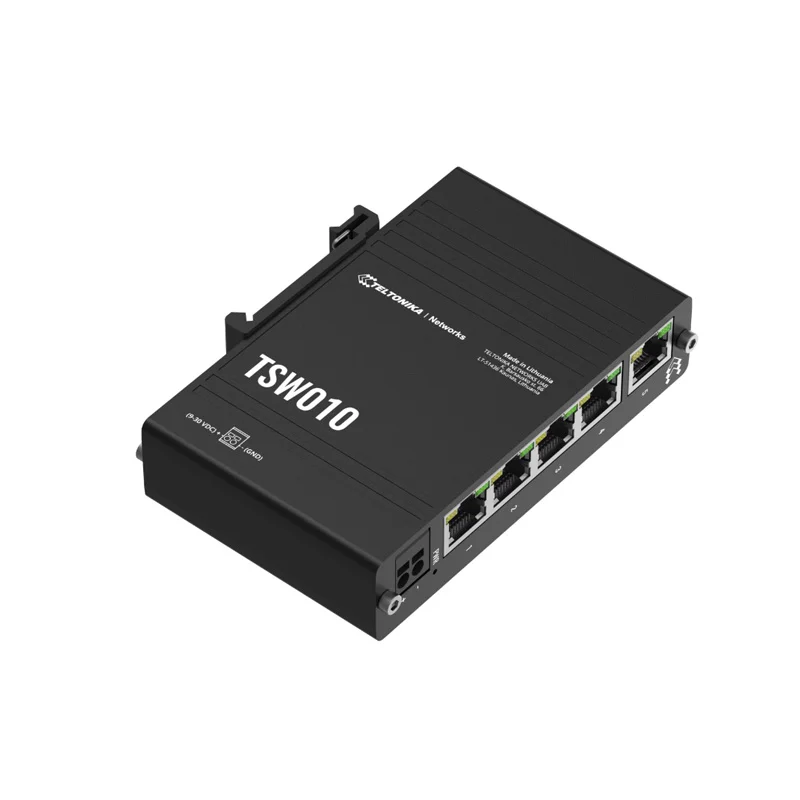

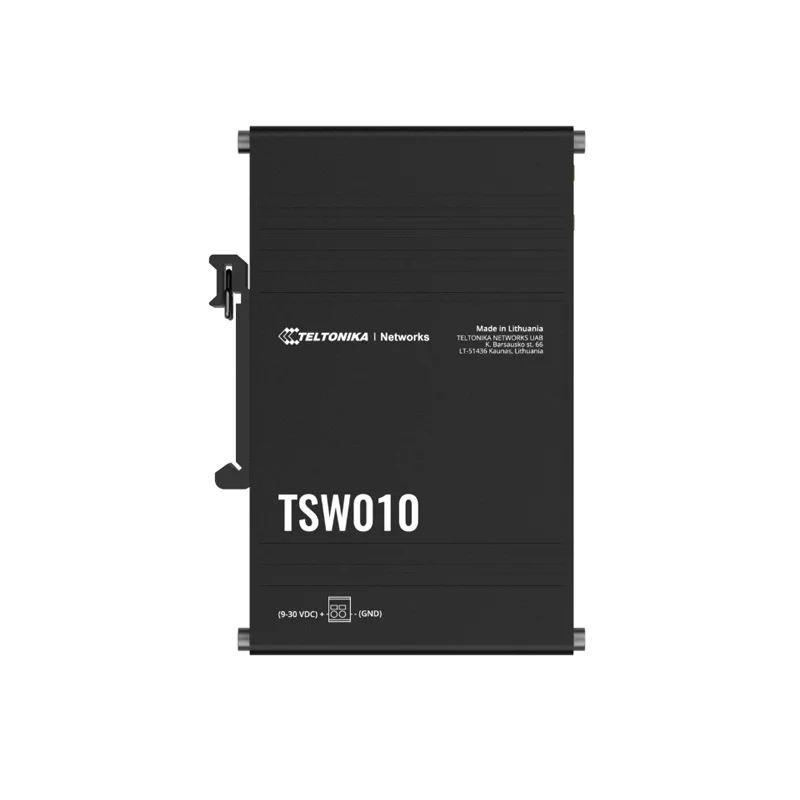

Teltonika TSW010 DIN Rail Ethernet Switch 5x100 Mbps
The Teltonika TSW010 is an industrial-grade, unmanaged Ethernet switch designed for DIN rail mounting. Featuring five 100 Mbps ports with passive PoE support on ETH1, it provides robust network expansion for industrial automation, control systems, and IoT deployments within a wide 9–30 VDC input range.
Features

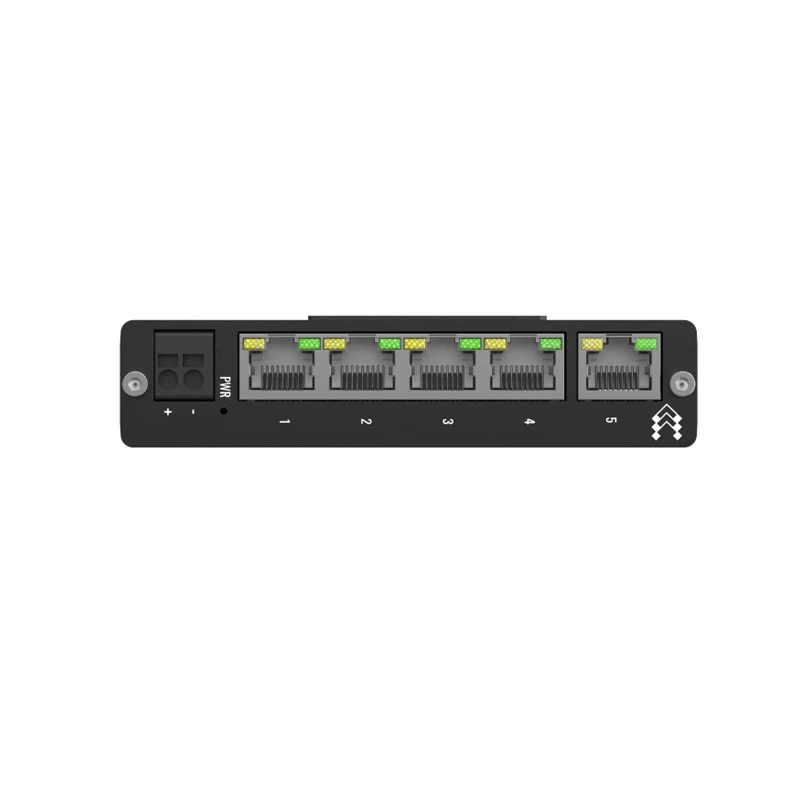

- Industrial-grade 5-port Ethernet switch with 100 Mbps RJ45 ports for stable network expansion in harsh environments.

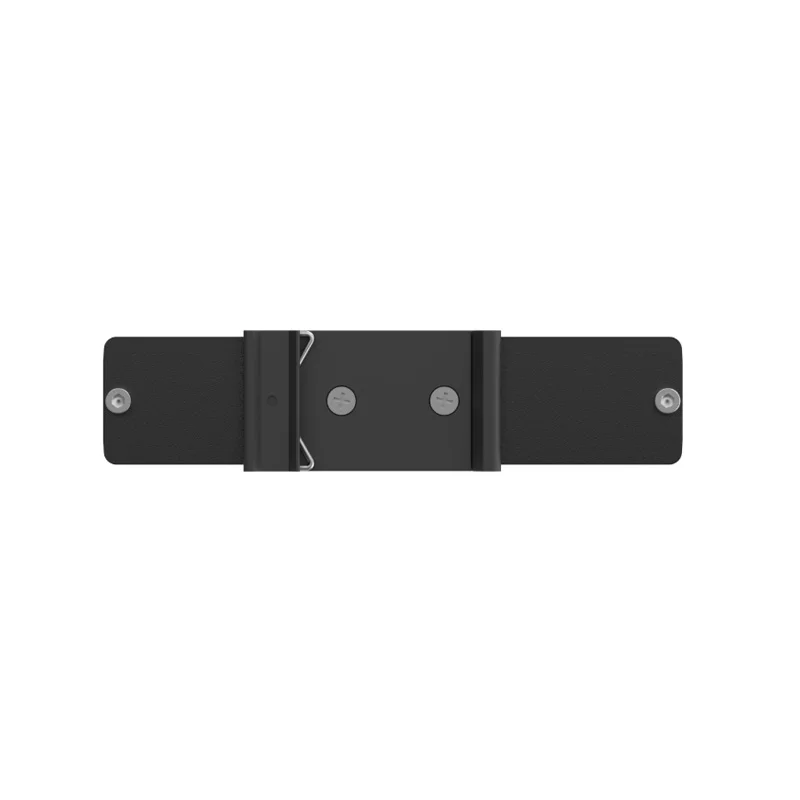

- Integrated DIN rail mounting bracket and compact aluminum housing enable quick installation in control cabinets.
- Wide 9–30 VDC input range with a 2-pin industrial connector ensures compatibility with various industrial power supplies.
- Supports passive Power over Ethernet (PoE) on ETH1 port, simplifying power delivery to connected devices like sensors or cameras.
- Low power consumption (0.3W idle) and robust operating range (-40°C to +75°C, IP30) for reliable performance in demanding conditions.
Out of stock
The Teltonika TSW010 DIN Rail Ethernet Switch is a compact, industrial networking device engineered for reliability in automation and IoT systems. Its unmanaged design ensures plug-and-play operation, while five auto-negotiating 100 Mbps ports with auto MDI/MDIX support stable data transfer for PLCs, HMIs, and remote sensors.
Housed in a lightweight aluminum chassis with an integrated DIN rail clip, the switch is built for easy integration into control panels. The wide-range 9–30 VDC input, delivered via a secure 2-pin industrial socket, accommodates fluctuating power sources common in industrial settings. Passive PoE capability on the ETH1 port allows direct powering of compatible endpoints, reducing wiring complexity. With minimal power draw and a hardened operating temperature range, the TSW010 delivers continuous connectivity for critical industrial networks.
Additional Information
| Weight | 0.1465 kg |
|---|---|
| Dimensions | 11.31 × 8.05 cm |
