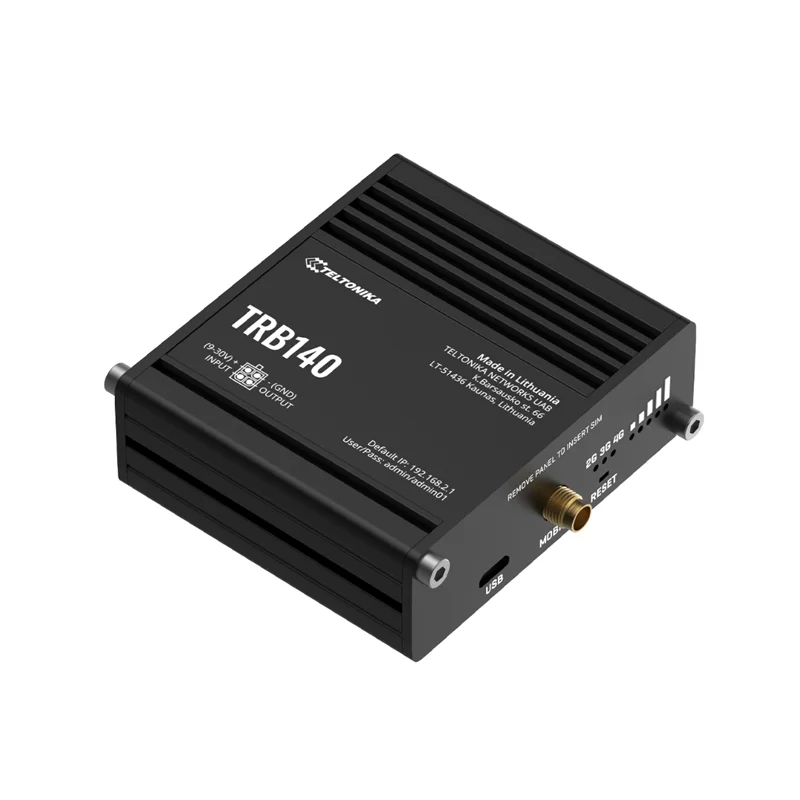

Teltonika TRB140 Industrial Ethernet Gateway w/ 4G LTE Cat 4 & Gigabit ETH

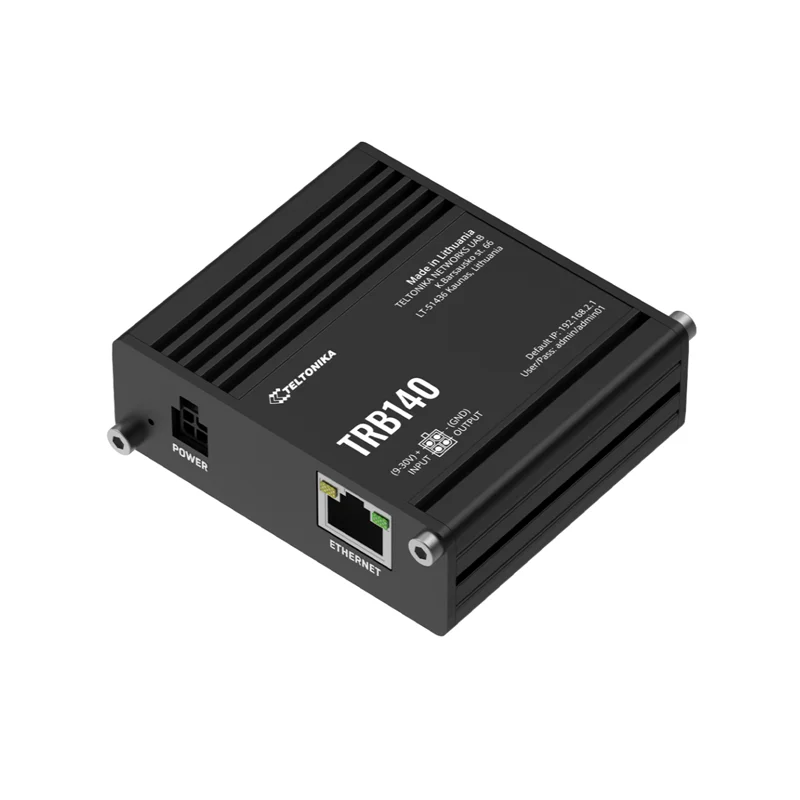

Teltonika TRB140 Industrial Ethernet Gateway w/ 4G LTE Cat 4 & Gigabit ETH - Image 2

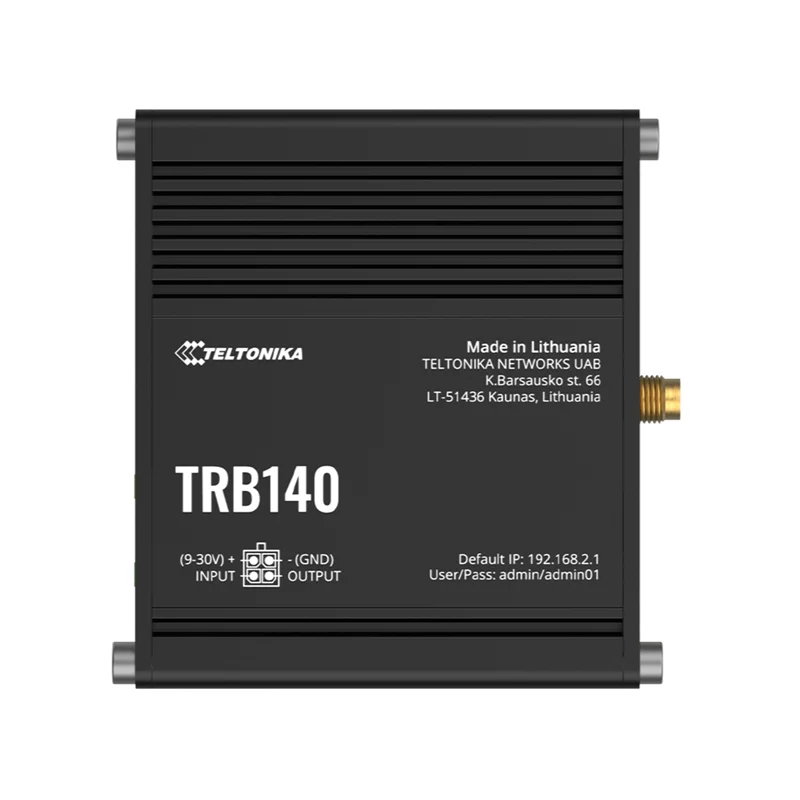

Teltonika TRB140 Industrial Ethernet Gateway w/ 4G LTE Cat 4 & Gigabit ETH - Image 3

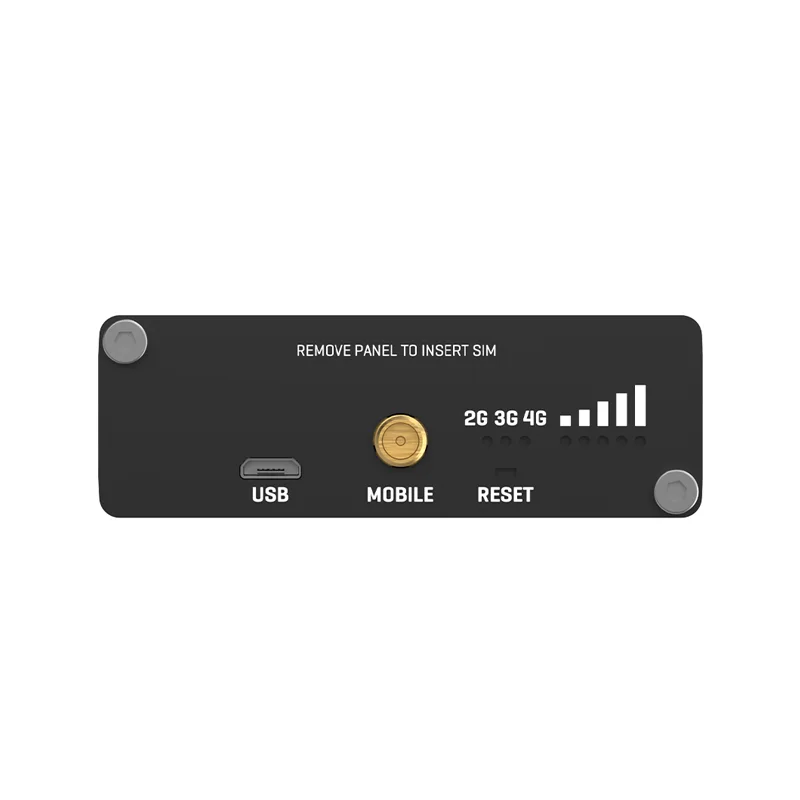

Teltonika TRB140 Industrial Ethernet Gateway w/ 4G LTE Cat 4 & Gigabit ETH - Image 4

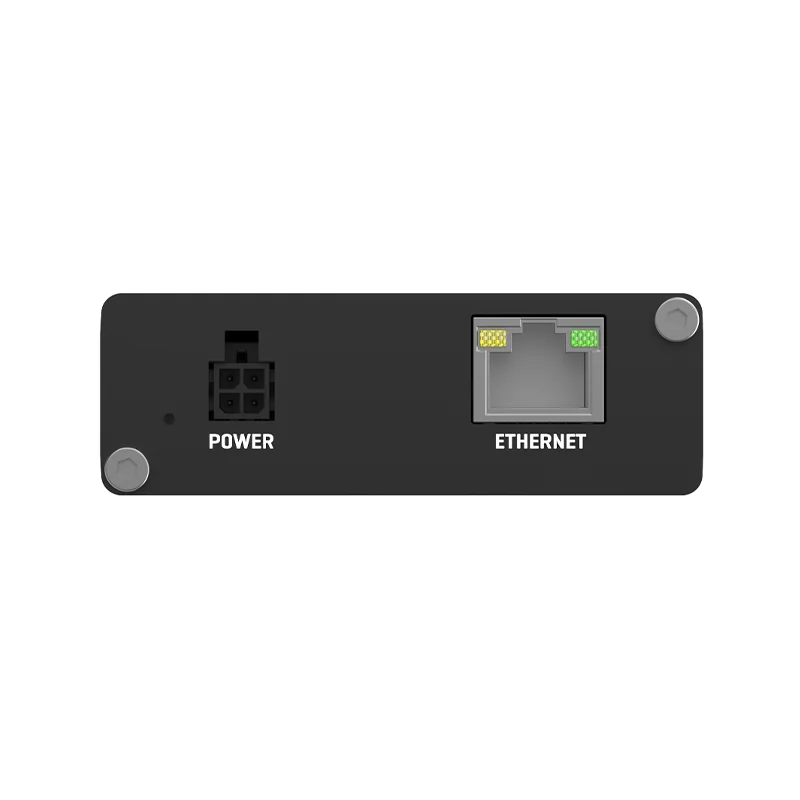

Teltonika TRB140 Industrial Ethernet Gateway w/ 4G LTE Cat 4 & Gigabit ETH - Image 5
SKU: IOWC-1917
📋 GST Invoice Available

Teltonika TRB140 Industrial Ethernet Gateway w/ 4G LTE Cat 4 & Gigabit ETH

₹16,039.00 (Inclusive of all taxes)
Out of Stock

The Teltonika TRB140 is an industrial-grade LTE-to-Ethernet gateway powered by RutOS (OpenWrt-based Linux), providing secure 4G LTE Cat 4 backhaul and a Gigabit Ethernet port for connecting wired devices to the internet in remote or harsh environments.

Features

  • High-speed 4G LTE Cat 4 connectivity (up to 150 Mbps) with automatic fallback to 3G/2G networks for maximum uptime.
  • Single Gigabit Ethernet port (10/100/1000 Mbps) for reliable, high-bandwidth wired network integration.
  • Rugged aluminium housing with DIN-rail mounting and an extended operating temperature range of -40°C to 75°C.
  • Powered by RutOS, offering extensive customization, VPN support (OpenVPN, IPsec, WireGuard), advanced firewall, and remote management via Teltonika RMS.
  • Flexible 9–30 V DC power input with passive PoE support and low power consumption under 5 W for energy-efficient deployment.

Out of stock

Description

The Teltonika TRB140 is a compact, mission-critical industrial Ethernet gateway engineered for reliable IoT and M2M connectivity. It bridges cellular and wired networks, featuring a high-performance ARM Cortex-A7 processor (1.2 GHz) and 128 MB DDR2 RAM to handle advanced routing, VPN tunneling, and security protocols. Its robust aluminium enclosure ensures durability in demanding conditions such as factory floors, transportation, and outdoor infrastructure.

Running on the customizable RutOS firmware, based on OpenWrt, the TRB140 provides a full-featured Linux environment for network configuration, scripting, and protocol support. This allows system integrators to implement secure site-to-site VPNs, granular firewall rules, and remote device management via TR-069 or the Teltonika Remote Management System (RMS), making it an ideal backbone for industrial automation and remote monitoring solutions.

Key Features

  • Secure 4G LTE Cat 4 cellular backhaul with automatic fallback to 3G and 2G networks for resilient connectivity.
  • Gigabit Ethernet port (10/100/1000 Mbps) for high-speed integration with PLCs, sensors, cameras, and local networks.
  • Full-featured RutOS (OpenWrt-based) operating system enabling advanced networking, scripting, and custom package installation.
  • Comprehensive VPN suite including OpenVPN, IPsec, WireGuard, and ZeroTier for encrypted site-to-site and remote access tunnels.
  • Industrial-grade build with aluminium housing, DIN-rail mounting option, and operation from -40°C to 75°C.
  • Advanced security features with stateful firewall, DDOS protection, and access control lists (ACLs).
  • Remote management and monitoring via Teltonika RMS and TR-069 for large-scale deployments.
  • Low power consumption (under 5 W) with wide-range 9–30 V DC input and support for passive PoE (Mode B).

Applications

  • Industrial automation and SCADA systems requiring secure remote access and cellular failover.
  • Remote monitoring of IP cameras, environmental sensors, and telemetry equipment in off-grid locations.
  • Smart city infrastructure for traffic management, digital signage, and public Wi-Fi backhaul.
  • Fleet management and transportation telematics for real-time vehicle data transmission.
  • Energy sector deployments for remote substation monitoring and renewable energy site management.

Technical Specifications

CPU / SoCARM Cortex-A7, 1.2 GHz
RAM128 MB DDR2
Cellular Connectivity4G LTE Cat 4 (150 Mbps DL), 3G, 2G
Ethernet Port1 × RJ45, 10/100/1000 Mbps
Operating SystemRutOS (OpenWrt-based Linux)
Supply Voltage9–30 V DC
Power Consumption< 5 W
Power Input4-pin DC connector, Passive PoE (9–30 V DC, Mode B)
Operating Temperature-40 °C to 75 °C
Dimensions (L×W)65 mm × 75 mm
Weight134 g

Frequently Asked Questions

What operating system does the TRB140 run, and can I install custom software?

The TRB140 runs RutOS, a Teltonika firmware based on OpenWrt Linux. This provides a full package manager (opkg), allowing you to install custom scripts, utilities, and networking packages. You can access the device via SSH or the web interface for advanced configuration, enabling tailored solutions for routing, firewall rules, and VPN setups specific to your industrial application.

How do I power the TRB140 in a vehicle or remote site?

The gateway accepts a wide 9–30 V DC input via its 4-pin connector, compatible with common vehicle and solar power systems. It also supports passive Power over Ethernet (PoE, Mode B) using the same voltage range on the Ethernet pins, simplifying installation by carrying both data and power over a single cable to the device in challenging deployments.

Can the TRB140 establish a secure VPN connection to my corporate network?

Yes, the TRB140 supports multiple VPN protocols natively within RutOS, including OpenVPN, IPsec, WireGuard, and ZeroTier. You can configure site-to-site tunnels or remote client access directly through the web interface or CLI. This allows encrypted data transmission from field devices back to your central servers, ensuring security for sensitive industrial control and monitoring data.

Package Includes

  • 1 x Teltonika TRB140 Industrial Ethernet Gateway
  • 1 x 9 W Power Supply Unit (PSU)
  • 1 x Magnetic Mount Mobile Antenna (SMA male, 3 m cable)
  • 1 x Micro-USB Cable (0.8 m)
  • 1 x Hex Key
  • 1 x LAN Cable
  • 1 x Quick Start Guide (QSG)
  • 1 x Packaging Box

Additional Information

Weight 0.134 kg
Dimensions 6.5 × 7.5 cm

Related Products

Out of Stock

Teltonika TAP200 Industrial Dual-Band Wireless Access Point

7,639.00
Learn More
Out of Stock

Teltonika TRB143 Industrial M-Bus Cellular Gateway w/ 4G LTE Cat 4

22,919.00
Learn More
Out of Stock

Teltonika EBD070 5G RedCap Raspberry Pi HAT

25,209.00
Learn More
Out of Stock

Teltonika TSW100 Industrial 5-Port Gigabit PoE+ Ethernet Switch

10,079.00
Learn More
Out of Stock

Teltonika TRB245 Industrial LTE Gateway with I/O

21,849.00
Learn More
Out of Stock

Teltonika TRB500 Industrial 5G Gateway w/ DIN Mount

50,419.00
Learn More
Out of Stock

Teltonika TSW010 DIN Rail Ethernet Switch 5x100 Mbps

3,299.00
Learn More
Out of Stock

Teltonika TRB160 Industrial LTE Cat 6 Gateway

21,079.00
Learn More
Out of Stock

Teltonika TSW101 Industrial 5-Port Gigabit PoE+ Switch

10,079.00
Learn More
Out of Stock

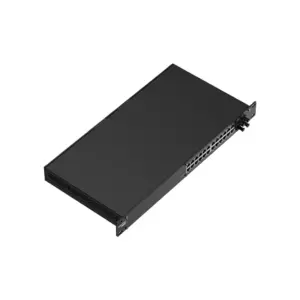

Teltonika SWM281 Managed Industrial Ethernet Switch 24x Gigabit RJ45 4x SFP
