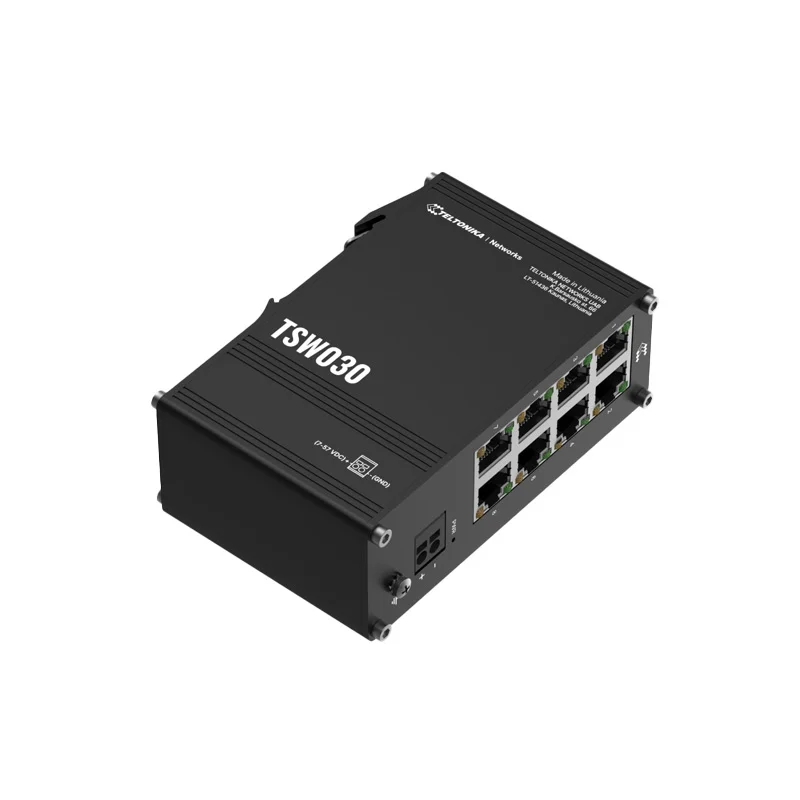

Teltonika TSW030 8-Port Industrial Ethernet Switch 8x100 Mbps
The Teltonika TSW030 is an unmanaged 8-port industrial Ethernet switch providing reliable 100 Mbps connectivity for PLCs, sensors, IP cameras, and HMIs in harsh automation environments. Featuring a rugged aluminum housing, DIN-rail mounting, and a wide 7–57 VDC input range, it offers plug-and-play networking with ultra-low power consumption.
Features

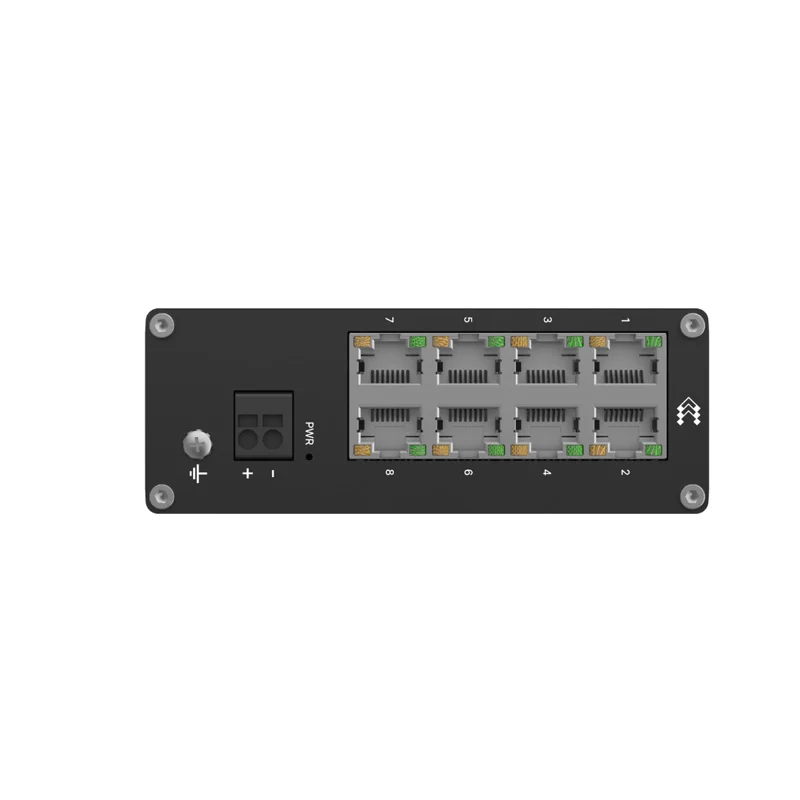

- Eight 100 Mbps RJ45 Ethernet ports with auto MDI/MDIX for plug-and-play connectivity in industrial networks.
- Rugged anodized aluminum housing with IP30 protection ensures reliable operation from -40°C to +75°C.

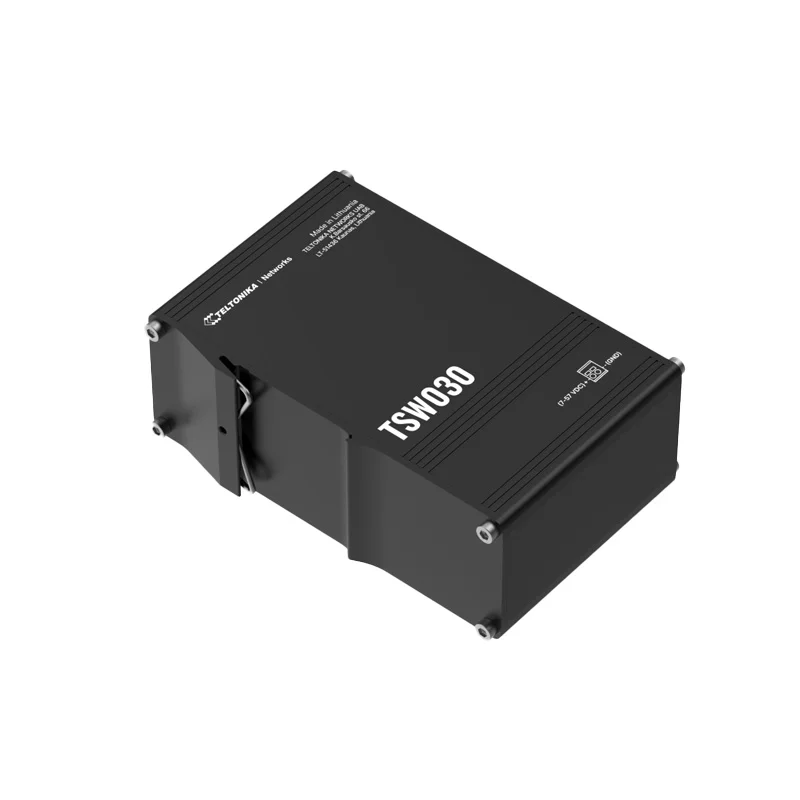

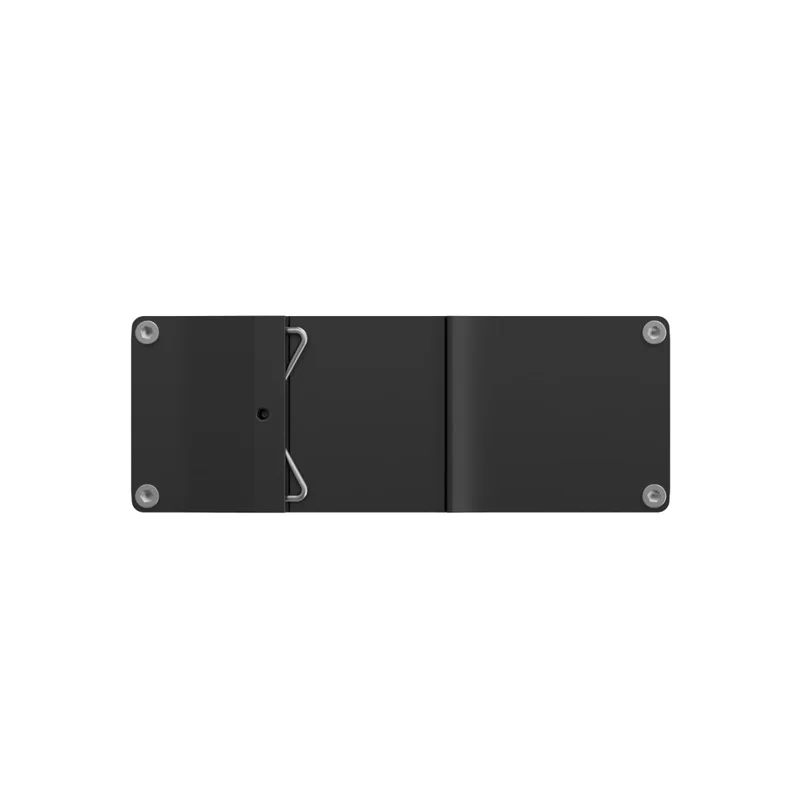

- Integrated DIN-rail mounting bracket simplifies installation in control cabinets and automation panels.
- Wide-range 7–57 VDC input via 2-pin industrial socket supports flexible power sourcing in harsh environments.
- Ultra-low power consumption (max 1.5 W) and support for jumbo frames up to 9216 bytes enhance efficiency.
Out of stock
The Teltonika TSW030 is a compact, cost-effective industrial Ethernet switch engineered for reliability in demanding automation and control applications. Its unmanaged, plug-and-play architecture simplifies network deployment, connecting up to eight Ethernet-based devices such as PLCs, HMIs, sensors, and IP cameras with 100 Mbps full-duplex links.
Constructed with a robust anodized aluminum enclosure, the switch provides IP30-rated protection and operates across an extended temperature range of -40°C to +75°C, ensuring stable performance in factory floors, substations, and outdoor installations. The integrated DIN-rail mount, alongside optional wall or surface mounting, offers versatile mechanical integration.
Power efficiency is a core design principle, with the TSW030 consuming a maximum of 1.5 watts from a wide 7–57 VDC input, making it suitable for low-power or battery-backed systems. Its 2K MAC address table and support for jumbo frames up to 9216 bytes facilitate smooth data handling in industrial telemetry and video streaming scenarios.
Additional Information
| Weight | 0.256 kg |
|---|---|
| Dimensions | 11.31 × 7.46 cm |
