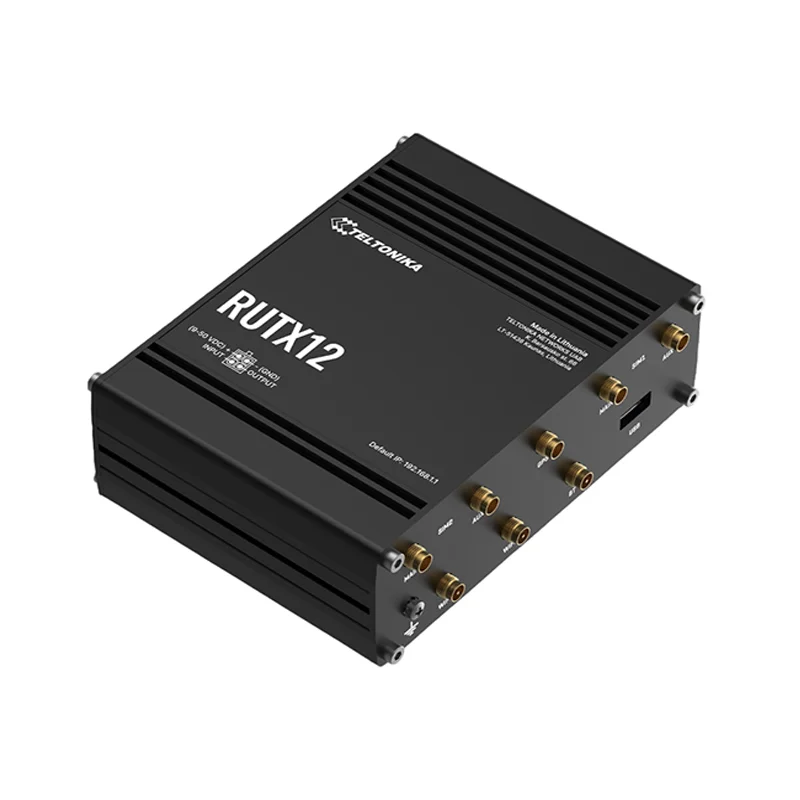

Teltonika RUTX12 Dual LTE CAT 6 Industrial Cellular Router

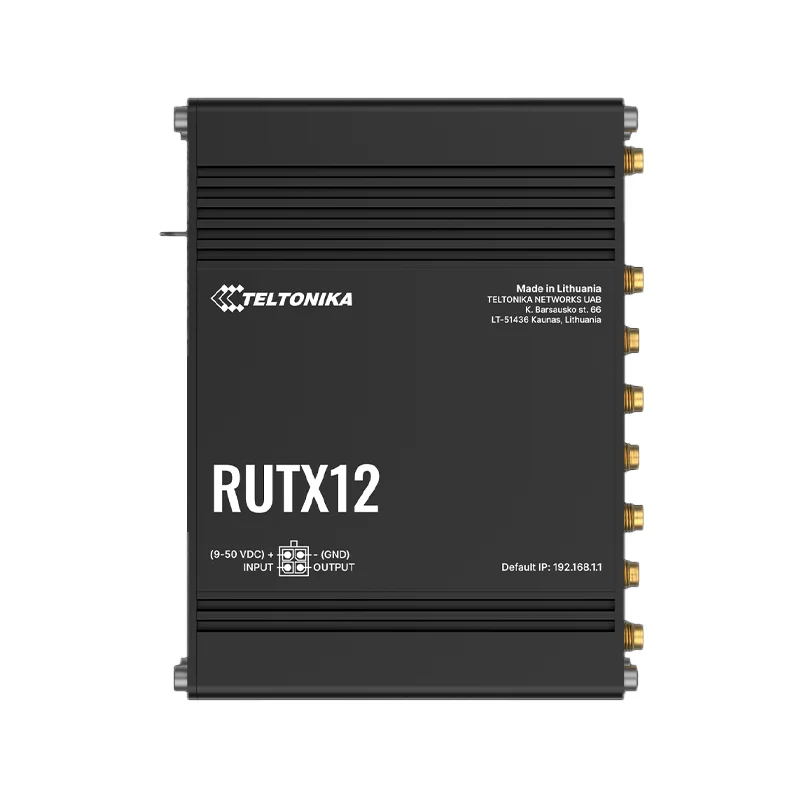

Teltonika RUTX12 Dual LTE CAT 6 Industrial Cellular Router - Image 2

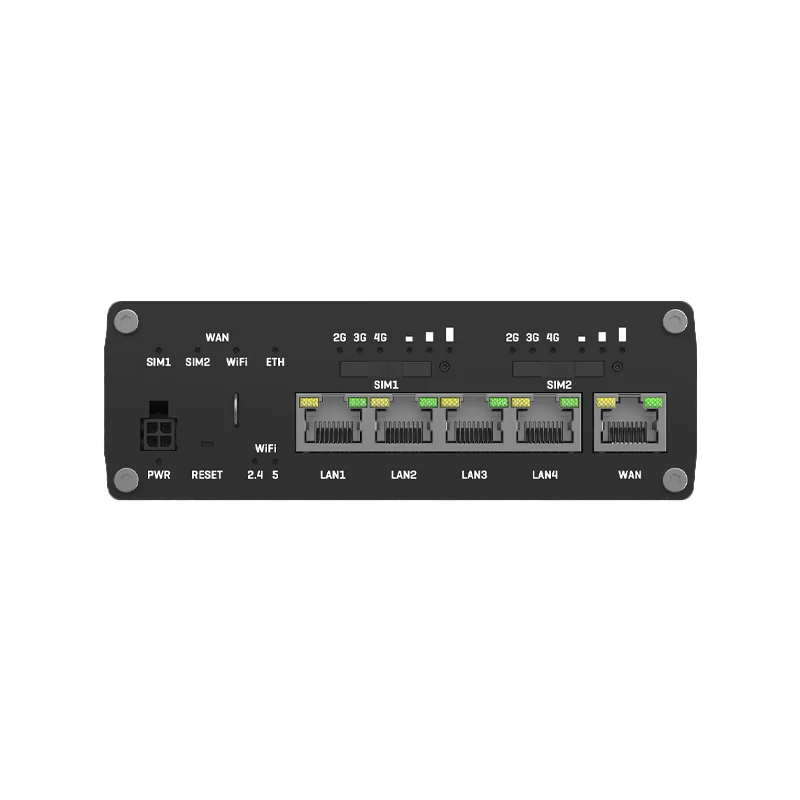

Teltonika RUTX12 Dual LTE CAT 6 Industrial Cellular Router - Image 3

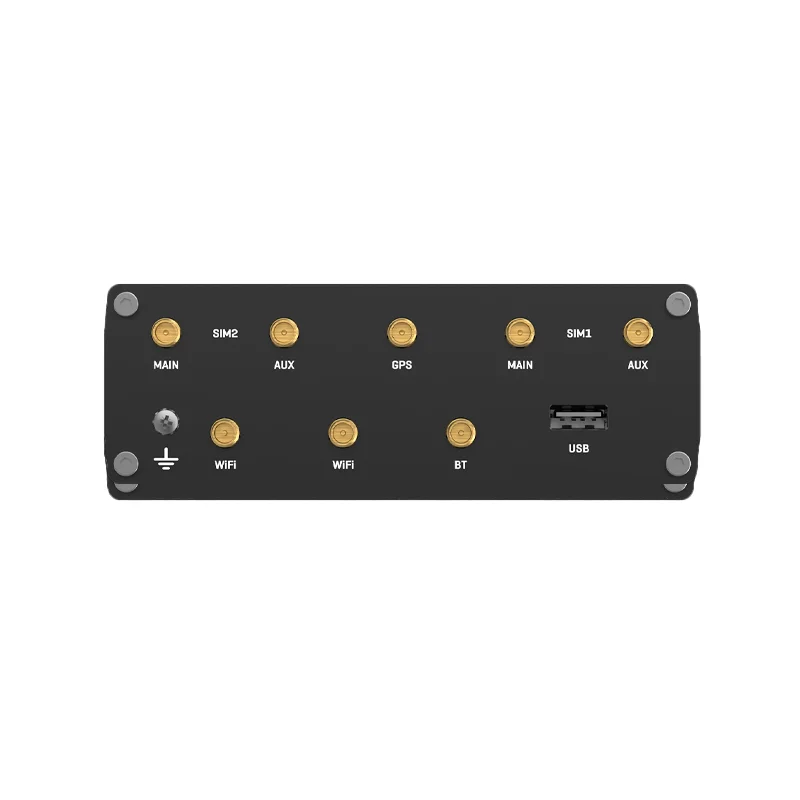

Teltonika RUTX12 Dual LTE CAT 6 Industrial Cellular Router - Image 4

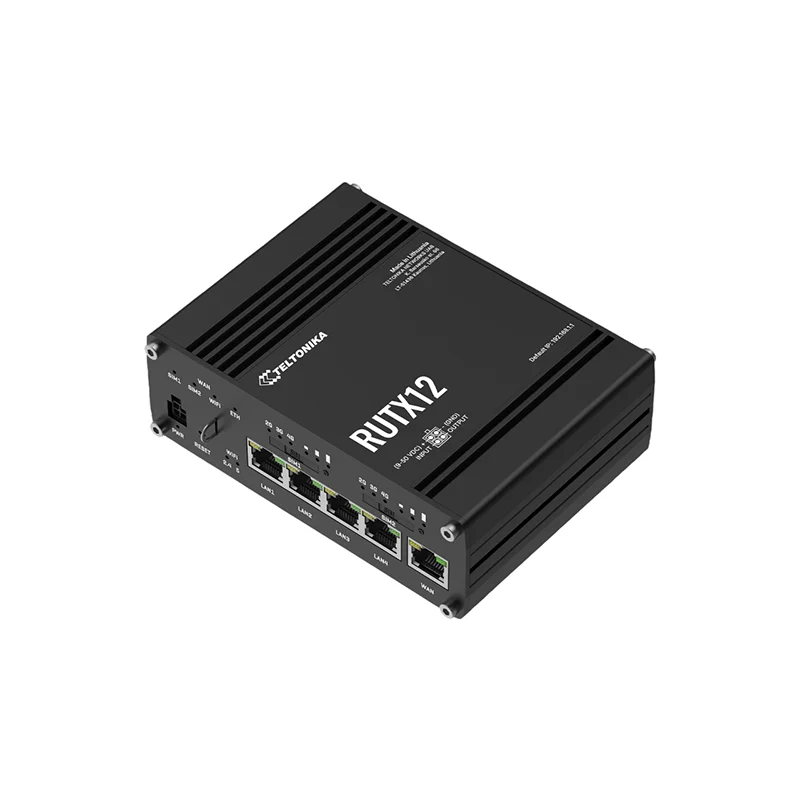

Teltonika RUTX12 Dual LTE CAT 6 Industrial Cellular Router - Image 5
SKU: IOWC-1926
📋 GST Invoice Available

Teltonika RUTX12 Dual LTE CAT 6 Industrial Cellular Router

₹56,529.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTX12 is an industrial-grade cellular router featuring dual LTE CAT 6 modems for high-speed, failover connectivity up to 300 Mbps. Running RutOS (OpenWrt-based Linux), it provides advanced routing, VPN, and remote management for mission-critical IoT and enterprise networks.

Features

  • Dual LTE CAT 6 Modems: Supports speeds up to 300 Mbps download with dual SIM slots and eSIM for carrier redundancy and load balancing.
  • Industrial Rugged Design: Aluminum housing with DIN-rail mounting and an operating range of -40°C to +75°C for harsh environments.
  • Advanced Network Management: Features five Gigabit Ethernet ports, Wi-Fi 5 (802.11ac), and comprehensive VPN support including OpenVPN, IPsec, and WireGuard.
  • Integrated GNSS & Bluetooth: Built-in multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) and BLE for location tracking and peripheral connectivity.
  • Wide Power Input: Accepts 9–50 VDC and Passive PoE, with low idle power consumption (<4W) for energy-efficient deployments.

Out of stock

Description

The Teltonika RUTX12 is engineered as a high-performance, industrial cellular router for applications demanding reliable, high-bandwidth connectivity. Its dual 4G LTE CAT 6 modems enable aggregated download speeds up to 300 Mbps, with automatic failover and load balancing between dual SIMs and optional eSIM. This ensures uninterrupted internet access for critical operations, from remote telemetry to on-site enterprise networks.

Built on the RutOS platform, a hardened OpenWrt-based Linux distribution, the router delivers professional-grade features including stateful firewall, advanced routing policies, and extensive VPN client/server support for secure tunneled connections. The rugged aluminum enclosure, DIN-rail mounting capability, and extended -40°C to +75°C operating temperature range make it suitable for deployment in uncontrolled industrial, vehicular, or outdoor environments.

Key Features

  • Dual 4G LTE Advanced CAT 6 modems supporting carrier aggregation.
  • Dual SIM (2x Nano-SIM) slots with eSIM capability and automatic failover/switching.
  • Integrated Wi-Fi 5 (802.11ac Wave 2) access point with MU-MIMO.
  • Five (5) Gigabit Ethernet RJ45 ports for LAN/WAN connectivity.
  • Comprehensive VPN suite: OpenVPN, IPsec, WireGuard, GRE, and PPTP/L2TP.
  • Built-in multi-constellation GNSS receiver (GPS, GLONASS, Galileo, BeiDou).
  • Bluetooth Low Energy (BLE) 5.0 for device provisioning and local communication.
  • Remote management via Teltonika RMS, TR-069, SNMP, SSH, and Web UI.

Applications

  • Industrial IoT (IIoT) and SCADA systems for remote monitoring and control.
  • Mission-critical connectivity for transportation, fleet management, and in-vehicle routers.
  • Failover and primary WAN connectivity for retail, banking, and enterprise branch offices.
  • Remote telemetry and data backhaul for utilities, agriculture, and environmental monitoring.
  • Secure network gateway for temporary sites, construction, and event management.

Technical Specifications

Item TypeIndustrial Cellular Router
Cellular ModemDual 4G LTE CAT 6
Max Download Speed300 Mbps
Wi-Fi Standard802.11ac Wave 2 (Wi-Fi 5)
Ethernet Ports5 x Gigabit RJ45
GNSSGPS, GLONASS, Galileo, BeiDou
BluetoothBLE 5.0
Power Input9–50 VDC, Passive PoE
Operating Current/PowerIdle: <4W, Max: <22W
Operating Temperature-40°C to +75°C
Housing MaterialAluminum Alloy
Dimensions (LxWxH)132 x 96 x N/A mm
Weight540 g

Frequently Asked Questions

How do I configure the dual SIM failover on the RUTX12?

Failover is configured via the Web UI under Network > Mobile. Set the primary and secondary SIM profiles, then enable 'Auto Failover' mode. The router will automatically switch to the secondary SIM if the primary connection is lost, with configurable delay and check intervals. You can also set up load balancing for aggregated bandwidth.

What VPN protocols are supported, and how do I set up a WireGuard tunnel?

The RUTX12 supports OpenVPN, IPsec, WireGuard, GRE, and PPTP/L2TP. To configure WireGuard, navigate to Services > VPN > WireGuard in the Web UI. Generate a key pair, create a new interface, and input the peer's public key and endpoint. Assign the tunnel to a firewall zone and routing table. The router can act as both client and server.

Can the RUTX12 be powered via Passive PoE, and what is the pinout?

Yes, the router accepts Passive PoE on its 4-pin industrial DC input connector alongside standard 9–50 VDC. The pinout is: Pin 1 (V+), Pin 2 (V+), Pin 3 (V-), Pin 4 (V-). Ensure your injector or switch provides voltage within the 9–50 V range. Do not use 48V Active PoE (802.3af/at) as it will damage the device.

How do I access the GNSS location data from the router?

GNSS data is accessible via multiple interfaces. Use the Web UI Dashboard for real-time coordinates, NMEA sentences over TCP/UDP on port 2000, or the JSON API endpoint. For integration, you can query the router's RMS cloud platform or use SNMP to poll location OIDs. The internal GPS can also provide PPS (Pulse Per Second) for time synchronization.

Package Includes

  • 1 x Teltonika RUTX12 Dual LTE CAT 6 Industrial Cellular Router
  • 1 x 24 W Power Supply Unit (PSU)
  • 4 x Cellular Antennas (swivel, SMA male)
  • 2 x Wi-Fi Antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • 1 x GNSS Antenna (adhesive, SMA male, 3 m cable)
  • 1 x Bluetooth Antenna (magnetic mount, RP-SMA male, 1.5 m cable)
  • 1 x Ethernet Cable (1.5 m)
  • 1 x SIM Adapter Kit
  • 1 x Quick Start Guide (QSG)
  • 1 x Packaging Box

Additional Information

Weight 0.54 kg
Dimensions 9.6 × 13.2 cm
