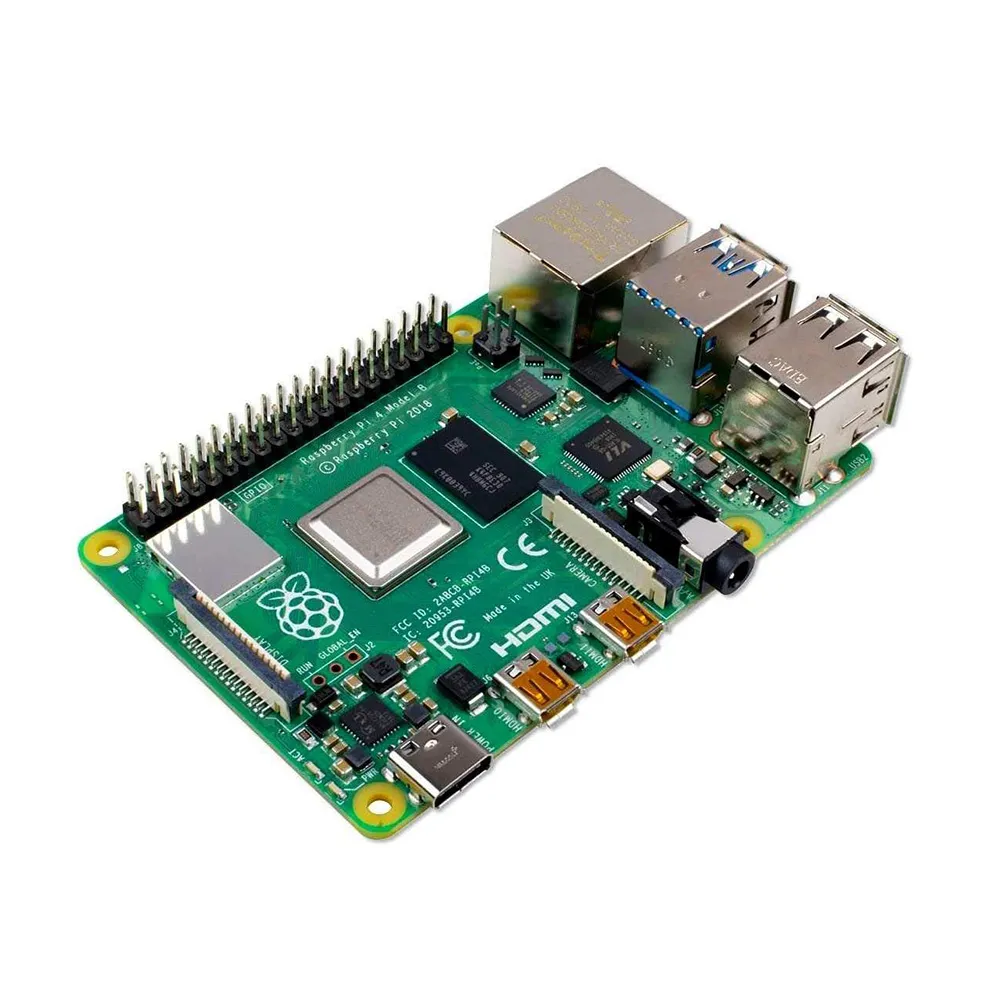

Raspberry Pi 4 Model B 3GB RAM

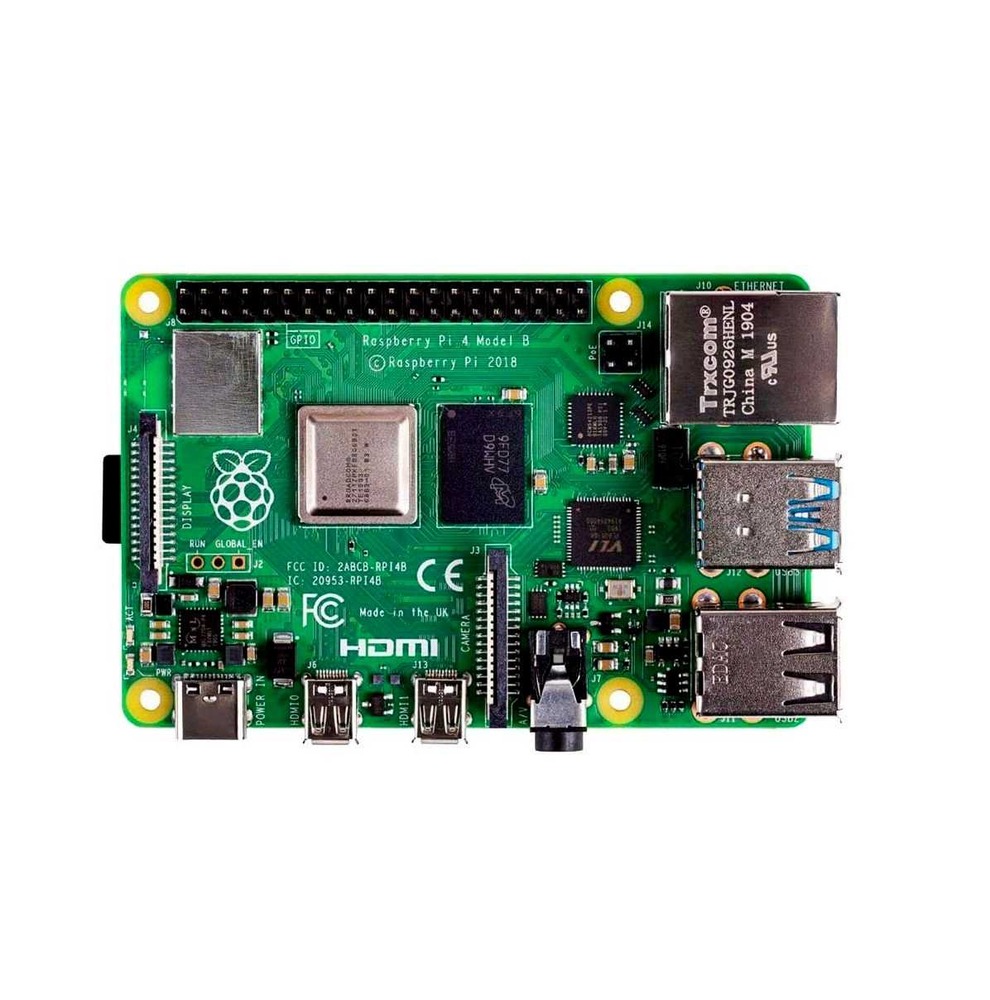

Raspberry Pi 4 Model B 3GB RAM - Image 2

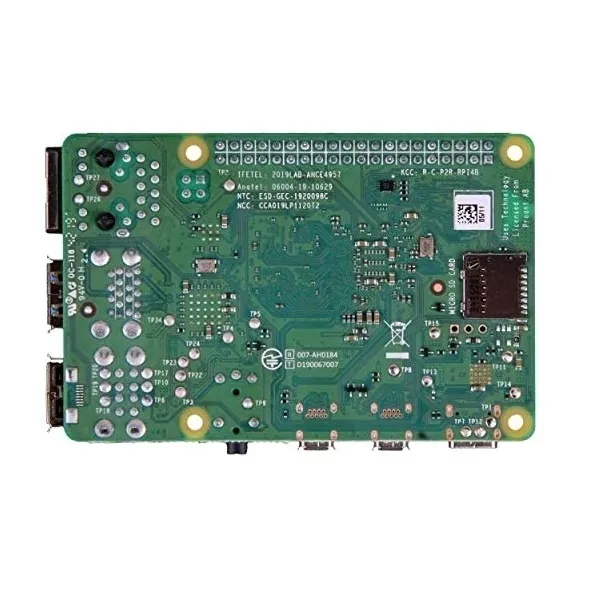

Raspberry Pi 4 Model B 3GB RAM - Image 3

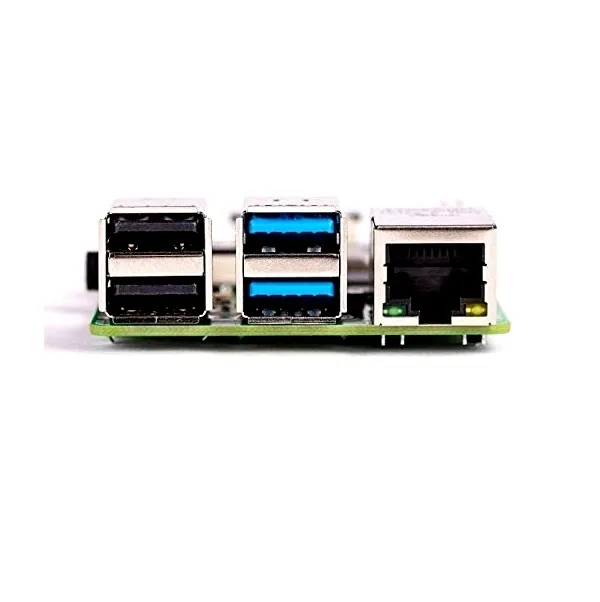

Raspberry Pi 4 Model B 3GB RAM - Image 4

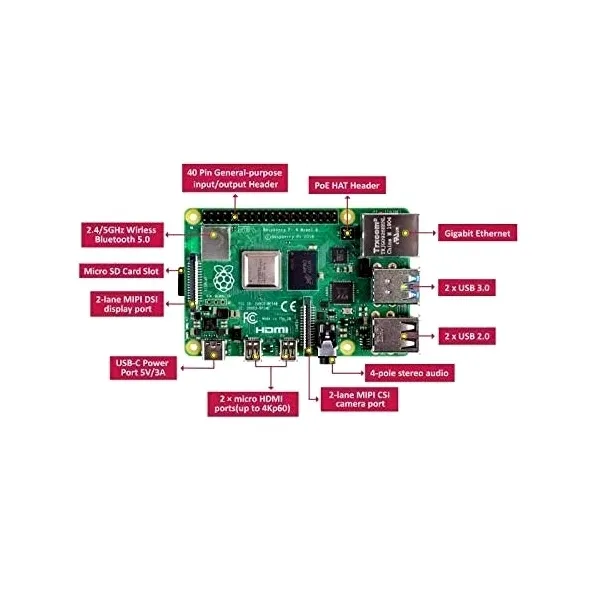

Raspberry Pi 4 Model B 3GB RAM - Image 5
SKU: SBCD-0920
📋 GST Invoice Available

Raspberry Pi 4 Model B 3GB RAM

₹10,079.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi 4 Model B with 3GB RAM is a significant upgrade in the popular Raspberry Pi series, offering enhanced processor speed, multimedia performance, and connectivity. Featuring a quad-core ARM Cortex-A72 CPU and LPDDR4 RAM, it delivers desktop-level performance for various embedded projects and general computing tasks.

Features

  • Equipped with a high-performance 1.5 GHz Quad-core ARM Cortex-A72 (64-bit) processor.
  • Features 3GB LPDDR4-3200 SDRAM for improved multitasking and application responsiveness.
  • Supports dual 4K micro-HDMI displays and H.265 decode for superior multimedia experiences.
  • Integrates Gigabit Ethernet, dual-band 802.11ac Wi-Fi, and Bluetooth 5.0 for robust connectivity.
  • Powered via USB-C (5V, 3A) with PoE capability via a separate HAT, enhancing power delivery.

Out of stock

Description

The Raspberry Pi 4 Model B with 3GB RAM represents a substantial leap in the evolution of the Raspberry Pi platform. Engineered with a powerful Broadcom BCM2711, a quad-core ARM Cortex-A72 (64-bit) processor clocked at 1.5 GHz, this board delivers desktop-class performance comparable to entry-level x86 systems. Its 3GB of high-speed LPDDR4-3200 SDRAM significantly boosts application loading times and overall system responsiveness, making it suitable for demanding projects and everyday computing.

Connectivity options are robust, featuring true Gigabit Ethernet, dual-band 2.4GHz and 5GHz 802.11ac Wi-Fi, and the latest Bluetooth 5.0 technology, offering faster speeds, greater range, and improved data transfer for IoT and peripheral connections. Multimedia capabilities are also greatly enhanced, with dual micro-HDMI ports supporting resolutions up to 4K at 60fps, alongside H.265 (4Kp60) and H.264 (1080p60) video decoding. The inclusion of a USB-C power port capable of delivering 3A ensures ample power for onboard components and connected peripherals.

Key Features

  • Powerful Processor: Integrates a Broadcom BCM2711 Quad-core ARM Cortex-A72 (64-bit) SoC running at 1.5 GHz for high computational throughput.
  • Enhanced Memory: Comes with 3GB LPDDR4-3200 SDRAM, providing improved performance for multitasking and complex applications.
  • Dual 4K Display Output: Features two micro-HDMI ports supporting dual display output at resolutions up to 4Kp60.
  • Advanced Multimedia: Hardware H.265 (4Kp60 decode) and H.264 (1080p60 decode, 1080p30 encode) capabilities, plus OpenGL ES 3.0 graphics.
  • High-Speed Connectivity: Equipped with Gigabit Ethernet, dual-band (2.4/5.0 GHz) 802.11ac Wi-Fi, and Bluetooth 5.0 BLE.
  • Versatile I/O: Includes two USB 3.0 ports, two USB 2.0 ports, a 40-pin GPIO header, and a CSI camera port and DSI display port.
  • Modern Power Input: Utilizes a USB-C connector for 5V/3A power input, with Power Over Ethernet (PoE) support via a separate HAT.
  • Broad OS Support: Compatible with Raspberry Pi OS (formerly Raspbian) and a wide range of other Linux-based operating systems.

Applications

  • Desktop Computing: Serves as an entry-level desktop replacement for web browsing, office tasks, and light programming.
  • Home Automation & IoT Gateway: Ideal for smart home hubs, data collection, and connecting various IoT devices with robust wireless options.
  • Media Center & HTPC: Supports 4K video playback, making it suitable for home theatre PCs and streaming solutions.
  • Robotics & Embedded Control: Powers robotic projects, drone control systems, and industrial automation due to its powerful CPU and versatile GPIO.
  • Edge AI & Machine Learning: Capable of running lightweight AI inference models and vision-based applications at the edge.
  • Network Attached Storage (NAS): Can be configured as a low-power personal cloud storage solution.
  • Learning & Education: An excellent platform for teaching programming, electronics, and computer science concepts.

Technical Specifications

SoCBroadcom BCM2711
CPUQuad-core ARM Cortex-A72 (64-bit) @ 1.5 GHz
RAM3GB LPDDR4-3200 SDRAM
GPUBroadcom VideoCore VI, OpenGL ES 3.0
Wireless ConnectivityDual-band (2.4 GHz, 5.0 GHz) 802.11ac Wi-Fi, Bluetooth 5.0, BLE
EthernetGigabit Ethernet
USB Ports2 × USB 3.0, 2 × USB 2.0
Video Output2 × micro-HDMI ports (up to 4Kp60), 2-Lane MIPI DSI display port
Camera Input2-Lane MIPI CSI camera port
Audio4-pole stereo audio and composite video port, HDMI audio out
GPIOStandard 40-pin GPIO header
StorageMicroSD card slot (UHS-I support)
Power Input5V DC via USB-C (3A recommended), 5V DC via GPIO header, PoE enabled (requires separate PoE HAT)
Multimedia SupportH.265 (4Kp60 decode), H.264 (1080p60 decode, 1080p30 encode)
Operating Temperature0 to +55 °C
Dimensions85 x 56 x 19 mm
Operating SystemRaspberry Pi OS, various Linux distributions

Frequently Asked Questions

What are the power requirements for the Raspberry Pi 4 Model B 3GB?

The Raspberry Pi 4 Model B requires a 5V DC power supply, with a minimum of 3A delivered via the USB-C port. Using a lower current supply may lead to instability, especially when connecting multiple peripherals. It also supports Power over Ethernet (PoE) with an optional PoE HAT.

Can the Raspberry Pi 4 Model B 3GB run multiple displays?

Yes, the Raspberry Pi 4 Model B 3GB supports dual micro-HDMI display outputs. Both ports can drive displays up to 4K resolution at 30Hz simultaneously, or one display at 4K 60Hz. This capability is ideal for multi-monitor setups or advanced multimedia applications.

What operating systems are compatible with the Raspberry Pi 4 Model B 3GB?

The Raspberry Pi 4 Model B 3GB primarily runs Raspberry Pi OS (formerly Raspbian), a Debian-based Linux distribution. It also supports other Linux distributions like Ubuntu, alongside specialized systems such as LibreELEC for media centers or RetroPie for retro gaming.

What types of peripherals can be connected to the Raspberry Pi 4 Model B 3GB?

The Raspberry Pi 4 Model B 3GB offers extensive peripheral connectivity. It includes two USB 3.0 and two USB 2.0 ports for devices like keyboards, mice, and storage. The 40-pin GPIO header allows connection to various HATs and sensors. Additionally, CSI and DSI ports support cameras and dedicated displays, respectively.

Package Includes

  • 1 x Raspberry Pi 4 Model B with 3GB RAM

Additional Information

Weight 0.057 kg
Dimensions 8.5 × 5.6 × 1.9 cm

Related Products

Out of Stock

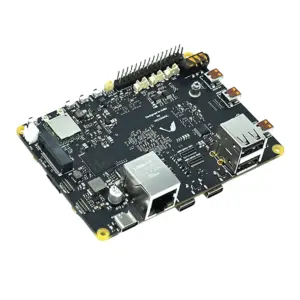

Vicharak AXON 8GB LPDDR4X 32GB eMMC SBC

19,949.00
Learn More
Out of Stock

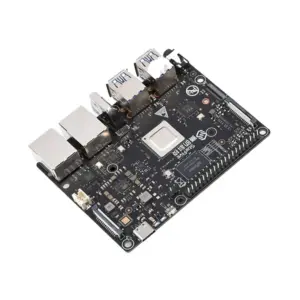

VisionFive2 RISC-V SBC 8GB, StarFive JH7110 with 3D GPU

10,549.00
Learn More
Out of Stock

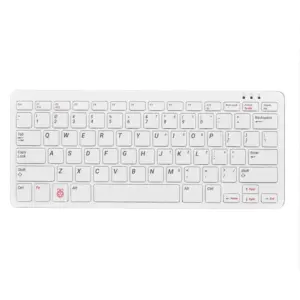

Raspberry Pi 400 Personal Computer (US Layout)
