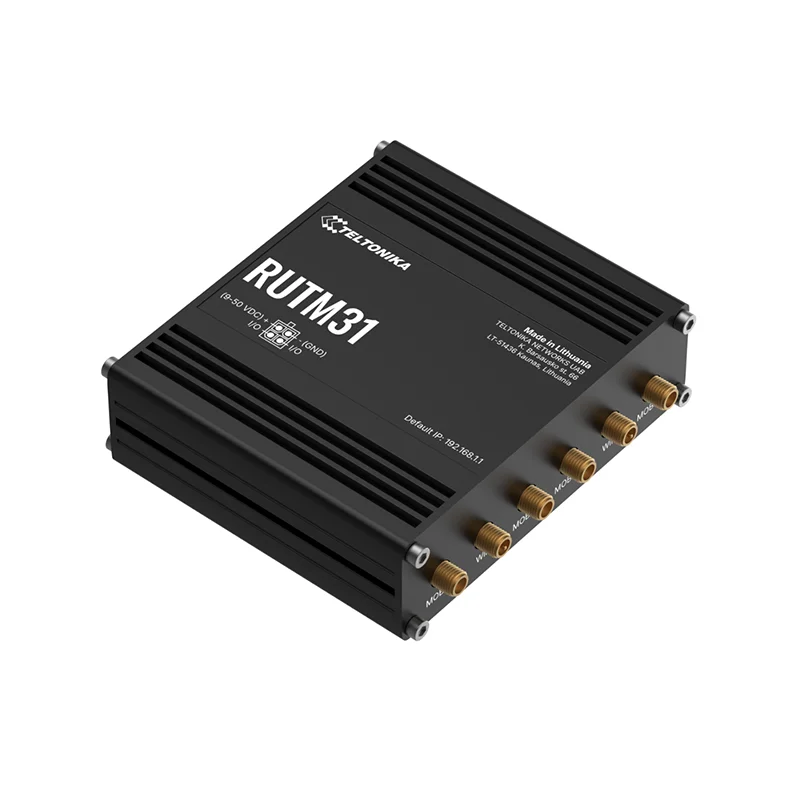

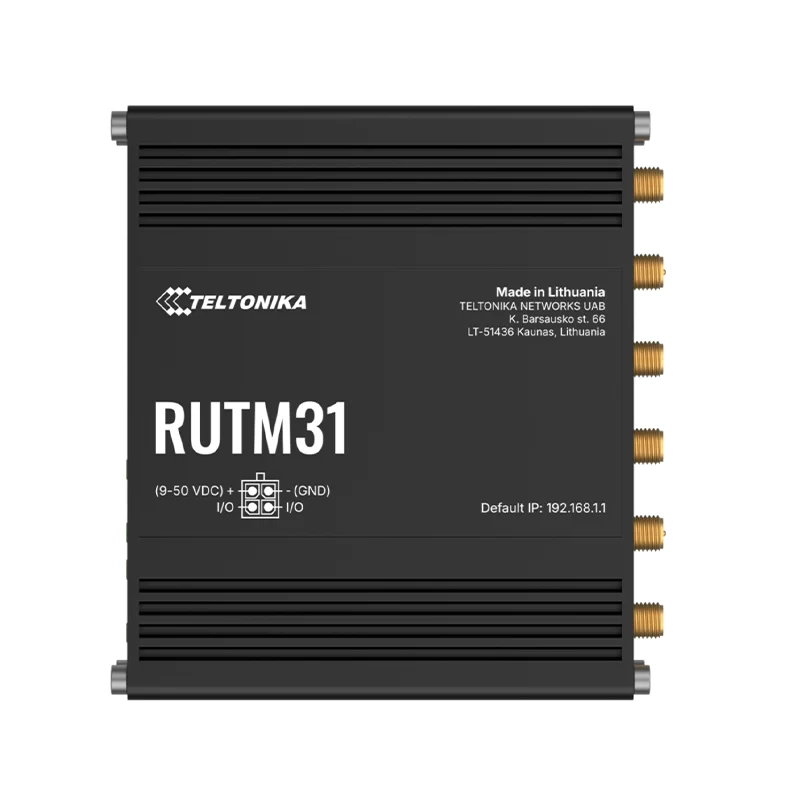

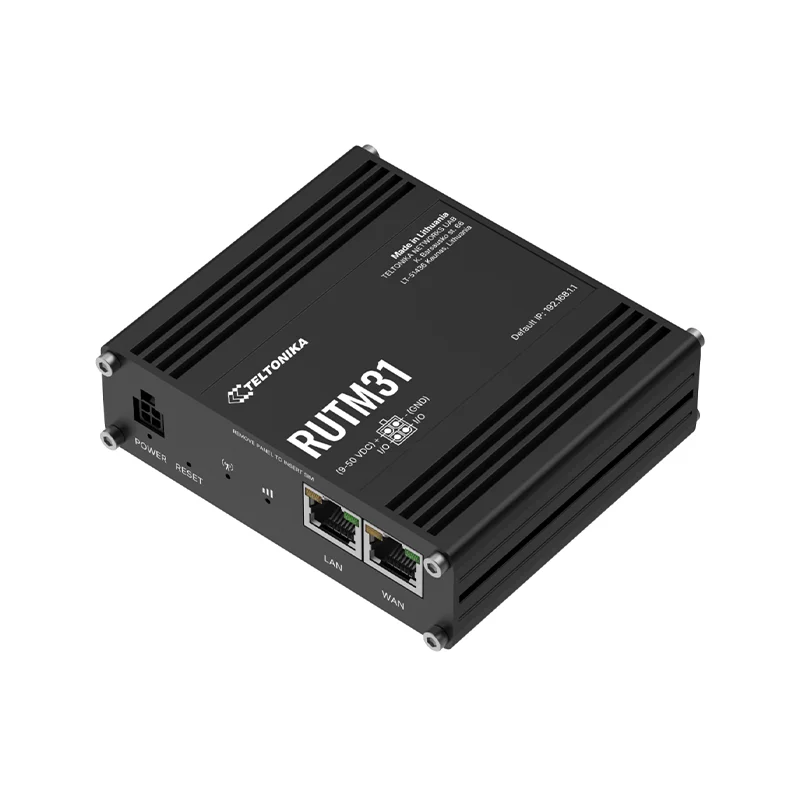

Teltonika RUTM31 Industrial 5G Router w/ Wi-Fi 5 & Dual SIM
Teltonika RUTM31 Industrial 5G Router w/ Wi-Fi 5 & Dual SIM - Image 2
Teltonika RUTM31 Industrial 5G Router w/ Wi-Fi 5 & Dual SIM - Image 3
Teltonika RUTM31 Industrial 5G Router w/ Wi-Fi 5 & Dual SIM - Image 4
Teltonika RUTM31 Industrial 5G Router w/ Wi-Fi 5 & Dual SIM - Image 5
SKU: IOWC-1937
📋 GST Invoice Available

Teltonika RUTM31 Industrial 5G Router w/ Wi-Fi 5 & Dual SIM

₹36,669.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTM31 is a cost-efficient industrial 5G router providing high-speed, mission-critical connectivity for remote monitoring and automation. It features Sub-6GHz 5G SA/NSA, LTE Cat 12, dual-band Wi-Fi 5, and dual Gigabit Ethernet ports, powered by a robust RutOS (OpenWrt-based) platform with extensive VPN, firewall, and industrial protocol support (MQTT, Modbus, OPC UA).

Features

  • 5G Sub-6GHz SA/NSA & LTE Cat 12 connectivity for high-speed, reliable industrial internet access with 3G fallback.
  • Dual SIM slots with intelligent auto-switching and SIM protection for enhanced network uptime and redundancy.
  • Dual-band Wi-Fi 5 (802.11ac Wave 2) with MU-MIMO supports up to 150 simultaneous users and fast roaming.
  • Rugged industrial design with 9-50 VDC wide voltage input, passive PoE support, and IP30-rated aluminum housing.
  • Extensive industrial protocol stack including MQTT, Modbus TCP, OPC UA, and DNP3 for seamless IIoT integration.

Out of stock

Description

The Teltonika RUTM31 is engineered as a robust, cost-efficient industrial router delivering future-ready connectivity for demanding IoT and automation applications. Its core is built around a MediaTek dual-core 880 MHz processor running RutOS, an OpenWrt-based operating system that provides a stable, flexible platform for advanced routing, firewall, VPN, and remote management via Teltonika RMS.

Wireless connectivity is anchored by Sub-6GHz 5G SA/NSA and LTE Cat 12 cellular modems, offering download speeds up to 600 Mbps with 3G fallback for maximum reliability. Dual SIM slots with intelligent failover ensure continuous operation. The router is complemented by dual-band Wi-Fi 5 with MU-MIMO for local wireless networking and two Gigabit Ethernet ports (WAN/LAN) for wired industrial devices.

Designed for harsh environments, the RUTM31 features a wide 9-50 VDC industrial power input with passive PoE support, an operating temperature range of -40°C to 75°C, and a compact, IP30-rated aluminum enclosure. Two configurable digital I/O lines enable integration with sensors and actuators, making it a complete edge networking solution.

Key Features

  • High-speed 5G Sub-6GHz SA/NSA and LTE Cat 12 cellular connectivity ensures low-latency, high-bandwidth data transmission for mission-critical applications.
  • Dual SIM capability with advanced auto-switching logic (signal strength, data limits, roaming) provides unparalleled network redundancy and uptime.
  • Enterprise-grade security suite includes WPA3 Wi-Fi encryption, a built-in TPM 2.0 module, comprehensive firewall, VLAN, and support for multiple VPN protocols (OpenVPN, IPsec, WireGuard).
  • Industrial protocol support for MQTT, Modbus TCP, OPC UA, and DNP3 enables seamless integration with SCADA, PLCs, and modern IIoT cloud platforms.
  • Ruggedized construction with a wide operating temperature range (-40°C to 75°C), IP30 rating, and vibration resistance guarantees reliability in challenging outdoor or factory settings.
  • Flexible powering options via 9-50 VDC input or passive PoE (Power over Ethernet) simplify deployment in locations without convenient AC power sources.
  • Remote management and monitoring are streamlined through Teltonika's RMS (Remote Management System), allowing for mass configuration, firmware updates, and real-time diagnostics.

Applications

  • Industrial IoT (IIoT) and SCADA systems for remote monitoring and control of distributed assets.
  • Mission-critical mobile connectivity for public safety, emergency response, and transportation networks.
  • Smart city infrastructure including traffic management, digital signage, and environmental sensor networks.
  • Remote telemetry and automation in mining, oil & gas, and renewable energy installations.
  • Branch office and retail connectivity requiring secure, high-bandwidth VPN backhaul.

Technical Specifications

ProcessorMediaTek Dual-Core 880 MHz (MIPS1004Kc)
Wireless Protocols5G Sub-6GHz SA/NSA, LTE Cat 12 (600/150 Mbps), 3G Fallback, Dual-band 802.11ac Wave 2 (Wi-Fi 5)
Cellular Frequency RangeSub-6GHz 5G Bands, LTE Bands 1,3,7,8,20,28,38,40,41
RF Transmit PowerUp to 23 dBm (LTE), Up to 200mW (Wi-Fi)
Supply Voltage9–50 VDC
Operating CurrentTypical 0.35A @ 12V

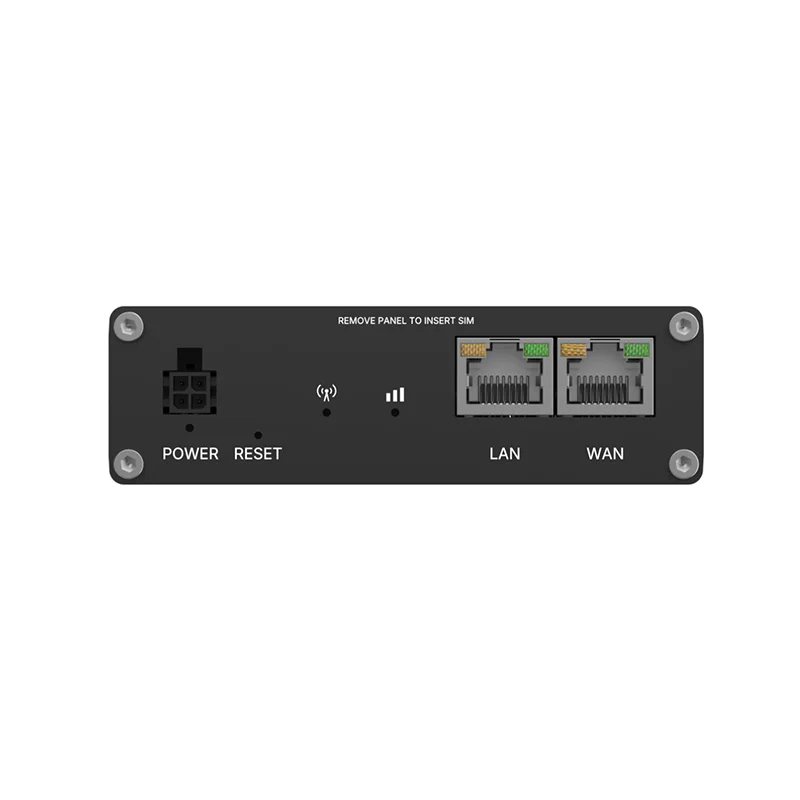

Interfaces2x Gigabit Ethernet (1 WAN, 1 LAN), 2x Configurable Digital I/O, Console (RS232)

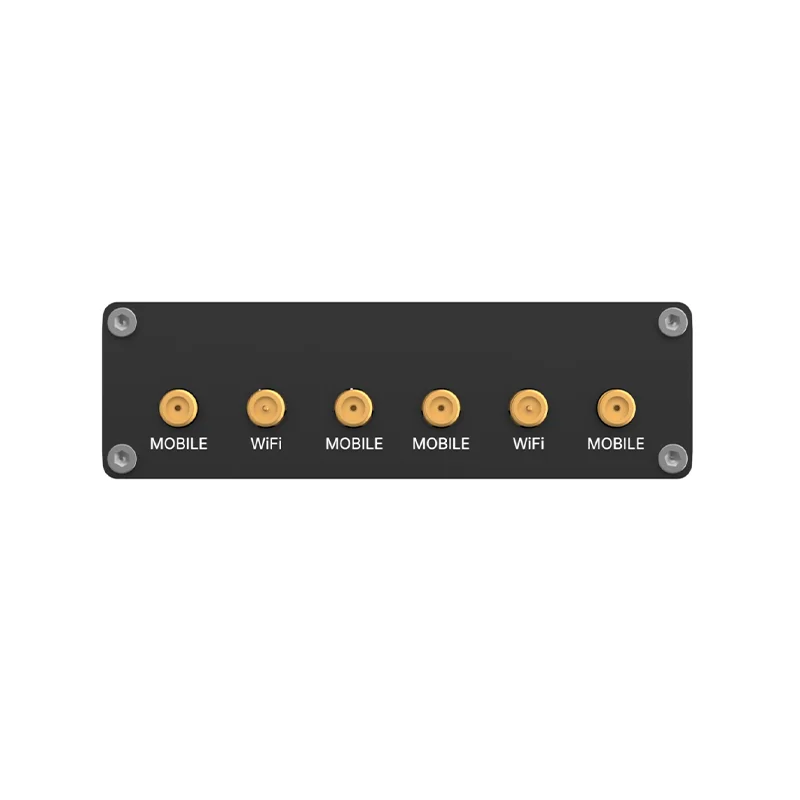

Antenna Connector4x SMA (Cellular), 2x RP-SMA (Wi-Fi)
Operating Temperature-40°C to +75°C
Dimensions100 x 30 x 100 mm (L x W x H)

Frequently Asked Questions

How do I configure the dual SIM failover on the RUTM31?

Dual SIM failover is configured via the RutOS web interface under the 'Mobile' section. You can set primary and secondary SIMs and define switching triggers such as signal strength thresholds, data usage limits, or network denial. The router automatically monitors connection status and switches to the backup SIM without dropping critical sessions, ensuring continuous operation for remote telemetry and industrial control systems.

What industrial protocols does the RUTM31 support and how are they enabled?

The RUTM31 natively supports MQTT, Modbus TCP, OPC UA, and DNP3 protocols within its RutOS firmware. They are enabled and configured through dedicated packages in the router's software center or via the command-line interface. For instance, the Modbus TCP gateway can be set up to translate serial Modbus RTU from connected PLCs to TCP for cloud SCADA systems, facilitating seamless integration in automation and monitoring applications.

Can I power the RUTM31 using Power over Ethernet (PoE)?

Yes, the RUTM31 supports passive PoE (Power over Ethernet) input on its LAN port, accepting 9-50 VDC. You must use a compatible passive PoE injector or switch that matches the router's voltage requirements. Ensure the power source provides sufficient current, as the typical draw is around 0.35A at 12V. This feature is ideal for deployments where running separate power lines is impractical, such as on poles or inside enclosures.

How do I update the firmware and manage the router remotely?

Firmware updates and remote management are handled through Teltonika's RMS (Remote Management System). First, register the router's IMEI on the RMS platform. You can then push firmware updates, configure settings, monitor real-time data usage, and reboot devices from a centralized dashboard. For local updates, you can download firmware files from the Teltonika website and upload them via the router's web interface under the 'System' > 'Backup/Flash Firmware' section.

Package Includes

  • 1 x Teltonika RUTM31 Industrial 5G Router
  • 1 x 18 W Power Supply Unit (PSU)
  • 4 x 5G Straight Compact Mobile Antennas (SMA male)
  • 2 x Wi-Fi Antennas (Magnetic mount, RP-SMA male, 1.5 m cable)
  • 1 x Ethernet Cable (1.5 m)
  • 1 x SIM Adapter Kit
  • 1 x Hex Key
  • 1 x Quick Start Guide (QSG)

Additional Information

Weight 0.319 kg
Dimensions 10 × 3 × 10 cm
