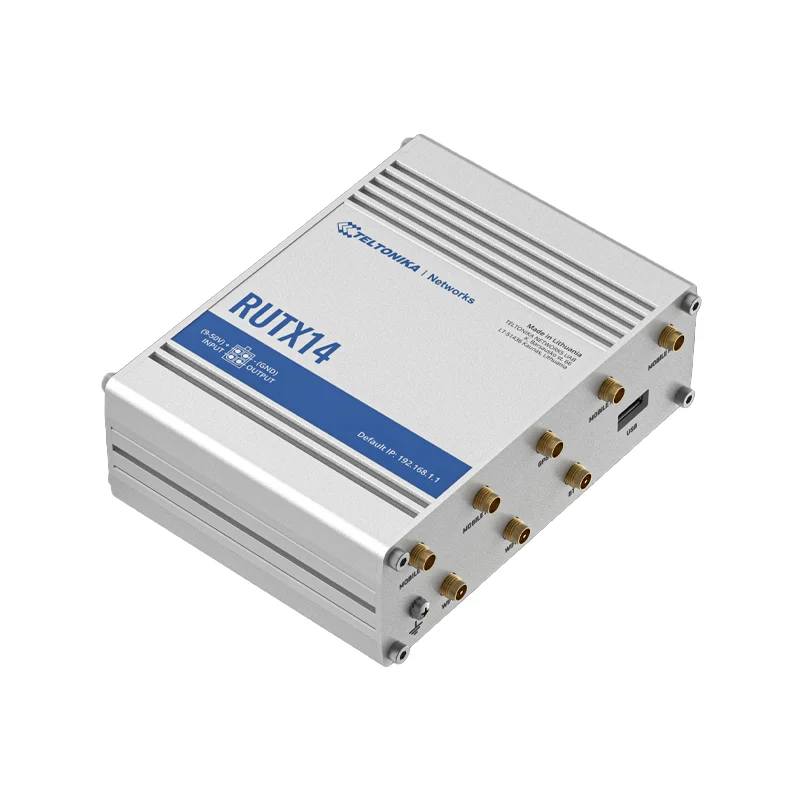

Teltonika RUTX14 4G LTE CAT12 Industrial Cellular Router

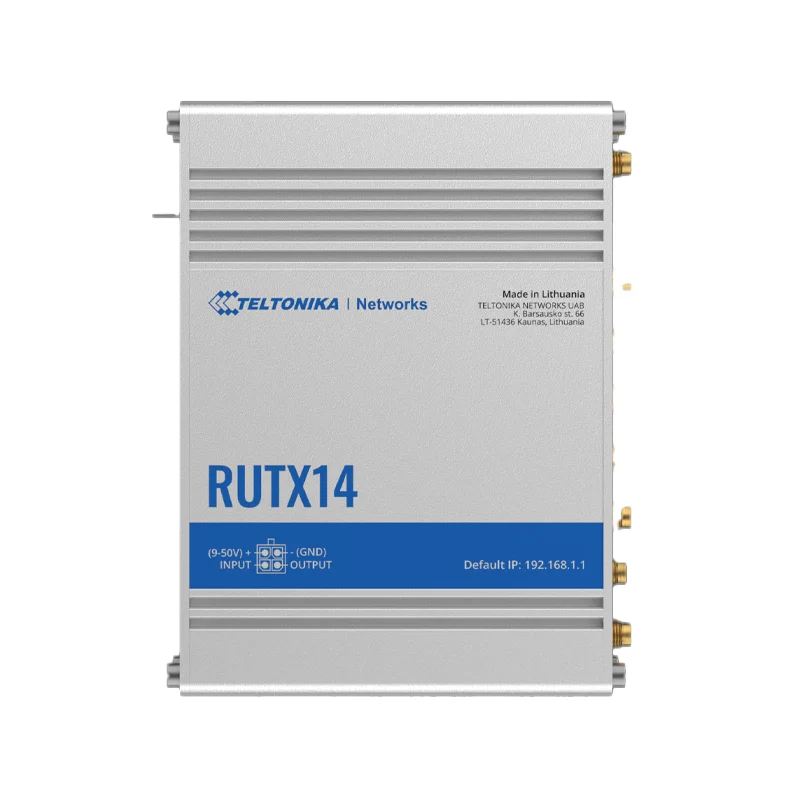

Teltonika RUTX14 4G LTE CAT12 Industrial Cellular Router - Image 2

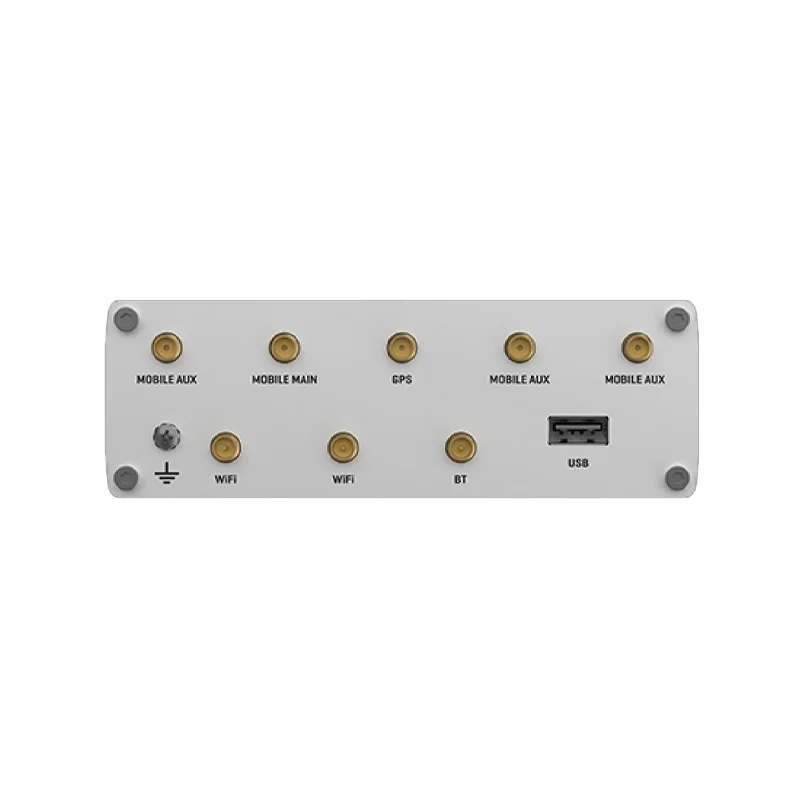

Teltonika RUTX14 4G LTE CAT12 Industrial Cellular Router - Image 3

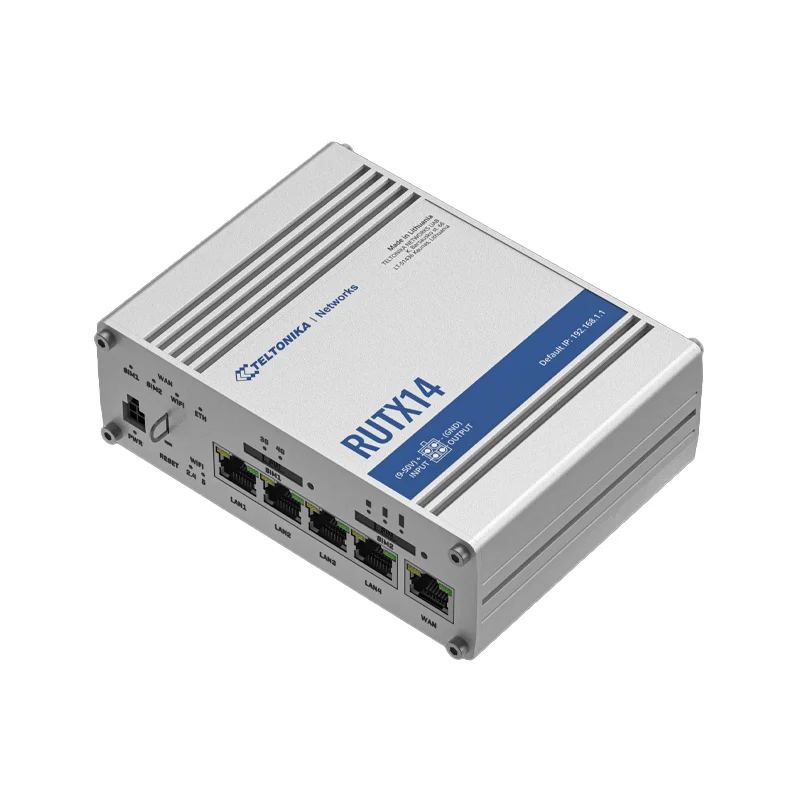

Teltonika RUTX14 4G LTE CAT12 Industrial Cellular Router - Image 4
SKU: IOWC-1925
📋 GST Invoice Available

Teltonika RUTX14 4G LTE CAT12 Industrial Cellular Router

₹57,289.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTX14 is an industrial-grade cellular router powered by a quad-core ARM Cortex-A7 CPU and LTE Cat 12 technology, delivering up to 600 Mbps download speeds with carrier aggregation. It runs RutOS (OpenWrt-based) and provides robust connectivity for mission-critical IoT deployments via dual SIM slots, 5 Gigabit Ethernet ports, dual-band Wi-Fi 5, GNSS, and extensive VPN support.

Features

  • High-Speed LTE Cat 12 Connectivity: Supports carrier aggregation for download speeds up to 600 Mbps, ensuring fast and reliable data transfer for industrial applications.
  • Dual SIM Auto-Failover: Features two SIM slots with intelligent switching and backup WAN, guaranteeing uninterrupted network operation in remote or harsh environments.
  • Comprehensive Industrial Networking: Equipped with 5 Gigabit Ethernet ports, dual-band 802.11ac Wave 2 Wi-Fi, Bluetooth LE, GNSS, and USB for versatile system integration.
  • Ruggedized & Secure Design: Housed in a durable aluminium chassis with DIN-rail mounting, operating from -40°C to +75°C, and featuring advanced VPN, firewall, and cyber-attack prevention.
  • Powerful RutOS Platform: Runs on the OpenWrt-based RutOS with RMS remote management, offering extensive configurability for industrial automation, transportation, and smart infrastructure.

Out of stock

Description

The Teltonika RUTX14 is engineered as a high-performance industrial cellular router, built to deliver mission-critical connectivity where reliability and speed are non-negotiable. Its core is driven by a quad-core ARM Cortex-A7 processor clocked at 717 MHz, paired with 256 MB of RAM and 256 MB of flash memory, providing the computational headroom for complex routing, VPN tunneling, and security protocols. The router leverages LTE Advanced Pro Cat 12 technology, utilizing carrier aggregation to achieve peak download rates of 600 Mbps, making it suitable for data-intensive applications like video surveillance backhaul or large-scale SCADA system updates.

Designed for resilience in extreme conditions, the RUTX14 operates across a wide temperature range from -40°C to +75°C and is housed in a rugged, fanless aluminium enclosure with DIN-rail mounting options. Its power architecture accepts a broad 9–50 V DC input via a 4-pin industrial connector, with power consumption optimized from under 4W at idle to a maximum of 22W under full load. The integrated dual-band Wi-Fi 5 (802.11ac Wave 2) access point supports MU-MIMO for efficient client handling, while five Gigabit Ethernet ports with VLAN support enable robust wired network segmentation. Built-in GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS) provides precise location services for asset tracking and geofencing applications.

Key Features

  • LTE Cat 12 with Carrier Aggregation: Enables download speeds up to 600 Mbps for high-bandwidth industrial data transfer and video streaming.
  • Dual SIM with Intelligent Failover: Ensures continuous cellular connectivity by automatically switching between primary and backup SIMs based on signal strength or data limits.
  • Five Gigabit Ethernet Ports: Offers extensive wired connectivity with VLAN support for network segmentation and industrial protocol handling (e.g., Modbus TCP).
  • Dual-Band Wi-Fi 5 (802.11ac Wave 2): Provides high-speed wireless access with MU-MIMO technology for efficient multi-client communication.
  • Comprehensive GNSS Support: Integrates GPS, GLONASS, Galileo, BeiDou, and QZSS for accurate, global positioning and timing synchronization.
  • Advanced Security Suite: Includes IPsec/OpenVPN/WireGuard VPNs, stateful firewall, and DDoS attack prevention to secure industrial networks.
  • Rugged Industrial Design: Features an aluminium metal alloy housing, DIN-rail mounting, and operation from -40°C to +75°C for harsh environments.
  • Remote Management via RMS: The RutOS platform (OpenWrt-based) allows for centralized configuration, monitoring, and firmware updates through Teltonika's Remote Management System.

Applications

  • Industrial Automation & SCADA Systems: Provides reliable, secure backhaul for remote PLCs, sensors, and HMIs in manufacturing and utilities.
  • Transportation & Fleet Management: Enables real-time vehicle telemetry, GPS tracking, and in-vehicle Wi-Fi for public transit and logistics.
  • Smart Infrastructure & Critical Networks: Serves as the primary WAN link for traffic management systems, remote CCTV, and smart grid communications.
  • IoT & M2M Deployments: Connects distributed sensors and gateways in agriculture, environmental monitoring, and oil & gas fields.
  • Failover & Backup Connectivity: Acts as a resilient secondary internet link for business continuity and network redundancy.

Technical Specifications

Item TypeIndustrial Cellular Router
Cellular Technology4G LTE Cat 12
CPUQuad-core ARM Cortex-A7 @ 717 MHz
Memory256 MB RAM, 256 MB Flash
SIM SlotsDual SIM (2FF)
Ethernet Ports5 × Gigabit Ethernet
Wi-FiDual-band 802.11ac Wave 2 (2.4GHz & 5GHz), MU-MIMO
GNSSGPS, GLONASS, Galileo, BeiDou, QZSS
Additional InterfacesBluetooth LE, USB
Supply Voltage9–50 V DC
Operating PowerIdle: <4W, Max: <22W
Operating Temperature-40°C to +75°C
Housing MaterialAluminium Metal Alloy
Dimensions (L×W×H)95 mm × 44 mm × (Height N/A)
Weight515 g

Frequently Asked Questions

How do I configure the dual SIM failover on the RUTX14?

Configure dual SIM failover via the RutOS web interface under the 'Mobile' settings. Set the primary SIM for normal operation and define failover triggers like signal loss or data limit exhaustion. The router will automatically switch to the backup SIM, maintaining connectivity. You can also set up load balancing or manual switching through Teltonika's RMS platform for remote management.

What VPN protocols are supported, and how do I set them up?

The RUTX14 supports IPsec, OpenVPN, and WireGuard VPNs for secure site-to-site or remote access tunnels. Configuration is done in the RutOS 'VPN' section. For OpenVPN, import client/server certificates and define tunnel parameters. For WireGuard, generate keys and set peer endpoints. The built-in firewall rules must be adjusted to allow VPN traffic, and routes should be configured for the tunneled networks.

Can I use the GNSS for location-based triggering or geofencing?

Yes, the integrated multi-constellation GNSS (GPS, GLONASS, etc.) provides location data. You can configure geofencing in the RutOS 'GNSS' and 'Services' sections. Define geographic boundaries and set up actions like sending SMS alerts, changing the network mode, or logging events when the router enters or exits the zone. This is useful for asset tracking and mobile deployments.

What is the power supply requirement, and how do I connect it?

The router requires a 9–50 V DC power source connected via its 4-pin industrial Phoenix-type connector. Pinout details are in the manual: typically, pins 1 and 2 are for positive voltage, and pins 3 and 4 are ground. Ensure the power supply can deliver at least 1.5A to cover peak consumption (up to 22W). For permanent installations, use a stabilized power supply and consider DIN-rail mounting.

How do I update the firmware or perform a factory reset?

Firmware updates are performed via the RutOS web interface under 'System' > 'Backup / Flash Firmware'. Upload the official .bin file from Teltonika. A factory reset can be done physically using the recessed reset button on the unit (hold for 10+ seconds) or via the web interface under 'System' > 'Reboot' with the 'Reset to defaults' option. Always backup configuration first.

Package Includes

  • 1 x Teltonika RUTX14 4G LTE CAT12 Industrial Cellular Router

Additional Information

Weight 0.515 kg
Dimensions 9.5 × 4.4 cm
