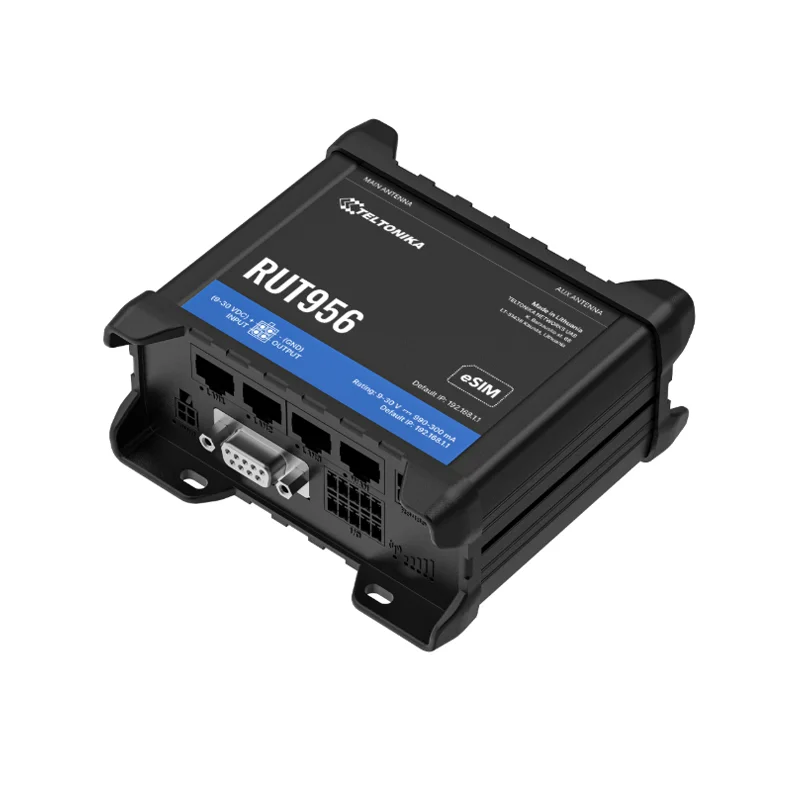

Teltonika RUT956 Industrial Cellular Router w/ GNSS Antenna

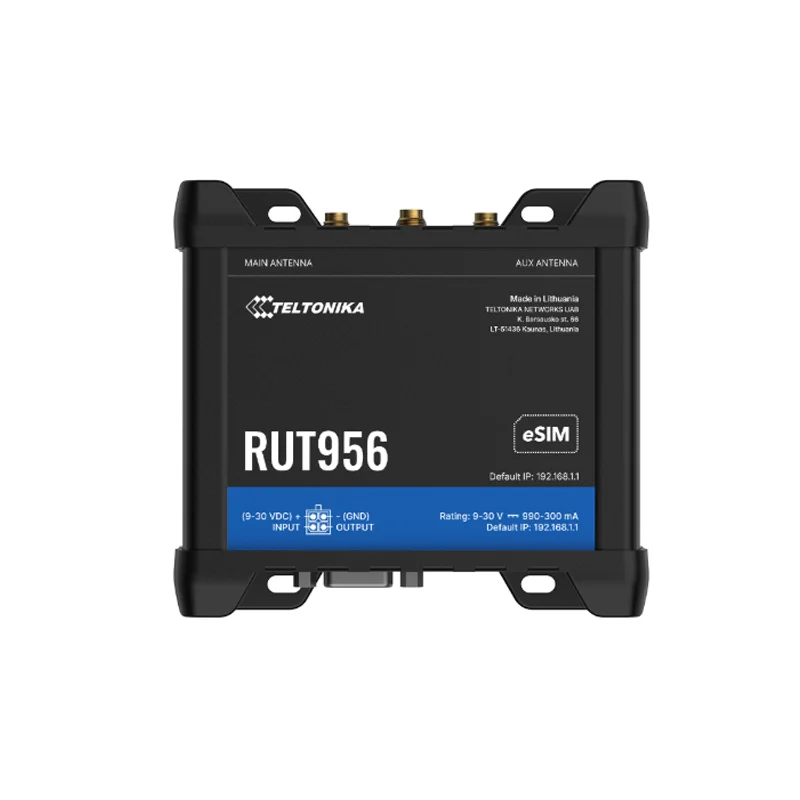

Teltonika RUT956 Industrial Cellular Router w/ GNSS Antenna - Image 2

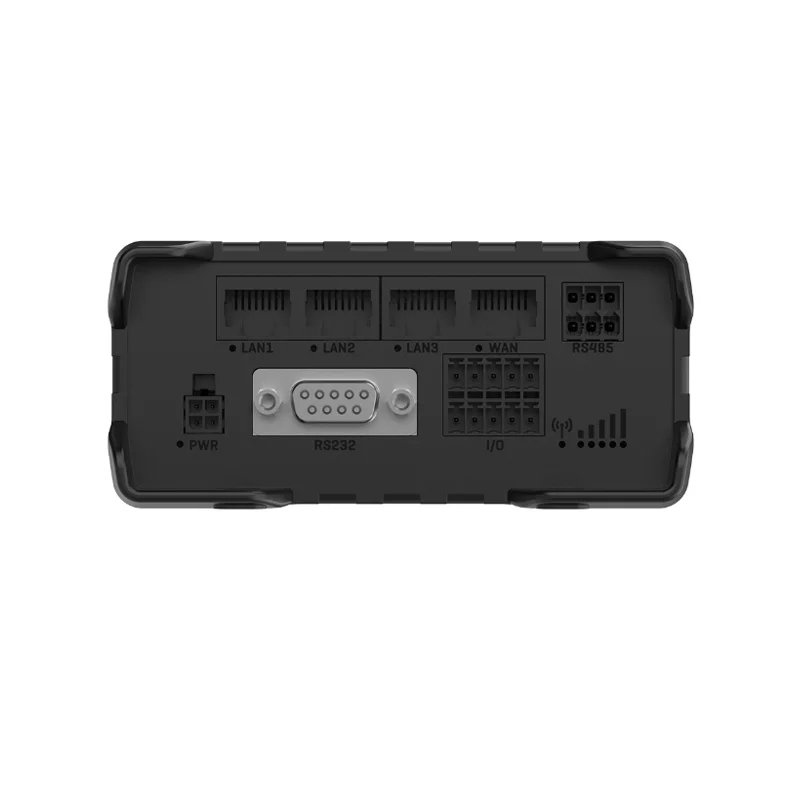

Teltonika RUT956 Industrial Cellular Router w/ GNSS Antenna - Image 3

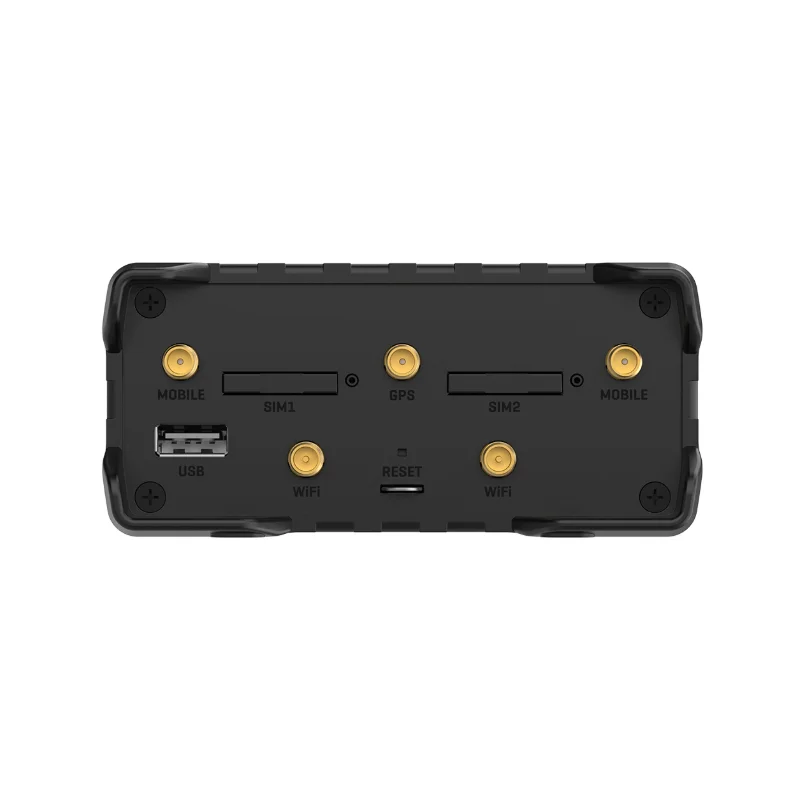

Teltonika RUT956 Industrial Cellular Router w/ GNSS Antenna - Image 4
SKU: IOWC-1944
📋 GST Invoice Available

Teltonika RUT956 Industrial Cellular Router w/ GNSS Antenna

₹29,329.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUT956 is an industrial-grade cellular router integrating 4G LTE Cat 4, dual SIM/eSIM, Wi-Fi, GNSS, and multiple I/O interfaces for robust IoT connectivity. Powered by RutOS, it supports advanced VPN, firewall, and industrial protocols like Modbus and MQTT for remote monitoring and automation.

Features

  • Industrial 4G LTE Cat 4 router with 150 Mbps downlink and 50 Mbps uplink speeds, plus 3G/2G fallback for reliable connectivity in remote or mobile applications.
  • Dual SIM slots and eSIM support with automatic failover ensure uninterrupted network access, critical for mission-critical IoT deployments.
  • Integrated multi-constellation GNSS receiver provides precise real-time location tracking and time synchronization for fleet management and asset monitoring.
  • Comprehensive I/O includes 4x Fast Ethernet ports, RS232/RS485 serial interfaces, USB, and 4x digital/analog inputs for sensor integration and industrial protocol support.
  • Rugged aluminum housing with DIN rail and wall-mount options, operating from -40°C to 75°C, built for harsh industrial environments.

Out of stock

Description

The Teltonika RUT956 Industrial Cellular Router is engineered as a unified networking core for demanding IoT and industrial automation systems. It consolidates high-speed 4G LTE connectivity, dual-SIM redundancy, Wi-Fi access point functionality, and precise GNSS positioning into a single, ruggedized unit. The device is powered by a 580 MHz MIPS CPU and runs Teltonika’s RutOS, offering a rich feature set including advanced VPN tunnels (OpenVPN, IPsec), a configurable firewall, and support for automation protocols like Modbus, MQTT, BACnet, and OPC UA.

Designed for 24/7 operation, the RUT956 features a wide 9-30 VDC power input range with passive PoE support, ensuring compatibility with various industrial power sources. Its extensive connectivity suite, including four 10/100 Mbps Ethernet ports (configurable as WAN/LAN), serial interfaces, and multiple antenna ports for LTE, Wi-Fi, and GNSS, makes it a versatile gateway for SCADA systems, vehicle telematics, remote site monitoring, and smart city infrastructure.

Key Features

  • High-performance 4G LTE Cat 4 modem with 3G/2G fallback ensures reliable wide-area network connectivity.
  • Dual SIM and eSIM support with automatic failover provides network redundancy and seamless carrier switching.
  • Integrated multi-GNSS receiver (GPS, GLONASS, Galileo, BeiDou) for accurate asset tracking and NTP time synchronization.
  • Robust RutOS firmware with advanced security features including VPN (OpenVPN, IPsec, WireGuard), firewall, and VLAN support.
  • Comprehensive industrial I/O: 4x configurable digital/analog inputs, RS232, RS485, and USB host port for peripheral expansion.
  • Four Fast Ethernet ports with passive PoE input capability for simplified power and data delivery.
  • Dual-band Wi-Fi (2.4 GHz) access point functionality for creating local wireless networks.
  • Remote management and monitoring via Teltonika Remote Management System (RMS) for centralized fleet control.

Applications

  • Industrial IoT (IIoT) and SCADA systems for remote equipment monitoring and control.
  • Fleet management and vehicle telematics for real-time GPS tracking and diagnostics.
  • Smart city infrastructure for connecting traffic sensors, environmental monitors, and public Wi-Fi.
  • Remote site and energy management for solar farms, substations, and oil & gas installations.
  • Transportation and logistics for in-vehicle networking, CCTV backhaul, and cold chain monitoring.
  • Building automation as a gateway for BACnet, Modbus, and MQTT devices over cellular.

Technical Specifications

CPUMediatek, 580 MHz, MIPS 24KEc
RAM128 MB DDR2
Flash Storage16 MB SPI Flash
Cellular Technology4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G
Wireless ProtocolsWi-Fi 802.11b/g/n (2.4 GHz), GNSS (GPS, GLONASS, Galileo, BeiDou)
SIM SupportDual SIM, eSIM
Ethernet Ports4 x 10/100 Mbps (1 WAN, 3 LAN configurable)
Serial InterfacesRS232, RS485
I/O4x Inputs (Digital Dry, Digital Isolated, Analog, Digital Non-isolated)
USB Port1x USB 2.0 Host
Antenna Connectors2x SMA (LTE), 2x RP-SMA (Wi-Fi), 1x SMA (GNSS)
Power Input9–30 V DC
Power over Ethernet (PoE)Passive PoE Input
Operating Temperature-40°C to +75°C
Dimensions (L x W)110 mm x 100 mm
Weight287 g

Frequently Asked Questions

How do I configure the dual SIM failover on the RUT956?

Access the router's web interface via its LAN IP. Navigate to the 'Network' -> 'Mobile' section. Here, you can set the primary and secondary SIM slots and configure the failover mode (e.g., switch on signal loss or manually). The eSIM profile can be managed under the 'eSIM' tab. The system will automatically switch to the backup SIM based on your configured rules, ensuring continuous connectivity.

What industrial protocols does the RUT956 support for serial communication?

The RUT956's RutOS firmware natively supports several key industrial protocols over its RS232 and RS485 interfaces. This includes Modbus RTU/TCP gateway functionality, MQTT client for cloud publishing, BACnet/IP for building automation, and OPC UA for industrial data exchange. Configuration is done through the 'Services' menu in the web interface, where you can define serial port parameters, data mapping, and transmission rules.

Can I power the RUT956 using Passive PoE and what are the requirements?

Yes, the RUT956 supports Passive Power over Ethernet (PoE) input. You can inject DC power (9-30 V) into the Ethernet cable on pins 4 & 5 (positive) and 7 & 8 (negative) and connect it to one of the router's LAN ports configured for PoE input. Ensure your PoE injector or switch matches this passive standard and voltage range. The router will automatically detect the power source and can operate without the separate DC power input.

How do I set up a site-to-site VPN like OpenVPN or IPsec on this router?

To establish a VPN tunnel, go to 'Services' -> 'VPN' in the web UI. For OpenVPN, create a new instance, generate certificates if needed, and input the remote server details and tunnel network. For IPsec, use the 'IPsec' section to define Phase 1 (authentication) and Phase 2 (encryption) parameters, including pre-shared keys and remote gateway IP. The RUT956 can act as both client and server, facilitating secure connections to cloud platforms or other remote sites.

Package Includes

  • 1 x Teltonika RUT956 Industrial Cellular Router
  • 1 x GNSS Antenna (SMA male, 3m cable, adhesive mount)
  • 2 x LTE Antennas (SMA male, 3m cable, magnetic mount)
  • 2 x Wi-Fi Antennas (RP-SMA male, 1.5m cable, magnetic mount)
  • 1 x 9W Power Supply Unit (PSU)
  • 1 x RS485 Connector Block
  • 1 x I/O Connector Block
  • 1 x Ethernet Cable (1.5m)
  • 1 x SIM Adapter Kit
  • 1 x Quick Start Guide / User Manual

Additional Information

Weight 0.287 kg
Dimensions 11 × 10 cm
