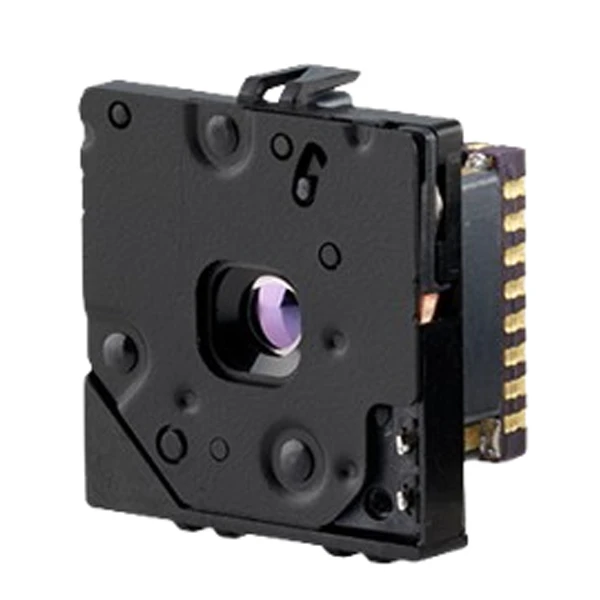

Teledyne Teledyne FLIR Lepton FS 500-0771-FS1 Thermal Camera Module, 160x120 LWIR, 56° HFOV, SPI
The Teledyne Teledyne FLIR Lepton FS is a compact, radiometric thermal imaging module featuring a 160×120 uncooled VOx microbolometer sensor for broad-scene monitoring. With a 56° horizontal field of view, SPI video interface, and low ~150 mW power consumption, it’s engineered for seamless integration into embedded systems for smart building, security, and automation applications.
Features
- 160×120 LWIR Thermal Sensor: Provides reliable, radiometric thermal imaging with a wide 56° horizontal field of view for broad area monitoring.
- Flat Scene Calibrated: Factory-calibrated output simplifies integration and deployment, reducing development time.
- SPI Video & I2C Control: Standard SPI interface for video data and I2C-like commands ensure easy communication with MCUs like ESP32, Raspberry Pi, and STM32.
- Low Power Operation: Consumes approximately 150 mW typical, making it suitable for battery-powered or energy-conscious IoT edge devices.
- Compact & Lightweight: Measures just 11.8 x 12.7 x 7.2 mm and weighs ~0.91g, ideal for space-constrained embedded designs.
Out of stock
The Teledyne Teledyne FLIR Lepton FS 500-0771-FS1 is a cost-effective, long-wave infrared (LWIR) thermal camera module designed for embedded vision applications where reliable scene temperature monitoring is paramount. Its uncooled VOx microbolometer sensor operates in the 8-14 µm spectral range, delivering 14-bit radiometric data or processed 8-bit AGC/RGB output via a straightforward SPI interface. The module’s flat scene calibration removes the need for complex non-uniformity correction in firmware, accelerating prototype development.
Engineered for low-power embedded systems, the Lepton FS operates on a nominal 2.8V supply and maintains functionality across an ambient temperature range of -10°C to +65°C. Its compact form factor and lightweight construction allow for direct integration into smart building sensors, occupancy detection systems, industrial equipment monitoring, and security devices. The combination of a wide field of view, radiometric capability, and a simple digital interface makes it a practical choice for developers adding thermal imaging to IoT projects.
Additional Information
| Weight | 0.00091 kg |
|---|---|
| Dimensions | 1.27 × 1.18 × 0.72 cm |
