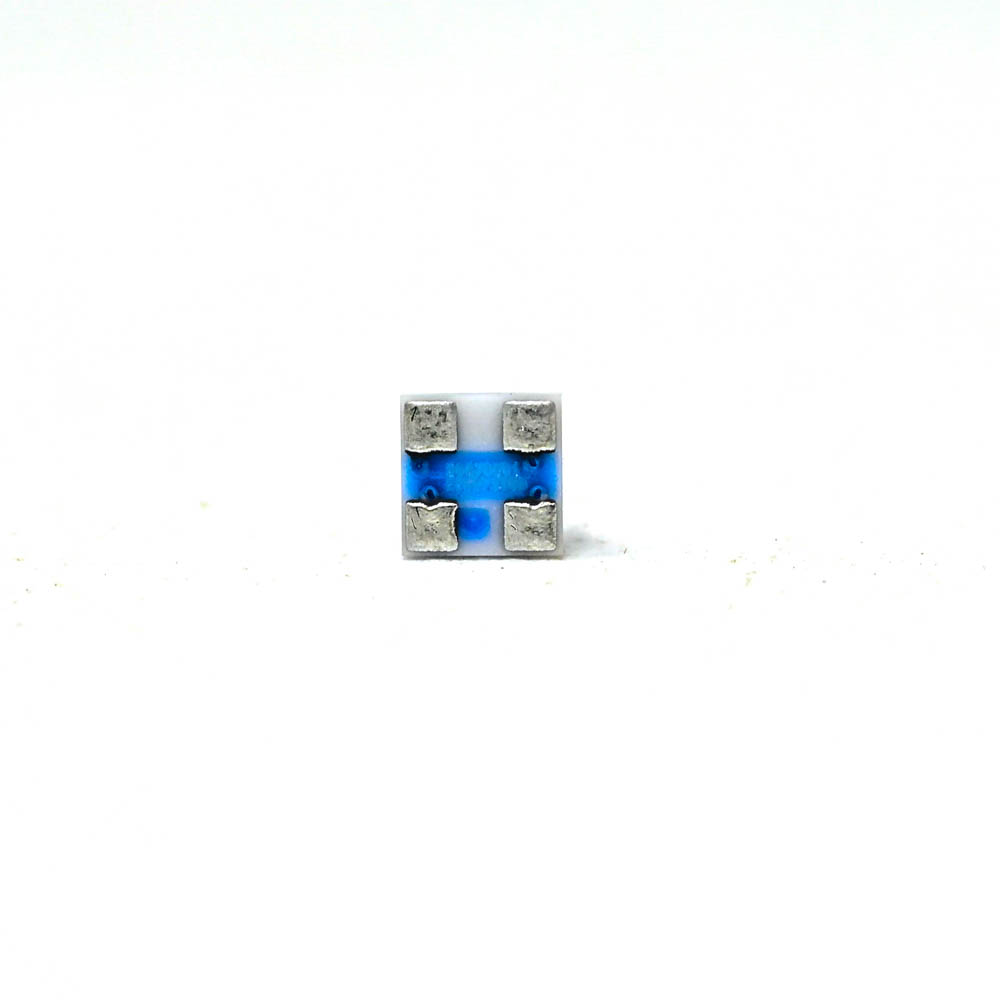

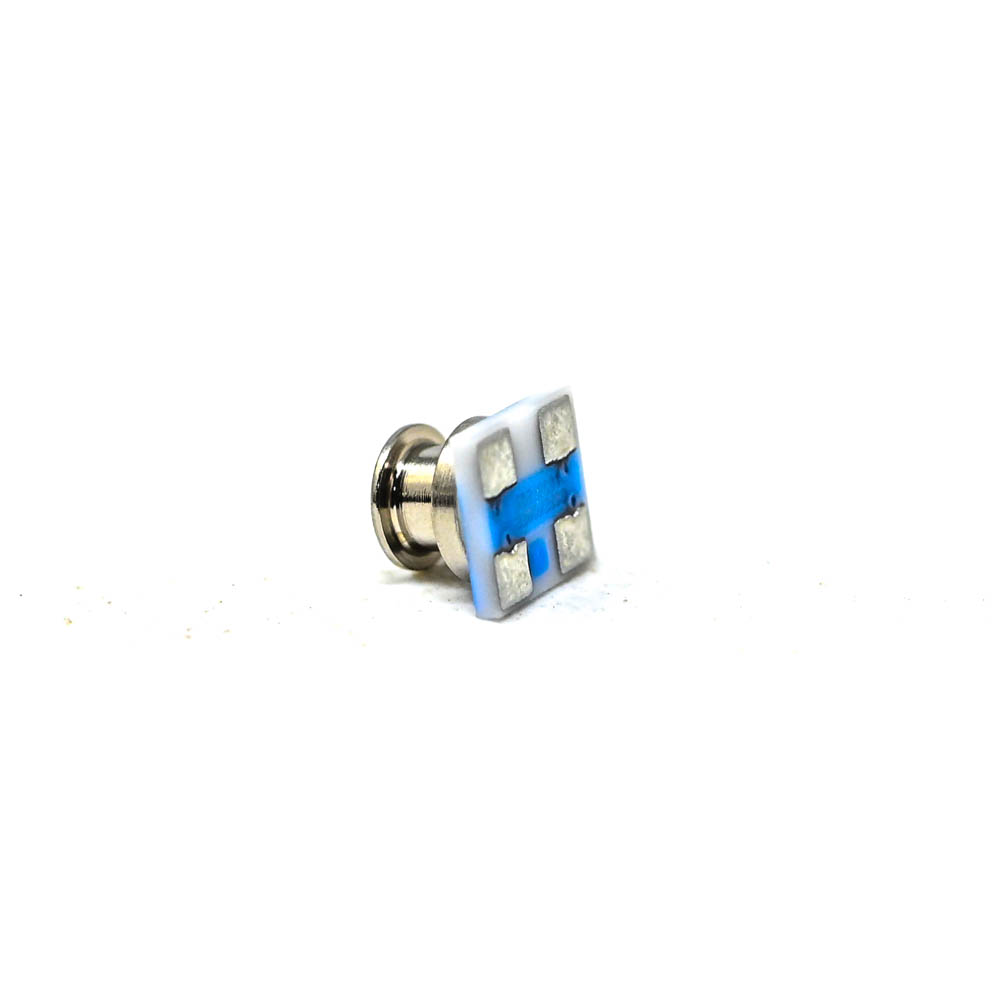

TE Connectivity MS583730BA01-50 Digital Pressure Sensor, 0-30 bar Sealed Gauge, I2C Interface
The TE Connectivity MS583730BA01-50 is a high-resolution digital MEMS pressure and temperature sensor with an I2C interface, designed for precise water depth measurement and industrial pressure monitoring. It operates from 1.5V to 3.6V, making it compatible with low-power microcontrollers like Arduino, Raspberry Pi, and ESP32.
Features
- High-resolution digital MEMS sensor with integrated 24-bit ΔΣ ADC for precise pressure and temperature data.
- Optimized for water depth measurement with a resolution of 0.2 cm in water.
- Ultra-low power consumption: 0.6 µA active, ≤0.1 µA standby, with a 1.5V to 3.6V supply range.
- Robust ceramic and metal package with water-resistant O-ring sealing for harsh environments.
- Simple I2C communication protocol requires no internal register programming for easy microcontroller integration.
Out of stock
The MS583730BA01-50 from TE Connectivity is a fully integrated, factory-calibrated digital pressure sensor module. It combines a high-linearity MEMS pressure sensor with an ultra-low-power 24-bit delta-sigma ADC, delivering calibrated 24-bit digital outputs for both pressure and temperature. The sensor’s internal oscillator eliminates the need for external components, simplifying system design.

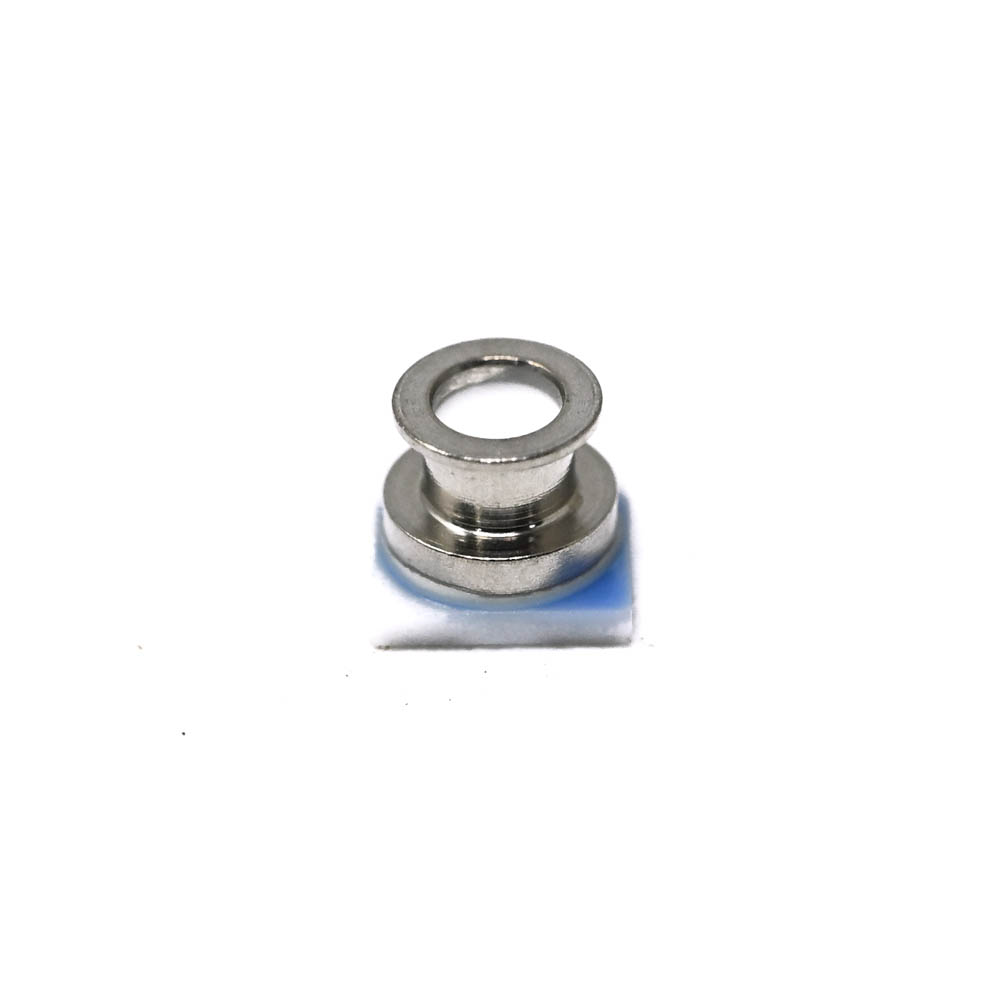

Engineered for durability, the module features a ceramic and metal construction with a shielded metal lid and an O-ring seal, providing high chemical endurance and water resistance. Its wide operating temperature range from -20°C to +85°C and sealed gauge design make it suitable for submersible applications and industrial hydraulic systems where reliable performance under varying environmental conditions is critical.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 10 × 7 × 3 cm |
