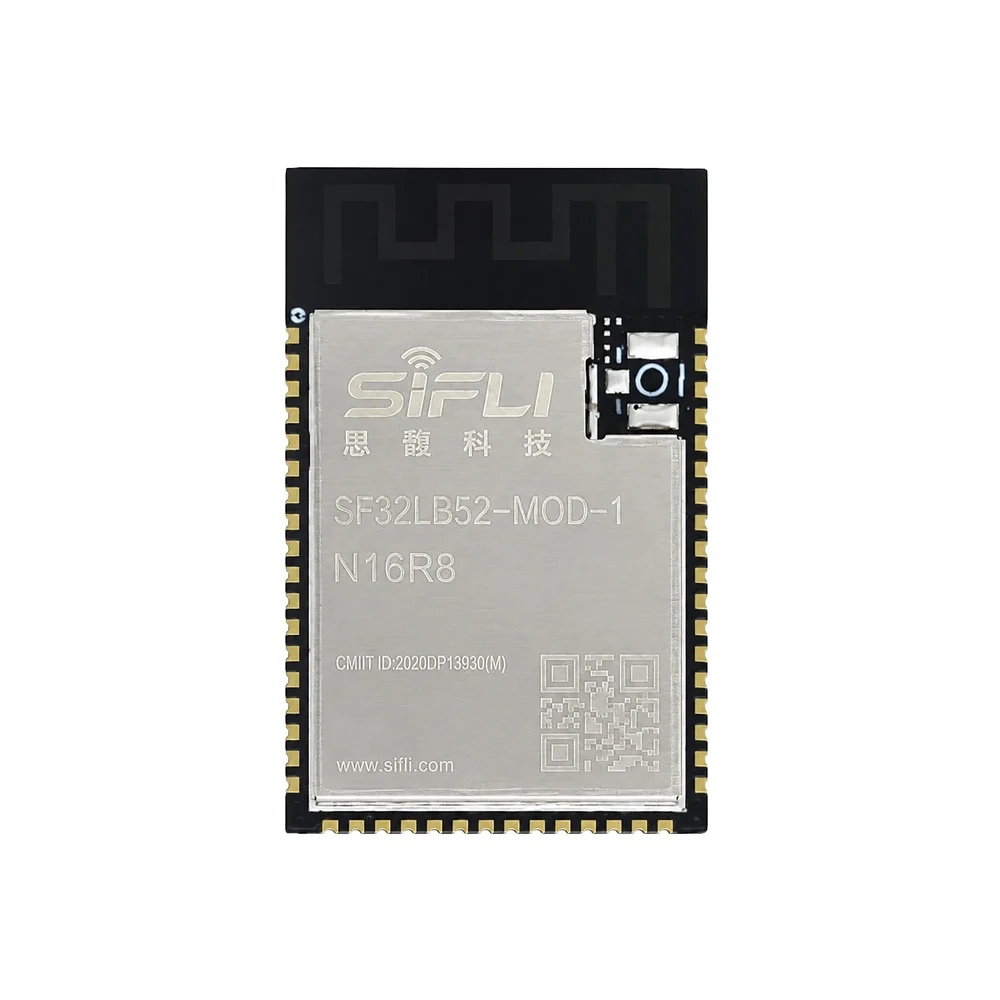

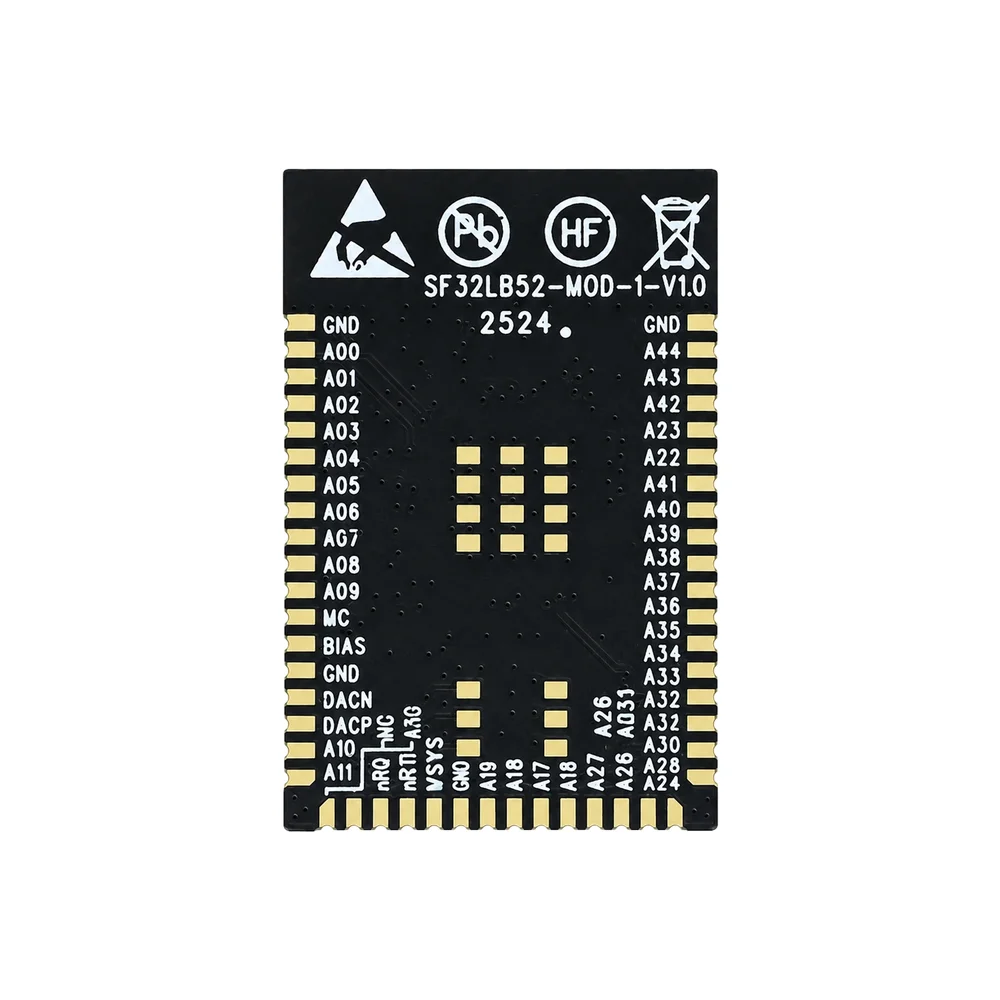

SiFli Technologies SF32LB525 Bluetooth 5.3 AIoT Module N16R8 w/ QSPI Display

Developers typically use the vendor-provided SDK from SiFli Technologies, which includes drivers, Bluetooth stack, graphics libraries, and sample code. The dual-core Cortex-M33 is programmable with standard ARM toolchains like GCC and ARM Compiler. Development often occurs within an IDE like Keil MDK or IAR Embedded Workbench, with support for debugging via SWD/JTAG interfaces on the module's test points or a dedicated carrier board.

To use the QSPI display interface, connect the module's QSPI clock (SCLK) and data (IO0-IO3) lines to your display controller. Configure the display driver in software using the provided GPU libraries to leverage hardware acceleration. Ensure your display supports QSPI protocol and match the voltage levels. The module's high-speed PSRAM is crucial for storing and managing frame buffer data efficiently for smooth graphics rendering.

Active power consumption depends on CPU load, peripheral usage, and RF transmit power. At the maximum RF output of 19dBm, current draw will be significantly higher. For precise figures, consult the detailed electrical characteristics in the SF32LB525 datasheet. For battery life estimation, model your application's duty cycle, leveraging the 2µA deep sleep mode and the integrated low-power CPU core for background tasks to minimize average current.

Direct Arduino Core support for the SF32LB525 is unlikely unless a community or vendor board package exists. Development is primarily done with the official SiFli Technologies SDK and ARM toolchains. However, the module's ARM architecture means you can port C/C++ code. For a similar Arduino-like experience with Bluetooth and graphics, consider platforms like ESP32-S3, which have robust Arduino core support and comparable features.

Power the module directly from a single-cell Li-ion/Li-Po battery (3.2V-4.7V) connected to the VBAT pin. The integrated 560mA linear charger manages charging when 4.6V-5.5V is applied to the VBUS pin (e.g., from a USB port). Include proper decoupling capacitors near the power pins. For optimal battery life, utilize the module's power management unit and software APIs to enter low-power sleep modes when wireless and display functions are idle.
