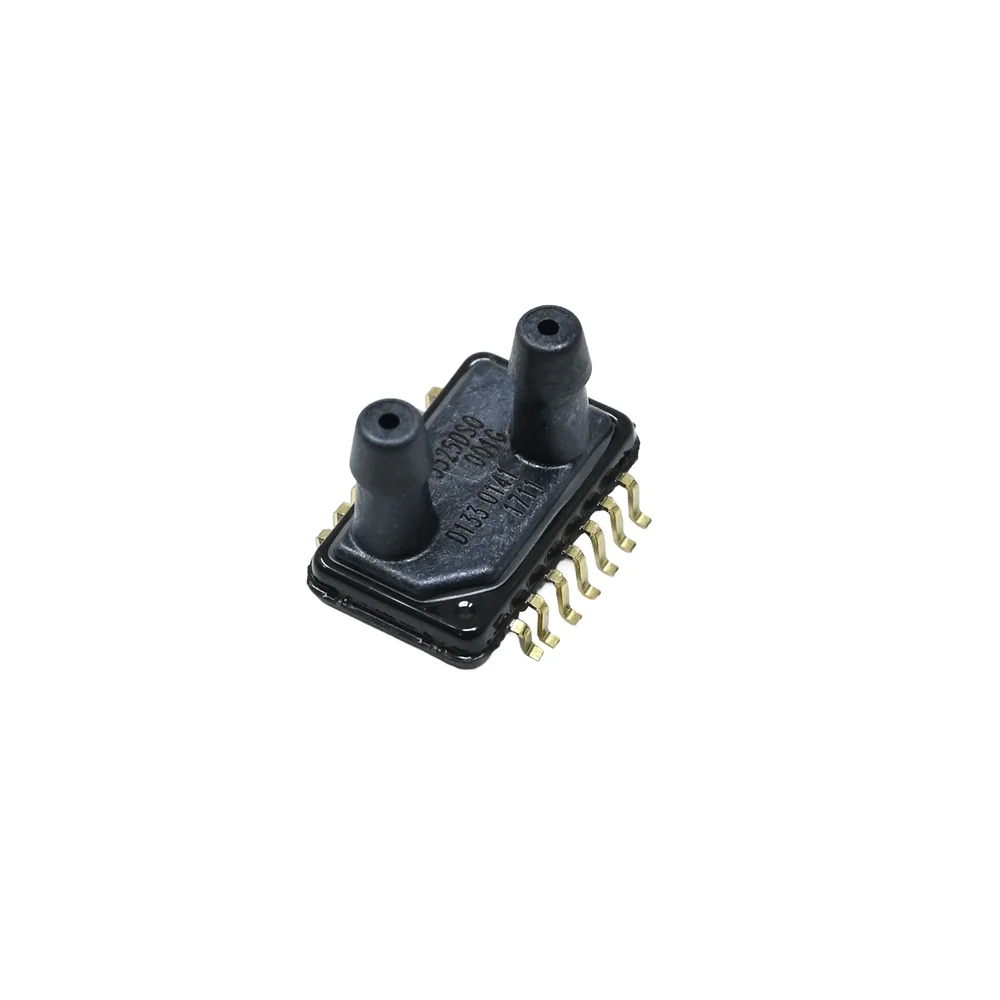

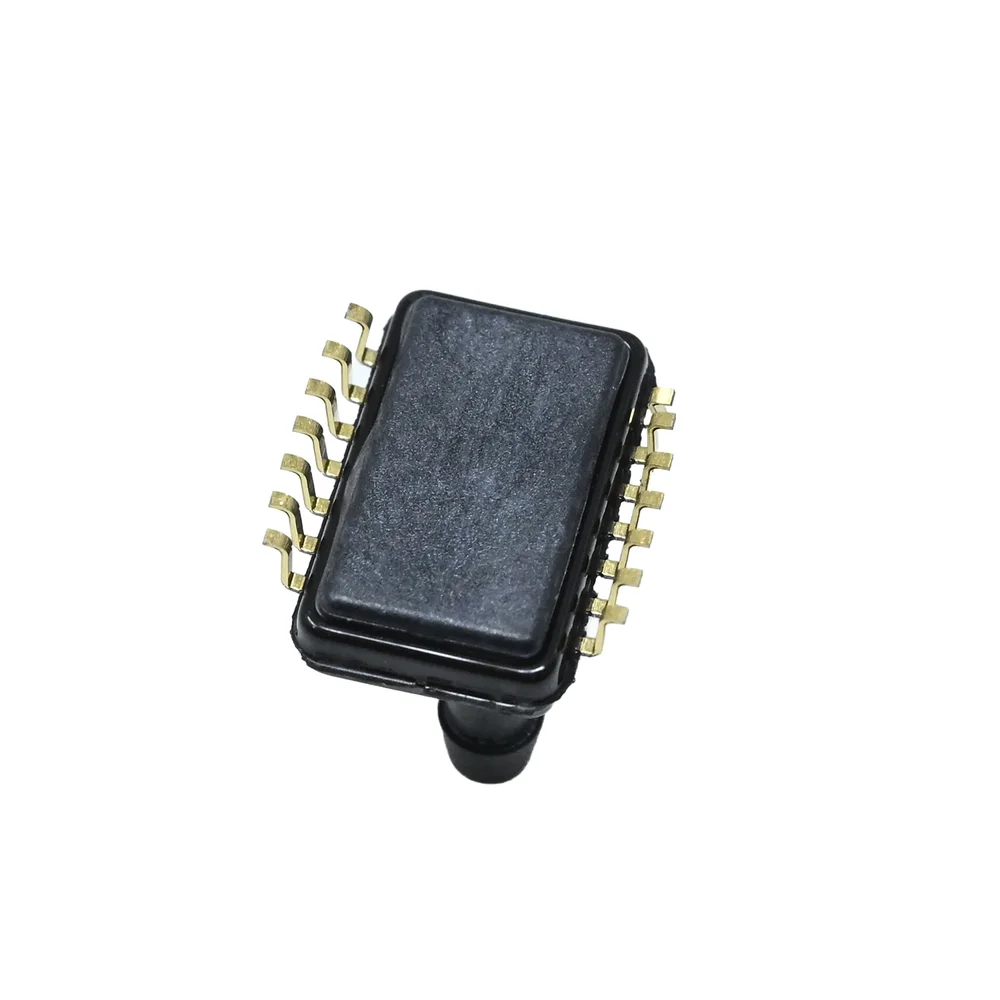

TE Connectivity MS5525DSO Digital Pressure Sensor, 1~30 PSI (69~2068 mbar), 24-bit I2C/SPI Output, MEMS High Precision
The TE Connectivity MS5525DSO is a high-precision MEMS-based digital pressure sensor offering a 1 to 30 PSI range with 24-bit I2C/SPI output. Designed for low-power embedded systems, it integrates a factory-calibrated ΔΣ ADC for direct microcontroller integration with Arduino, Raspberry Pi, and industrial PLCs.
Features
- High-precision MEMS sensor with 24-bit ΔΣ ADC for digital pressure and temperature output.
- Dual I2C and SPI digital interface support for flexible microcontroller and embedded system integration.
- Ultra-low power operation suitable for battery-powered devices and portable monitoring applications.
- Wide operating temperature range from -40°C to +85°C for industrial and medical environments.
- Factory-calibrated with stored coefficients, eliminating the need for external calibration.
Out of stock
The MS5525DSO from TE Connectivity is a compact, surface-mount digital pressure sensor built on robust MEMS technology. It provides absolute, gauge, or differential pressure measurement with a high-resolution 24-bit delta-sigma analog-to-digital converter (ADC) integrated on-chip. The sensor outputs fully calibrated digital data for both pressure and temperature, simplifying system design and reducing development time.
Engineered for reliability in demanding conditions, the device operates from a 1.8V to 3.6V supply, featuring ultra-low power consumption and conversion times as fast as 1 ms. This combination of speed, accuracy, and low power makes it ideal for real-time monitoring in HVAC systems, medical instrumentation, industrial process control, and portable data loggers.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2 × 2 × 2 cm |
