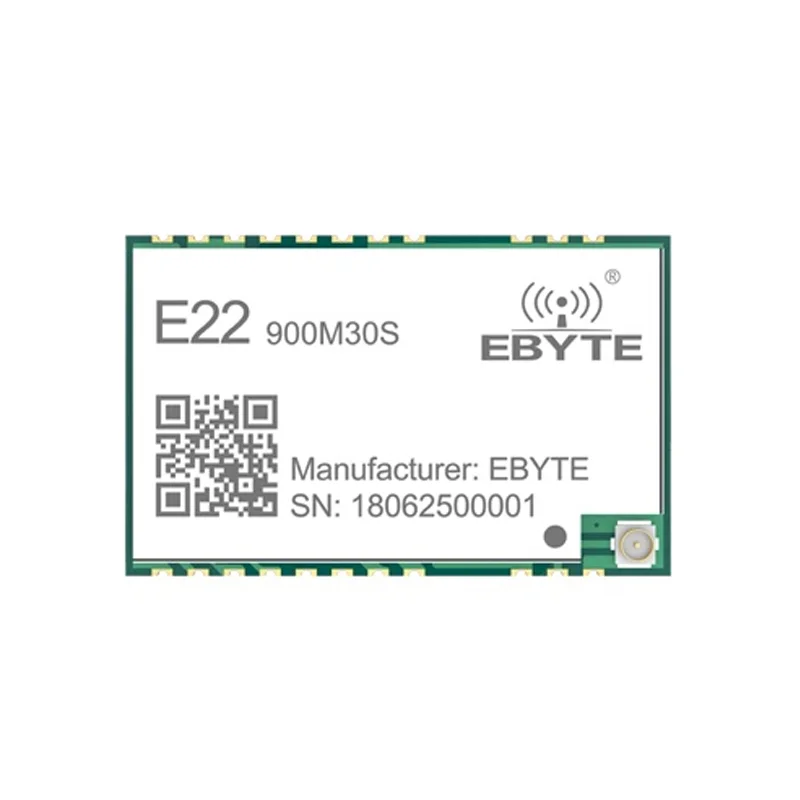

EByte E22-900M30S SX1262/SX1268 1W 900MHz LoRa Module
The EByte E22-900M30S is a high-power, long-range LoRa transceiver module based on the Semtech SX1262/SX1268 chipset, operating in the 850-930 MHz band with up to 30 dBm (1W) output power for communication distances up to 12 km, interfacing via SPI for embedded IoT applications.
Features
- High-Power LoRa Transceiver: Features the Semtech SX1262/SX1268 RF ICs, delivering up to 30 dBm (1 Watt) output power for robust, long-range communication up to 12 km.
- Wide 850-930 MHz Band: Operates across the 900 MHz ISM band, offering flexibility for regional deployments and avoiding crowded 2.4 GHz spectrum.
- SPI Interface for Direct Control: Provides a Serial Peripheral Interface (SPI) for direct microcontroller integration, enabling fine-grained control over LoRa and GFSK modulation parameters.
- Ultra-Low Power Consumption: Designed for battery-operated IoT nodes with low operating currents, supporting extended sleep modes for multi-year deployments.
- Industrial-Grade Reliability: Features an operating temperature range of -40°C to +85°C and high receiver sensitivity (-150 dBm) for stable performance in harsh outdoor environments.
Out of stock
The EByte E22-900M30S is a professional-grade LoRa module engineered for demanding long-range, low-power wireless applications. It integrates the latest Semtech SX1262 and SX1268 transceiver chips, which support both LoRa spread-spectrum modulation and traditional GFSK, providing developers with flexibility in balancing data rate, range, and power consumption. The module’s high 30 dBm RF output power ensures maximum link budget, making it ideal for bridging remote sensor networks, telemetry systems, and industrial IoT gateways where cellular connectivity is unavailable or cost-prohibitive.

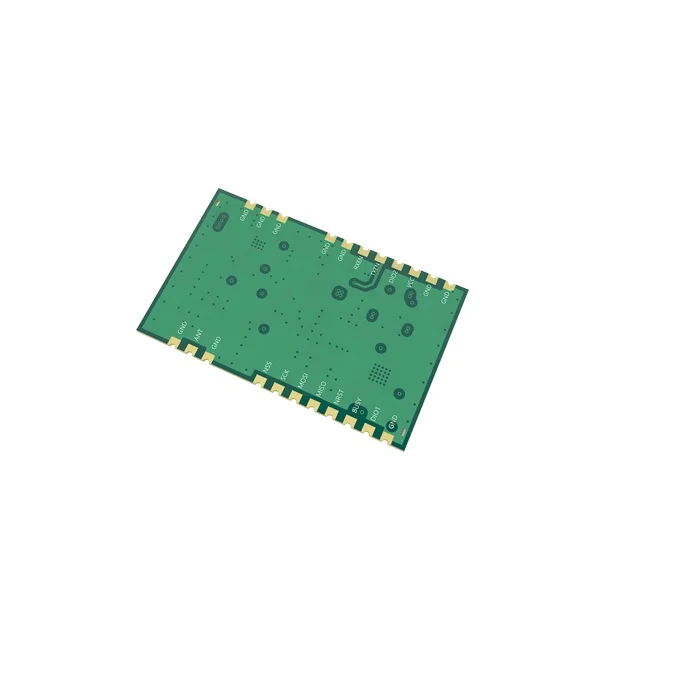

Architecturally, the module is designed as a surface-mount device (SMD) with a compact footprint, simplifying integration into custom PCB designs. It operates from a wide 2.5V to 5.5V supply, accommodating both 3.3V and 5V logic systems, while its communication logic level is compatible with 1.8V to 3.7V microcontrollers. The integrated IPEX connector or stamp hole pad options allow for flexible antenna attachment, crucial for optimizing radiation patterns and achieving the advertised 12 km line-of-sight range. This combination of high power, sensitivity, and robust construction makes the E22-900M30S a core component for building scalable, sub-GHz wireless networks.
Additional Information
| Weight | 0.0049 kg |
|---|---|
| Dimensions | 1.2 × 0.8 × 0.2 cm |
