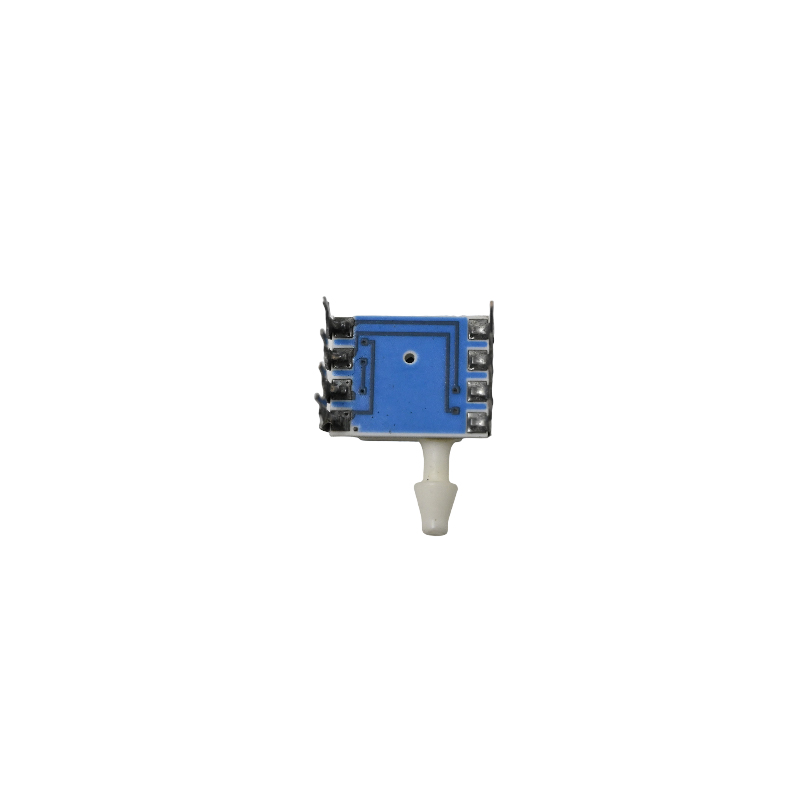

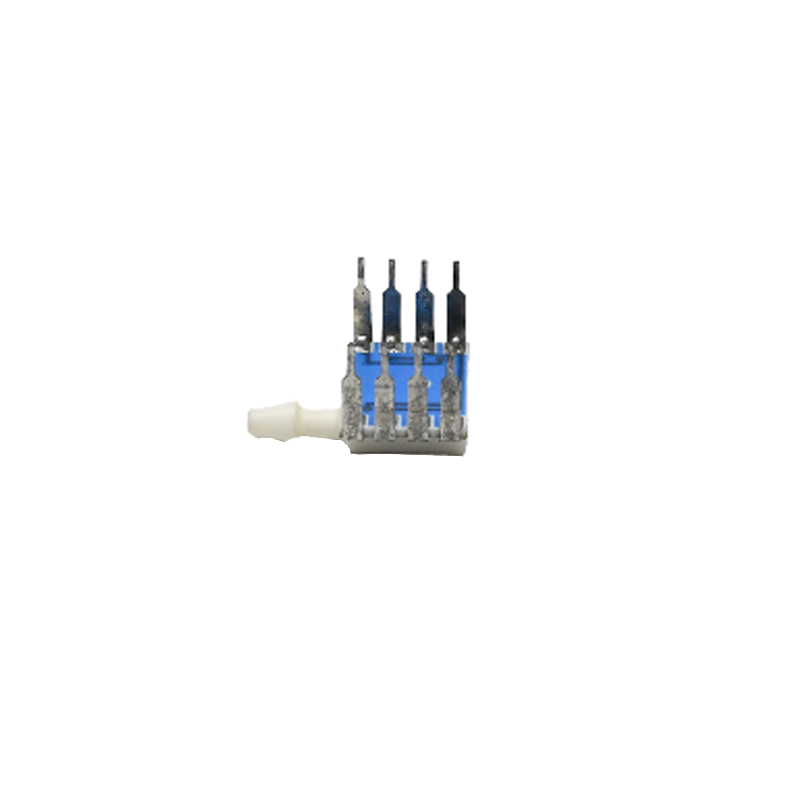

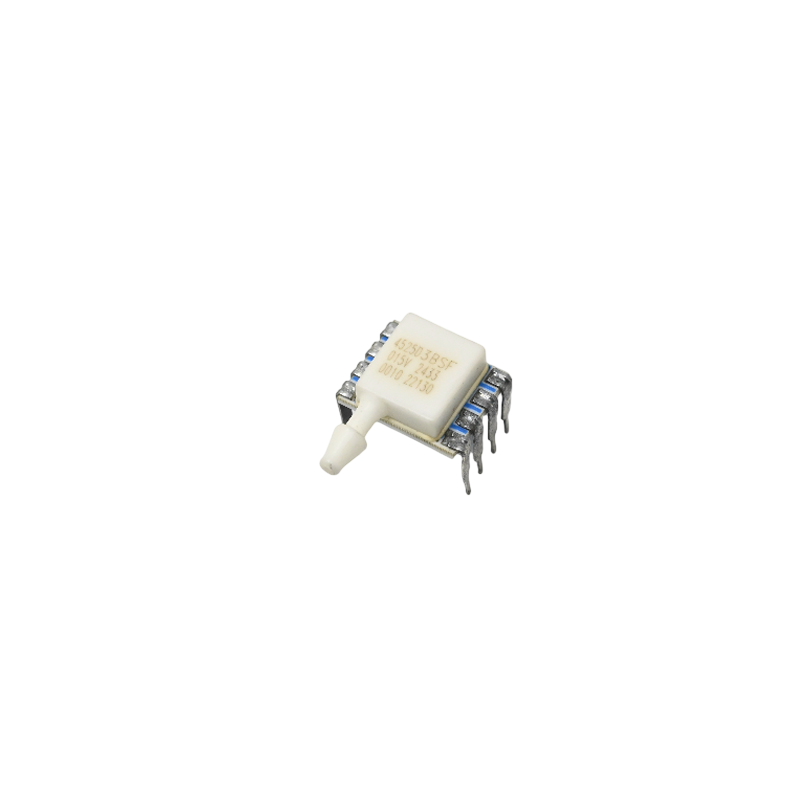

TE Connectivity MS4525DO-SS3BS015VPF Pressure Sensor, Vacuum, -15 psi to 0 psi, 3.3 VDC, Digital I2C/SPI, PCB Mount
The TE Connectivity MS4525DO-SS3BS015VPF is a compact, ceramic-based digital pressure transducer designed for PCB mounting. It provides a calibrated digital output via I2C or SPI interface, operating on a 3.3V DC supply, making it compatible with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs for precise vacuum pressure measurement.
Features
- Digital output pressure sensor with 14-bit resolution and integrated 11-bit temperature sensing.
- Supports I2C and SPI digital communication protocols for easy microcontroller integration.
- Fully factory-calibrated and temperature compensated with a Total Error Band (TEB) of ±1%.
- Rugged ceramic construction with barbed ports for secure tubing connections.
- Operates on a 3.3V DC supply with low standby current for power-sensitive applications.
Out of stock
The MS4525DO-SS3BS015VPF from TE Connectivity is a high-performance, silicon piezoresistive pressure sensor integrated into a compact, PCB-mountable ceramic package. It delivers a fully calibrated and temperature-compensated digital output, eliminating the need for external signal conditioning. The sensor’s robust ceramic diaphragm and barbed port design ensure reliable performance in demanding environments.
This transducer is engineered for precise measurement of vacuum, gauge, differential, compound, or absolute pressure, providing a 14-bit digital pressure reading and an 11-bit temperature reading. Its low-power operation and digital interface make it ideal for integration into data acquisition systems, portable instruments, and automated control loops where space and accuracy are critical.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.4 × 1.2 cm |
