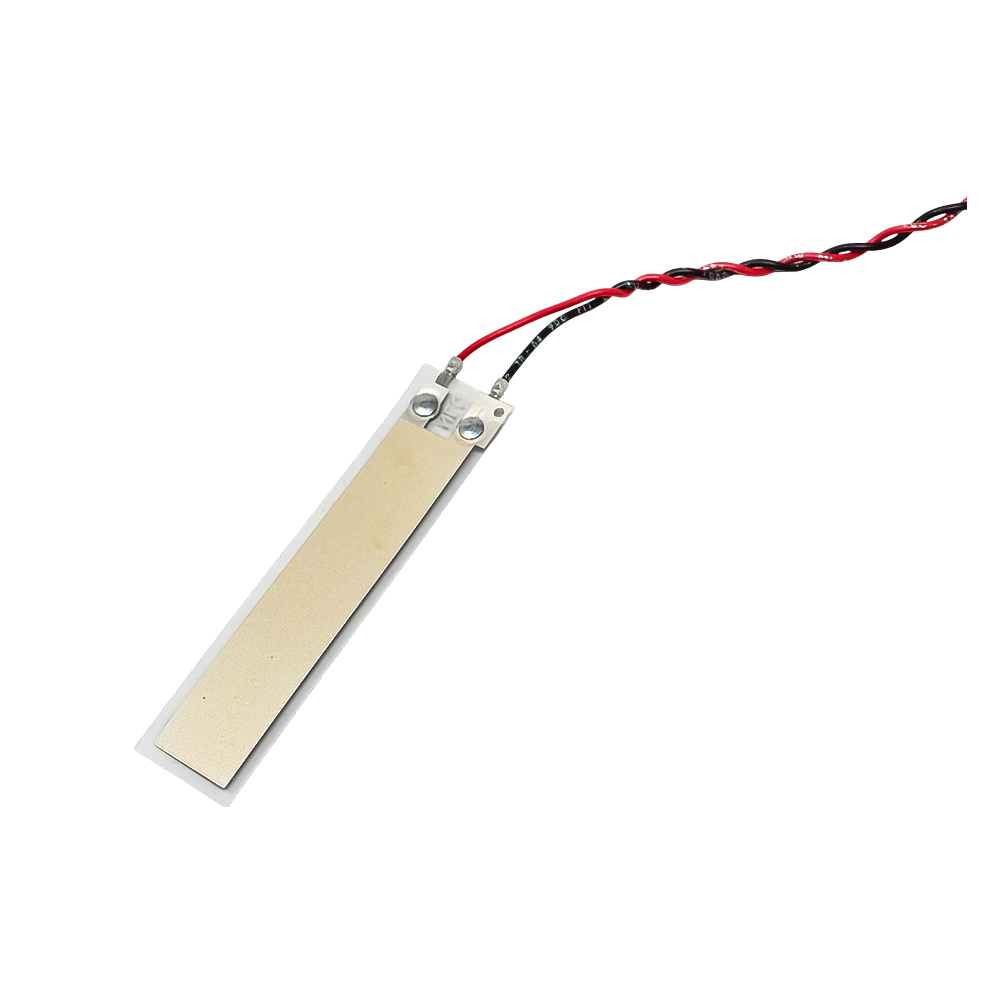

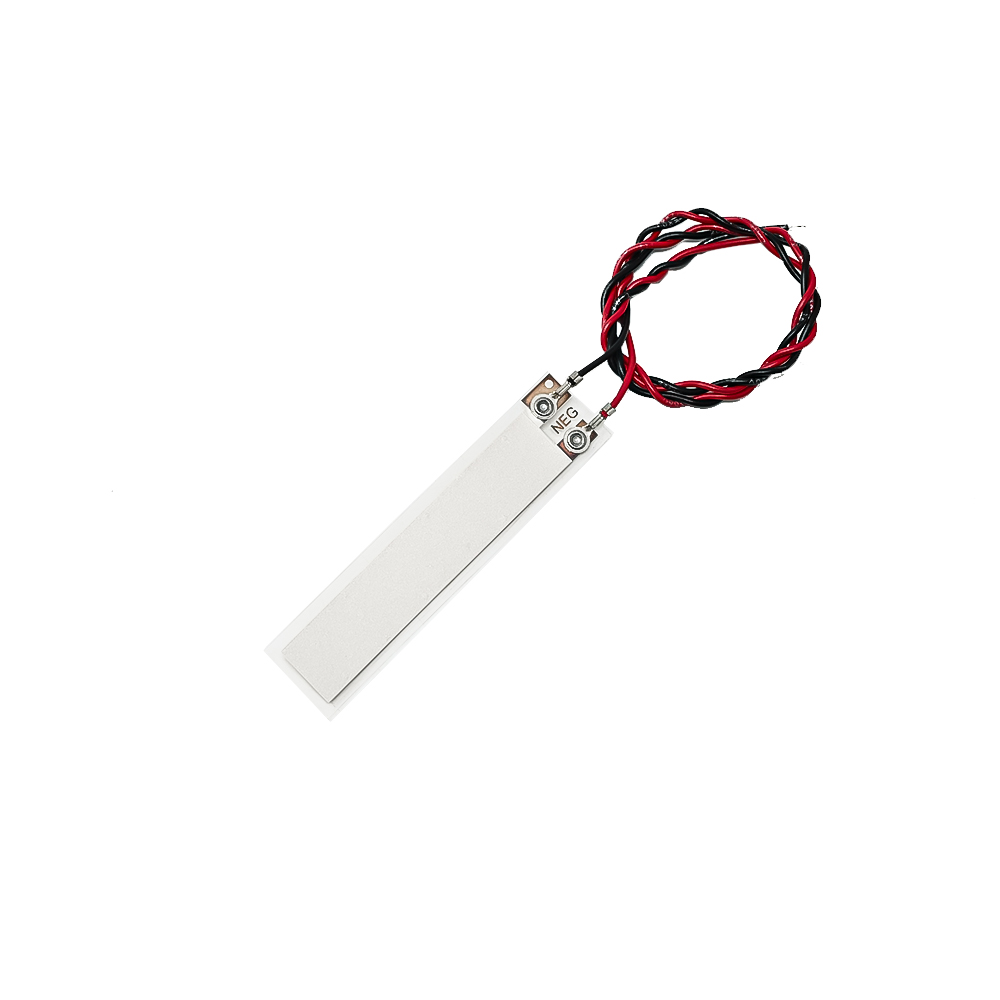

TE Connectivity LDT2-028K Piezo Film Sensor, Vibration, LDT Series, Wire Leads, 2.85 nF
The TE Connectivity LDT2-028K is a piezoelectric film sensor designed for vibration, impact, and motion detection. Its 28 µm thick film and 2.85 nF capacitance provide a fast, sensitive response suitable for integration into industrial monitoring systems, consumer electronics, and prototyping platforms like Arduino.
Features
- Piezoelectric PVDF film sensor for vibration and impact sensing.
- 28 µm film thickness with a nominal capacitance of 2.85 nF.
- Compact dimensions of 71 mm x 13 mm with wire leads for easy connection.
- Supports direct surface mounting or cantilever configuration for varied sensitivity.
- Lightweight (0.3 g) and durable construction for integration into tight spaces.
Out of stock
The LDT2-028K utilizes a polyvinylidene fluoride (PVDF) piezoelectric film that generates a charge proportional to applied mechanical stress. This principle enables precise detection of vibrations, impacts, and bending motions. The sensor’s thin, flexible profile allows it to conform to surfaces or be mounted as a cantilever beam, altering its resonant frequency and sensitivity profile for different applications.
With a 2.85 nF capacitance, the sensor offers a fast electrical response time, making it suitable for dynamic, real-time monitoring. The included wire leads facilitate straightforward connection to signal conditioning circuits or data acquisition systems. Its unshielded design is optimized for high sensitivity in controlled environments.
Additional Information
| Weight | 0.0003 kg |
|---|---|
| Dimensions | 7.1 × 1.3 × 0.0028 cm |
