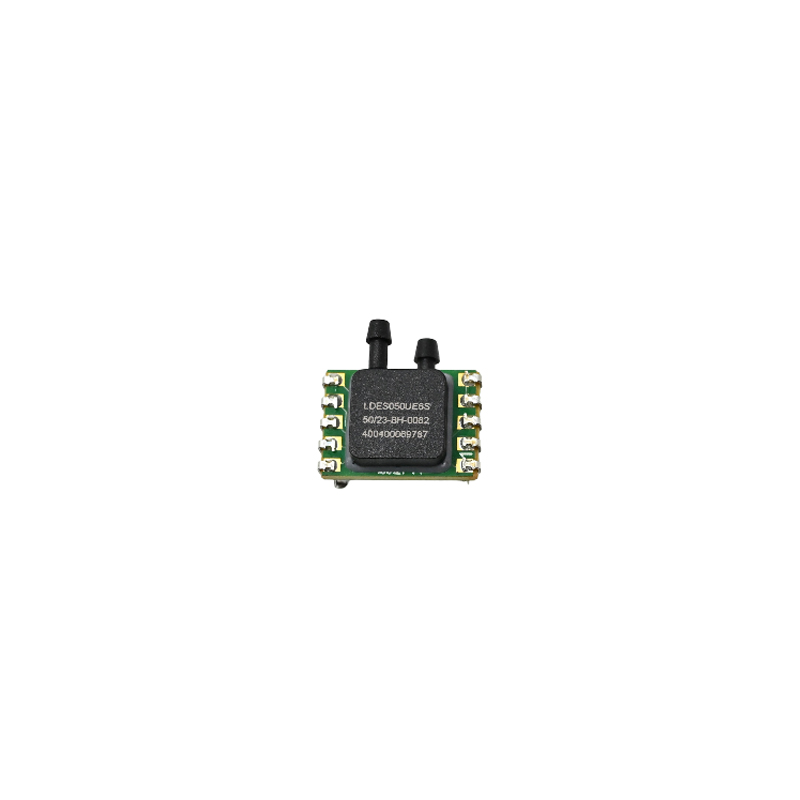

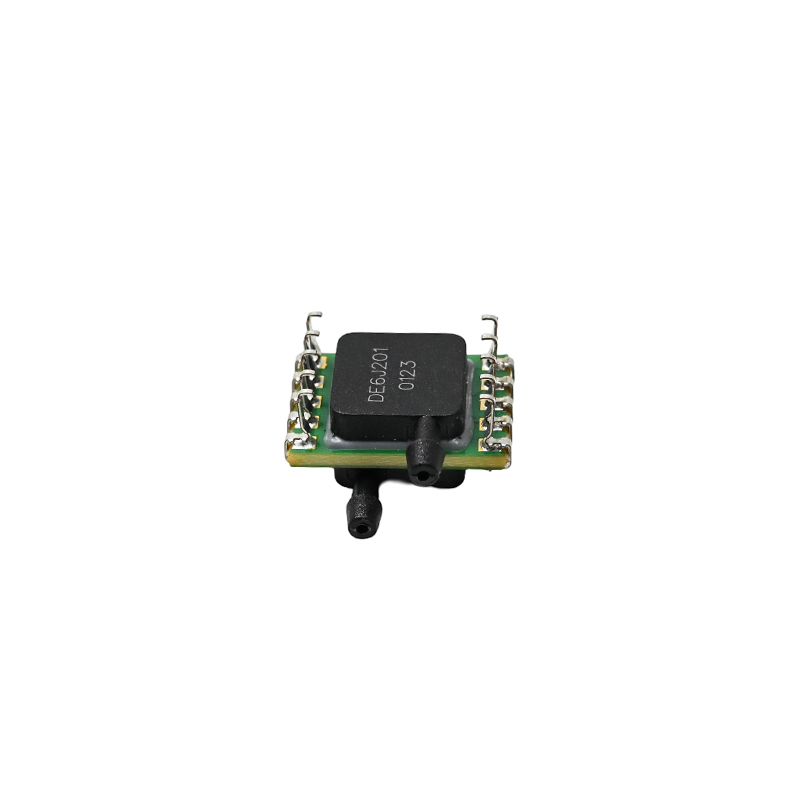

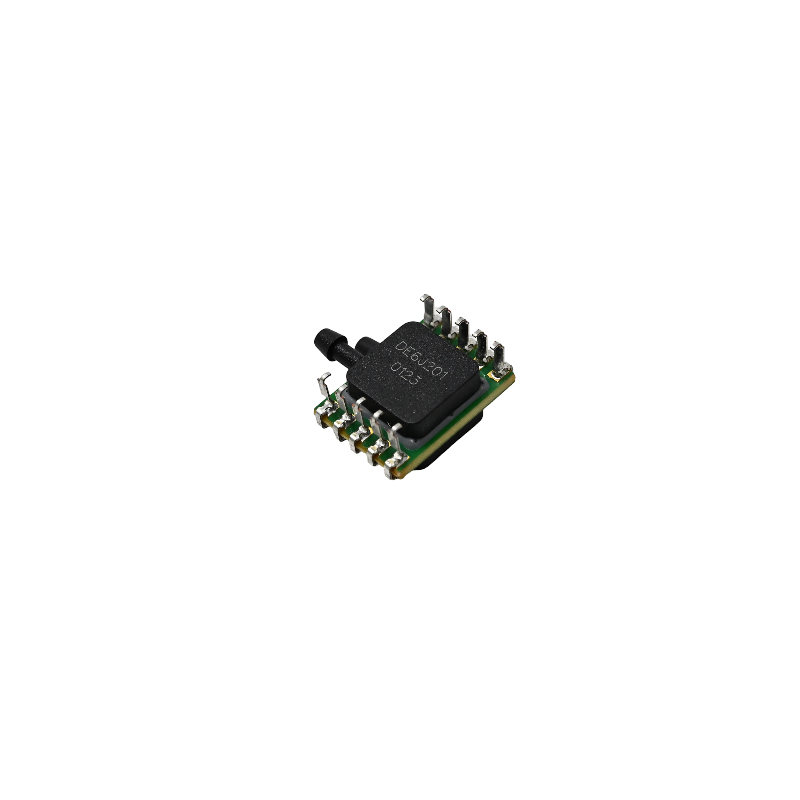

TE Connectivity LDES050UE6S Differential Pressure Sensor, 0–50 Pa, 5 V, Unidirectional, SMD, LDE Series
The TE Connectivity LDES050UE6S is an ultra-low differential pressure sensor module designed for precision measurement of non-corrosive gases. It features a calibrated SPI digital and analog output, operates from a 5V supply, and is ideal for integration into medical devices, HVAC systems, and industrial monitoring applications.
Features
- Ultra-low differential pressure range of 0 to 50 Pa (0.2 inH₂O) for sensitive gas flow monitoring.
- Integrated SPI digital interface and analog output for flexible system integration with microcontrollers and PLCs.
- Factory calibrated and temperature compensated for high accuracy and long-term stability.
- Based on thermal micro-flow sensing technology with high immunity to dust, moisture, and tubing effects.
- Compact surface-mount (SMD) package with 10 pins, designed for automated PCB assembly.
Out of stock
The TE Connectivity LDES050UE6S is a MEMS-based differential pressure sensor utilizing thermal micro-flow sensing technology. This principle enables precise measurement of very low-pressure differentials in non-corrosive gas streams with minimal flow leakage and excellent sensitivity. The sensor is factory calibrated and temperature compensated across its operating range, ensuring reliable performance without requiring user calibration.
Housed in a robust, compact SMD package, the LDES050UE6S offers high immunity to environmental factors like dust and humidity, and its accuracy is not degraded by long connecting tubing. With an operating voltage of 4.75V to 5.25V and a wide temperature range of -20°C to +80°C, it is engineered for demanding applications in medical and industrial environments where stability and precision are critical.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.8 × 1.8 cm |
