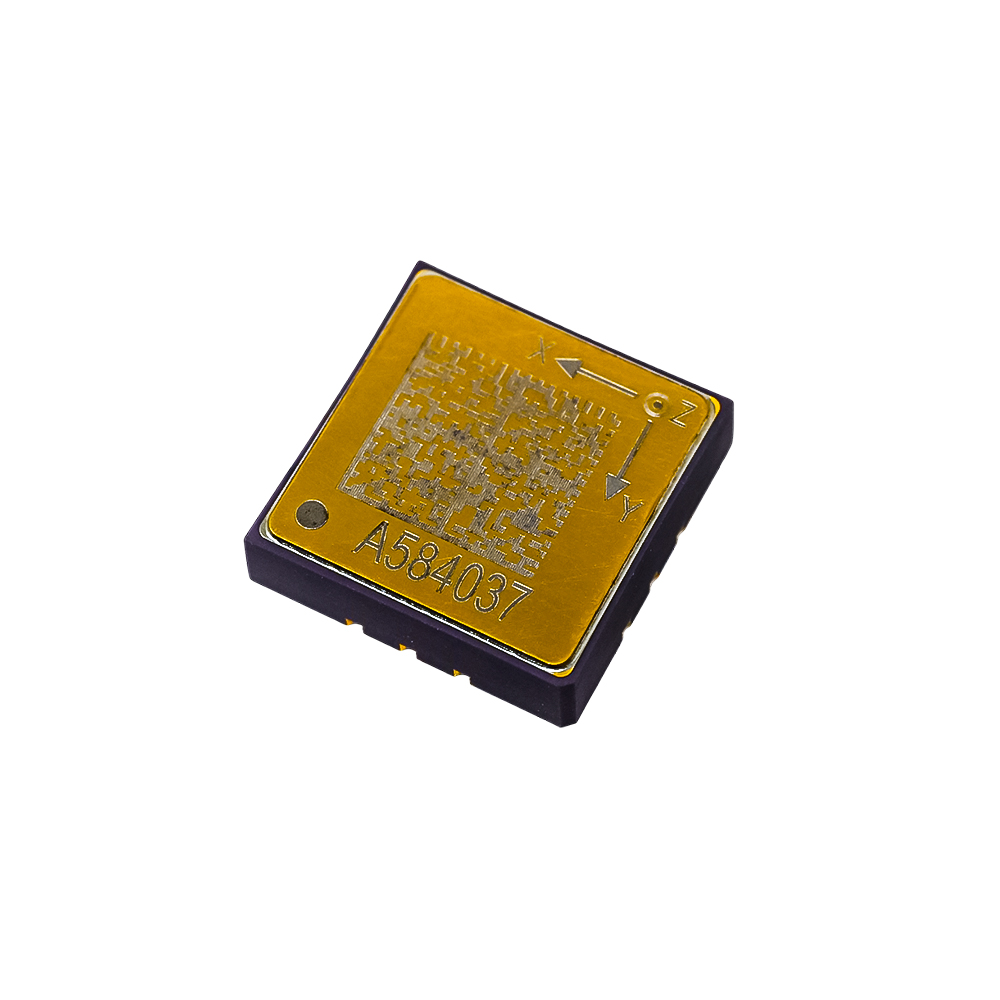

TE Connectivity 830M1-0050 Piezoelectric Accelerometer, ±50 g, 25 mV/g, 3 Axes, 3.3-5.5V, LCC-12
The TE Connectivity 830M1-0050 is a 3-axis piezoelectric accelerometer designed for high-fidelity vibration and shock measurement. With a ±50 g range, 25 mV/g sensitivity, and a wide 2 Hz to 15 kHz bandwidth, it delivers precise dynamic acceleration data for integration into industrial monitoring systems, automotive testing, and compact embedded devices.
Features
- Triaxial piezoelectric sensing with a ±50 g measurement range.
- High 25 mV/g sensitivity for detailed acceleration and vibration analysis.
- Broad frequency response from 2 Hz to 15,000 Hz captures rapid dynamic events.
- Low-power operation from a single 3.3 V to 5.5 VDC supply.
- Rugged ceramic LCC-12 package rated for -40°C to 125°C operation.
Out of stock
The 830M1-0050 accelerometer utilizes a piezoelectric sensing element to convert mechanical vibration and shock into a proportional electrical signal across three orthogonal axes. This design provides excellent signal-to-noise ratio and stability for capturing complex motion profiles in demanding environments.

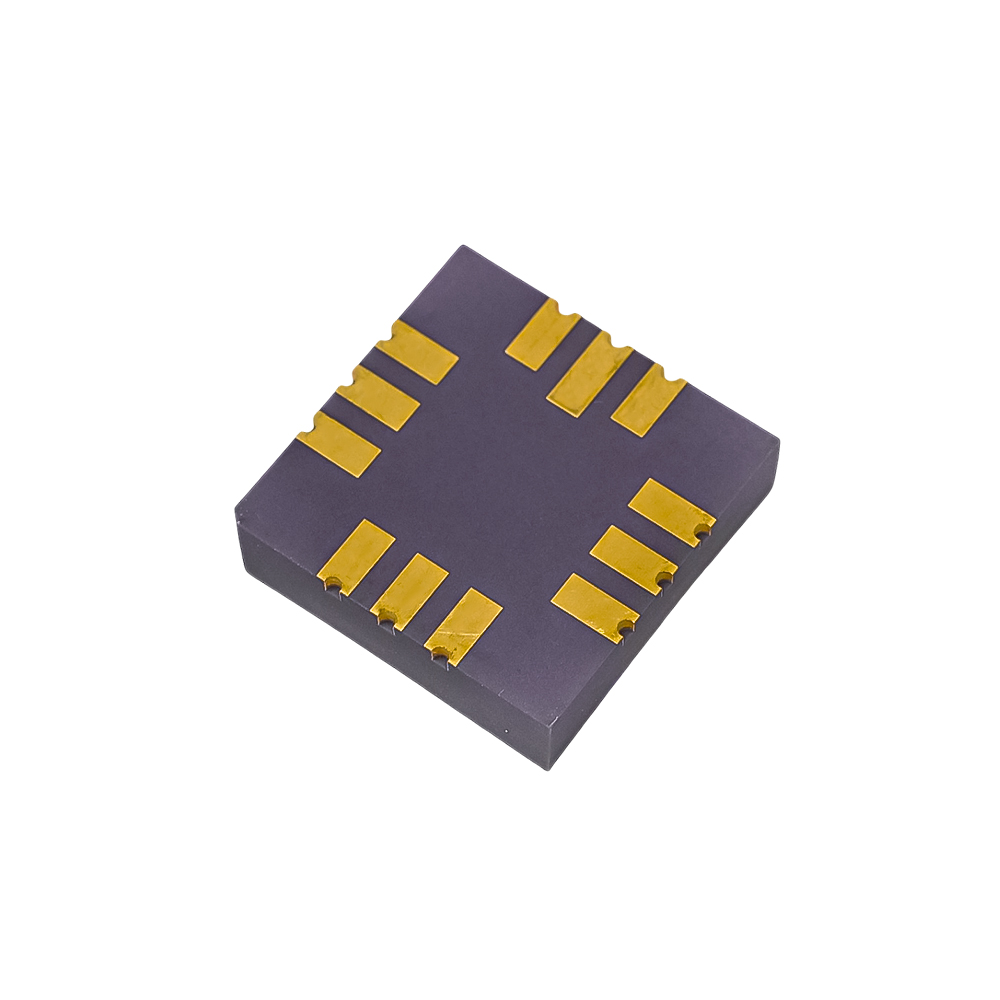

Its ceramic LCC (Leadless Chip Carrier) package ensures minimal added mass (1g) and high durability, making it suitable for solder-mount integration directly onto PCBs. The sensor’s wide operating temperature range and robust construction allow for reliable performance in automotive under-hood monitoring, industrial machinery condition monitoring, and aerospace structural testing applications.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 1 × 1 cm |
