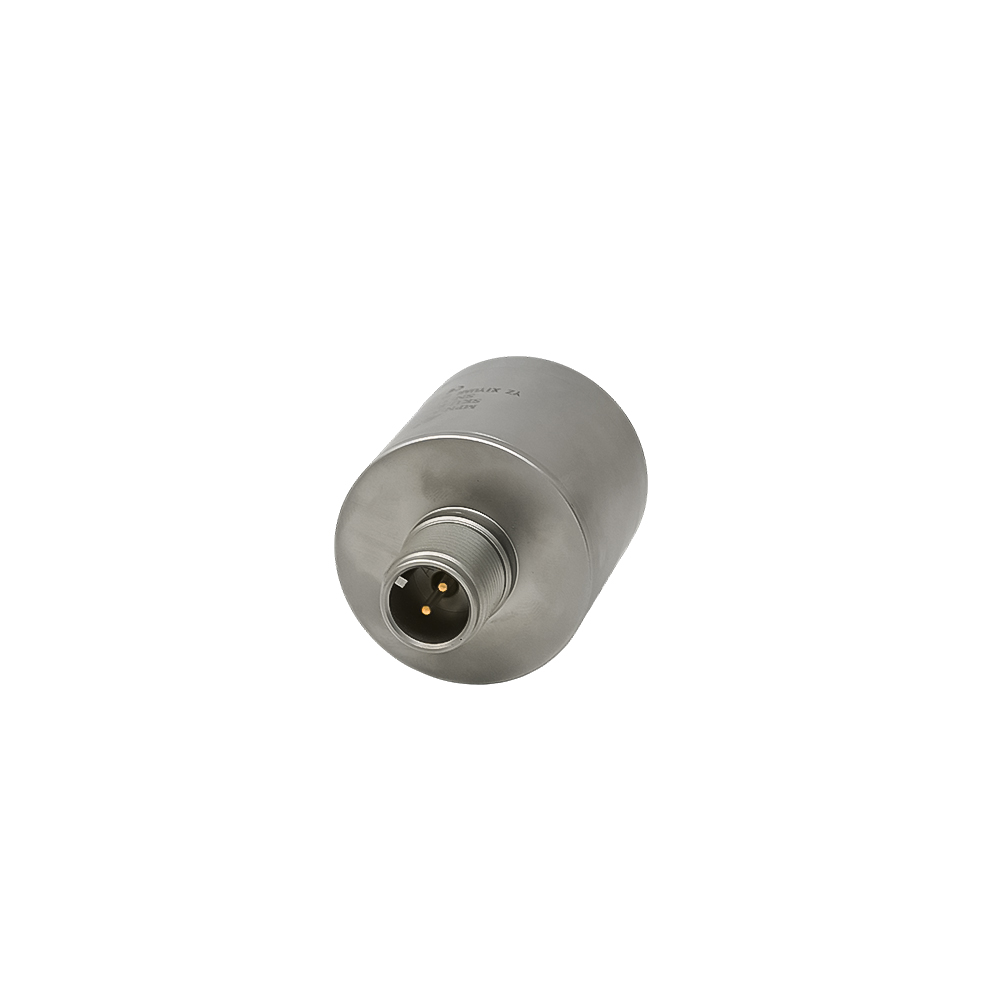

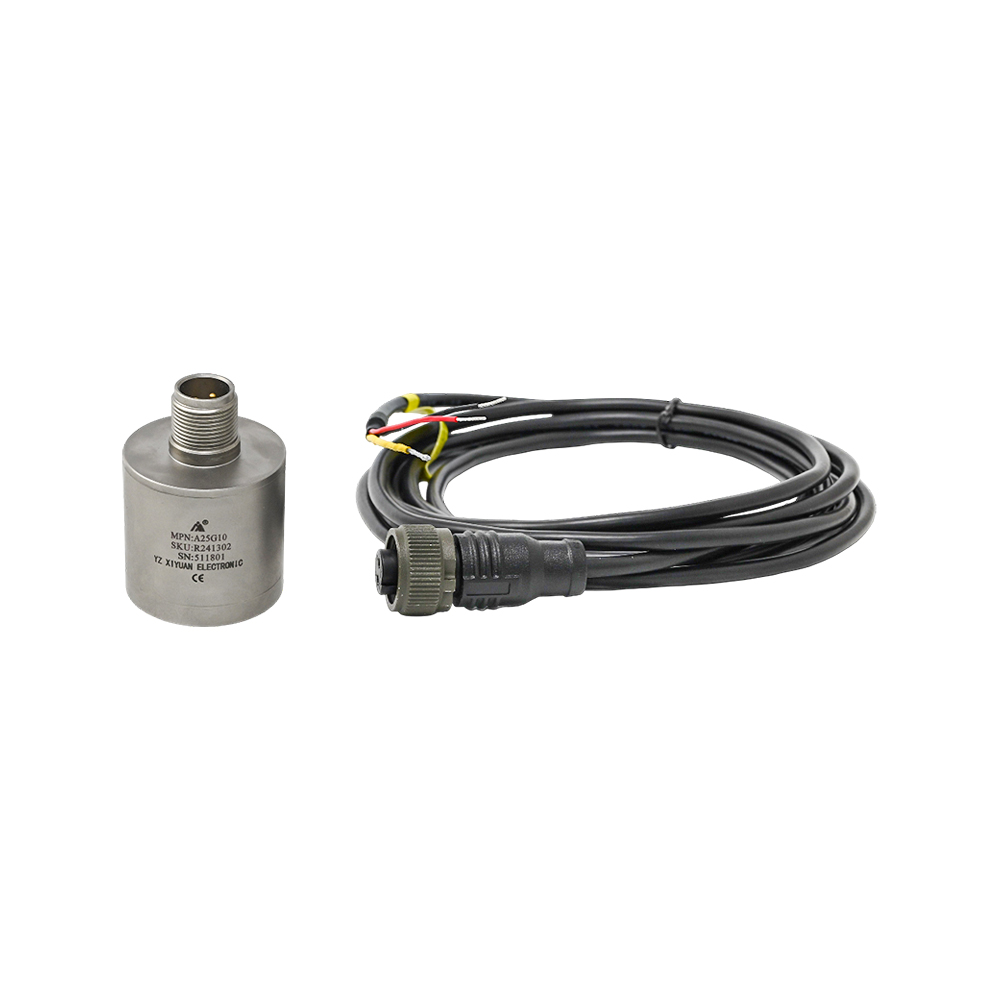

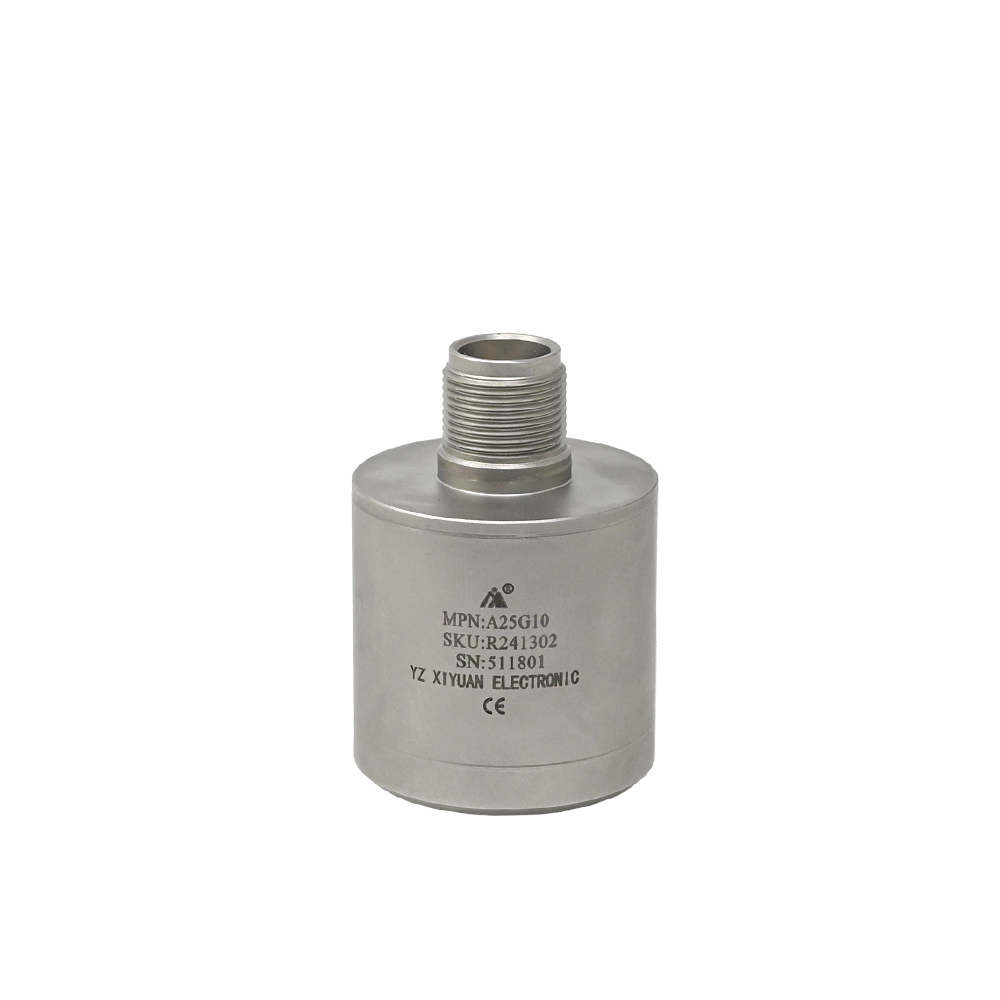

XIYUAN A25G10 IEPE Piezoelectric Acceleration Sensor, 10V/g Sensitivity, M6 Thread
The XIYUAN A25G10 is a high-sensitivity IEPE piezoelectric acceleration sensor designed for industrial vibration monitoring and condition analysis. It features a 10V/g sensitivity at 160Hz, a wide 0.1–1000Hz frequency response, and a rugged stainless steel housing with M6 mounting thread for reliable performance in harsh environments.
Features
- High sensitivity of 10V/g at 160Hz for precise low-frequency vibration measurement.
- Integrated IEPE (ICP®) preamplifier with ±5V output for direct connection to data acquisition systems.
- Wide frequency response from 0.1 Hz to 1,000 Hz (±1dB) for capturing dynamic events.
- Rugged stainless steel housing with M6 threaded mount for industrial durability.
- Operates on 18–28VDC constant current excitation (2–10mA) with a -40°C to +120°C temperature range.
Out of stock
The XIYUAN A25G10 utilizes a piezoelectric sensing element coupled with an integral IEPE (Integrated Electronics Piezo-Electric) signal conditioner. This design provides a low-impedance, voltage-proportional output directly related to acceleration, simplifying system integration by eliminating the need for external charge amplifiers. The sensor is optimized for low-frequency applications, offering high sensitivity and a flat response across its operational bandwidth.
Encased in a robust stainless steel body, the A25G10 is engineered for long-term reliability in demanding industrial settings such as manufacturing, transportation, and structural health monitoring. Its high shock resistance and wide operating temperature range ensure consistent data collection for predictive maintenance and diagnostic applications.
Additional Information
| Weight | 0.301 kg |
|---|---|
| Dimensions | 4 × 4 cm |
