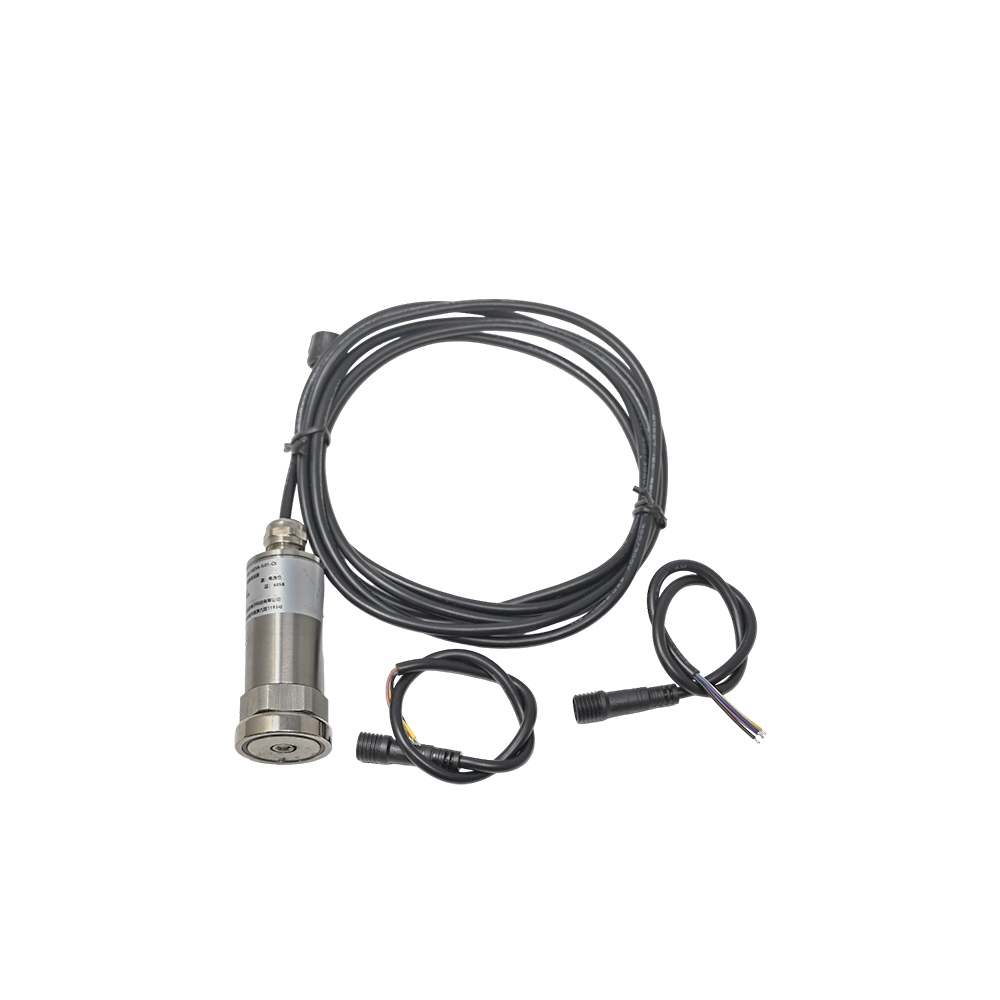

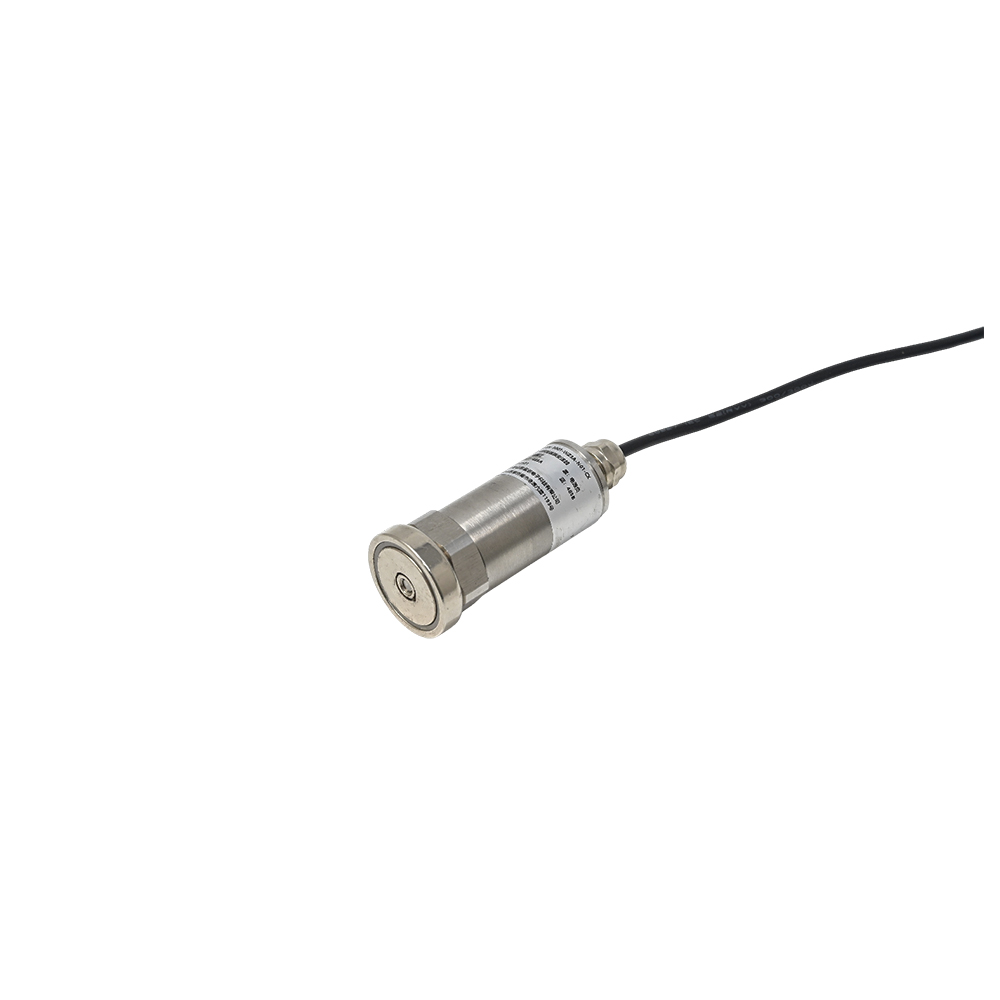

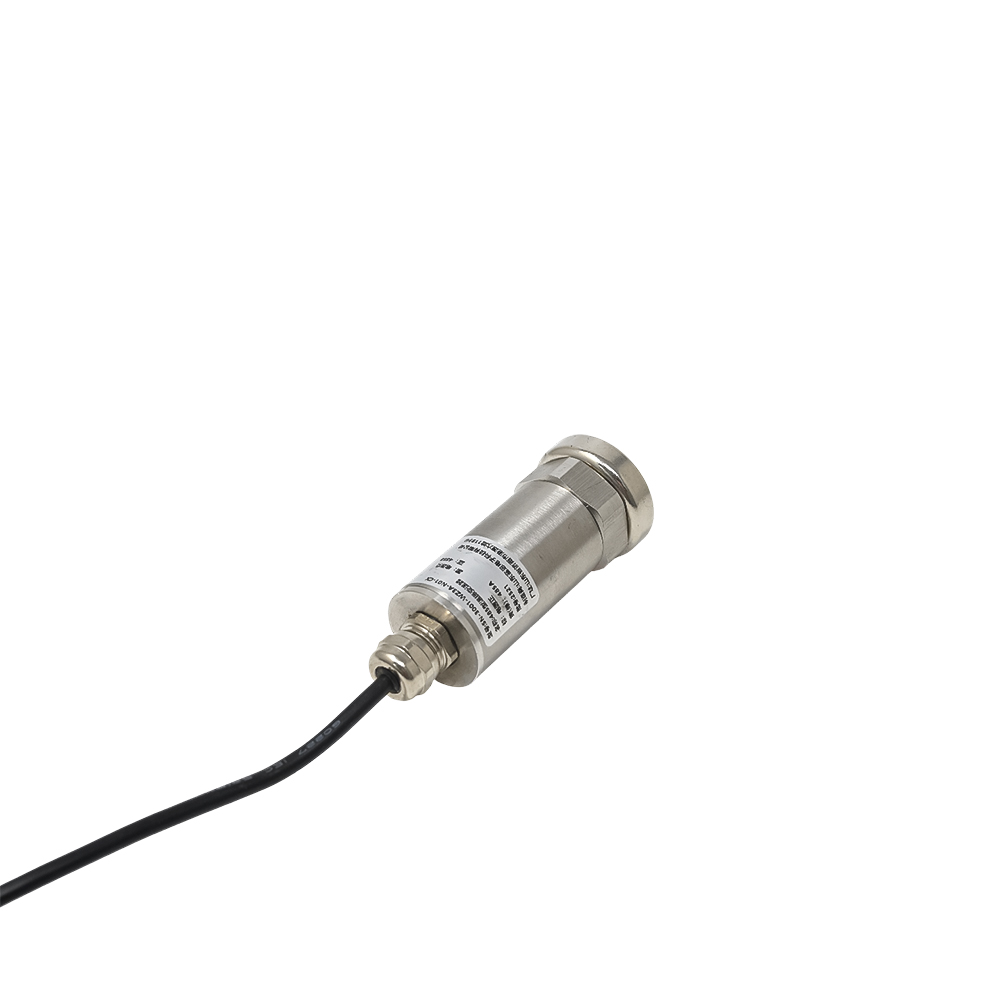

SN-3001-WZ3A-NO1-CX Temperature & Vibration Sensor - RS485, IP68
The SN-3001-WZ3A-NO1-CX is an industrial-grade RS485 sensor integrating triaxial vibration and surface temperature monitoring for predictive maintenance systems. It operates on a wide 10-30VDC supply and features an IP68 waterproof housing for deployment in harsh industrial environments.
Features
- Triaxial MEMS vibration sensor measuring velocity & displacement (X, Y, Z axes).
- Integrated high-accuracy motor surface temperature monitoring.
- Robust IP68-rated waterproof and dustproof housing for harsh environments.
- Wide-range 10-30VDC power input with low â€0.1A operating current.
- RS485 Modbus communication protocol for industrial PLC and SCADA integration.
Out of stock
The SN-3001-WZ3A-NO1-CX employs a high-performance MEMS accelerometer chip to deliver precise, multi-axis vibration velocity and displacement measurements, critical for detecting imbalances, misalignments, and bearing wear in rotating machinery. An integrated temperature sensor provides simultaneous surface temperature monitoring, enabling comprehensive condition assessment.
Encased in a durable, IP68-sealed housing, the sensor is engineered for long-term reliability in demanding industrial settings such as manufacturing plants, power generation facilities, and offshore platforms. Its wide 10-30VDC input range ensures compatibility with standard industrial power supplies, while the RS485 Modbus interface allows for seamless daisy-chaining and integration into existing distributed control and data acquisition systems.
Additional Information
| Weight | 0.217 kg |
|---|---|
| Dimensions | 7 × 3 cm |
