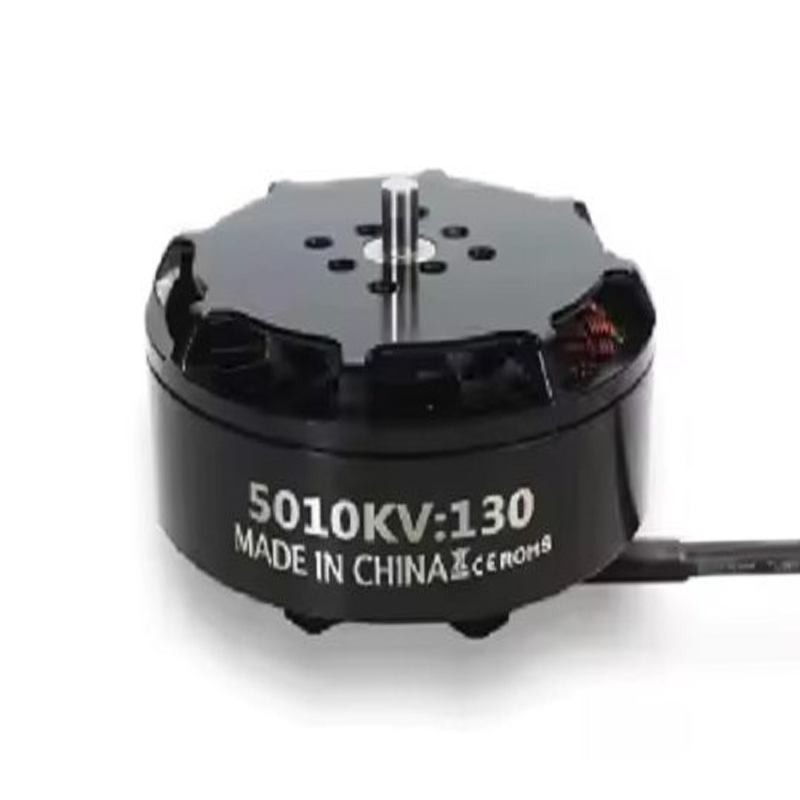

Tarot Martin TL50M10 5010 130KV Brushless Motor - 12S Compatible
The Tarot Martin TL50M10 is a high-efficiency 5010 brushless motor rated for 130KV and 12S LiPo operation, engineered for long-endurance heavy-lift and agricultural drone platforms requiring extended flight times and reliable power delivery.
Features
- High-Efficiency 5010 Stator (50mm diameter, 10mm thickness) optimized for 12S LiPo power systems.
- 130KV rating provides high torque for large 19-21 inch propellers on heavy-lift multirotors.
- CNC-machined housing with NdFeB rotor magnets and high-temperature epoxy resin stator for durable, low-noise operation.
- Features a 4mm steel shaft, precision bearings, and supports multiple prop mounting diameters (12mm, 15mm, 18mm, 20mm).
- 25mm symmetrical motor mounting hole spacing for standard heavy-lift frame integration.
Out of stock
The Tarot Martin TL50M10 brushless motor is engineered for demanding multirotor applications where flight endurance and payload capacity are critical. Its 5010 stator size and 130KV winding are specifically tuned for 12S battery systems, delivering a high torque-to-power ratio ideal for spinning large-diameter propellers efficiently. This design minimizes current draw and heat generation, directly contributing to extended operational life and mission duration.
Constructed with a CNC-machined aluminum housing, a high-flux NdFeB outrunner rotor, and a reinforced stator encapsulated in high-temperature epoxy, the motor offers robust mechanical integrity and thermal resilience. Precision-balanced components and high-grade bearings ensure smooth operation with minimal vibration, which is essential for flight stability and reducing stress on airframe and electronic systems. The TL50M10 is a core propulsion solution for agricultural spraying, mapping, and heavy-lift cargo drones.
Additional Information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 9 × 8 × 5 cm |
