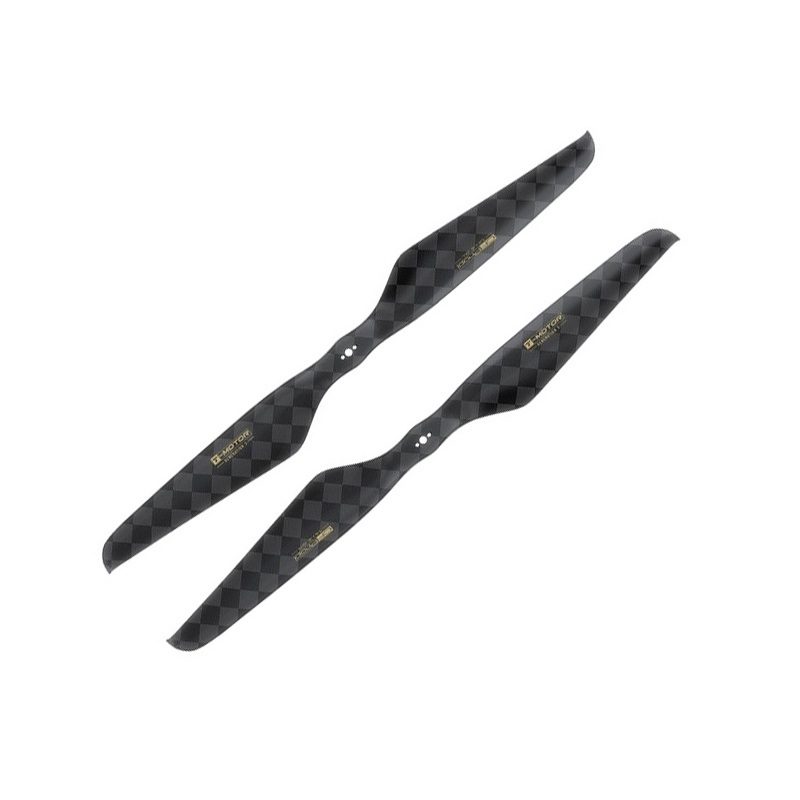

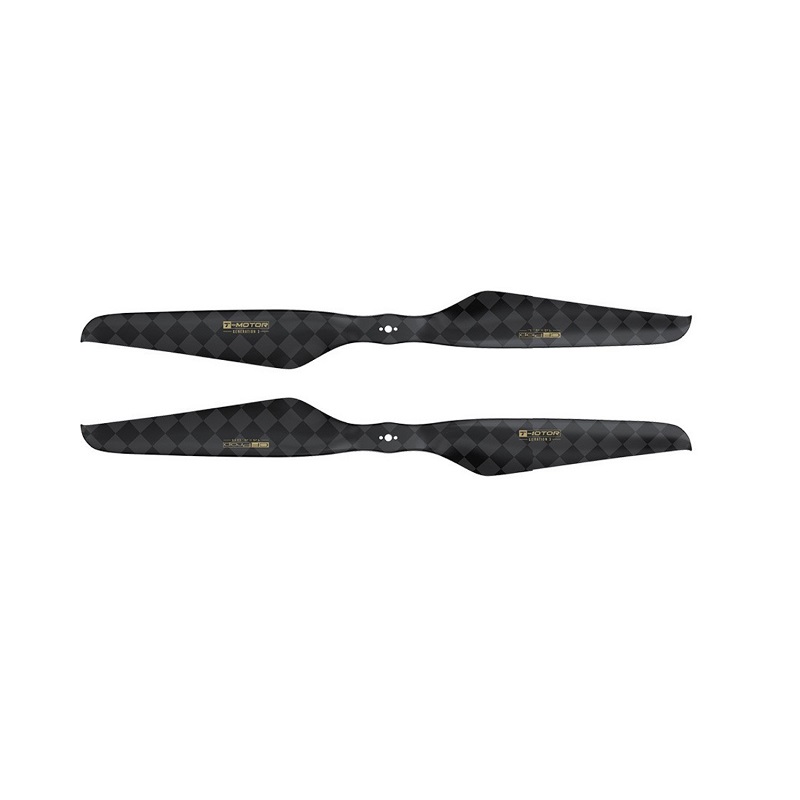

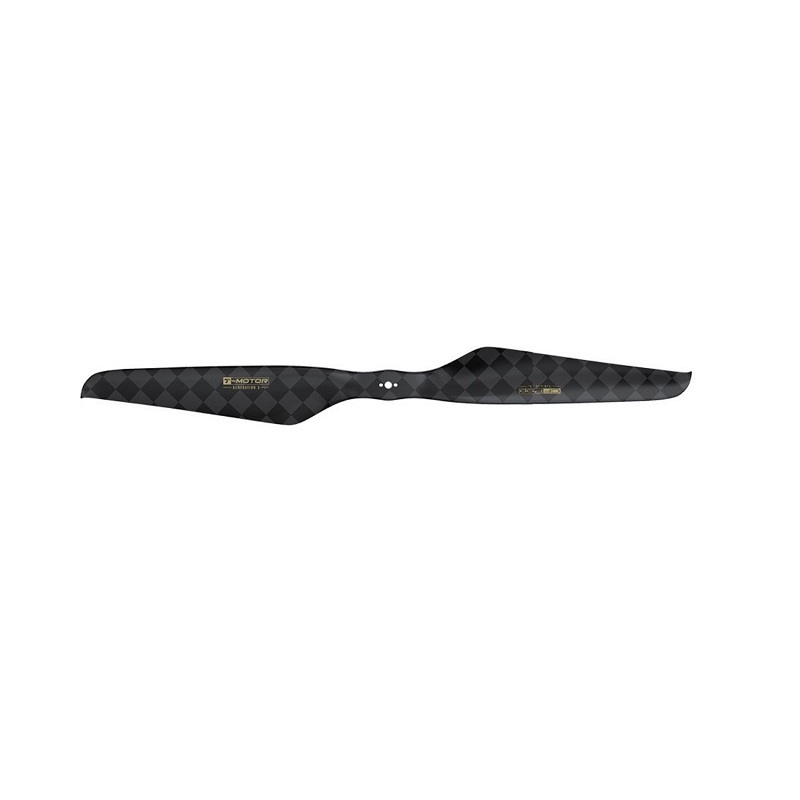

T-Motor NS18*6 Propeller - 2-Pack
The T-Motor NS18*6 is a high-performance carbon fiber propeller designed for heavy-lift and industrial UAVs, optimized for an RPM range of 5700–7750 to deliver thrust from 1.2 to 6.5 kg per blade. Its patented winglet design enhances aerodynamic efficiency and structural integrity for demanding multirotor applications.
Features

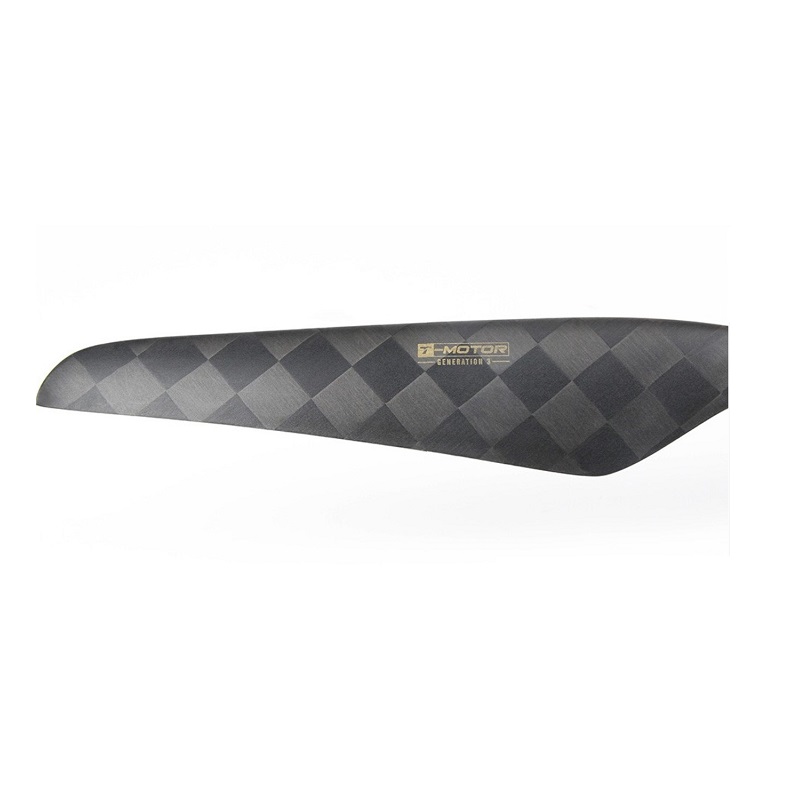

- Patented winglet design reduces vortex drag and improves flight efficiency.
- Carbon fiber and epoxy composite construction ensures high strength-to-weight ratio.
- Optimized for 5700–7750 RPM, generating 1.2–6.5 kg of thrust per blade.
- Push-version design intended for coaxial frame bottom-side mounting.
- Includes limit rubber ring for abrasion protection and enhanced shock resistance.
Out of stock
The T-Motor NS18*6 propeller leverages advanced aerodynamic engineering to meet the demands of heavy-lift and industrial drone platforms. The incorporation of a specialized downward winglet directly addresses radial centrifugal forces, minimizing blade deformation and tension under high-RPM loads. This design not only weakens tip vortices but also contributes to longer flight times and improved power efficiency.
Constructed from a carbon fiber and epoxy composite, the propeller achieves an exceptional balance of rigidity and minimal weight, with each blade weighing approximately 17 grams. The push-version configuration is specifically engineered for integration on the lower side of coaxial multirotor frames, enhancing safety and performance in complex propulsion setups. Additional mounting security is provided through fitted screws, locknuts, and multiple hole sites.
Additional Information
| Weight | 0.302 kg |
|---|---|
| Dimensions | 8 × 54 × 6 cm |
