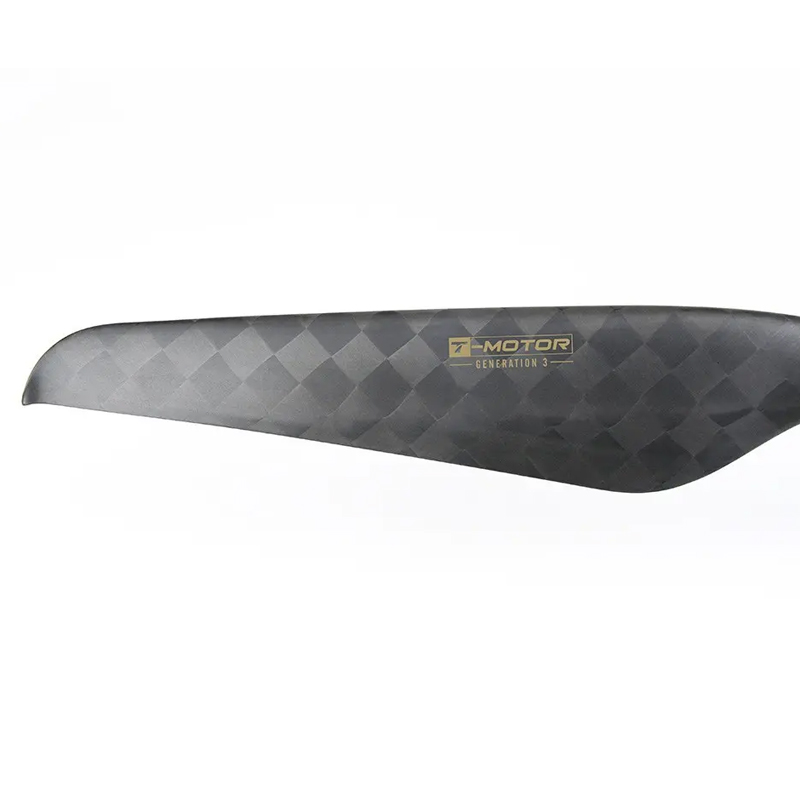

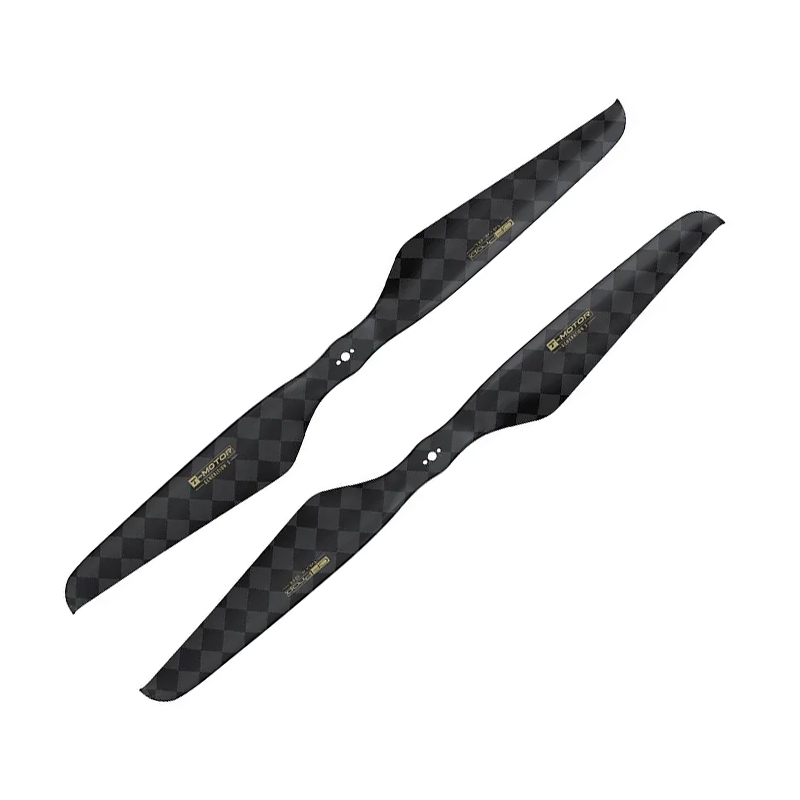

T-Motor NS20x6.2 Propeller - 2-Pack (Pair)
The T-Motor NS20x6.2 is a high-performance carbon fiber propeller designed for large-scale multirotor and heavy-lift UAV applications, offering a balance of thrust and efficiency within a recommended RPM range of 3350–5600.
Features
- 20-inch diameter with a 6.2-inch pitch for high thrust output.
- Constructed from carbon fiber reinforced epoxy for high strength-to-weight ratio.
- Optimized for a recommended RPM range of 3350–5600 with a maximum of 7250 RPM.
- Integrated 2-blade design with low moment of inertia for responsive motor control.
- Rated for extreme operating temperatures from -40°C to 65°C.
Out of stock
The T-Motor NS20x6.2 propeller is engineered for demanding aerial platforms requiring substantial lift capacity and efficient flight times. Its carbon fiber and epoxy composite construction provides the necessary rigidity to handle high rotational forces while minimizing weight, which is critical for maximizing payload and flight duration on large drones.
Designed with an integrated two-blade architecture, this propeller reduces rotational inertia, allowing for quicker throttle response and more stable flight characteristics. The specified thrust limitations and optimum RPM band ensure the propeller operates within safe and efficient parameters when paired with appropriately sized brushless motors and ESCs.
Additional Information
| Weight | 0.342 kg |
|---|---|
| Dimensions | 8 × 54 × 6 cm |
