Hobbywing XRotor X8 100KV Motor & 3011 Folding Propeller CW
The Hobbywing XRotor X8 propulsion system is an integrated motor, ESC, and 3011 folding propeller combo, engineered for agricultural and industrial UAVs requiring robust, high-thrust performance. It offers 12S LiPo compatibility, IPX6 waterproofing, and precise FOC control for reliable operation in demanding conditions.
Features
- Integrated motor, ESC, and 3011 folding propeller system for heavy-lift UAVs.
- Features 100KV motor with 12S LiPo compatibility, providing up to 15kg max thrust per axis.
- IPX6 waterproof and dustproof rating ensures durability in harsh agricultural environments.
- Optimized FOC-based PMSM algorithm delivers balanced power and high efficiency.

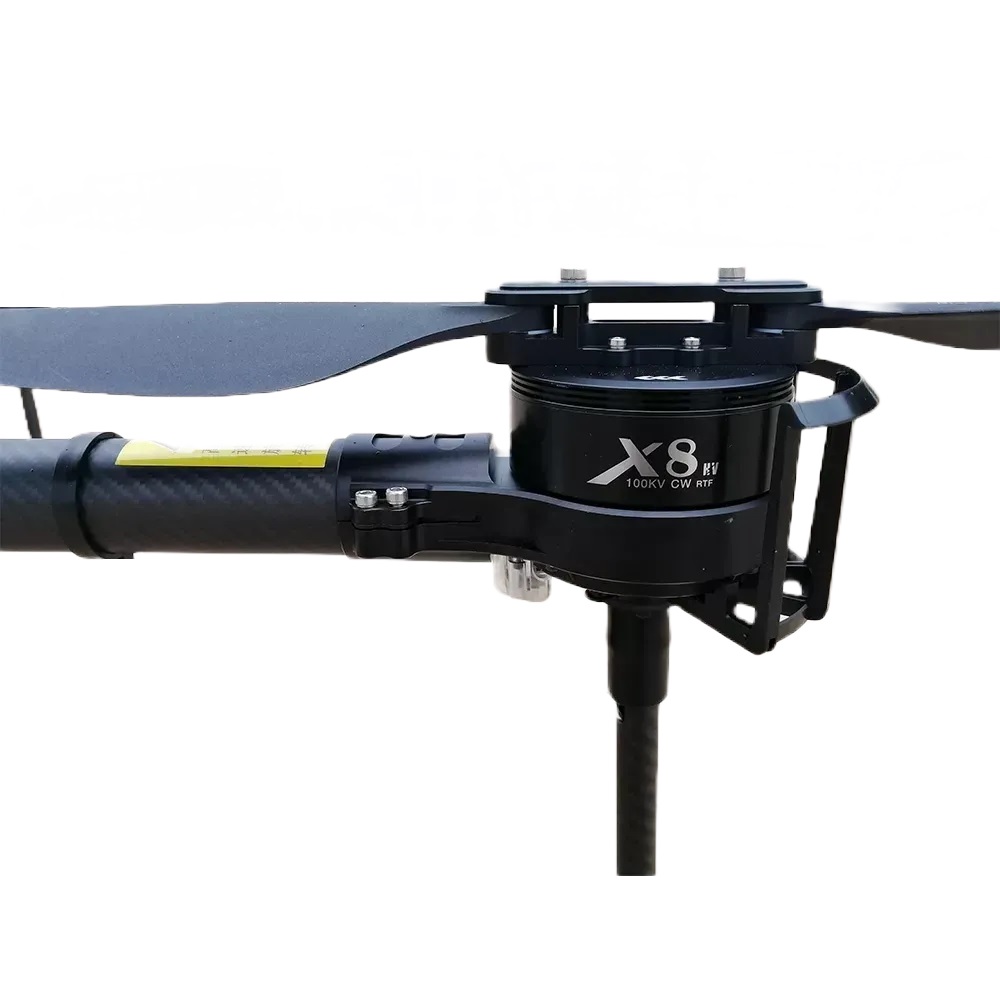

- Compatible with 30mm and 35mm carbon fiber arm tubes for versatile airframe integration.
Out of stock
The XRotor X8 brushless power system by Hobbywing is an advanced propulsion solution designed specifically for agricultural and industrial drones, capable of carrying loads of 5-7kg per rotor. This integrated system delivers a substantial thrust of up to 15.3kg and is engineered for seamless integration with 30mm or 35mm carbon fiber tube arms, offering robust and reliable performance.
With an IPX6 waterproof and dustproof rating, the XRotor X8 is built to withstand extreme operating conditions, including exposure to rainwater, pesticides, salt spray, sand, and high temperatures. Its optimized FOC-based PMSM algorithm enhances the system’s balance, stability, reliability, and efficiency, providing precise control and a quieter operation compared to traditional BLDC motors. This system also incorporates multiple protections, such as power-on self-detection, abnormal voltage, over-current, and motor lock-up safeguards, alongside real-time data output for enhanced operational safety and monitoring.
Additional Information
| Dimensions | 40 × 30 × 20 cm |
|---|
