SKU: DRFC-1487
📋 GST Invoice Available

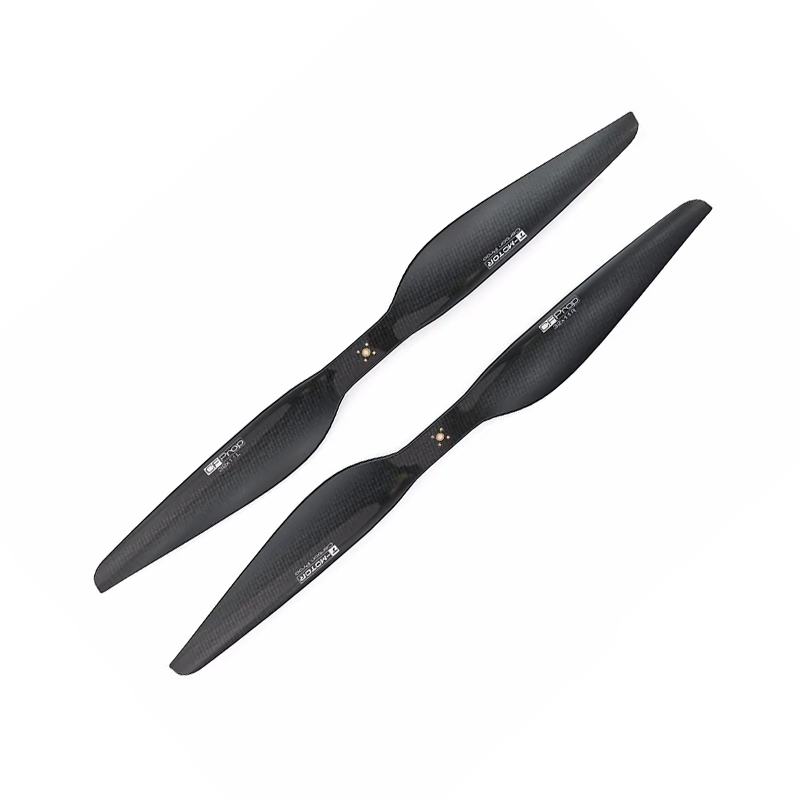

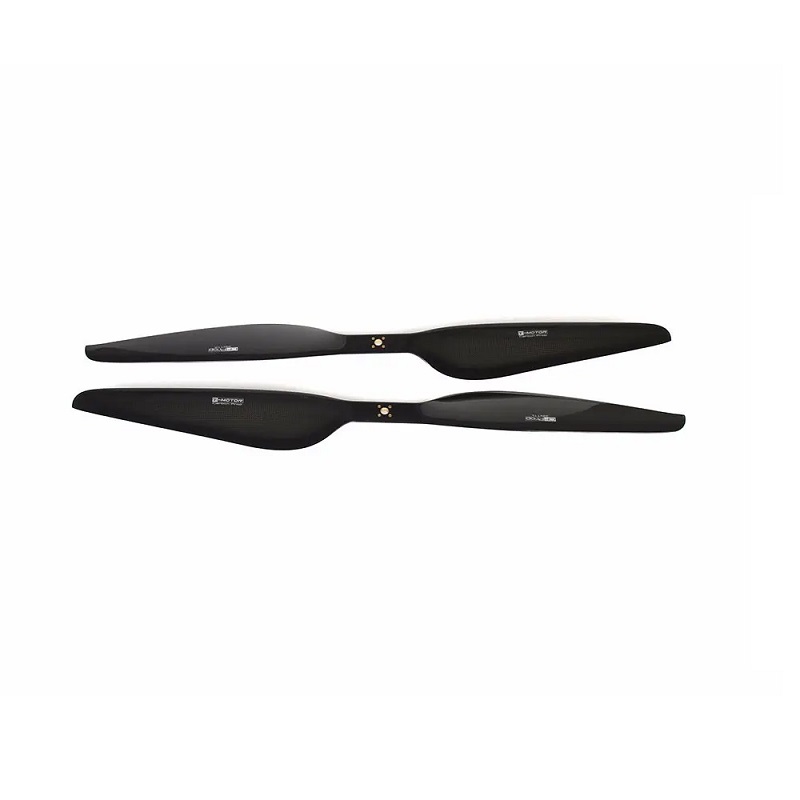

T-Motor G32*11 Propeller - 2-Pack

₹40,409.00 (Inclusive of all taxes)
Out of Stock

The T-Motor G32*11 propeller is a large-format, two-blade carbon fiber propeller designed for heavy-lift and industrial multirotor applications, offering a balance of high thrust and operational efficiency within a 1200-3000 RPM range.

Features

  • 32-inch diameter with 11-inch pitch for optimized lift and efficiency.
  • Constructed from high-grade carbon fiber and epoxy resin for strength and durability.
  • Designed for heavy-lift applications with a thrust limitation of 35kg.
  • Optimum operational RPM range of 1200-3000 RPM/min.
  • Wide ambient temperature tolerance from -40°C to 65°C.

Out of stock

Description

The T-Motor G32*11 propeller is engineered for demanding aerial platforms requiring substantial lift capacity. Its 32-inch diameter and 11-inch pitch geometry are calculated to deliver efficient thrust across a broad operational RPM spectrum, making it suitable for heavy-payload drones, agricultural sprayers, and cinematography rigs.

Manufactured from a composite of carbon fiber and epoxy resin, the propeller achieves a critical balance between rigidity and weight, minimizing energy loss due to flex while withstanding high inertial loads. The glossy surface finish contributes to aerodynamic smoothness and environmental resistance.

Key Features

  • Large-format two-blade design optimized for high-torque, low-RPM motor applications.
  • Carbon fiber and epoxy composite construction ensures high strength-to-weight ratio and fatigue resistance.
  • Precision-balanced blades for smooth operation and reduced vibration, enhancing flight stability and component longevity.
  • Rated for a maximum thrust of 35kg, suitable for professional-grade heavy-lift UAVs.
  • Broad operational temperature range allows for reliable performance in diverse environmental conditions.

Applications

  • Heavy-lift cinematography and broadcast drone platforms.
  • Agricultural UAVs for crop spraying and mapping.
  • Industrial inspection and cargo delivery drones requiring high payload capacity.
  • Large-format multirotor frames designed for 30-inch+ propeller classes.

Technical Specifications

Model NumberG32*11
Diameter32 inches (812.8 mm)
Pitch11 inches (279.4 mm)
Blade Count2
MaterialCarbon Fiber + Epoxy
Optimum RPM Range1200 - 3000 RPM/min
Maximum Thrust Limitation35 kg
Ambient Temperature Range-40°C to 65°C
Storage Temperature Range-10°C to 50°C
Surface FinishGlossy

Frequently Asked Questions

What is the maximum thrust rating for the T-Motor G32*11 propeller?

The T-Motor G32*11 propeller is rated for a maximum thrust limitation of 35 kilograms. This specification is critical for ensuring the propeller is not overloaded, which could lead to structural failure or excessive motor strain. Always pair it with a motor and electronic speed controller (ESC) capable of delivering the required torque within its optimum 1200-3000 RPM range.

What types of drones or multirotors are these propellers designed for?

These propellers are designed for large-format, heavy-lift UAV applications. Their 32-inch diameter and 11-inch pitch make them ideal for professional cinematography drones, agricultural spraying platforms, industrial cargo carriers, and other multirotors where maximizing lift capacity and flight efficiency with substantial payloads is the primary goal.

What is the operating temperature range for the G32*11 propellers?

The G32*11 propellers are rated for an ambient temperature range of -40°C to 65°C, ensuring reliable performance in extreme cold or hot environments. For long-term storage, it is recommended to keep them in conditions between -10°C and 50°C to preserve the integrity of the carbon fiber and epoxy composite material.

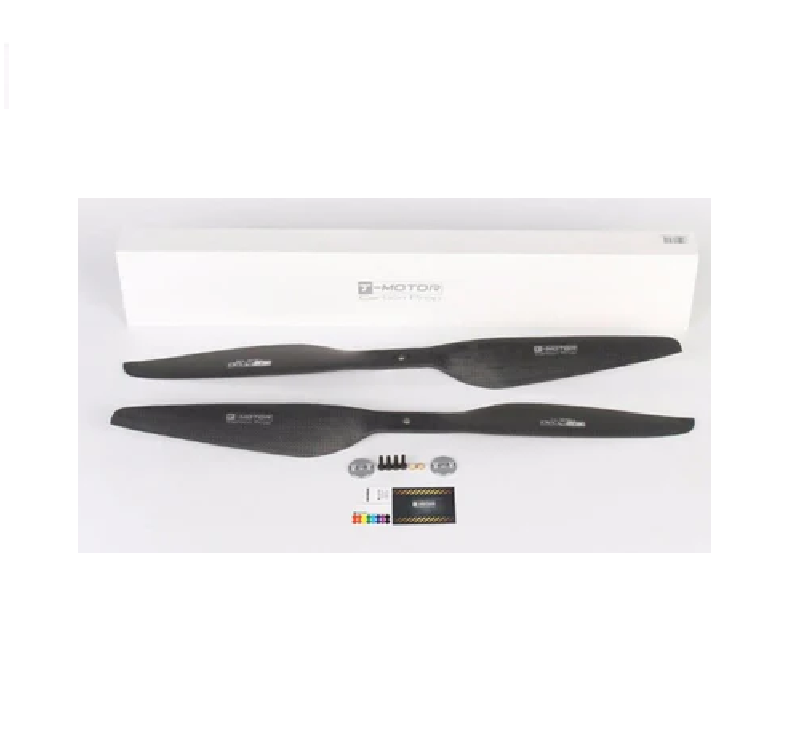

Package Includes

  • 2 x T-Motor G32*11 Propellers (1 Pair)

Additional Information

Weight 0.765 kg
Dimensions 14 × 85 × 10 cm
