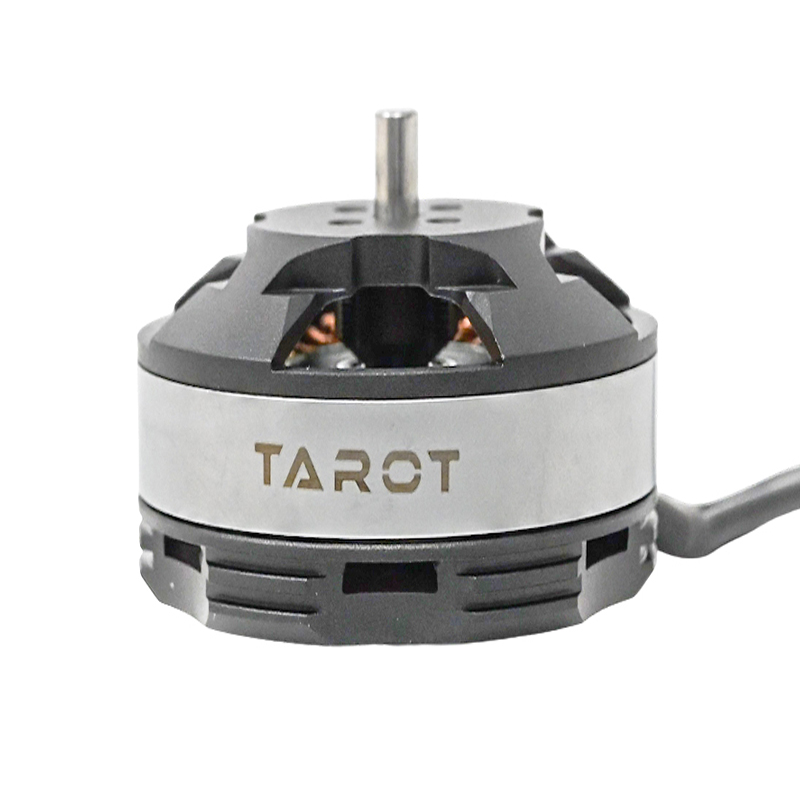

Tarot 4006 620KV Brushless Motor - 4S
The Tarot 4006 620KV brushless motor is engineered for 4S-powered multirotor platforms, featuring a 22-pole outer rotor design for smooth, efficient operation and a 27.7mm equilateral triangle mounting pattern for robust integration.
Features
- 620KV rating optimized for 4S (14.8V) LiPo battery systems.
- 22-pole outer rotor design minimizes vibration and enhances magnetic efficiency.
- Precision CNC-machined housing with high-strength epoxy resin stator.
- 27.7mm equilateral triangle motor mounting pattern with 4mm main propeller hole.
- Integrated high-efficiency vortex fan cover for active thermal management.
Out of stock
The Tarot 4006 motor utilizes a high-flux neodymium iron boron rotor paired with a reinforced stator to deliver consistent torque and power efficiency for medium-lift aerial platforms. Its construction prioritizes mechanical balance and thermal dissipation, supported by large-size precision bearings that reduce rotational friction and radial load stress.

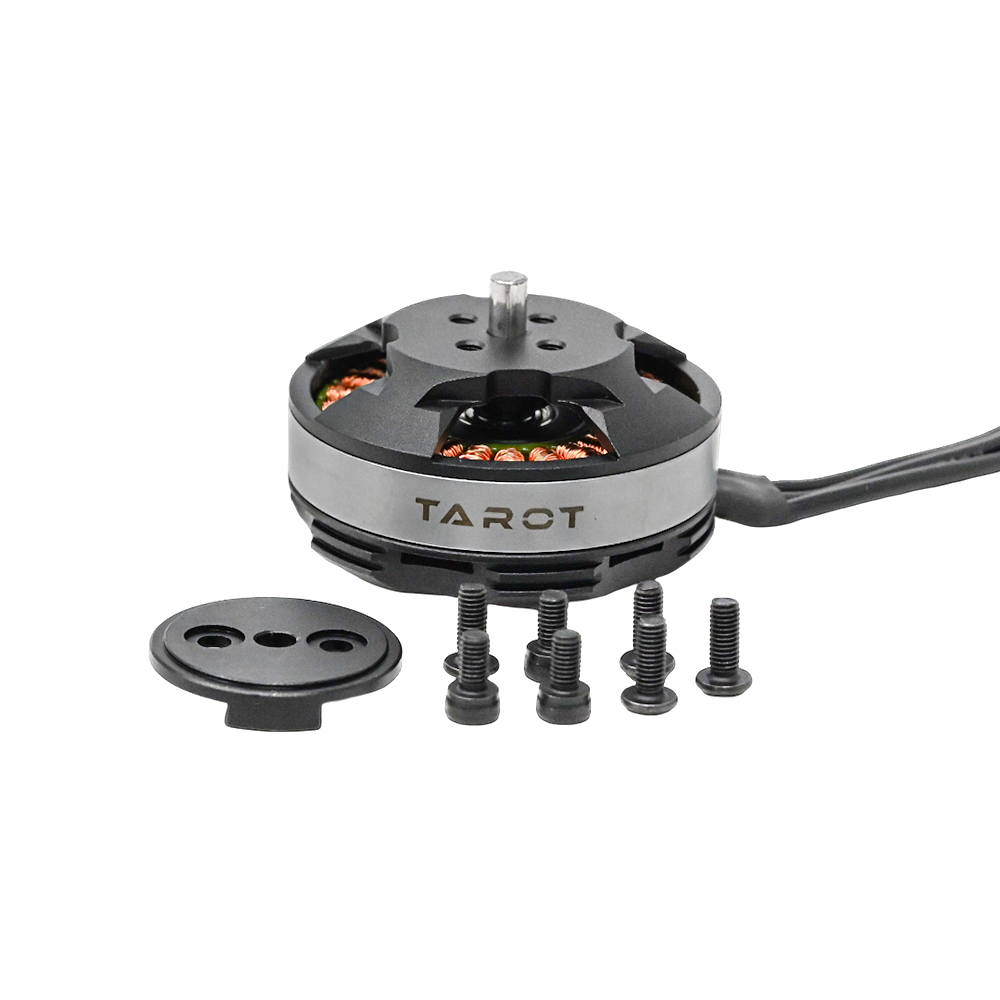

Designed for extended flight cycles, the motor’s 30.5mm stator length and 40.6mm diameter provide an optimal balance of torque and RPM for 4-axis and 6-axis multirotor frames. The inclusion of a metal rotor mounting piece and specific screw hardware ensures secure propeller attachment and reliable airframe integration.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 10 × 14 × 8 cm |
