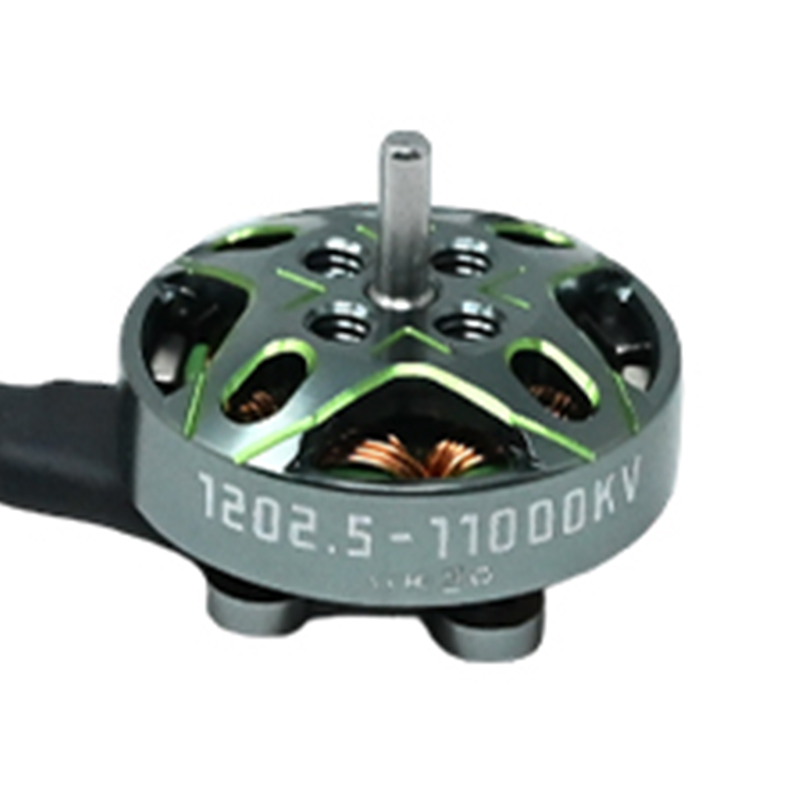

HGLRC SPECTER 1202.5 11000KV Brushless Motor
The HGLRC SPECTER 1202.5 is a high-KV brushless motor engineered for 2-3″ micro and whoop-class FPV drones, delivering 11000KV for rapid throttle response on 1S and 2S LiPo power systems.
Features
- 11000KV rating optimized for 1S-2S LiPo voltage (3.7V-7.4V).
- Compact 1202.5 stator size (12mm diameter, 2.5mm height) for lightweight micro builds.
- High-torque N52H curved magnetic steel and 9N12P slot-pole configuration.
- Constructed with 7075 aviation aluminum housing and alloy steel shaft.
- Requires an ESC supporting >10A continuous current per motor.
Out of stock
The SPECTER 1202.5 motor utilizes a high-temperature 200°C copper wire winding and imported Kawasaki silicon steel stator laminations to minimize electrical losses and heat generation under load. This design maintains torque at low speeds for precise control while enabling linear power delivery during rapid throttle changes.
Its one-piece rotor and anodized two-color finish provide a robust, lightweight structure ideal for high-RPM applications. The motor’s 4.47g weight and M2 mounting pattern (9mm hole circle) make it a direct fit for many popular micro FPV frames designed for 2-3″ propellers.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 3 × 4 × 4 cm |
