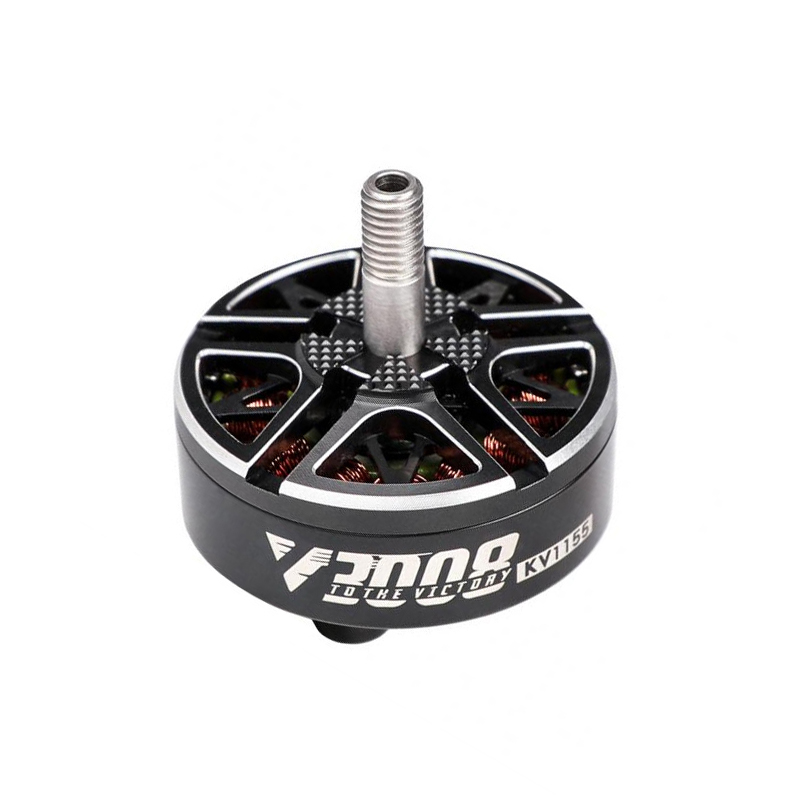

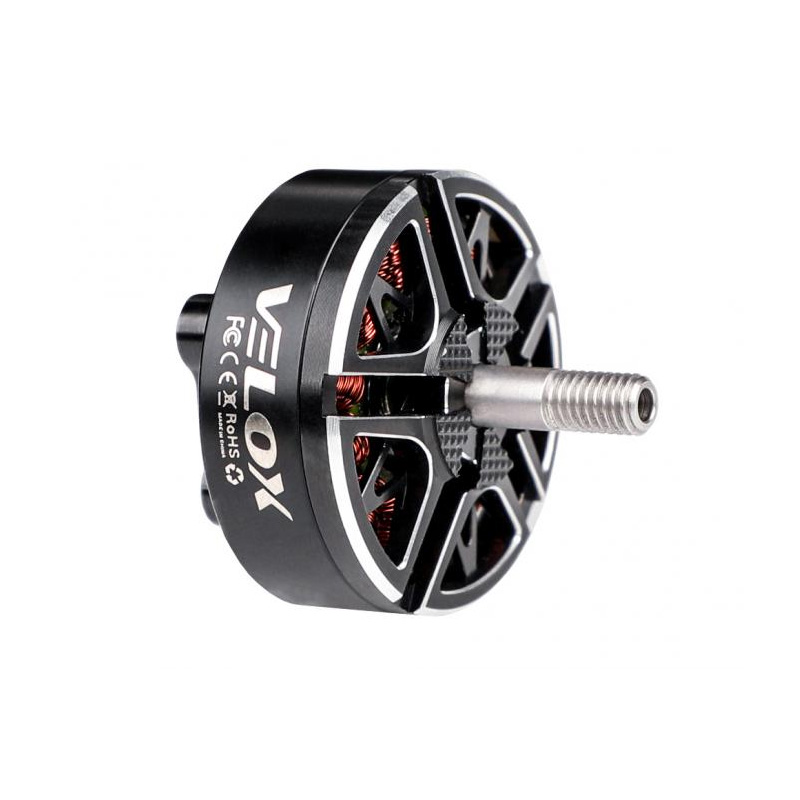

T-Motor Velox V3008 1155KV 6S Long-Range Motor - 7-8" Prop Compatible

₹4,479.00 (Inclusive of all taxes)
Out of Stock

The T-Motor Velox V3008 is a 1155KV brushless motor engineered for 7-8 inch long-range FPV racing and endurance drones, optimized for 6S LiPo power systems to deliver high efficiency, smooth throttle response, and extended flight times.

Features

  • 1155KV rating optimized for 6S LiPo voltage and 7-8 inch propellers.
  • Designed for long-range FPV racing and endurance flight profiles.
  • 16x19mm (M3) mounting pattern for broad frame compatibility.
  • Premium construction ensures durability and consistent performance.
  • 69.2g weight balances power output with flight efficiency.

Out of stock

Description

The T-Motor Velox V3008 1155KV motor is a precision-engineered component for pilots demanding reliability and efficiency from their long-range FPV platforms. Its electromagnetic design and winding configuration are tuned to extract maximum flight time from 6S LiPo packs while maintaining the thrust reserves needed for dynamic racing scenarios.

Built with high-grade materials, including a robust stator and balanced rotor assembly, the V3008 delivers smooth, cogging-free operation essential for stable video footage and precise control over extended distances. The motor’s thermal management allows it to sustain high performance throughout demanding flight sessions.

Key Features

  • Long-Range Optimized KV: 1155KV provides the ideal torque-to-RPM ratio for efficient 7-8 inch propeller operation on 6S power.
  • 6S Voltage Compatibility: Engineered for the 22.2V nominal voltage of 6S LiPo batteries, maximizing power and flight efficiency.
  • High-Efficiency Design: Advanced magnetic circuit and low-loss windings reduce heat generation and extend battery life.
  • Durable Construction: Features a reinforced shaft, high-temp magnets, and robust bearings for long-term reliability.
  • Precision Balanced: Dynamically balanced rotor minimizes vibration for smoother flight and clearer FPV video.
  • Standard Mounting: 16x19mm M3 bolt pattern ensures easy installation on a wide range of 7-8 inch long-range frames.

Applications

  • 7-inch and 8-inch long-range FPV racing quadcopters requiring efficient 6S power.
  • Endurance-focused freestyle or cinematic drones built for extended flight times.
  • Heavy-lift platforms carrying HD digital FPV systems (e.g., DJI O3 Air Unit, Walksnail) or action cameras.
  • Custom builds utilizing frames with 16x19mm or 19x19mm motor mounting patterns.

Technical Specifications

ModelVelox V3008
KV Rating1155 KV
Motor TypeOutrunner Brushless
Rated Voltage6S LiPo (22.2V)
Max Current30A
Weight69.2 g
Mounting Pattern16x19mm (M3)
Shaft Diameter5.0 mm (Standard)
Propeller Compatibility7-8 inch
ApplicationLong-Range FPV Racing & Endurance Drones

Frequently Asked Questions

What is the recommended propeller size for the Velox V3008 1155KV motor?

The T-Motor Velox V3008 1155KV motor is optimized for 7-inch to 8-inch propellers on a 6S LiPo system. Using props within this size range ensures the motor operates within its most efficient RPM and torque band, maximizing flight time and providing stable thrust for long-range applications.

Is this motor compatible with 4S or 5S LiPo batteries?

While the motor is rated and optimized for 6S (22.2V) operation, it can technically run on lower voltages like 4S or 5S. However, performance will be significantly reduced, as the lower KV rating requires higher voltage to achieve the necessary RPM for larger 7-8 inch props. For optimal efficiency and power, using a 6S battery is strongly recommended.

What is the mounting hole pattern for the V3008 motor?

The Velox V3008 features a standard 16x19mm M3 mounting hole pattern. This is a common pattern shared with many motors in its class, ensuring broad compatibility with popular 7-inch and 8-inch long-range and racing drone frames. Always confirm your frame's motor mounting hole spacing before purchase.

Package Includes

  • 1 x T-Motor Velox V3008 1155KV Brushless Motor

Additional Information

Weight 0.07 kg
Dimensions 5 × 5 × 5 cm
