SKU: DRFC-2678
📋 GST Invoice Available

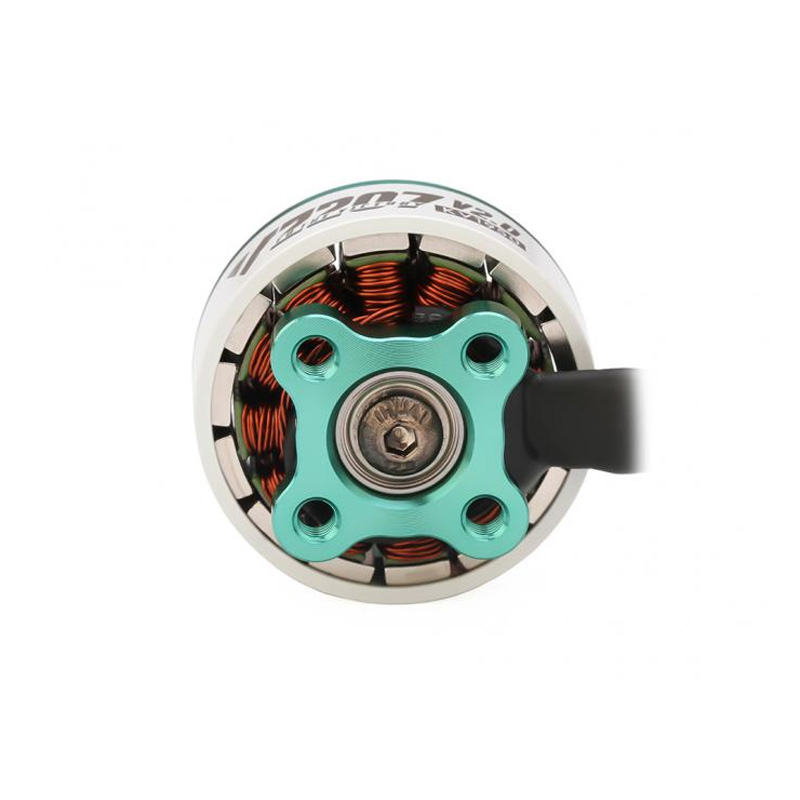

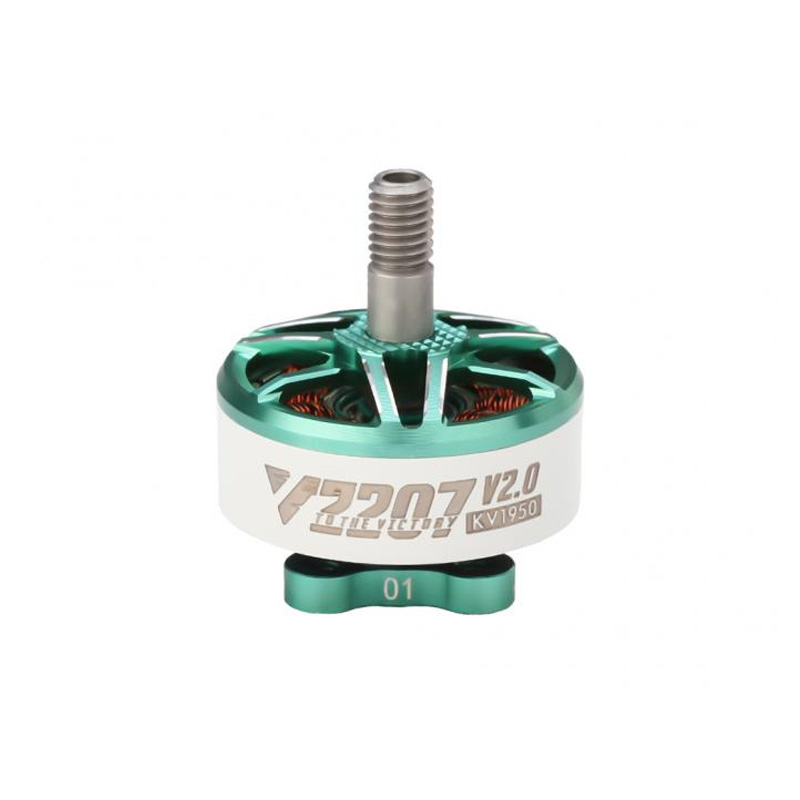

T-Motor Velox V2207 V2.0 1950KV Brushless Motor - Emerald Green

₹2,069.00 (Inclusive of all taxes)
Out of Stock

The T-Motor Velox V2207 V2.0 is a 1950KV brushless motor engineered for 5-inch FPV racing and freestyle drones, compatible with 4-6S LiPo battery systems for high-performance flight dynamics.

Features

  • 1950KV rating optimized for 5-inch propellers on 4-6S LiPo power
  • V2.0 design features enhanced magnetic circuit and structural durability
  • Weighs approximately 33g for an excellent thrust-to-weight ratio
  • High-quality bearings and balanced bell for smooth, efficient operation
  • Direct bolt-on compatibility with standard 16x19mm and 16x16mm motor mounts

Out of stock

Description

The T-Motor Velox V2207 V2.0 brushless motor delivers robust power for aggressive 5-inch FPV freestyle and racing applications. Its 1950KV winding is precisely tuned for 4-6S voltage ranges, providing a broad power band that balances explosive throttle response with efficient cruise performance.

Constructed with a high-grade aluminum alloy housing and a reinforced stator, the V2207 V2.0 is built to withstand the impacts and vibrations inherent in high-performance drone flight. The motor’s thermal management and bearing system are engineered for consistent output, even during extended flight sessions.

Key Features

  • V2.0 Enhanced Stator: Redesigned laminations and winding technique for improved efficiency and power density.
  • Curved N52SH Neodymium Magnets: Provides stronger magnetic flux for smoother rotation and higher torque.
  • Precision Balanced Bell: Factory dynamic balancing minimizes vibration for smoother video and extended bearing life.
  • High-Temp Sleeve Bearings: Durable bearing system supports high-RPM operation with minimal maintenance.
  • Anodized Aluminum Housing: Lightweight and corrosion-resistant Emerald Green finish with effective heat dissipation.
  • Wide Voltage Compatibility: Stable performance across the full 4S (14.8V) to 6S (22.2V) LiPo spectrum.

Applications

  • 5-inch FPV freestyle quadcopters requiring high torque for aggressive maneuvers.
  • 5-inch FPV racing drones where a balance of top speed and acceleration is critical.
  • High-performance 5-inch long-range builds utilizing 6S power for efficient cruise.
  • DIY drone builds targeting a 33g motor weight class for optimized flight times.

Technical Specifications

ModelT-Motor Velox V2207 V2.0
KV Rating1950 KV
Stator Size22x7mm (2207)
Voltage Range4-6S LiPo (14.8V - 22.2V)
Max Current (Continuous)30A
Motor TypeOutrunner Brushless
Weight (Approx.)33g
Shaft Diameter5mm
Mounting Hole PatternM3, 16x19mm & 16x16mm
Connector Type3.5mm Bullet (Standard)

Frequently Asked Questions

What size propellers are recommended for the Velox V2207 V2.0 1950KV motor?

This motor is optimized for 5-inch propellers. For 4-6S operation, common pairings include 5.1x3.1x3 or 5x3x3 tri-blade props. The high KV rating provides excellent thrust with lighter, lower-pitch props for freestyle, while it can also handle more aggressive pitches for racing on higher cell counts.

Is this motor compatible with standard 30x30mm and 20x20mm flight controller stacks?

Yes. The Velox V2207 V2.0 uses the standard M3 mounting screw pattern with both 16x19mm and 16x16mm spacing. This makes it directly compatible with virtually all 5-inch frames designed for 30.5x30.5mm, 30x30mm, and 20x20mm stack mounting systems without adapters.

What is the maximum continuous current rating, and what ESC is required?

The motor has a maximum continuous current rating of approximately 30A. We recommend pairing it with a high-quality 4-in-1 ESC or individual ESCs rated for at least 35-40A continuous per motor to ensure headroom for peak demands during hard maneuvers and to ensure reliable, cool operation.

Package Includes

  • 1 x T-Motor Velox V2207 V2.0 1950KV Brushless Motor (Emerald Green)
  • Mounting screws (typically included)

Additional Information

Weight 0.033 kg
