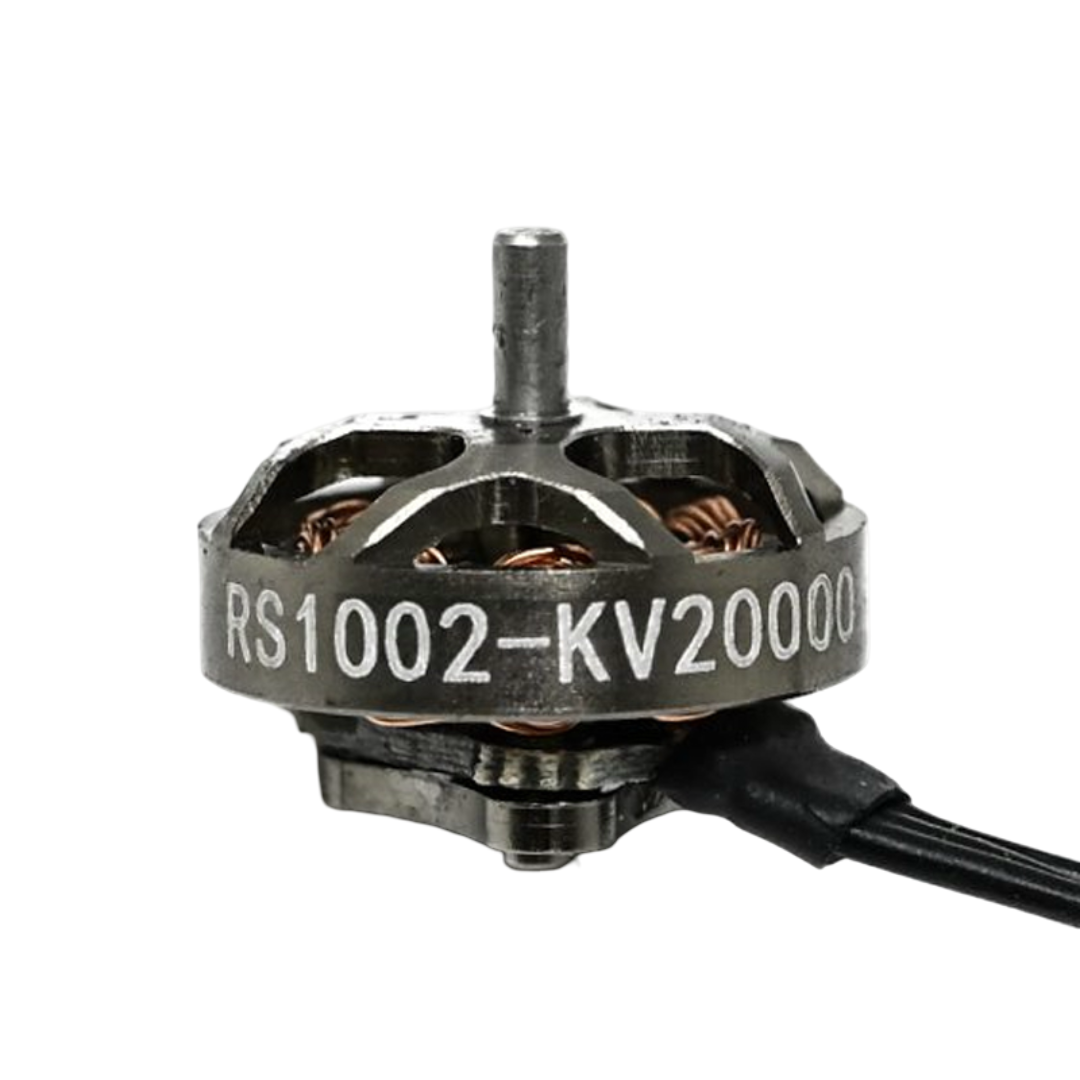

HappyModel RS1002-20000KV Brushless Motor (CW) - Silver

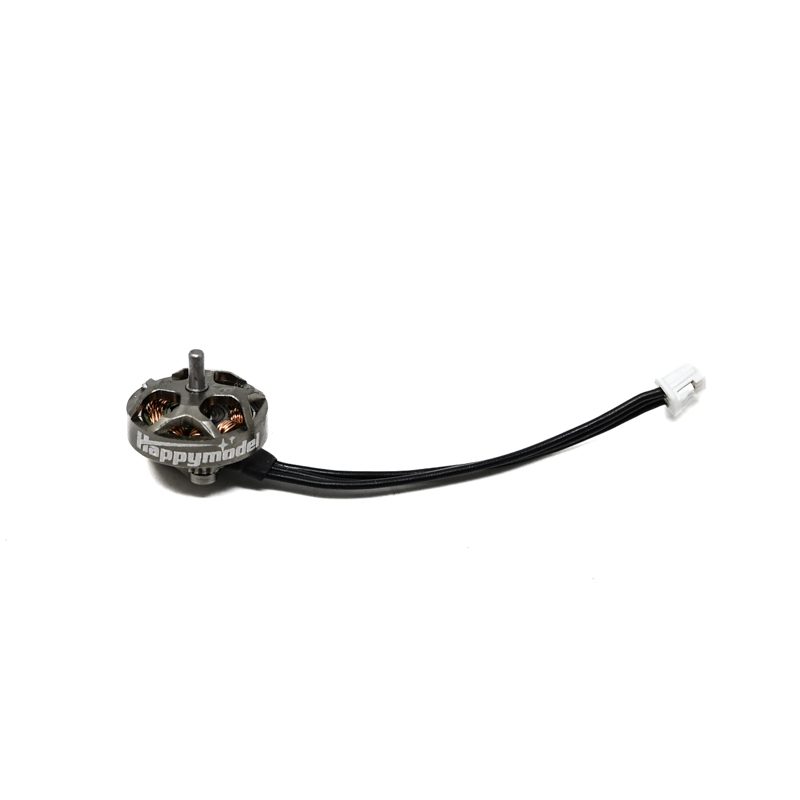

HappyModel RS1002-20000KV Brushless Motor (CW) - Silver - Image 2
SKU: DRFC-2364
📋 GST Invoice Available

HappyModel RS1002-20000KV Brushless Motor (CW) - Silver

₹989.00 (Inclusive of all taxes)
Out of Stock

The HappyModel RS1002-20000KV brushless motor is engineered for high-RPM performance in ultra-lightweight 1S LiPo micro drone and Tiny Whoop builds, featuring a 9N12P configuration and a 1.5mm shaft for direct-drive applications.

Features

  • Ultra-High 20000KV rating optimized for 1S LiPo voltage (3.7V nominal).
  • Compact 1002 stator size (10mm diameter x 2mm length) for minimal weight and high power density.
  • Lightweight 2.5g design maximizes thrust-to-weight ratio for agile micro FPV flight.
  • Features a durable 1.5mm steel shaft and pre-soldered JST 1.25mm connector for easy integration.
  • 9N12P (9 stator teeth, 12 magnet poles) configuration ensures smooth, efficient operation.

Out of stock

Description

The RS1002-20000KV motor leverages a high pole count 9N12P design to deliver smooth, cogging-free rotation and rapid throttle response, essential for acrobatic Tiny Whoop maneuvers. Its 1002 stator provides a balanced torque profile, enabling quick acceleration and recovery in tight spaces.

Constructed with a precision-balanced bell and a silver-anodized finish, the motor maintains structural integrity at extreme RPMs while contributing minimal mass. The integrated JST 1.25mm connector simplifies wiring in space-constrained micro drone frames, ensuring reliable power delivery from 1S LiPo packs.

Key Features

  • High-Speed Stator Design: The 1002 (10x2mm) stator is optimized for low inertia and rapid magnetic field switching, achieving peak RPMs efficiently on 1S power.
  • Precision 9N12P Configuration: The 9-tooth stator and 12-pole rotor magnet arrangement minimizes cogging torque for buttery-smooth rotation across the entire throttle range.
  • Ultra-Lightweight Construction: At just 2.5 grams, the motor significantly reduces overall AUW, directly enhancing flight time and agility in micro builds.
  • Durable 1.5mm Hardened Shaft: The steel shaft resists bending under impact, protecting internal bearings and ensuring long-term alignment.
  • Integrated Connector System: Pre-installed JST 1.25mm connector eliminates soldering for plug-and-play compatibility with most micro AIO flight controllers.
  • Silver-Anodized Finish: Provides a sleek appearance and a protective layer against minor abrasions and corrosion.

Applications

  • High-performance 65mm to 75mm Tiny Whoop FPV drones requiring maximum punch-outs and yaw rates.
  • Ultra-lightweight 1S micro freestyle and racing quads in the 2-inch prop class.
  • Direct-drive setups for micro CineWhoop builds prioritizing agility and quick throttle response.
  • Lightweight DIY micro drone projects where minimizing AUW is critical for flight characteristics.
  • Replacement or upgrade motor for popular 1S brushless micro drone platforms.

Technical Specifications

Motor TypeBrushless Outrunner
ModelRS1002
KV Rating20000 KV (RPM/Volt)
Stator Size1002 (10mm Diameter x 2mm Length)
Shaft Diameter1.5 mm
Configuration9N12P (9 Stator Teeth, 12 Magnet Poles)
Rotation DirectionClockwise (CW)
Connector TypeJST 1.25mm
Weight2.5 g
Voltage Compatibility1S LiPo (3.7V Nominal)

Frequently Asked Questions

What is the maximum recommended battery voltage for the RS1002 20000KV motor?

This motor is strictly designed for 1S LiPo battery operation, with a nominal voltage of 3.7V and a maximum charged voltage of 4.2V. Exceeding this voltage, such as using a 2S battery, will drastically increase RPM, current draw, and temperatures, leading to immediate motor failure or ESC damage.

Is this motor compatible with standard micro drone flight controllers?

Yes, its pre-soldered JST 1.25mm connector plugs directly into the motor output pads of most All-In-One (AIO) flight controllers designed for micro drones. Ensure your ESC is rated for the high KV and current draw, typically supporting at least 5A per motor on 1S.

What propeller size is recommended for the RS1002 20000KV motor?

This motor is optimized for small, lightweight propellers typically used on 65mm-75mm frame Tiny Whoops, such as 31mm or 40mm tri-blade props. Using larger or heavier props will over-stress the motor, causing excessive heat, reduced efficiency, and potential burnout.

Package Includes

  • 1 x HappyModel RS1002-20000KV Brushless Motor (CW) - Silver

Additional Information

Weight 0.15 kg
Dimensions 8 × 12 × 2 cm
