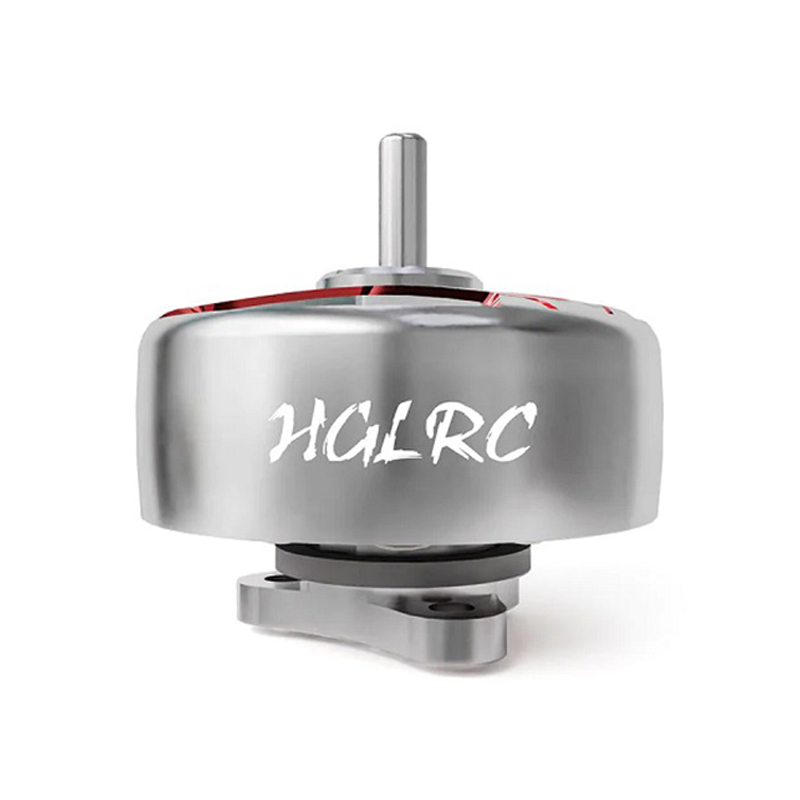

HGLRC SPECTER 1003 10000KV Brushless Motor
The HGLRC SPECTER 1003 10000KV brushless motor is engineered for ultra-high-RPM performance in 1-2S micro and tiny-whoop drone builds, delivering exceptional thrust-to-weight ratios for agile, high-speed flight.
Features
- Ultra-high 10000KV rating for maximum RPM and thrust on 1-2S LiPo batteries.

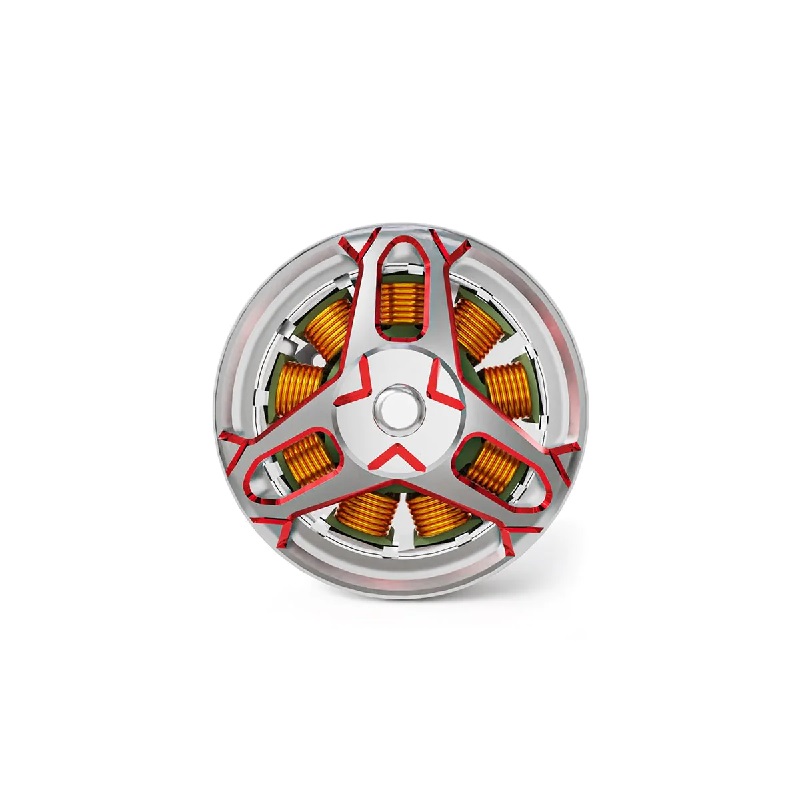

- Precision 9N12P slot-pole configuration with N52H curved magnets for high torque and linear throttle response.
- Constructed with a 7075 aviation aluminum one-piece rotor and high-temperature 200°C copper wire windings for durability.

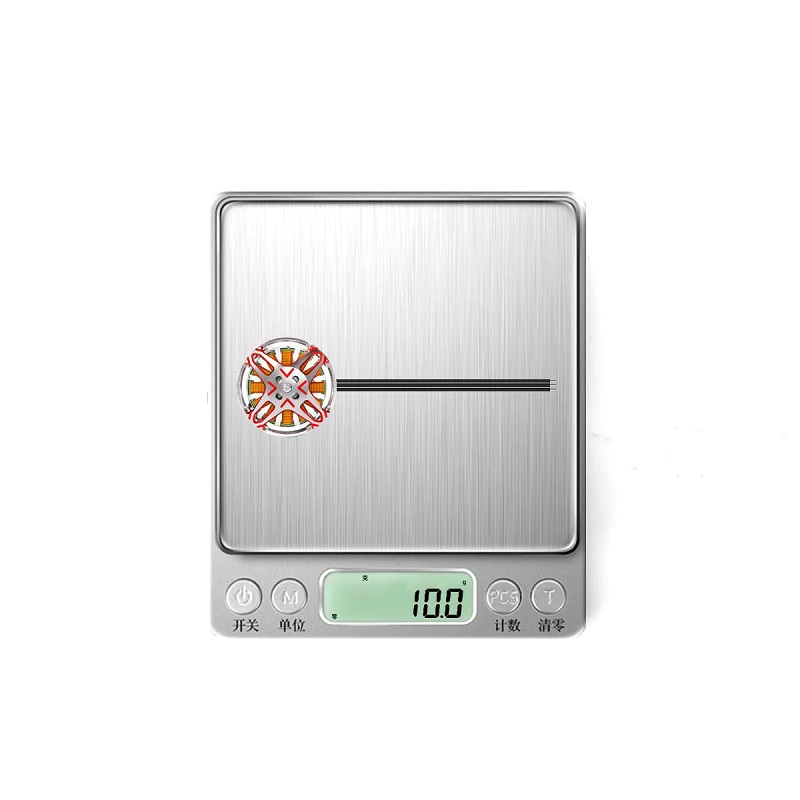

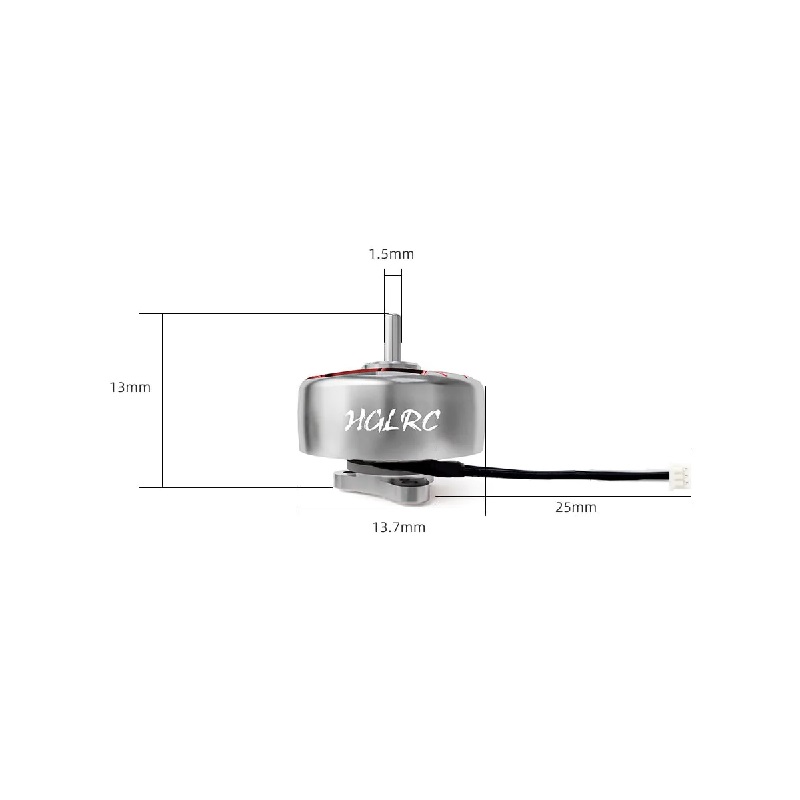

- Compact 1003 size (Φ13.7mm x 9.2mm) and lightweight 3.35g design optimized for 75mm tiny-whoop and toothpick frames.
- Compatible with 1.6-2 inch propellers and requires an ESC rated for >5A continuous current.
Out of stock
The HGLRC SPECTER 1003 motor leverages a high-grade stator core built from imported Kawasaki silicon steel sheets, which minimizes eddy current losses and reduces operational heat. This design, combined with a high-strength alloy steel output shaft, ensures a robust and efficient power unit capable of handling rapid throttle changes and aggressive maneuvers.

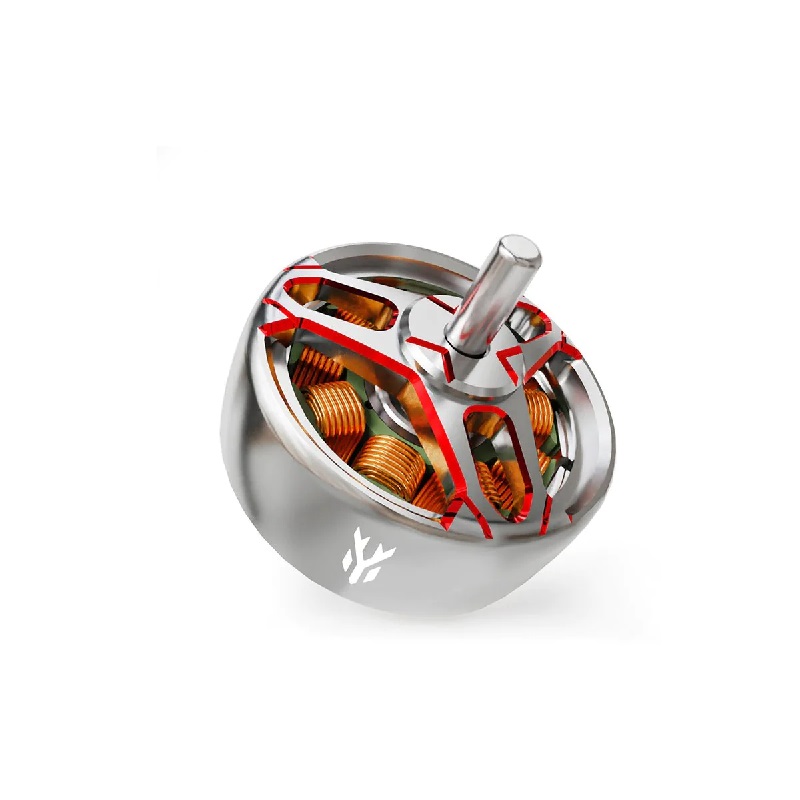

Its anodized two-color rotor is machined from a single piece of 7075 aviation aluminum, providing exceptional structural integrity and reducing rotational mass. The motor’s tuning is optimized to maintain strong torque at low speeds while delivering a precise and fast response during turns, making it ideal for technical flying in confined spaces.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 5 × 5 × 3 cm |
