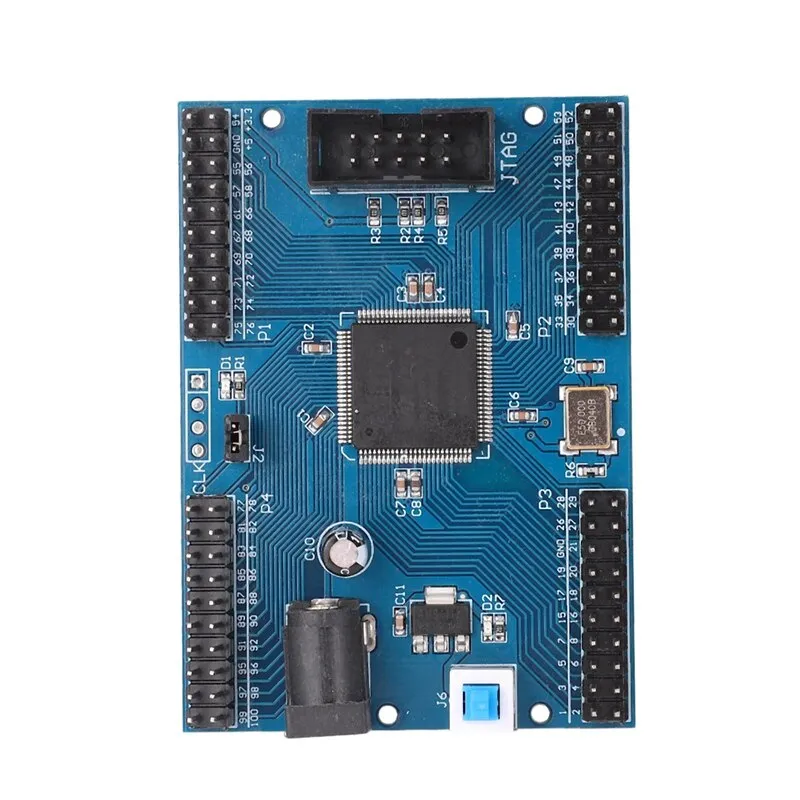

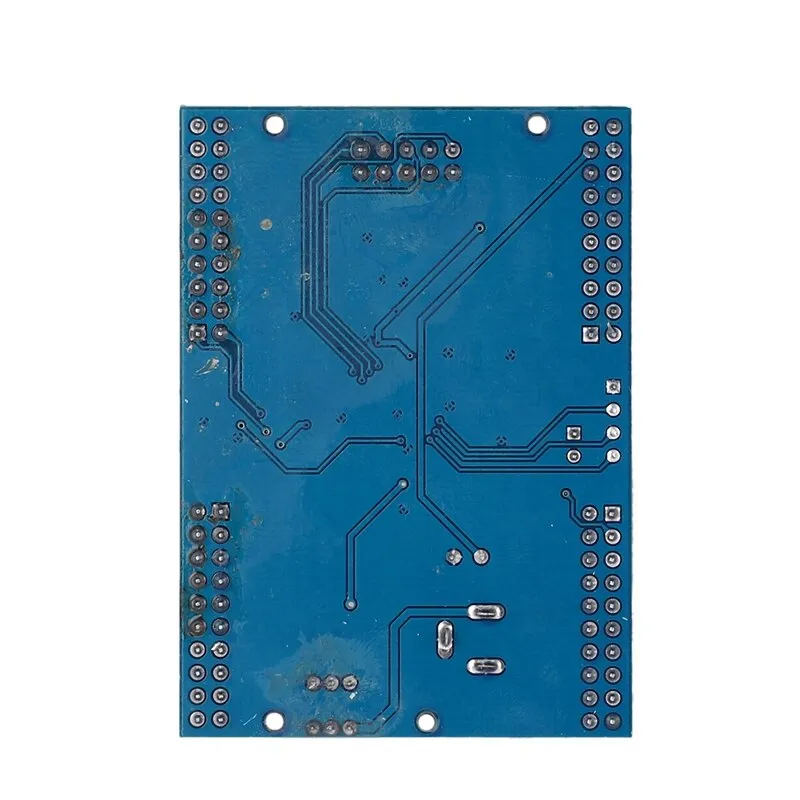

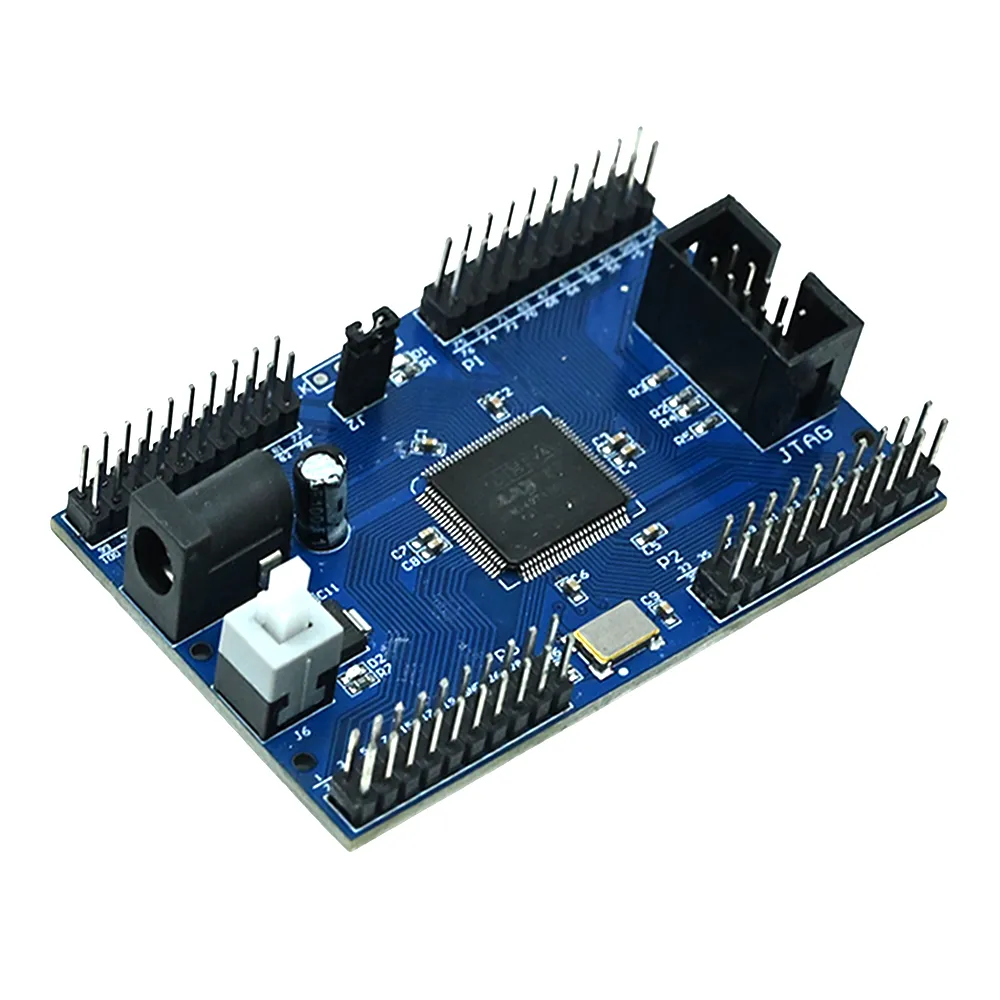

Altera MAX II EPM240 CPLD Development Board

This development board features the Altera MAX II EPM240T100C5N CPLD chip. This chip is part of the Altera MAX II family, known for its low cost and suitability for various digital logic applications, providing a robust platform for design and experimentation.

The board operates on a single 5V DC power supply, typically connected via a standard DC barrel jack. Programming is facilitated through the JTAG interface, supporting common downloaders like Altera Byte-Blaster or USB-Blaster, enabling easy configuration and debugging of CPLD designs.

The board includes an onboard EPCS4 configuration EPROM with 8Kbit storage, ensuring non-volatile program retention. For timing-critical applications, it integrates a 50MHz active patch crystal, providing a stable and precise clock source for synchronous digital circuits.

Yes, all CPLD I/O ports and dedicated clock pins are conveniently broken out via header pins. This design allows extensive expandability, enabling users to easily interface with external components like LEDs, LCDs, sensors, and other digital peripherals for various project requirements.

The Altera MAX II EPM240 CPLD is typically programmed using Altera's Quartus II software suite. This IDE provides tools for design entry (HDL, schematic), synthesis, fitting, and programming, offering a comprehensive environment for developing and deploying CPLD-based solutions efficiently.
