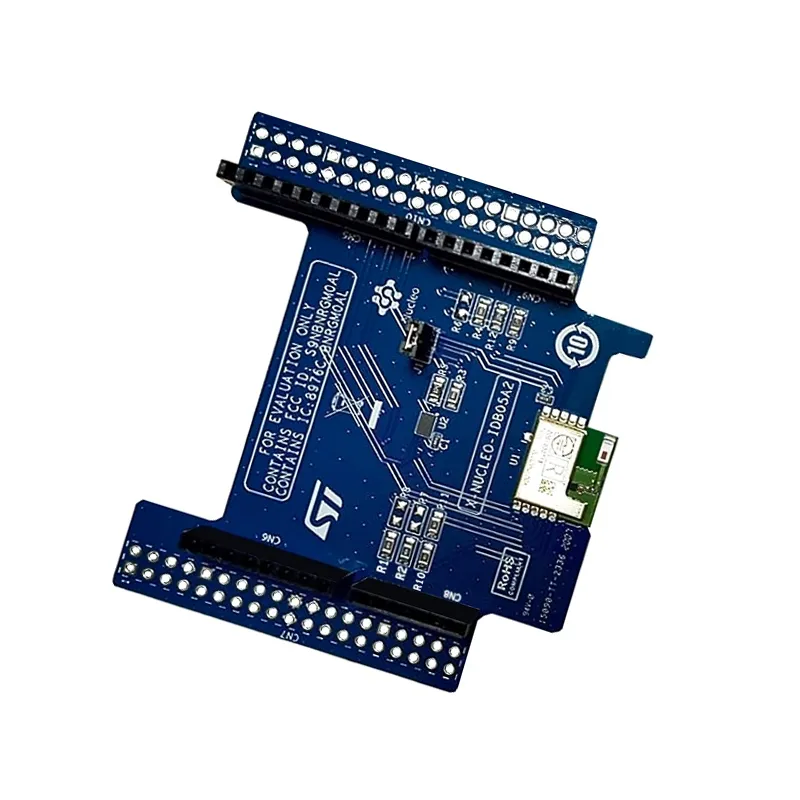

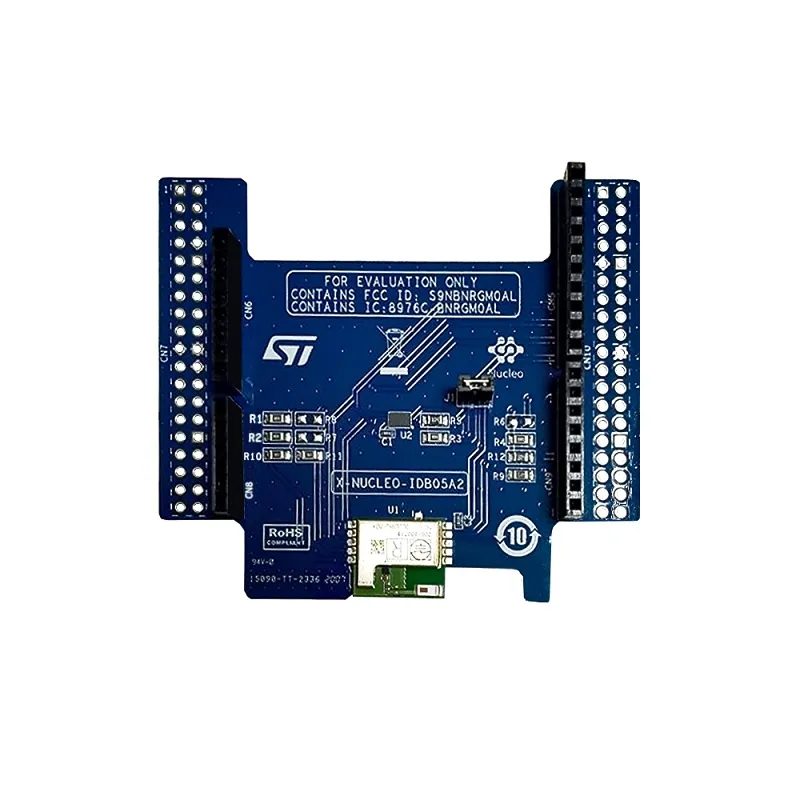

STMicroelectronics X-NUCLEO-IDB05A2 BLE Expansion Board
The STMicroelectronics X-NUCLEO-IDB05A2 is a Bluetooth Low Energy (BLE) expansion board designed for STM32 Nucleo development boards, featuring the BlueNRG-M0/MS network processor and a compact form factor. It provides a robust, FCC/IC certified Bluetooth v4.2 solution with an integrated antenna, supporting both master and slave roles for IoT and wireless applications.
Features
- Features the BlueNRG-M0/MS Bluetooth Low Energy network processor.
- Bluetooth v4.2 compliant, FCC and IC certified module for reliable wireless communication.
- Directly compatible with STMicroelectronics STM32 Nucleo boards and Arduino UNO R3 connector layout.
- Includes an integrated chip antenna and a complete RF platform in a small form factor.
- Supports simultaneous Bluetooth master/slave roles, enabling versatile network architectures.
Out of stock
The X-NUCLEO-IDB05A2 is a dedicated Bluetooth Low Energy expansion board, leveraging the high-performance BlueNRG-M0 BLE network processor module. This module offers full Bluetooth v4.2 compliance and holds essential FCC and IC certifications (FCC ID: S9NBNRGM0AL; IC: 8976C-BNRGM0AL), ensuring regulatory adherence and dependable operation. It enables robust wireless connectivity for STM32 Nucleo projects.
Designed for flexibility, the board supports simultaneous master and slave roles, allowing it to function concurrently as both a Bluetooth low-energy sensor and a hub device. The BlueNRG-M0 module provides a comprehensive RF platform within a compact 11.5mm x 13.5mm footprint, integrating the radio, antenna, and both high-frequency and low-power oscillators. The X-NUCLEO-IDB05A2 is compatible with both the ST morpho (unmounted) and standard Arduino UNO R3 connector layouts, simplifying integration into existing development ecosystems.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 20 × 15 × 4 cm |
