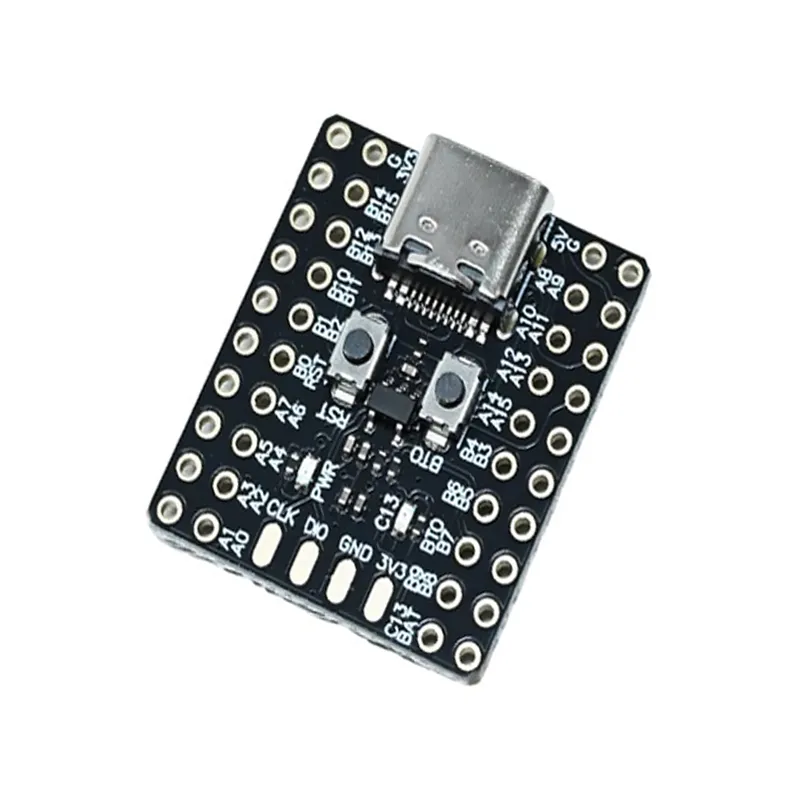

STM32F103C8T6 Mini Development Board w/ USB-C & Serial

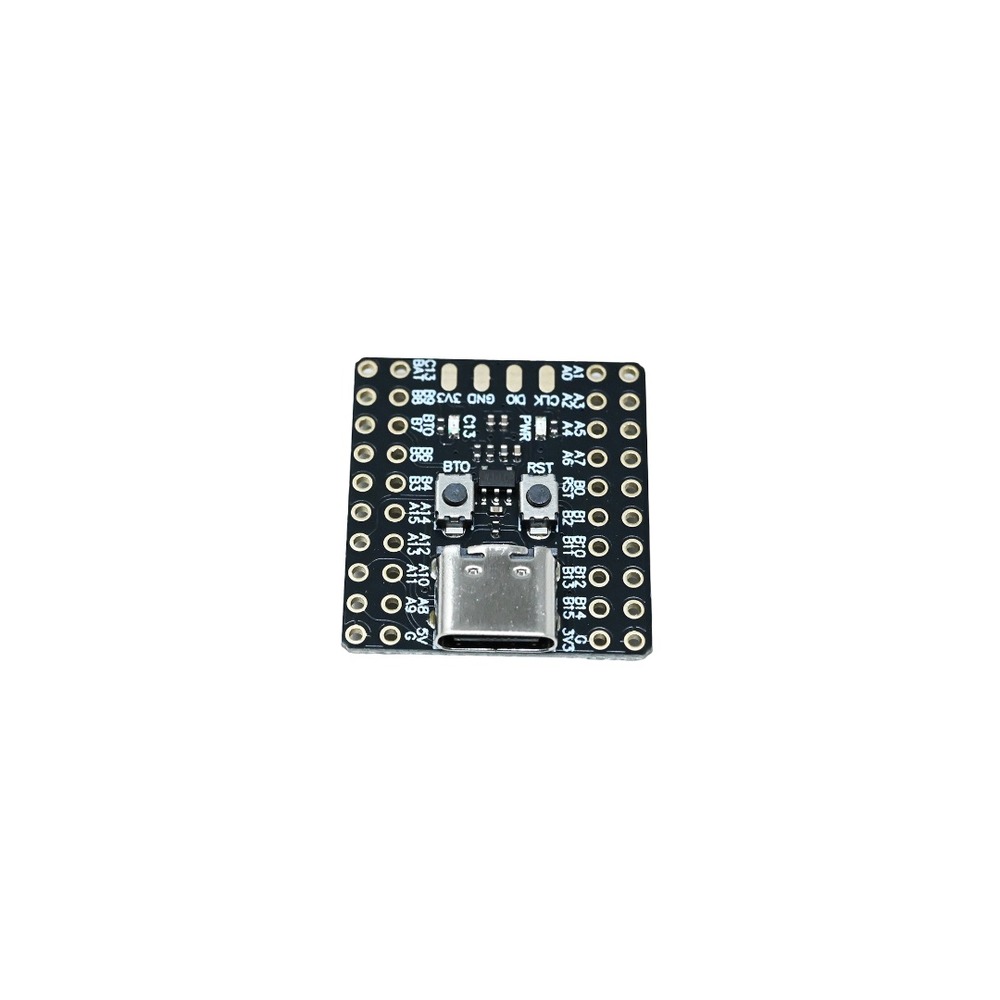

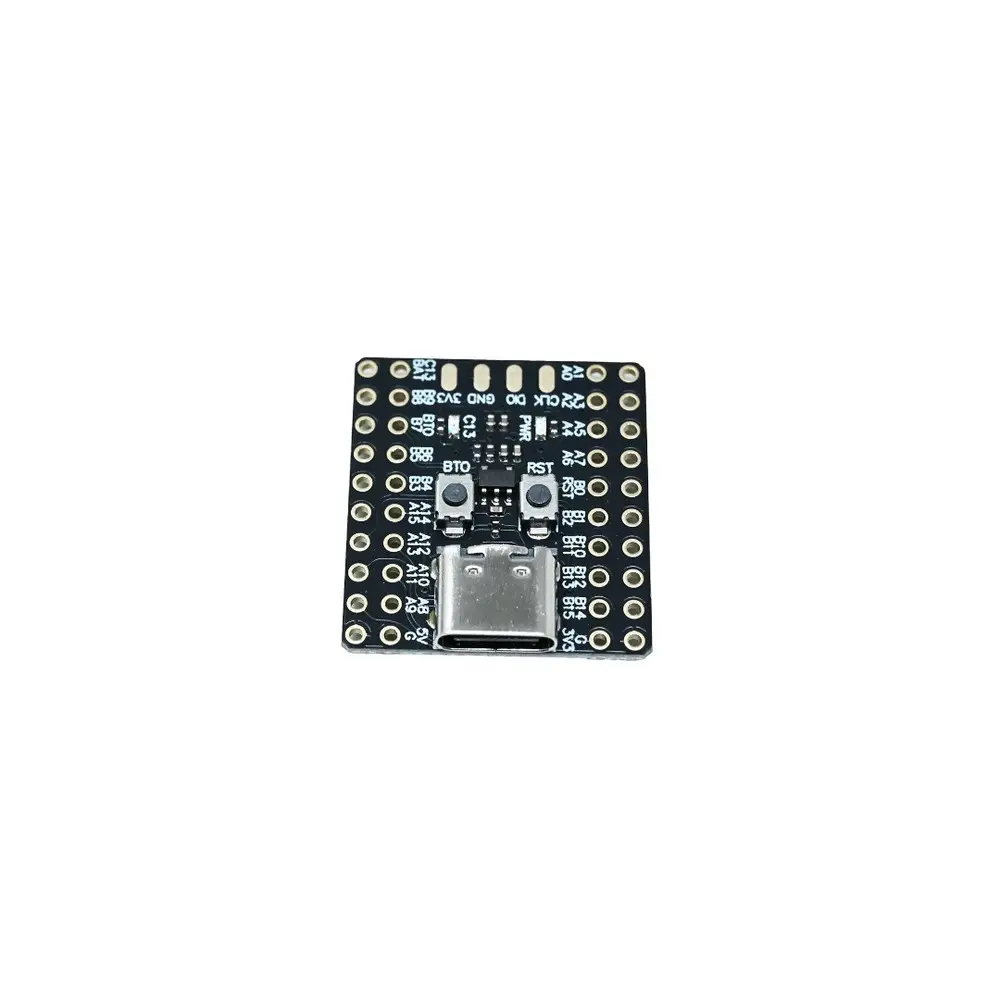

STM32F103C8T6 Mini Development Board w/ USB-C & Serial - Image 2

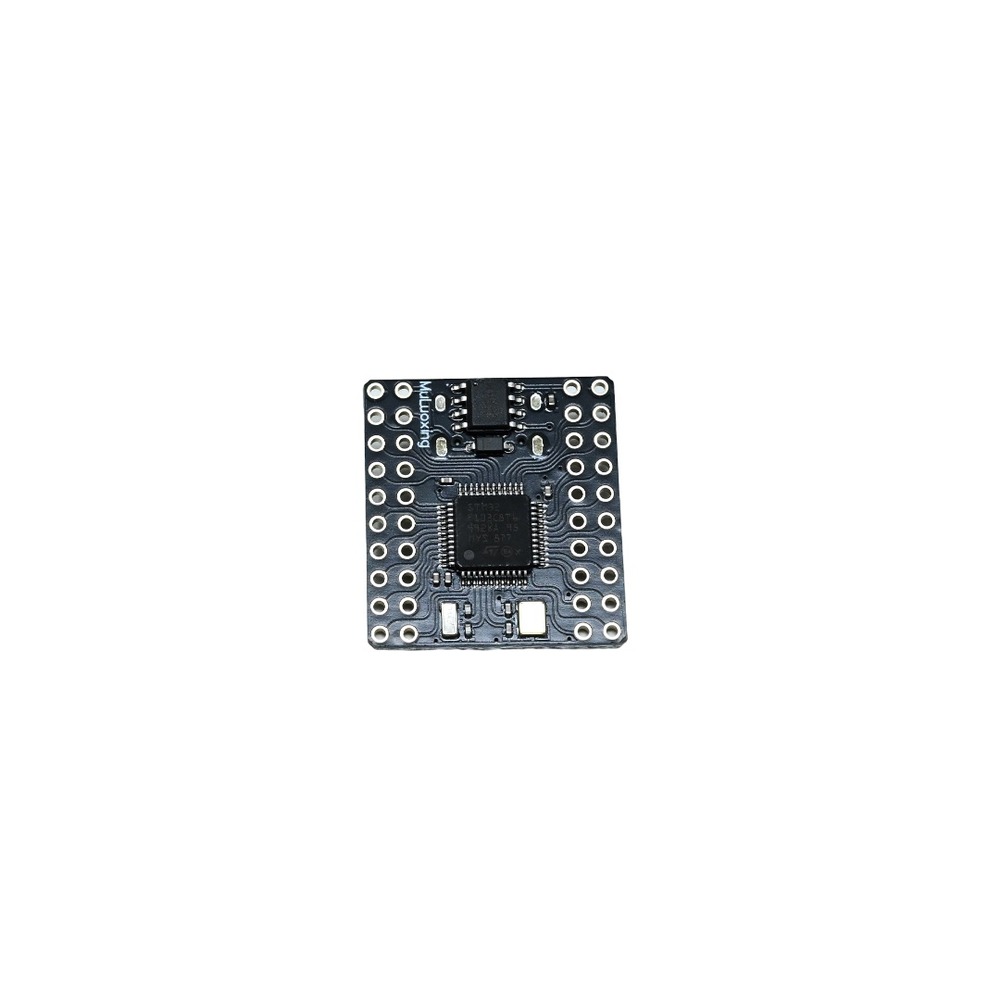

STM32F103C8T6 Mini Development Board w/ USB-C & Serial - Image 3
SKU: SBCD-0389
📋 GST Invoice Available

STM32F103C8T6 Mini Development Board w/ USB-C & Serial

₹259.00 (Inclusive of all taxes)
Out of Stock

The STM32F103C8T6 mini development board features a 32-bit ARM Cortex-M3 core operating at 72MHz, equipped with 64KB Flash and 20KB SRAM for efficient embedded applications. Its compact design includes a versatile Type-C USB/serial switchable interface, making it ideal for prototyping and small-scale projects.

Features

  • Integrated STM32F103C8T6 ARM Cortex-M3 microcontroller operating at 72MHz.
  • Features 64KB of Flash memory and 20KB of SRAM for robust application development.
  • Equipped with a dual-function USB Type-C port for power and switchable serial communication.
  • Compact form factor exposing all I/O pins via dual-side headers for easy integration.
  • Includes onboard reset and boot selection buttons for convenient programming and debugging.

Out of stock

Description

The STM32F103C8T6 mini development board is engineered for efficient embedded development, offering a compact and robust platform. Built on the ARM Cortex-M3 architecture, it delivers a 72MHz operating speed, complemented by 64KB Flash and 20KB SRAM—making it ideal for real-time, low-power applications requiring reliable performance.

This board ensures full I/O accessibility through dual-side pin headers and includes a dedicated SWD interface for advanced debugging. It supports versatile power input via Type-C and features a dual-function USB/serial interface (CH340N) for flexible programming and communication. With onboard reset and boot buttons, alongside essential LED indicators, this board is perfect for rapid prototyping, DIY electronics, and small-scale automation systems.

Key Features

  • High-performance STM32F103C8T6 microcontroller with a 72MHz ARM Cortex-M3 core.
  • Integrated 64KB of Flash memory and 20KB of SRAM for program and data storage.
  • Versatile USB Type-C port supports both 5V power input and switchable serial communication via CH340N.
  • All GPIO pins are conveniently exposed on dual-side headers, enhancing prototyping flexibility.
  • Dedicated Serial Wire Debug (SWD) interface for professional debugging and programming.
  • Equipped with onboard reset and boot selection buttons for quick operational control.
  • Features power and user-programmable LED indicators (PWR, PC13) for status feedback.
  • Supports I/O operation at 3.3V, compatible with common peripheral logic levels.

Applications

  • Rapid prototyping for embedded systems.
  • DIY electronics projects requiring a compact ARM microcontroller.
  • Small-scale automation and control systems.
  • Learning and experimenting with STM32 architecture.
  • Sensor data acquisition and logging.

Technical Specifications

MicrocontrollerSTM32F103C8T6 (ARM Cortex-M3)
Core Speed72 MHz
Flash Memory64 KB
SRAM20 KB
Input Voltage5V (via USB Type-C)
I/O Voltage3.3V / 5V
USB InterfaceType-C (Power, Serial via CH340N)
Dimensions30 mm x 22 mm
Weight5 g

Frequently Asked Questions

What are the core specifications of the STM32F103C8T6?

This board features an STM32F103C8T6 microcontroller with an ARM Cortex-M3 core, running at 72MHz. It includes 64KB of Flash memory for program storage and 20KB of SRAM for data, providing a solid foundation for various embedded applications requiring moderate processing and memory resources.

How is the board powered and programmed?

The board is powered via its USB Type-C port, which accepts a 5V input. This same port facilitates communication, switchable between a standard USB interface and a serial UART connection, thanks to an onboard CH340N converter. This setup simplifies both power delivery and program flashing using common development tools.

What development environments are compatible with this board?

The STM32F103C8T6 is widely supported by various development environments, including STM32CubeIDE, Keil MDK, and IAR Embedded Workbench. It can also be programmed using the Arduino IDE with appropriate core packages. For debugging, the board provides a dedicated SWD interface, compatible with ST-Link V2 programmers.

What are the I/O capabilities and logic levels?

This board exposes all available GPIO pins through dual-side headers, offering extensive connectivity for peripherals. While the board receives 5V input power via USB-C, its I/O pins operate primarily at 3.3V logic levels, though some pins might be 5V tolerant. Always verify pin specifications before connecting external components.

Package Includes

  • 1 x STM32F103C8T6 Mini Development Board with Serial Port

Additional Information

Weight 0.005 kg
Dimensions 3 × 2.2 cm
