Generic Water Level Depth Detection Sensor Module for Arduino - Analog Output

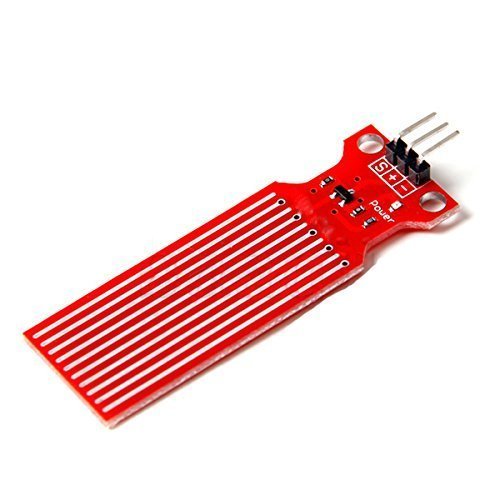

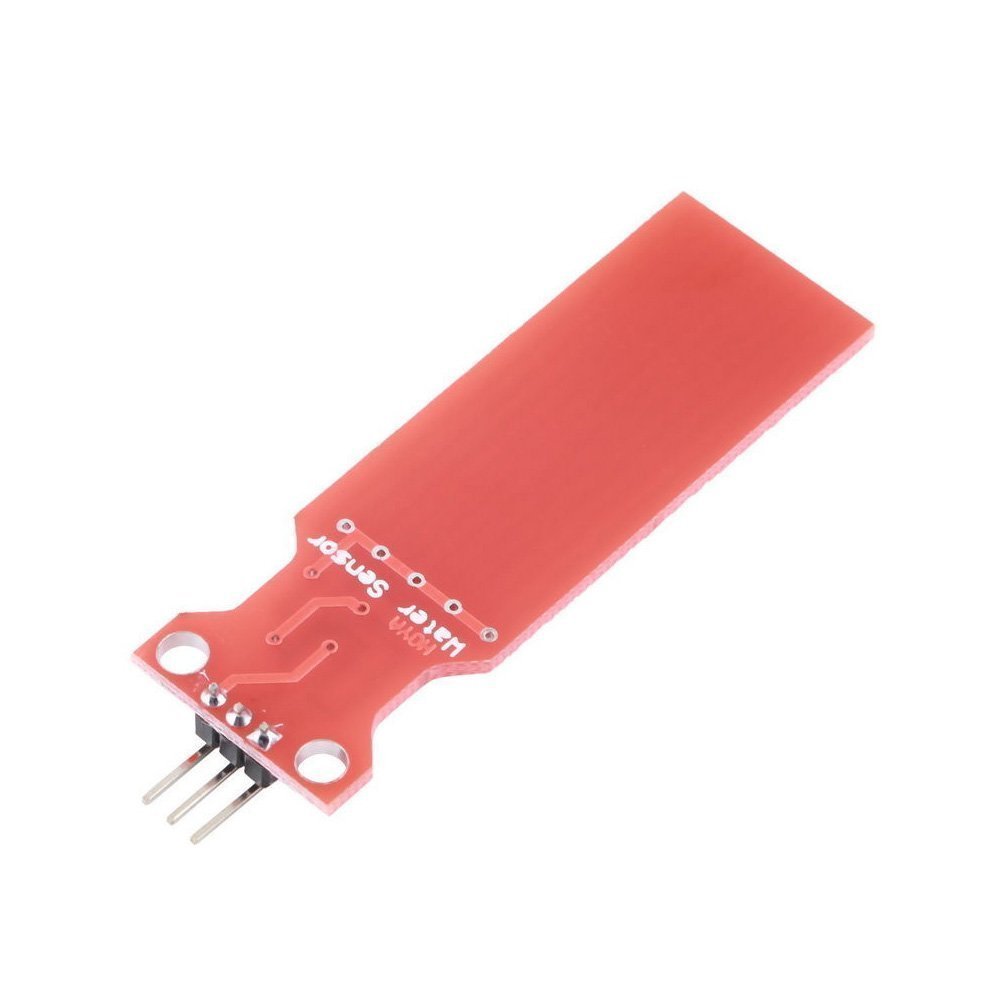

This analog water level detection sensor module is designed for Arduino and other 3.3V/5V microcontroller systems, converting water contact across its 40mm x 16mm exposed trace array into a variable analog voltage signal for precise depth measurement.
Features
- Analog output signal proportional to water level/contact area.
- Low power operation at 3-5V DC with under 20mA current draw.
- Compact PCB design with 40mm x 16mm exposed parallel wire sensing area.
- Direct interface with Arduino analog input pins for straightforward integration.
- Suitable for basic water level detection, leak sensing, and simple volume measurement projects.
Out of stock
This water level sensor operates on the principle of conductive trace sensing. A series of parallel exposed traces on the PCB act as a variable resistor; as water bridges these traces, the electrical resistance between them changes. This change in resistance is converted into a variable analog voltage output by the onboard circuitry, which can be read by an Arduino’s ADC (Analog-to-Digital Converter) pin.
The module is designed for low-voltage operation, compatible with common 3.3V and 5V logic systems. Its compact form factor and simple three-wire interface (VCC, GND, Signal) make it suitable for integration into educational projects, simple tank level monitors, and leak detection systems within its specified operating temperature range.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 6 × 2 cm |
